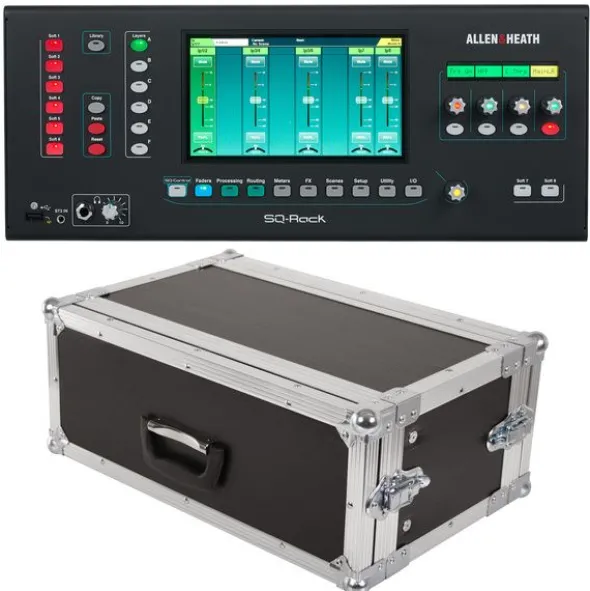

Allen & Heath SQ Rack Case Bundle

Bundle offer comprising

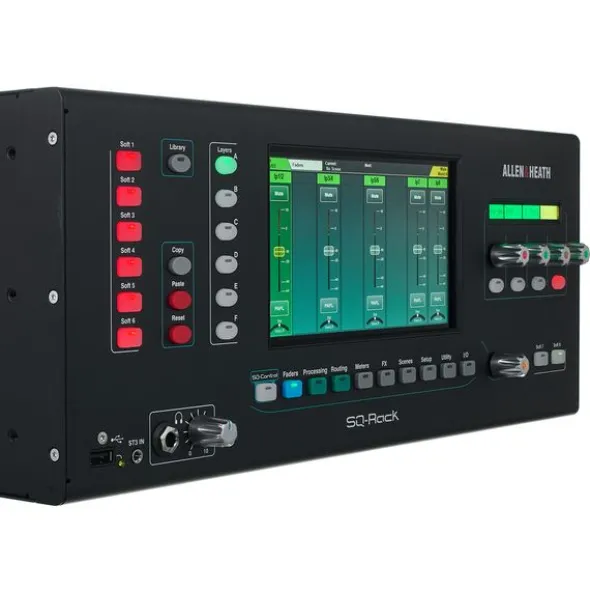

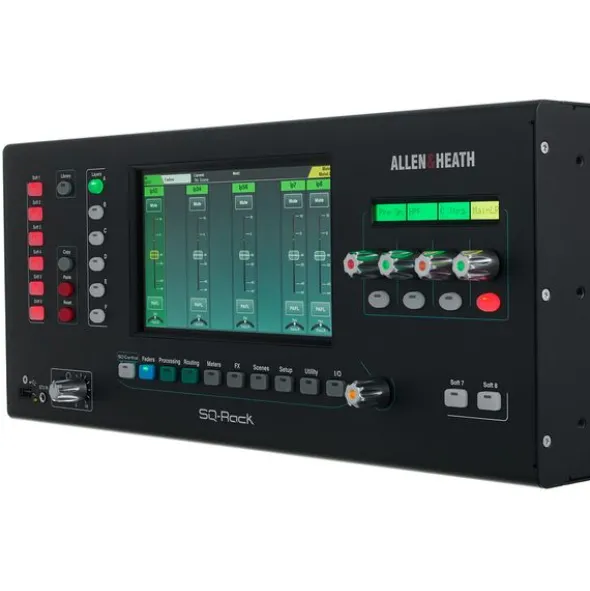

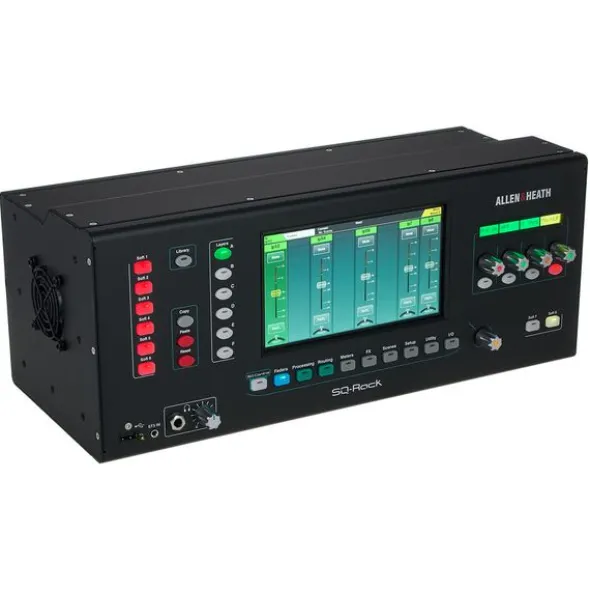

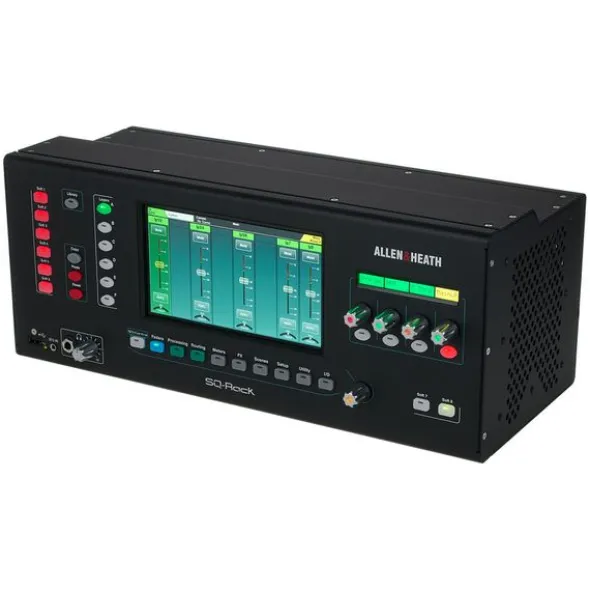

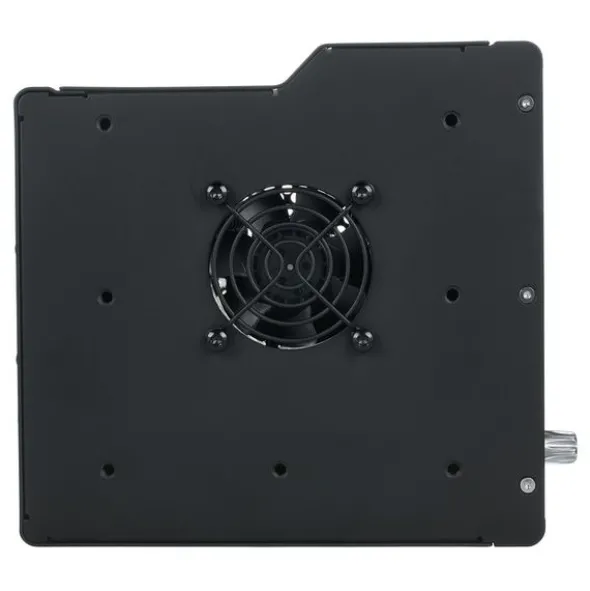

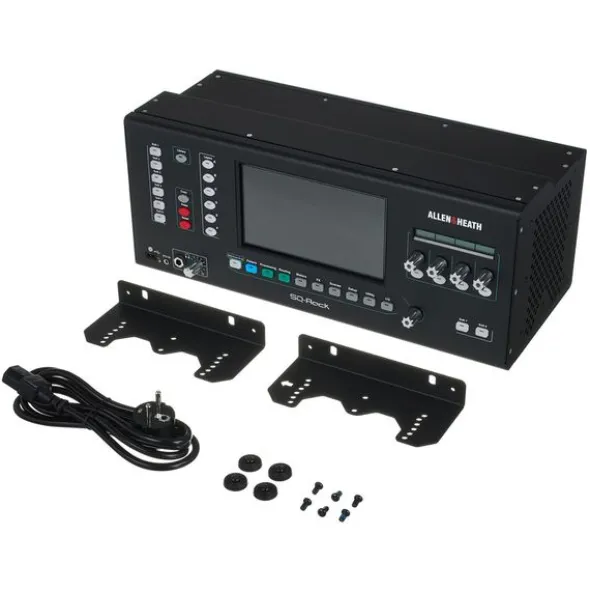

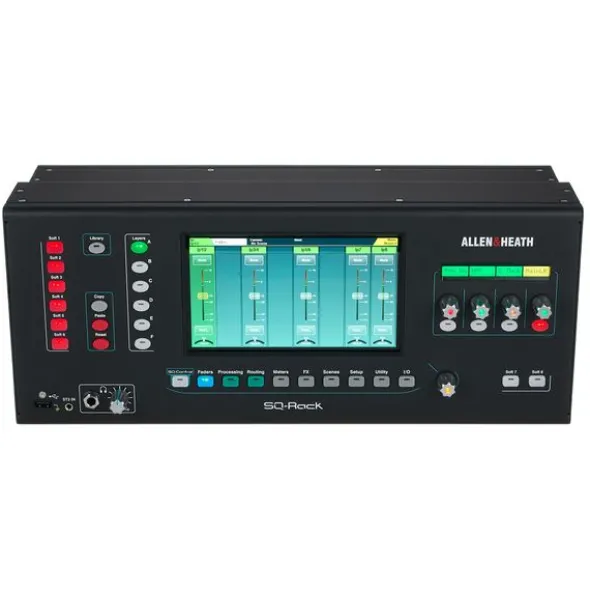

Allen & Heath SQ Rack

48-Channel Digital Mixing Console

• 96 kHz FPGA core signal processing: latency 0.7 ms

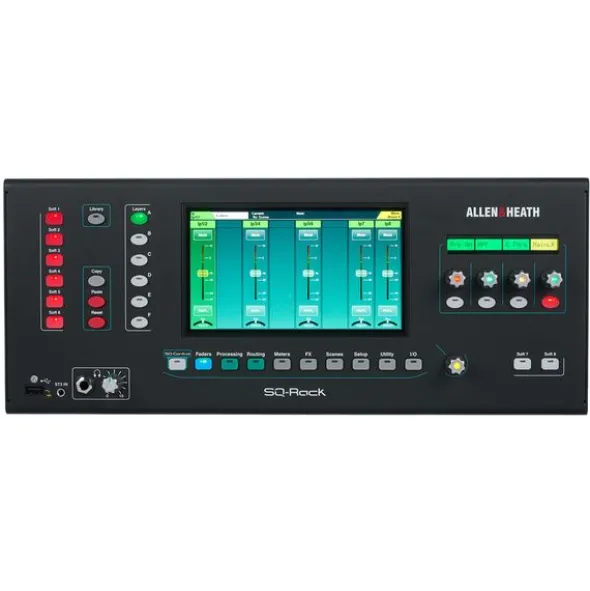

• 7″ Multi-touch screen
• 12 Stereo mixes – perfect for in-ear monitoring setups
• 3 Matrix
• 8 FX engines
• Hands control: 8 Softkeys
• 4 Soft rotaries
• SQ-Rack Apps: SQ-MixPad, SQ4You, SQ-Control
• 128 x 128 SLink connection for remote audio networking
• 64 x 64 channel I/O connection for audio networking
• 32 x 32 channel USB audio interface
• SQ-Drive for direct recording to USB stick

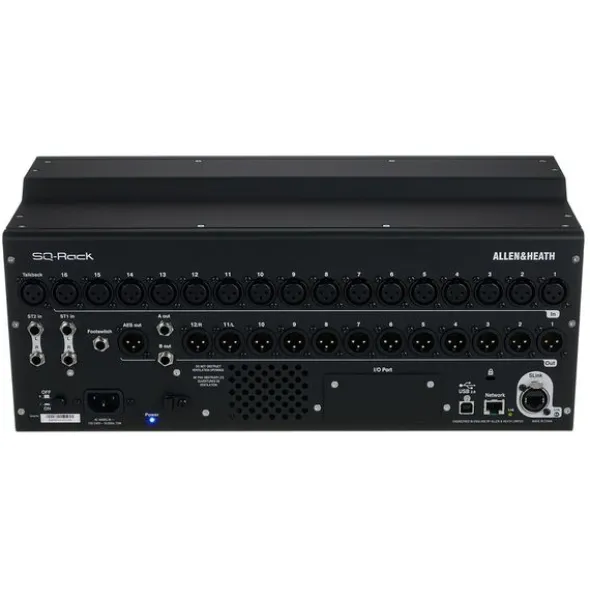

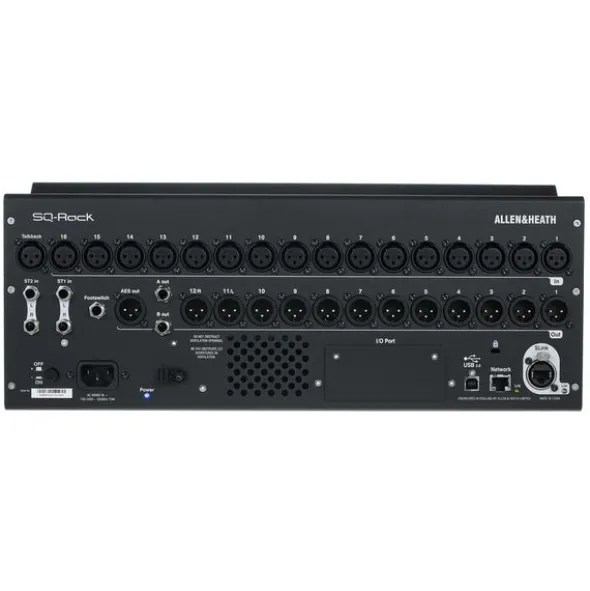

• 17 Mono XLR inputs: 1 Talkback
• 2x 6.3 mm TRS jack stereo inputs
• 3.5 mm Stereo input
• 1 XLR Talkback mic input
• 6.3 mm footswitch
• 12 XLR outputs
• 2 x 6.3 mm TRS outputs
• AES XLR output
• 6.3 mm headphone output
• I/O port for option expansion cards: Dante/Madi/Waves/SLink
• Multi-position 19″ rack ears
• 4 U installation height
• Dimensions: 430 x 214 x 173 mm
• Weight: 5.8 kg

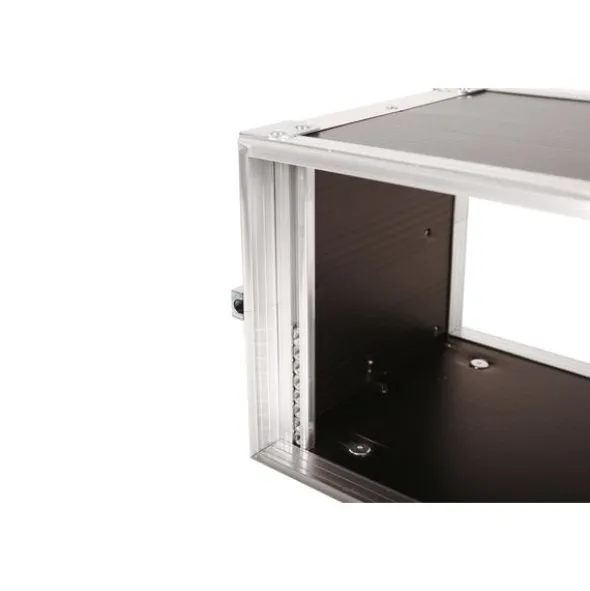

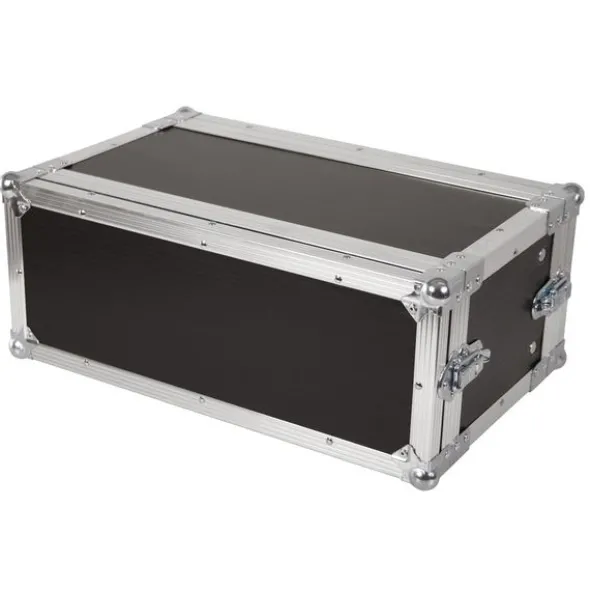

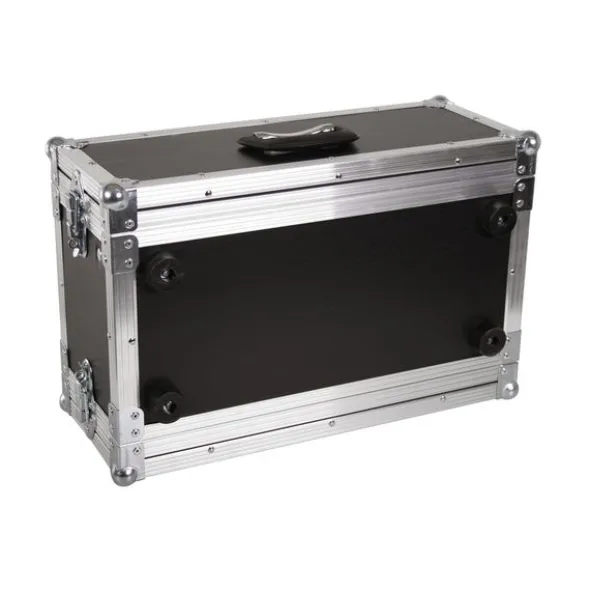

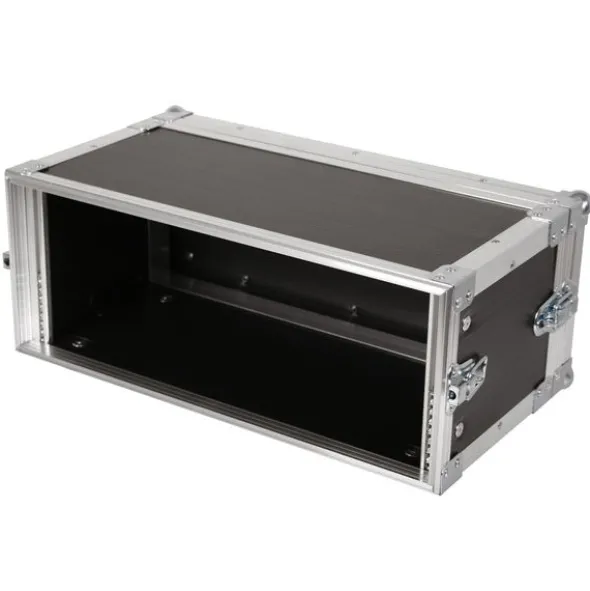

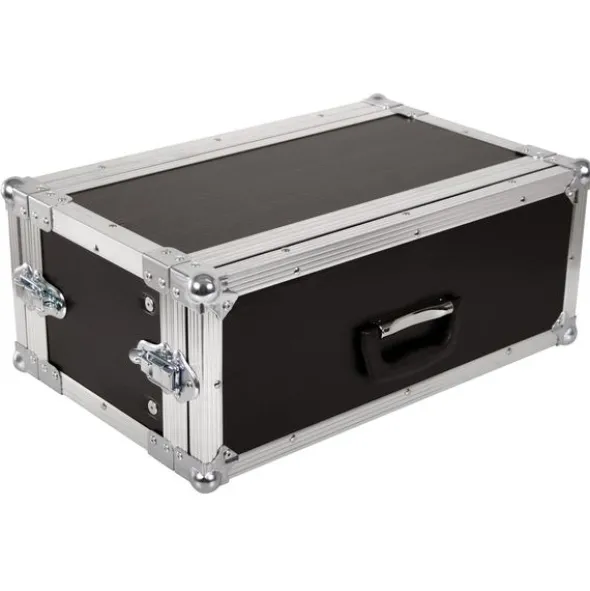

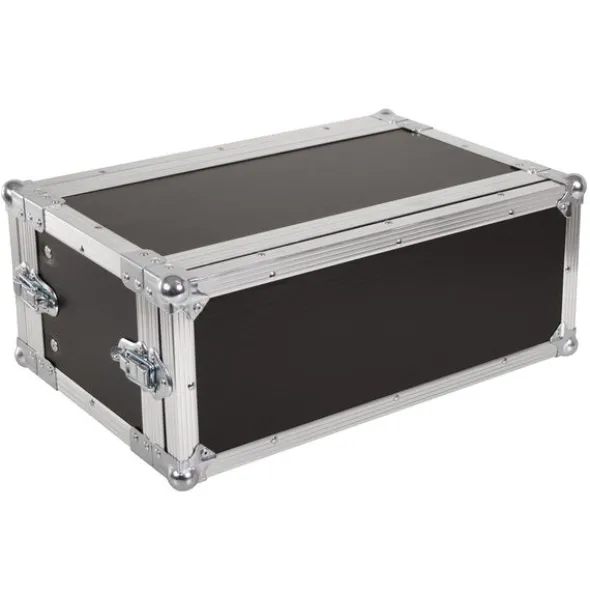

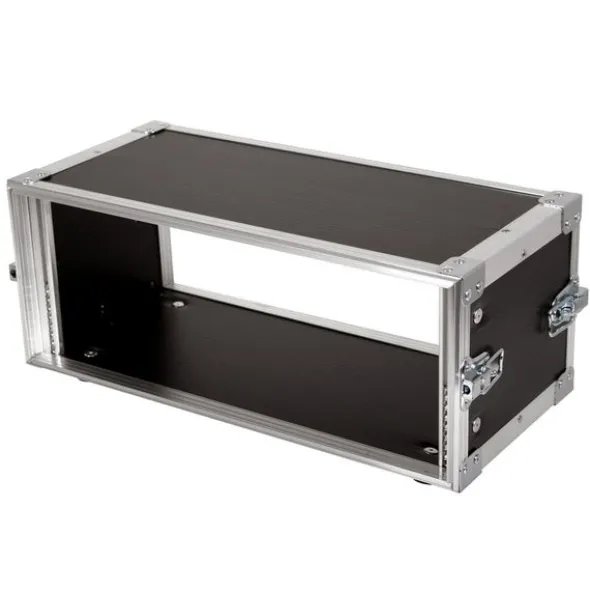

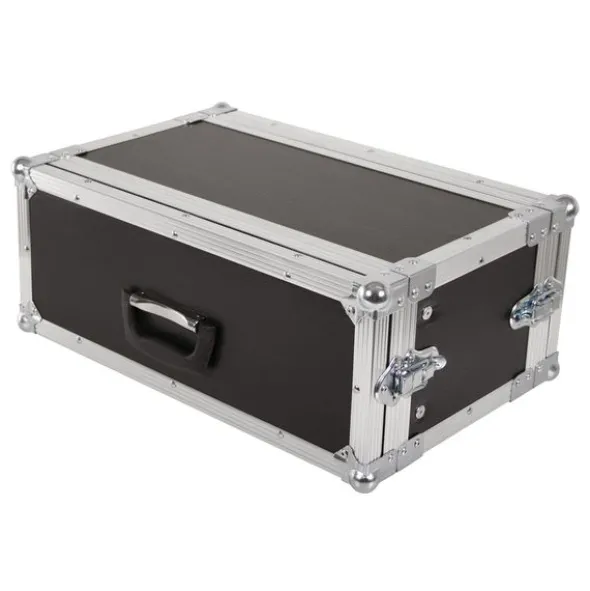

Thon Rack 4U Eco II Compact 23

19” Compact Rack

• Material super light plastic
• 4U height
• Double door version
• Drawbolts
• For equipment with a depth of 20 cm
• Suitcase handles
• 25/22 mm aluminium edges
• Stepless rackrails
• Incl. fastening material
• Big rubber feet
• Colour: Black
• Exterior dimensions: 53.5 x 22.5 x 33.5 cm
• Weight: 4 kg
• Ideal for wireless systems and effect devices
• Made in Germany

Disponível desdeSetembro 2025

número de artigo626244

unidade de venda1peça(s)

Max.number of input channels17

Microphone Inputs17

Analog Line Inputs17

Analog Line Outputs12

Analog in/ out with plug-in card expandableNo

Digital InputsUSB

Digital OutputsAES, USB

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderNo

Computer interfaceUSB, Ethernet

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders0

DSP Input channels48

DSP Output Channels12

Busses12

Number of Microphone Inputs17

Number of Mono Line Inputs4

Number of Stereo Line Inputs3

Physical outputs12

Digital stagebox connectionS-Link

EthernetEthernet

HotspotNo

Special Features7″ Touchscreen

Multitrack RecordYes

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV/MP3

RTAYes

FX Processor8

31 Band EQ13

Delay InputYes

Delay OutputYes

Matrix3

DCA/VCA Groups8

MIDI InterfaceNo

Sample rate96 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADIOptional

Digital DanteOptional

110V capableYes

CaseNo

19″ RackmountYes

Height173 mm

Width430 mm

Depth214 mm

Weight5,8 kg
