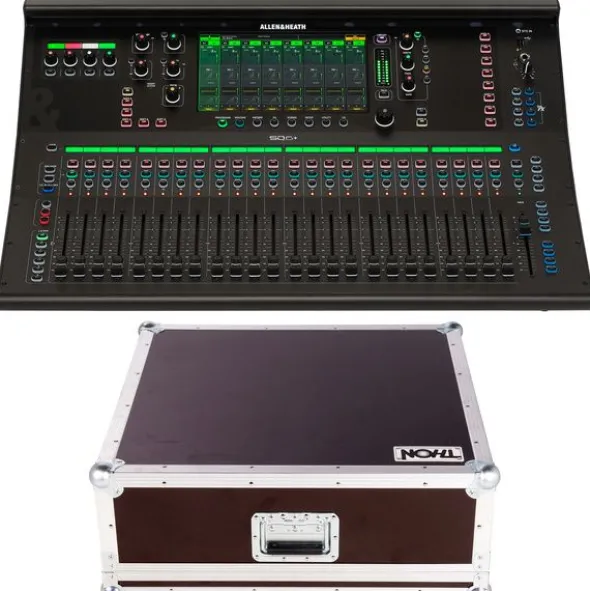

Allen & Heath SQ6+ Case Bundle

Bundle offer comprising

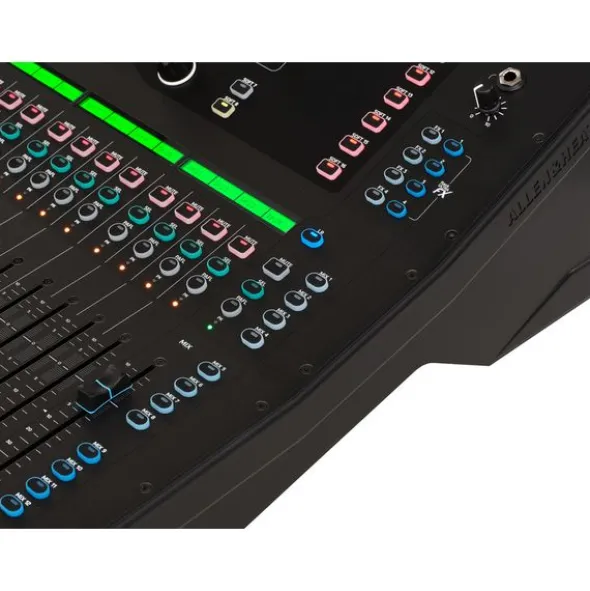

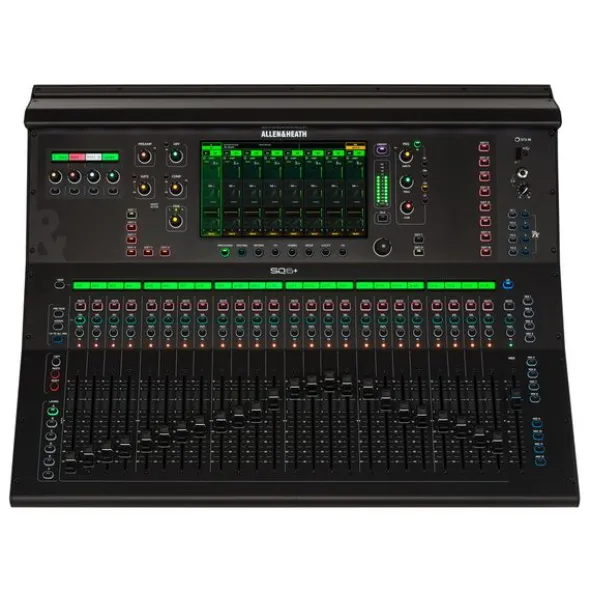

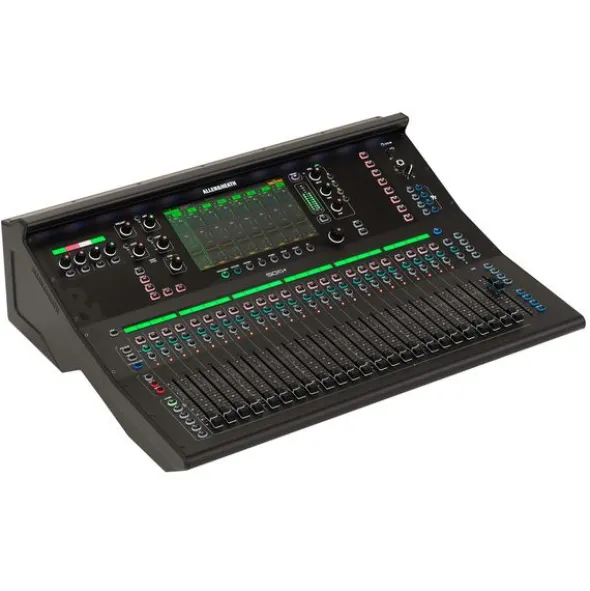

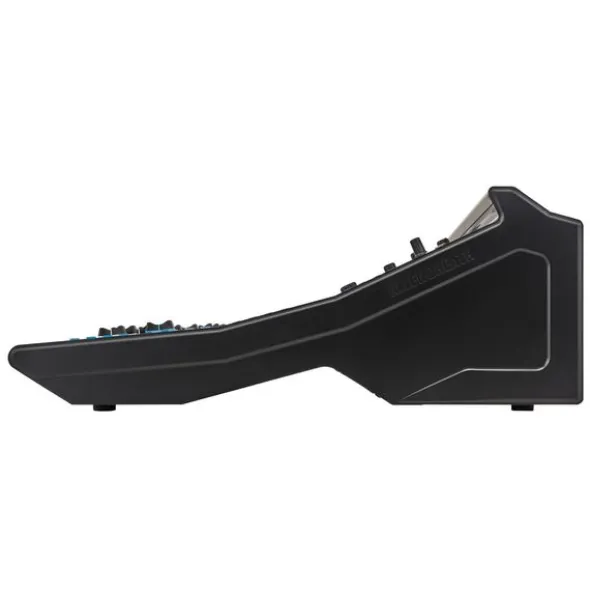

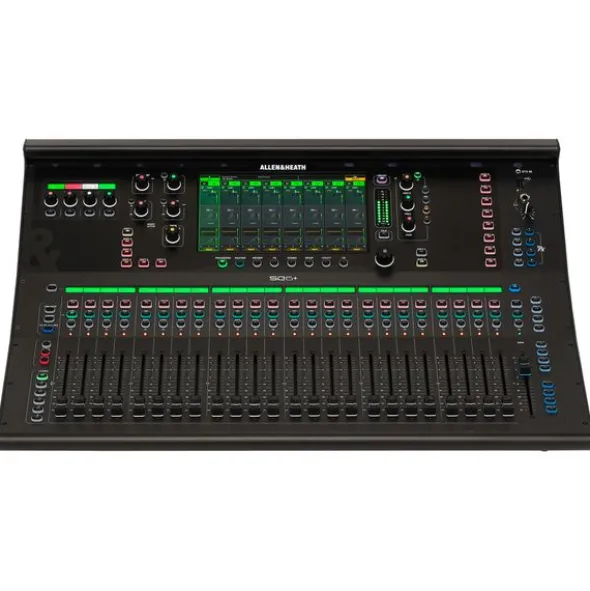

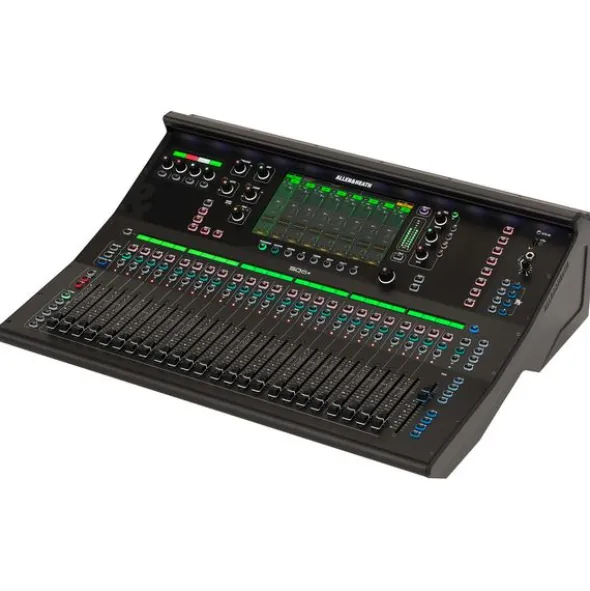

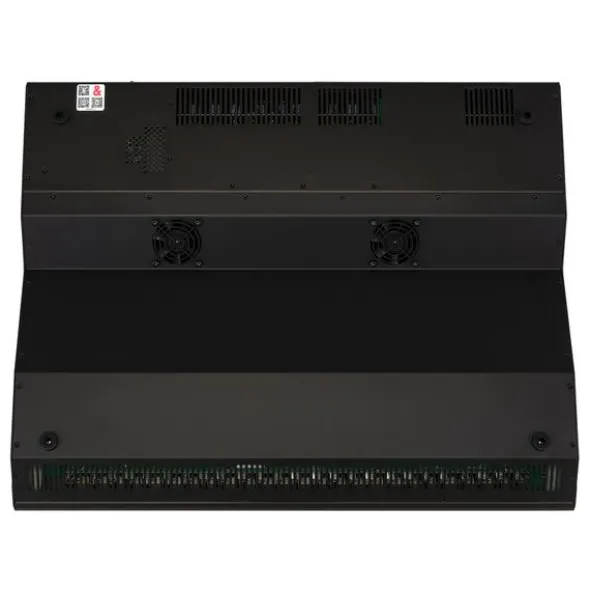

Allen & Heath SQ6+

48-Channel Digital Mixer

• Sample rate: 96 kHz
• XCVI FPGA core with very low latency (0.7ms)
• Input channels: 48
• Mix buses: 44 (12x mono / stereo group / aux + master, 8x multi-FX, 4x rack Ultra FX, 6x matrix, 1x stereo PAFL)
• 8 DCA- / Mute groups

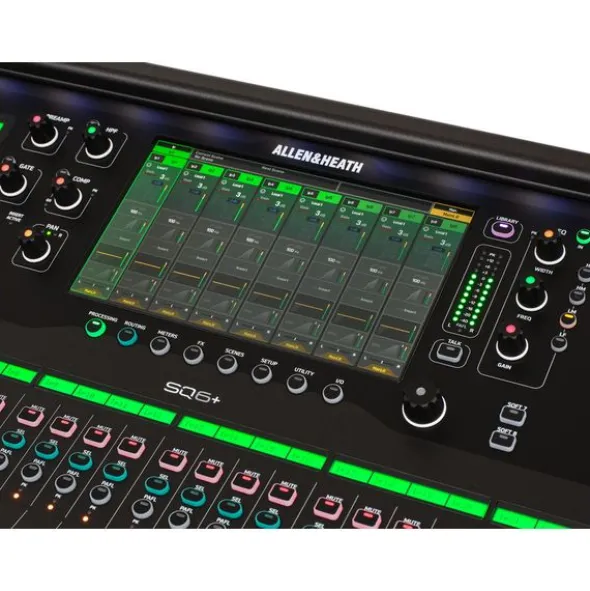

• 9″ touchscreen

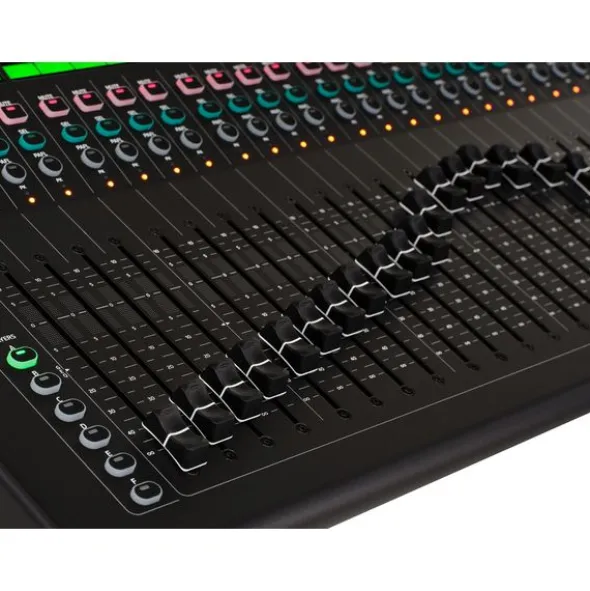

• 25 motorised 100 mm fader / six layers
• Chromoatic 12-segment LED level meter
• Backlit buttons and encoders
• Channel LCD displays

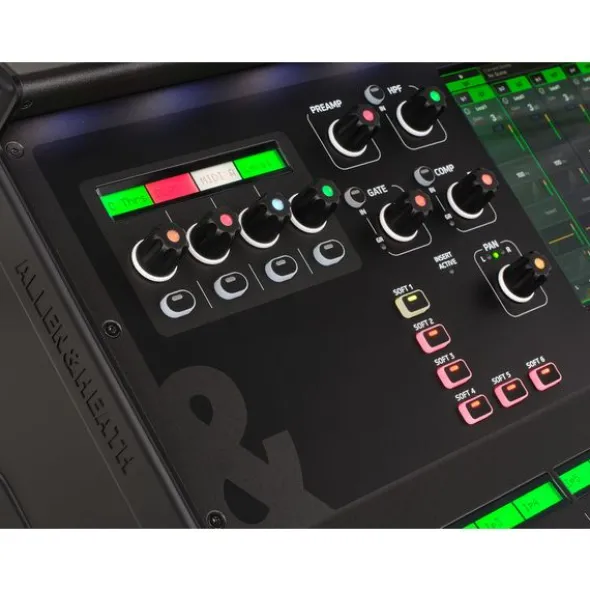

• 16 assignable SoftKeys
• Four assignable soft rotaries
• Optional DEEP Processing allows direct integration into a channel strip without increasing latency
• SLink connector for 128 x 128 Everything I/O
• 64 x 64 I/O port for expansion cards (128 x 128 with SLink card)
• 32 x 32 USB-B-Audio-Interface mit 48/96 kHz, 16/24 Bit
• SQ-Drive USB-A für Stereo / Multichannel Audiorecording / -playback (Stereo @48/96 kHz, 24 Bit / 16 Kanäle @96 kHz, 24 bit / 32 Kanäle @48 kHz, 24 bit)
• Dimensions (W x D x H): 638 x 514.9 x 198.5 mm
• Weight: 15.15 kg
• Suitable dust cover: Art.433047 (not included)
• Suitable case: Art. 426530 (not included)

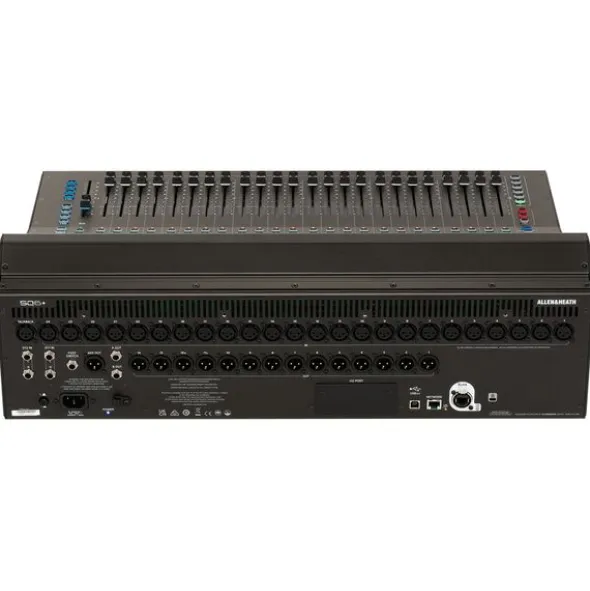

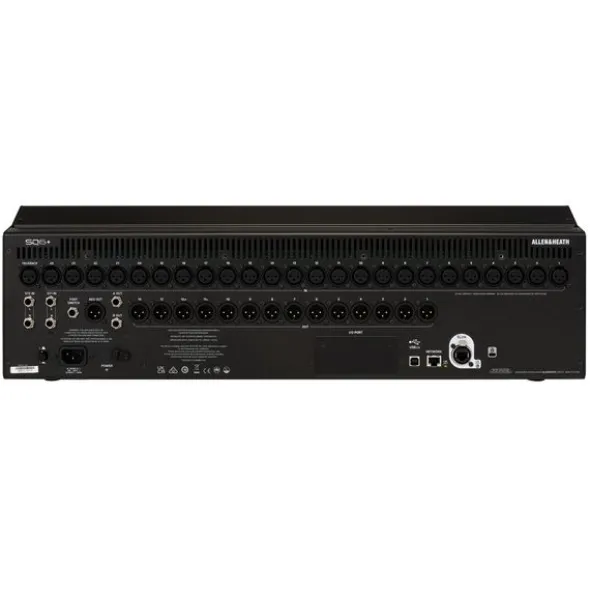

Inputs:

• 24x XLR Mic / Line
• 2x 6.3 TRS jack stereo line
• 1x 3.5 TRS stereo line
• 1x XLR talkback

Output:

• 14x XLR line
• 2x TRS line
• 1x XLR AES3 Stereo Digital
• 1x 6.5 TRS headphone output

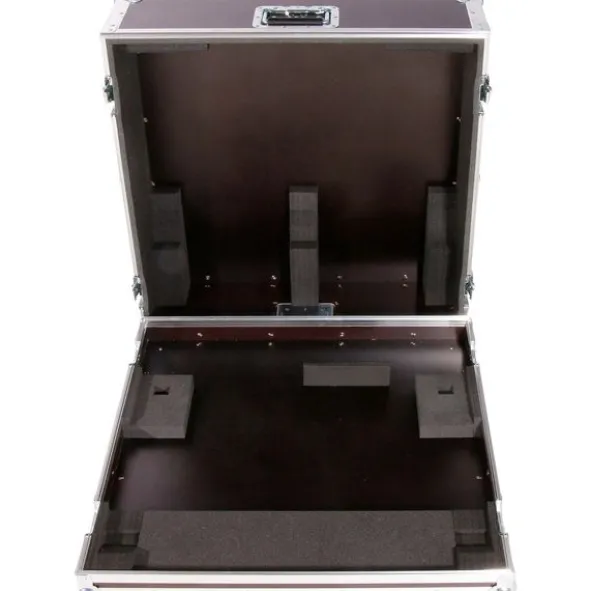

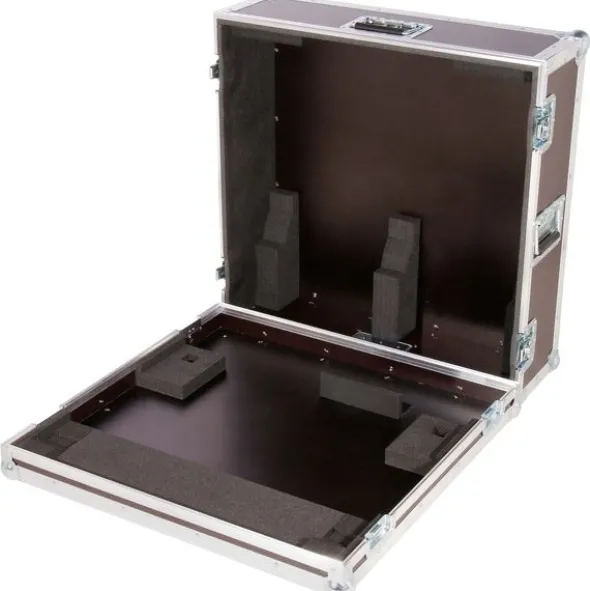

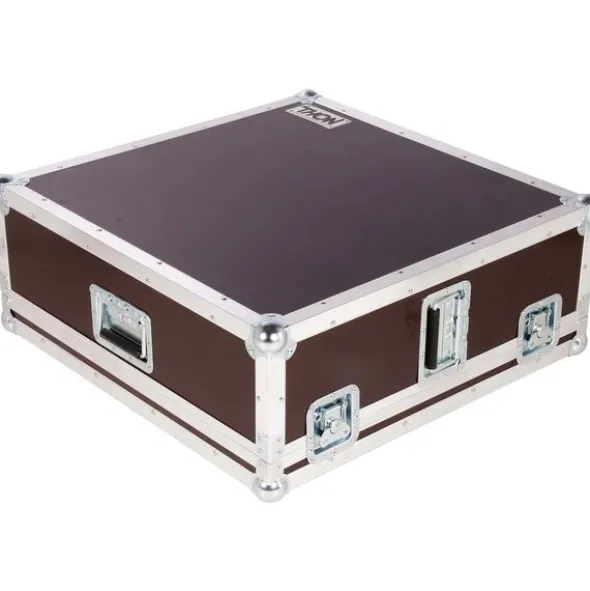

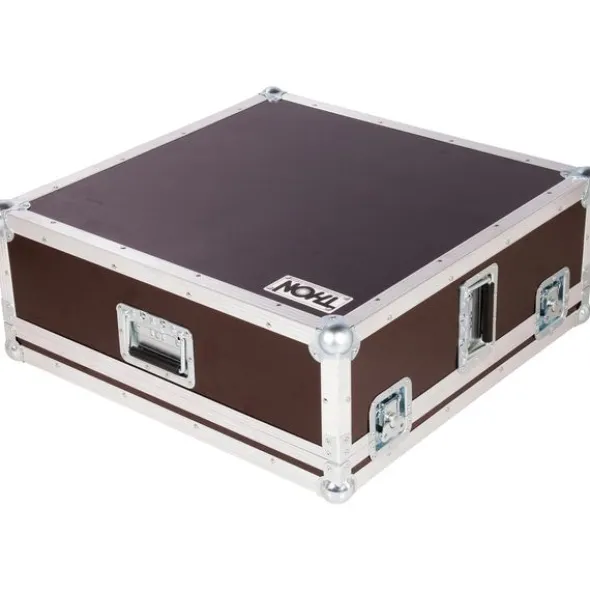

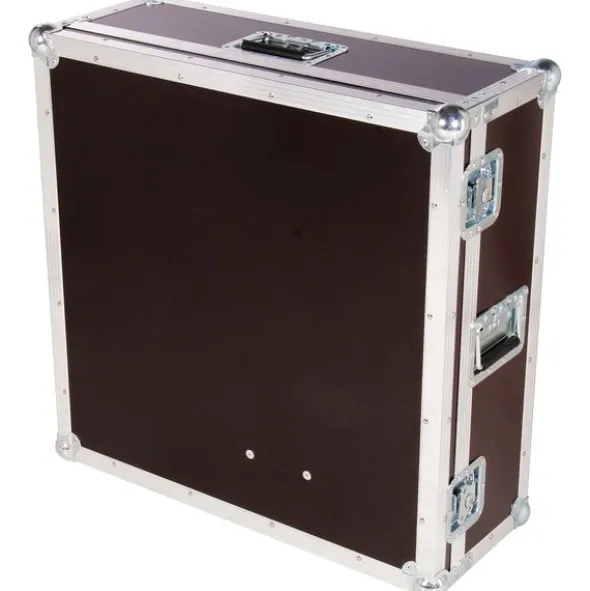

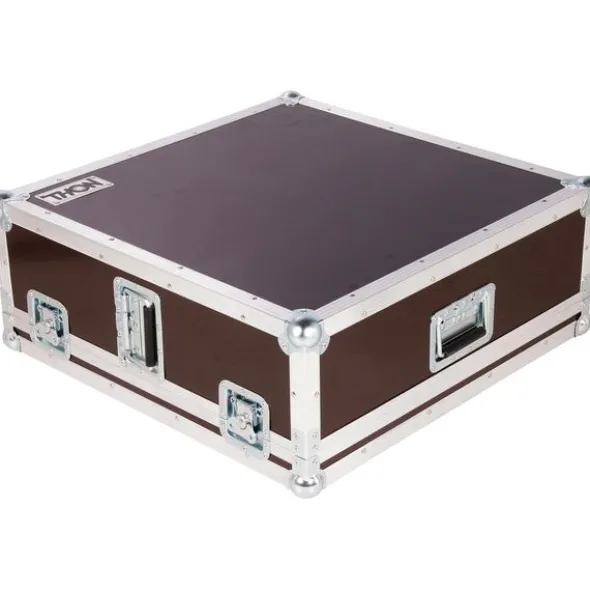

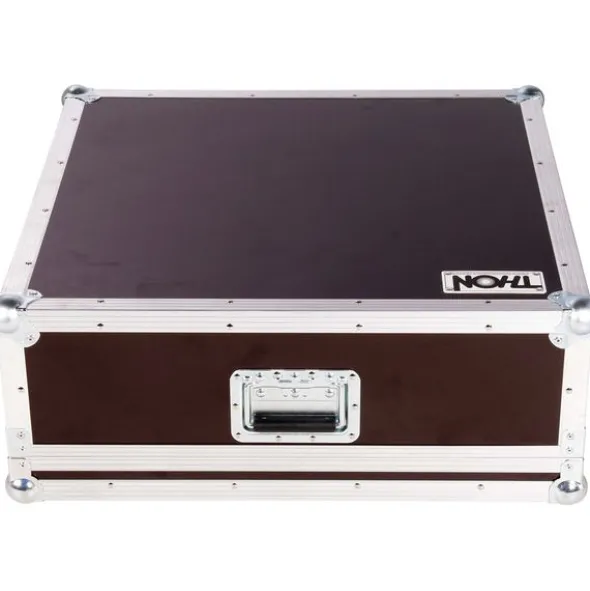

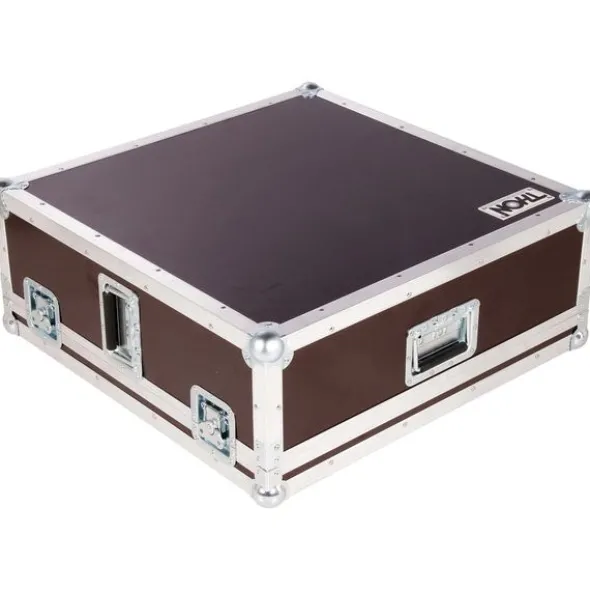

Thon Case for Allen & Heath SQ6

Mixer Case

• For Allen & Heath SQ6
• Material: 7 mm plywood
• 30 x 30mm Aluminium edges

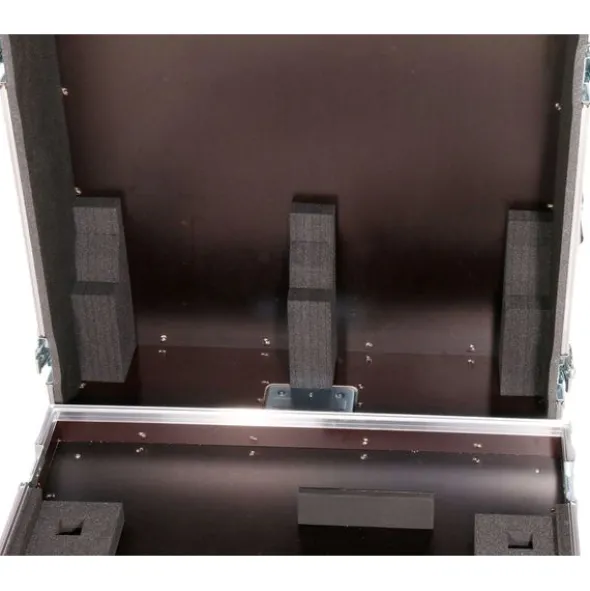

• Foam padding
• 4 Spring-loaded butterfly latches
• 4 Folding handles
• 4 Steel ball corners
• 4 Steel ball corners with integrated L-corner
• 15 cm Cable duct
• External dimensions (W x D x H): 710 x 705 x 285 mm
• Weight: 12.8 kg
• Colour: Phenol Brown
• Made in Germany

Disponível desdeMaio 2026

número de artigo643146

unidade de venda1peça(s)

Max.number of input channels48

Microphone Inputs24

Analog Line Inputs27

Analog Line Outputs14

Analog in/ out with plug-in card expandableNo

Digital InputsUSB

Digital OutputsAES, USB

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB, Ethernet

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders25

DSP Input channels48

DSP Output Channels18

Busses44

Number of Microphone Inputs24

Number of Mono Line Inputs0

Number of Stereo Line Inputs2

Physical outputs14

Digital stagebox connectionS-Link

EthernetEthernet

HotspotNo

Multitrack RecordYes

Special Featuresn/a

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV

Scribble StripsYes

RTAYes

FX Processor12

31 Band EQ17

Delay InputYes

Delay OutputYes

Matrix6

DCA/VCA Groups8

MIDI InterfaceNo

Sample rate96 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADINo

Digital DanteOptional

110V capableYes

CaseOptional

19″ RackmountOptional

Height198 mm

Width638 mm

Depth515 mm

Weight15,15 kg
