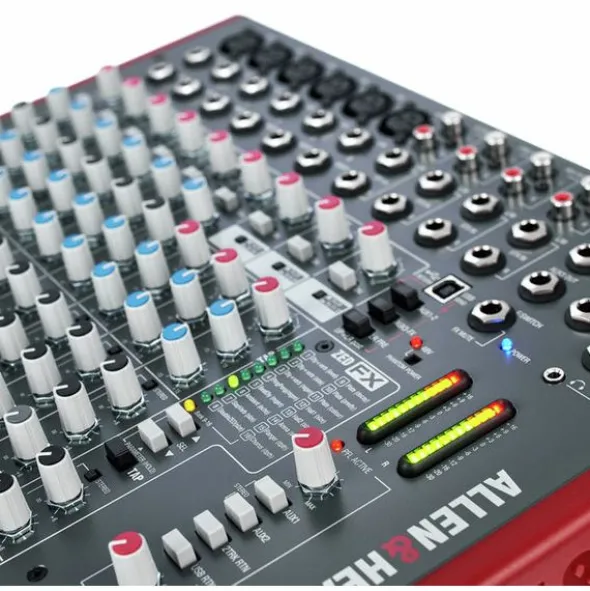

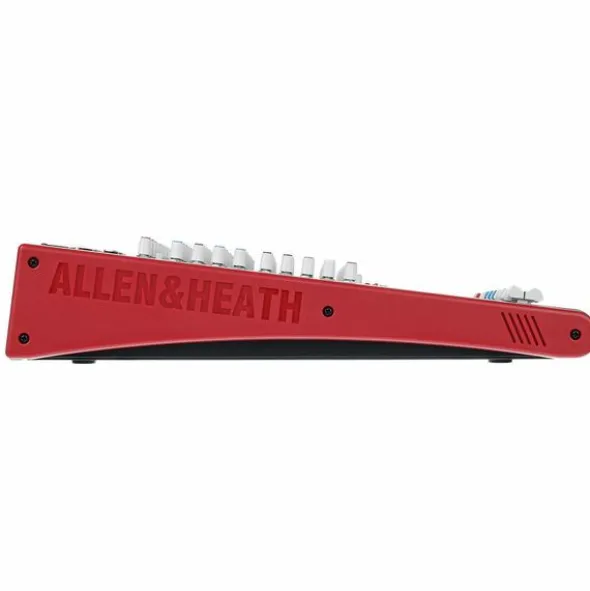

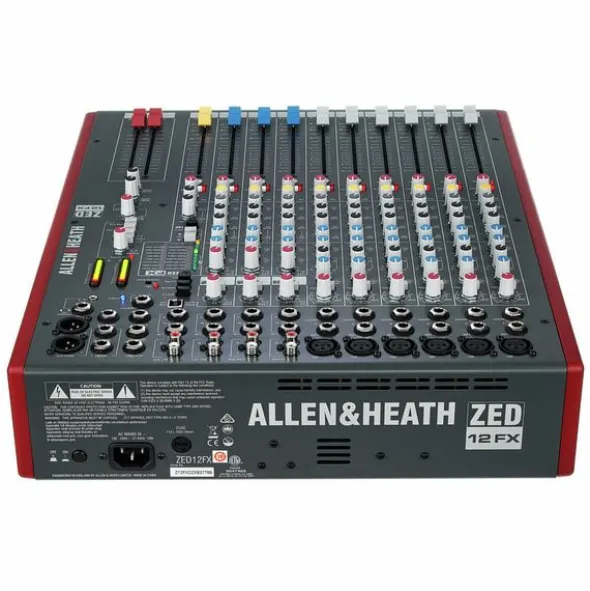

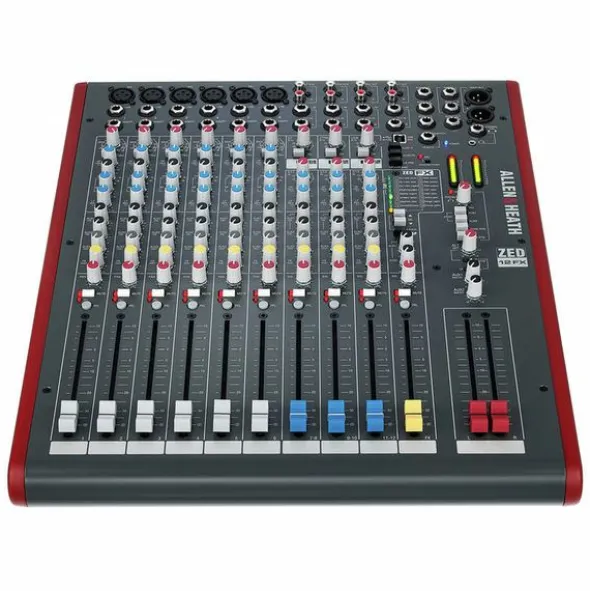

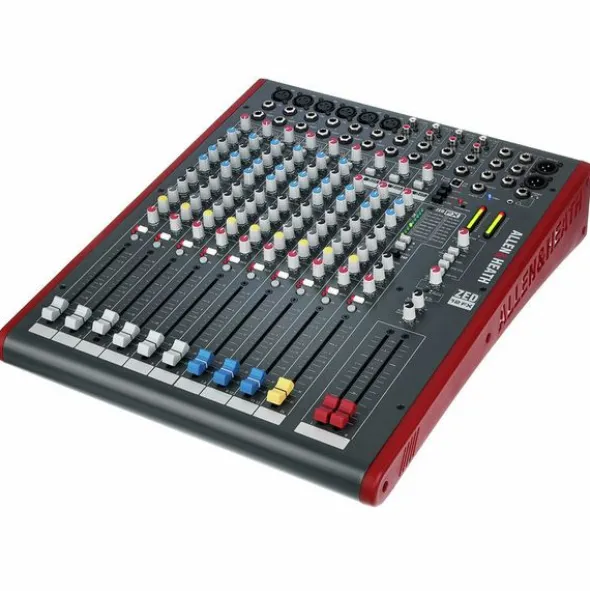

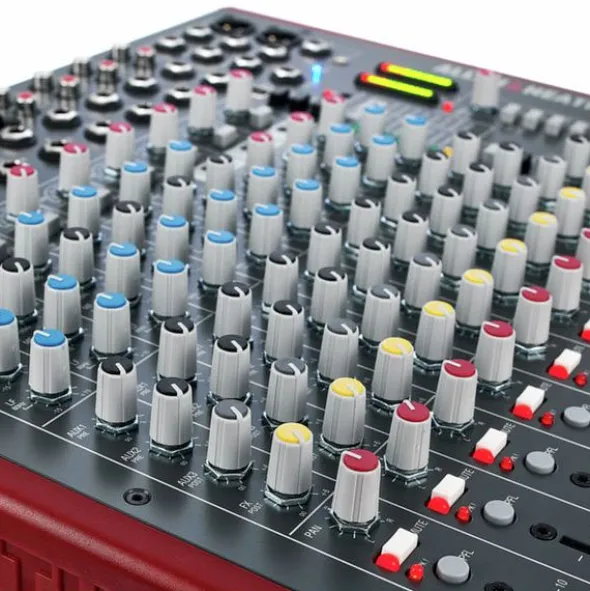

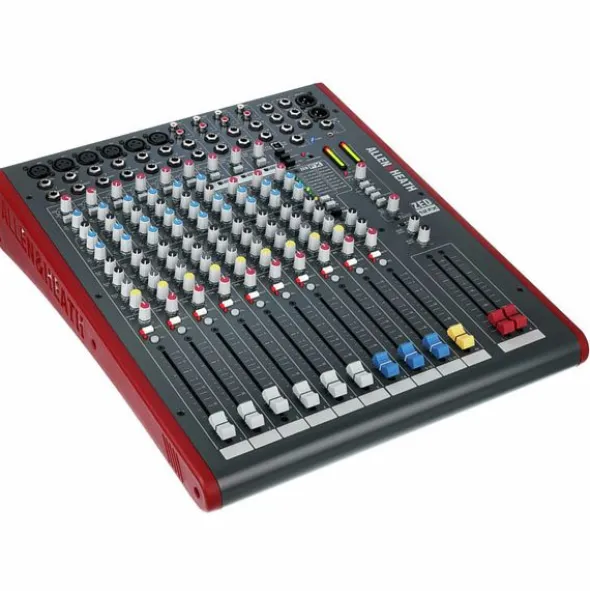

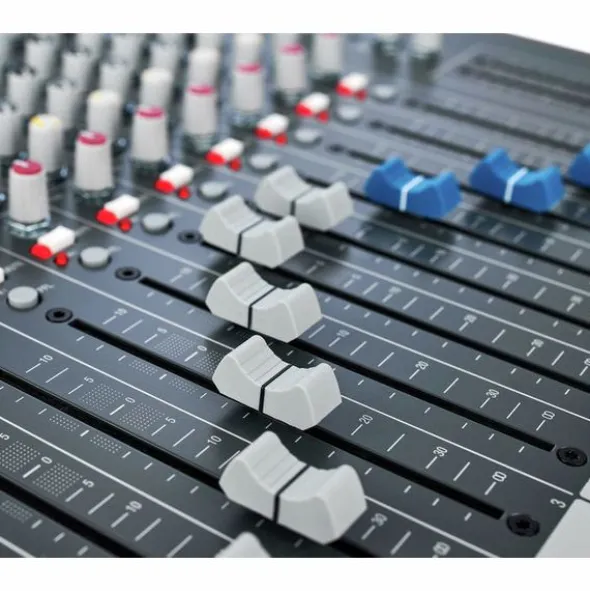

Allen & Heath ZED-12FX

Mixer

• 6 Mic/Line inputs
• 3 Dual Stereo inputs
• DuoPre Pre-amplifier with 69 dB Gain Range
• 4 Aux Sends
• USB Send and Return
• Insert per channel
• High pass filter
• Mute per channel
• Built-in effect processor with 16 presets
• Tap Delay and editable parameters
• Stereo Return
• 2-Track Return
• 6.3 mm and 3.5 mm Headphone connection
• Stereo Record output
• alternative Stereo output
• Mono sum of LR output
• Master LR
• 12-Segment LR displays
• Master control for Aux 1 and 2
• Dimensions: 385 x 95 x 465 mm
• Weight: 7,4 kg
• Optional Rack mount kit: Article Nr. 199960
• Optional matching case: Article Nr. 249386

Disponível desdeJunho 2008

número de artigo210473

unidade de venda1peça(s)

Simultaneous channels10

Mic-In6

Mono Line-in6

Stereo-In4

Hi-Z Input0

Phantom Power48 V

Master OutXLR

Aux Ways4

max. Pre Aux Channels2

PC InterfaceUSB-B

Audio Interface Input2

Audio Interface Output2

Multitrack-RecordingNo

USB/SD Direct RecordNo

Rec Out (Analog)Yes

Low CutYes

InsertsYes

Direct OutNo

ParametricYes

CompressorNo

PanoramaYes

PFLYes

FX Processor1

USB PlaybackNo

Bluetooth PlaybackNo

Lamp connectionNo

FootswitchSwitch

MatrixmixerNo

BagNo

Zones0

19″ RackmountOptional

Width385 mm

Depth465 mm

Height98 mm

Weight6,5 kg

Parallel usable Channels10

Mic Ins6

Mono Line Ins6

Stereo Ins4

Number of Pre Aux max.2

InsertYes

Effect Processor1

USB PlayNo

Bluetooth PlayNo

Lamp ConnectorNo

Foot SwitchSwitch

Rackmount199960
