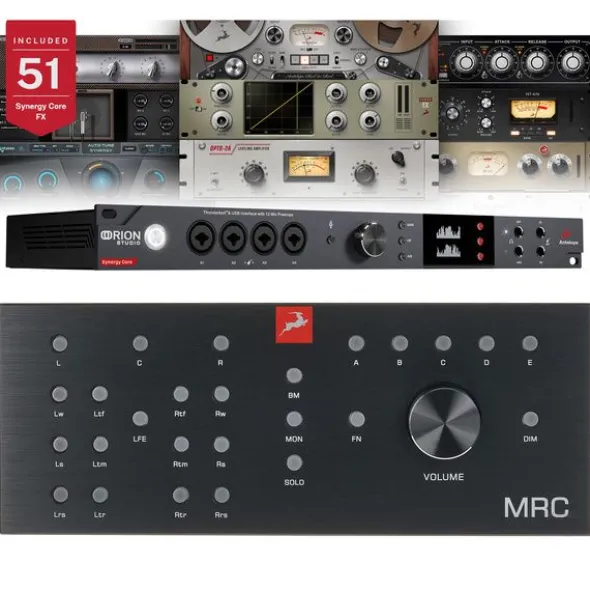

Antelope Orion Studio SC Immersive Bdl

Bundle offer comprising

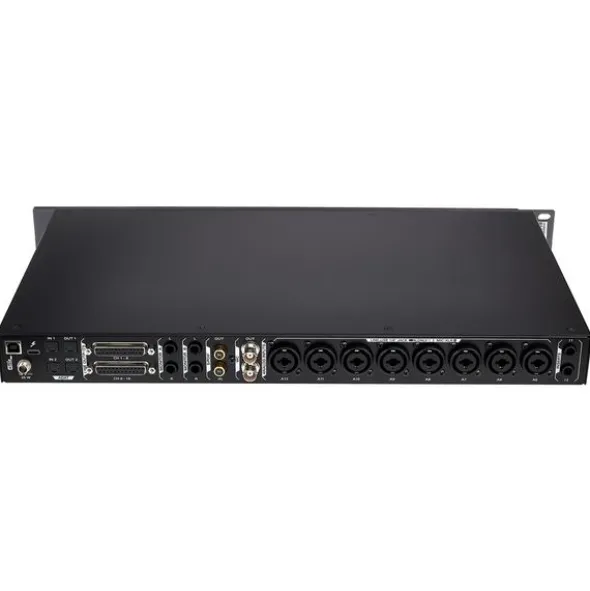

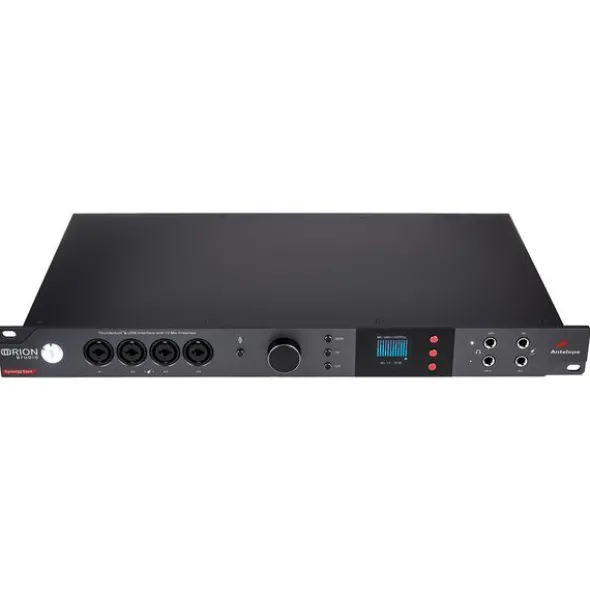

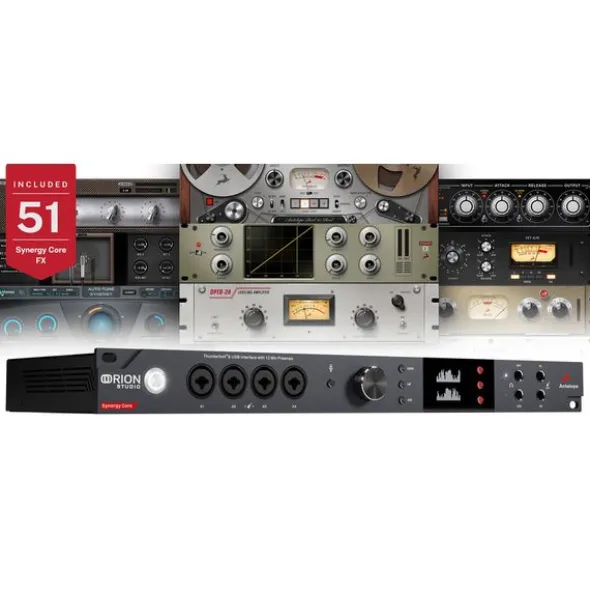

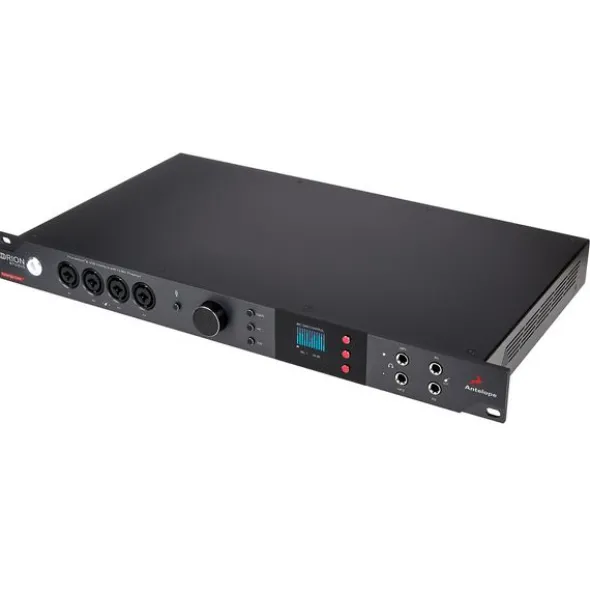

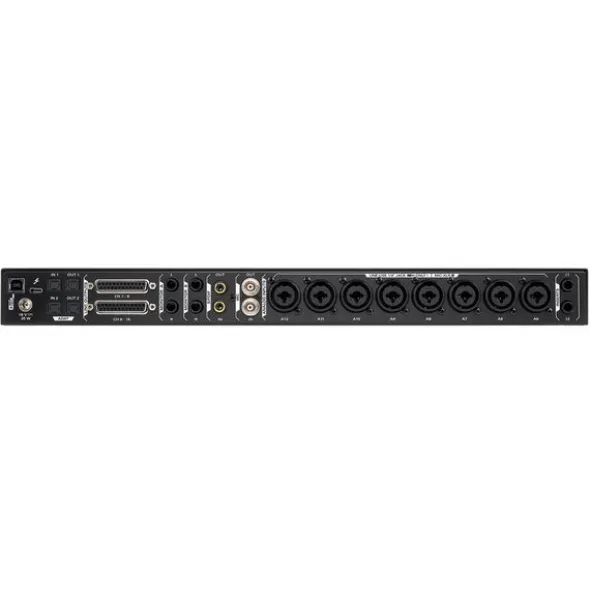

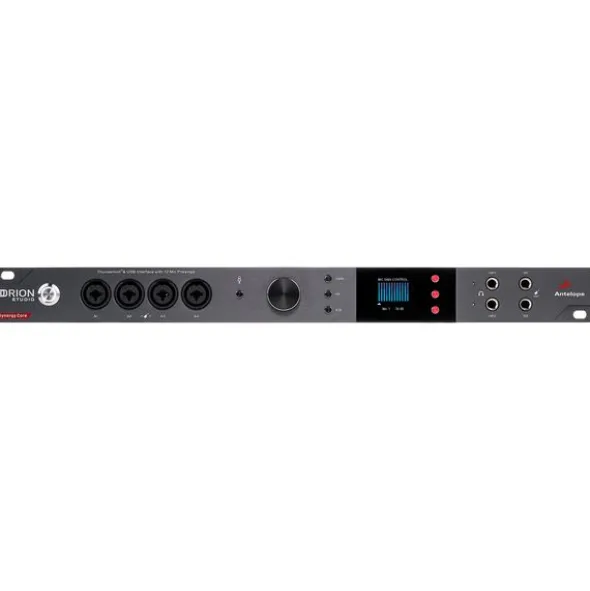

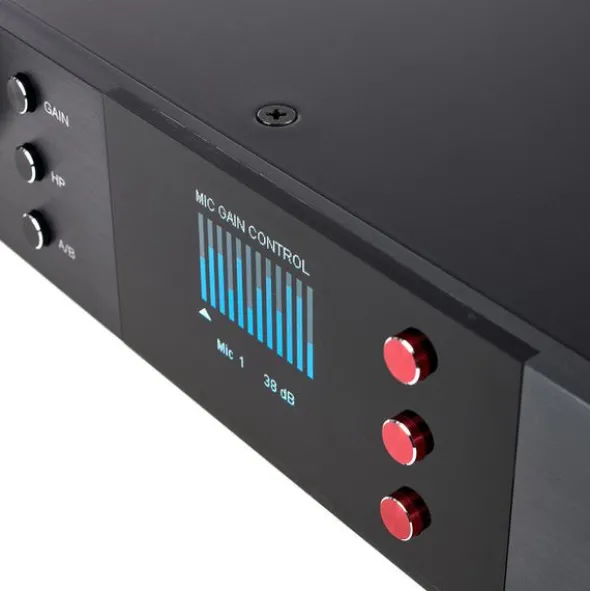

Antelope Orion Studio Synergy Core

32-Channel Thunderbolt 3 and USB 2.0 Audio Interface

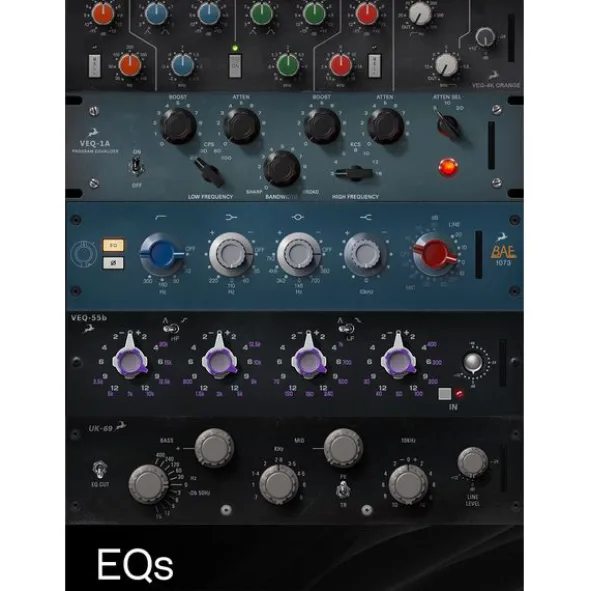

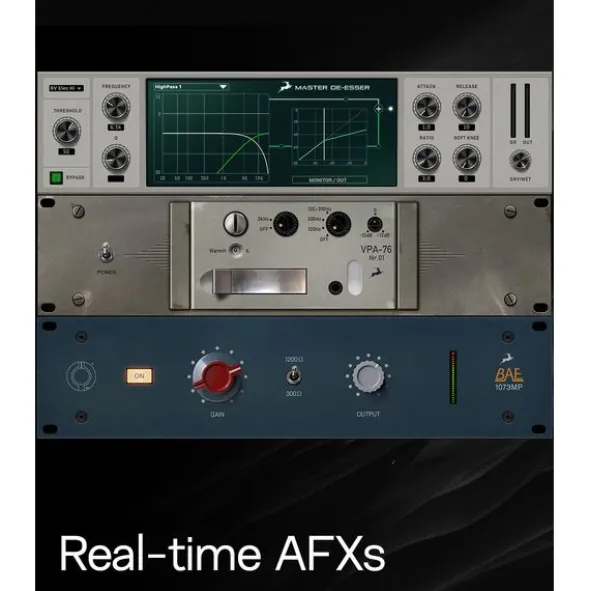

• Includes 51 studio effects

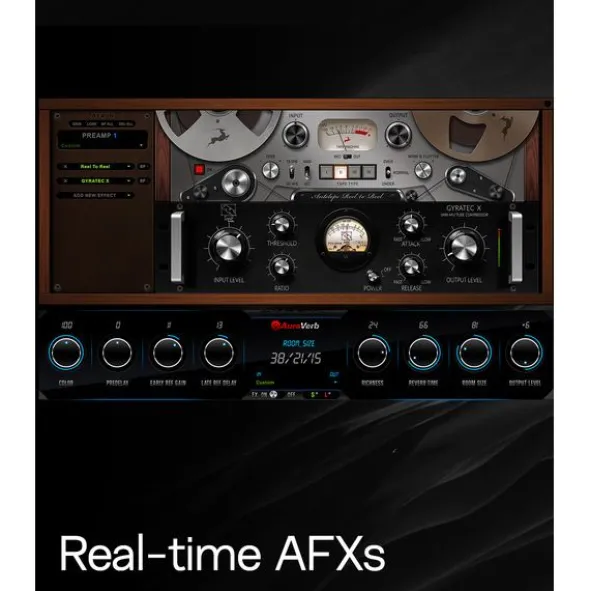

• 2 FPGA + 6 DSP chips for real-time processing of effects
• Antelope 64-bit acoustically focused clocking

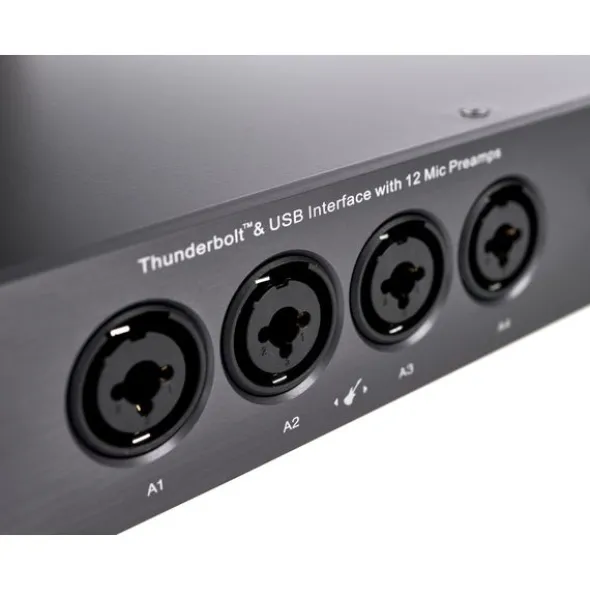

• 12 discrete mic preamps with up to 75 dB gain and +48 V phantom power
• Direct-In mode to allow the preamp circuits to be bypassed
• Surround and Immersive Audio, Dolby Atmos-capable speaker calibration, and monitoring functionality (update via Antelope Launcher required)
• Integrated Room Analysis & Correction tool for speaker and room calibration
• 4 Hi-Z inputs
• 2 stereo monitoring outputs with 130 dB dynamic range (can be operated in parallel or in A/B mode)
• 2 independent stereo headphone outputs with individual mixes and low-latency effect monitoring
• 2 ReAmp outputs
• 16 line outputs via DB25
• Analogue inserts for inputs 1 and 2 (6.3 mm TRS)
• S/P-DIF input/output (2 x RCA)
• 2 ADAT inputs/outputs
• DC-coupled inputs and outputs allow the transmission and reception of CV / Gate signals
• Word clock I/O
• Dual Stream mode for simultaneous operation of USB and Thunderbolt connections
• Integrated talkback function with configurable inputs and outputs
• Extensive software control panel with flexible audio routing
• User-friendly monitoring and session presets
• Standalone operation possible with active routing and effects
• Compatible with the Antelope Audio MRC multi-channel remote control (art. 569148)
• System requirements: Windows 10 (64-bit) / OS X 10.12 or higher (10.14 Mojave recommended)
• Dimensions (W x D x H): 483 x 220 x 44 mm
• Weight: 3.1 kg

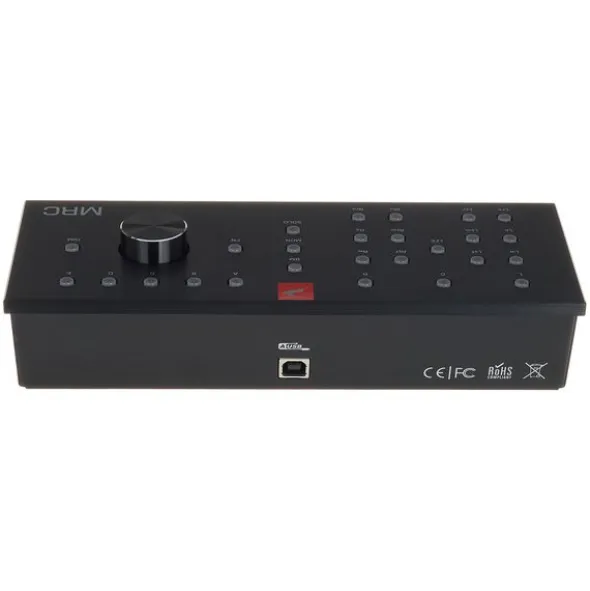

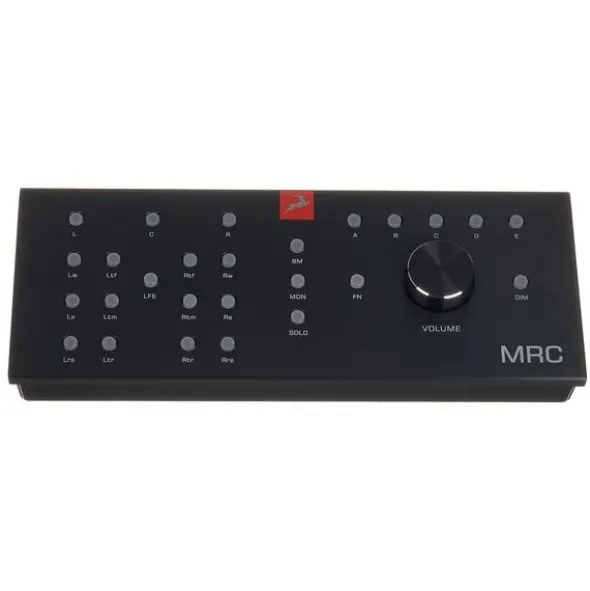

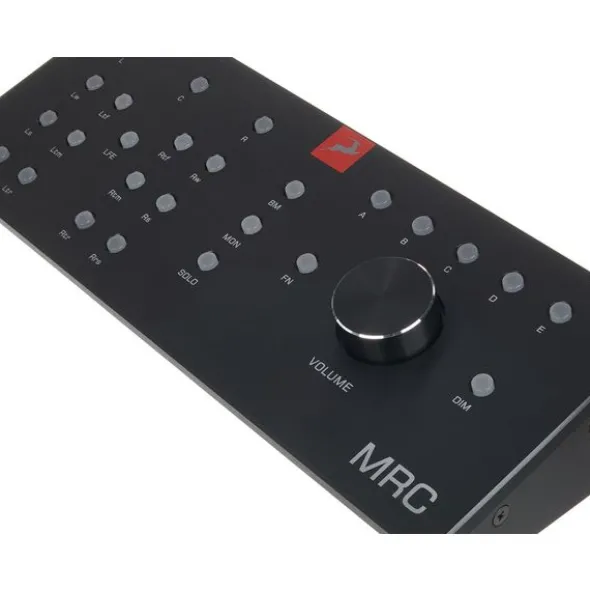

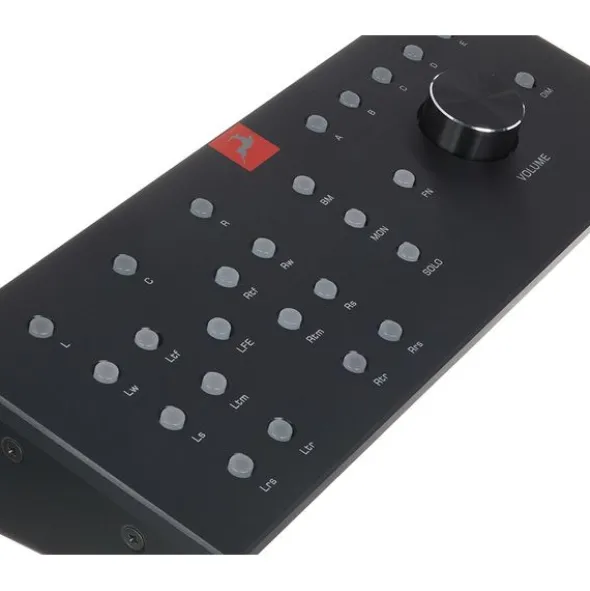

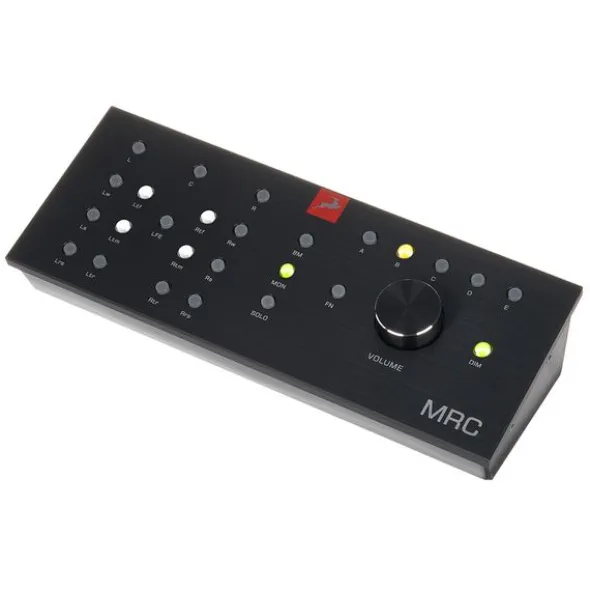

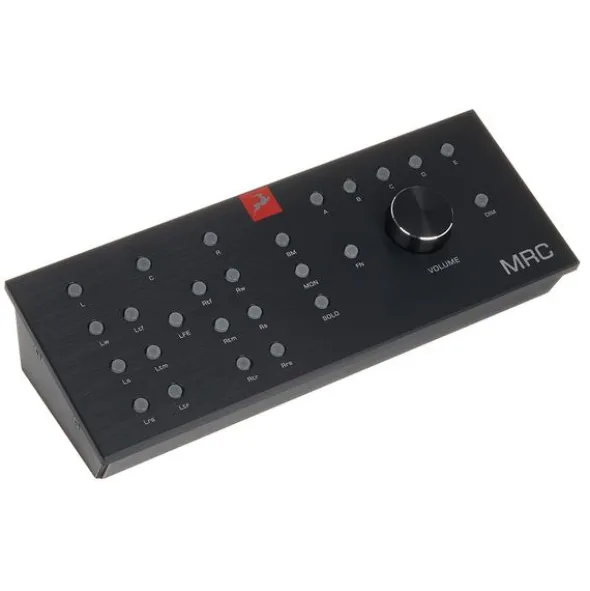

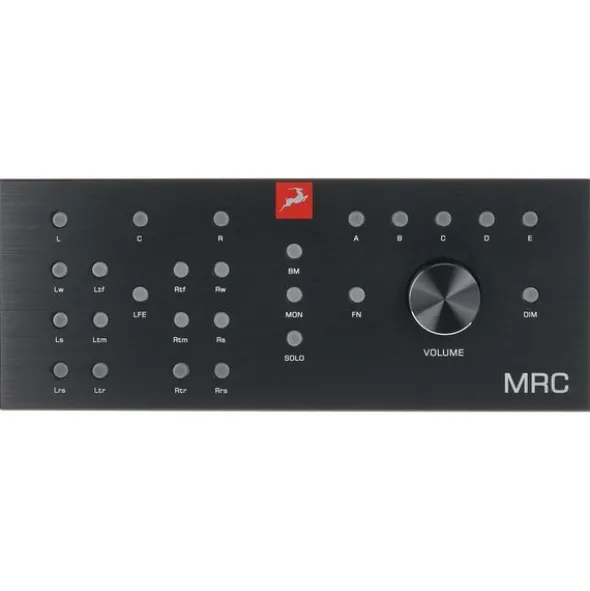

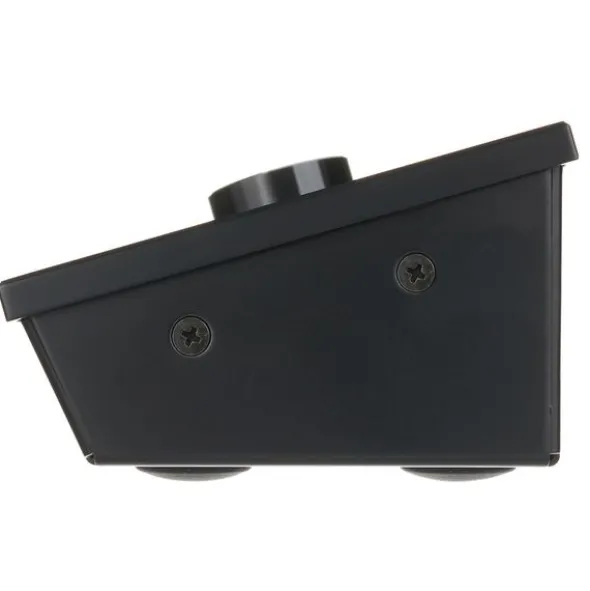

Antelope MRC

USB Remote Control

• Multi-channel remote control for Antelope Galaxy 32 and Antelope interfaces with surround support and immersive audio monitoring
• Bus-powered
• Supports 23+ formats from stereo to 9.1.6 Dolby Atmos
• Customisable preset recall system for fast switching between input and output sources
• Individual mute and solo functions for each speaker in all supported formats
• Rotary control for volume adjustment of multichannel output or stereo monitor output
• Mute and dim function of the selected output

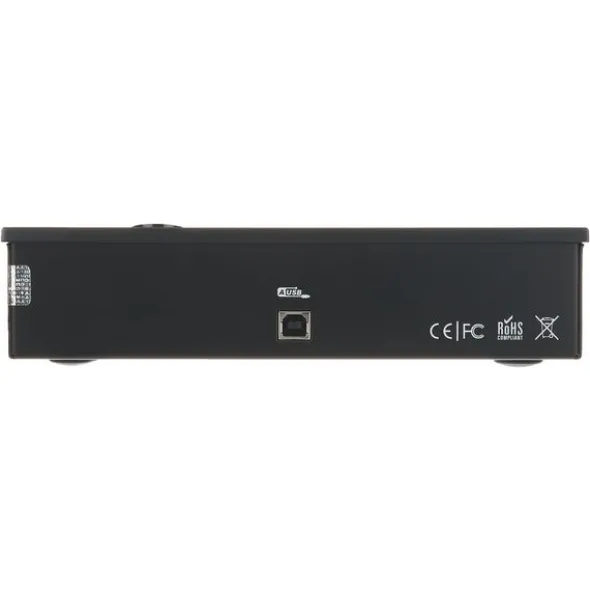

• Plug-and-play compatibility with Atmos-compatible Antelope audio interfaces via USB connection
• Push-button with LED indicator
• Desktop format
• Dimensions (W x H x D): 220 x 57 x 84 mm
• Weight: 0.7 kg

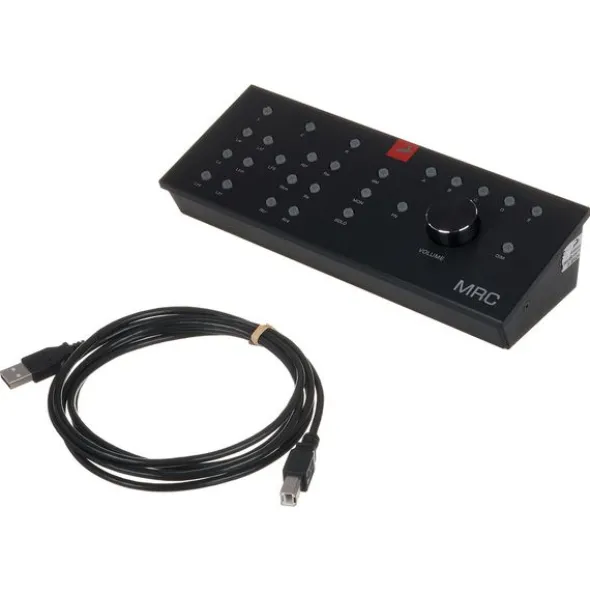

• USB cable included

Disponível desdeMarço 2025

número de artigo614973

unidade de venda1peça(s)

Number of Mic Inputs12

Number of Line Inputs12

Instrument Inputs4

Number of Line Outs20

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width483 mm

Depth220 mm

Height44 mm

Connection FormatUSB port Type B

Recording / Playback Channels64×64

Number of Instrument Inputs4

Number of Line Outputs20

AES/EBU Connectors0

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm220 mm

Height in mm44 mm

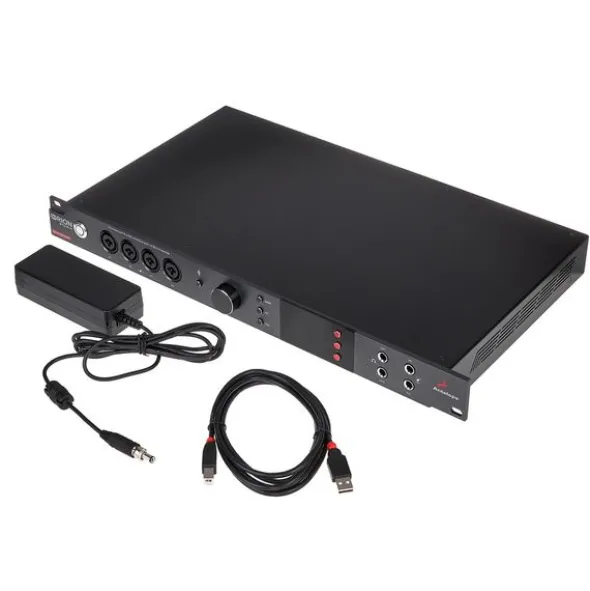

Included in deliveryPower Supply, USB-A to USB-B Cable

Zero latency monitoringYes
