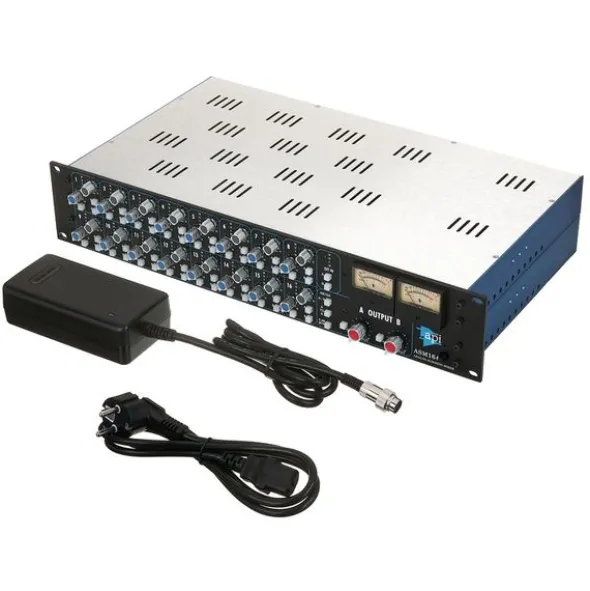

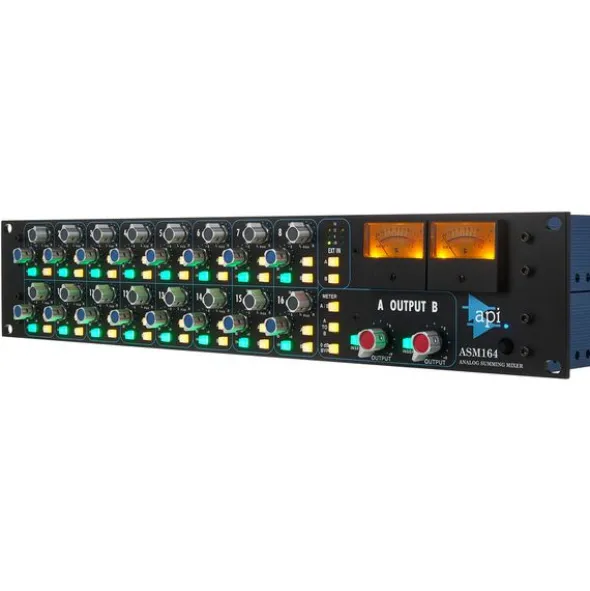

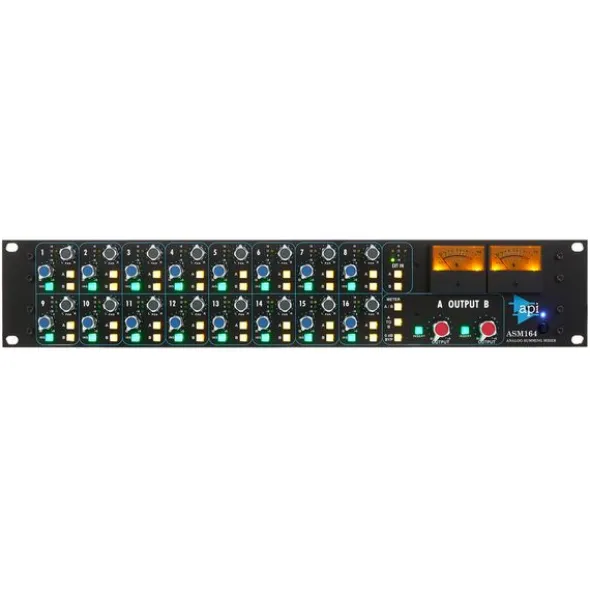

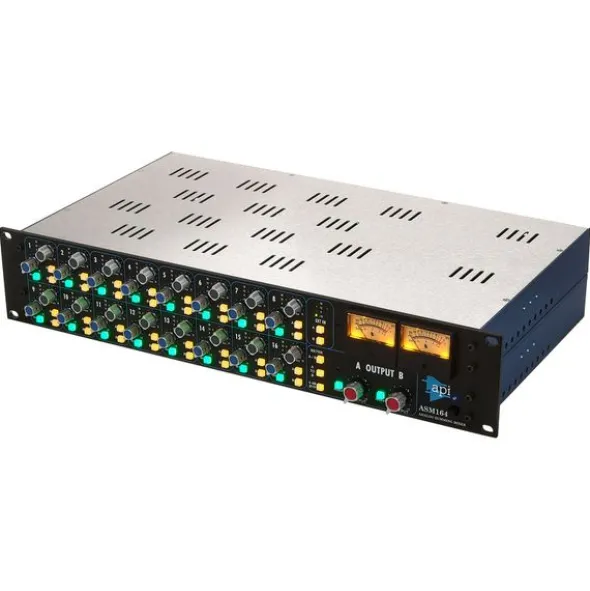

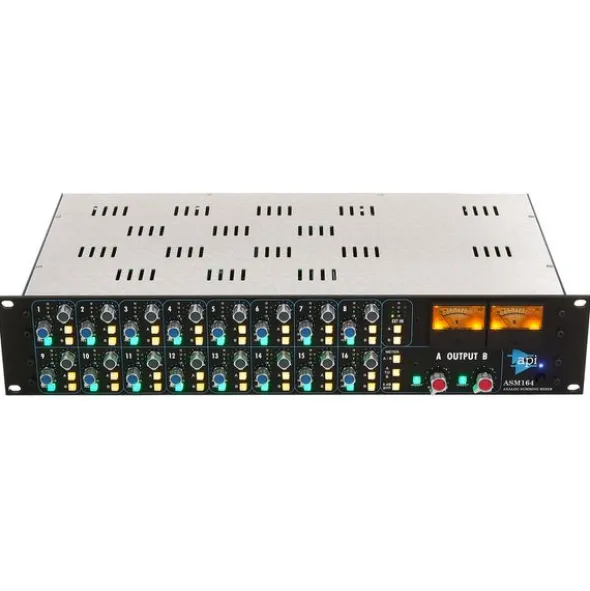

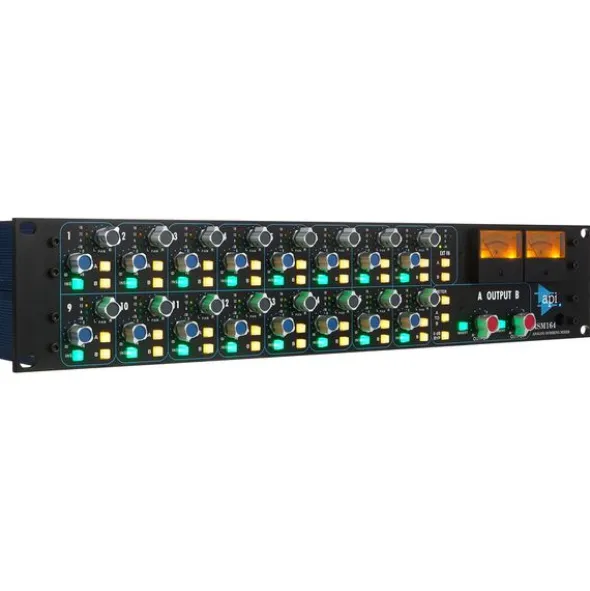

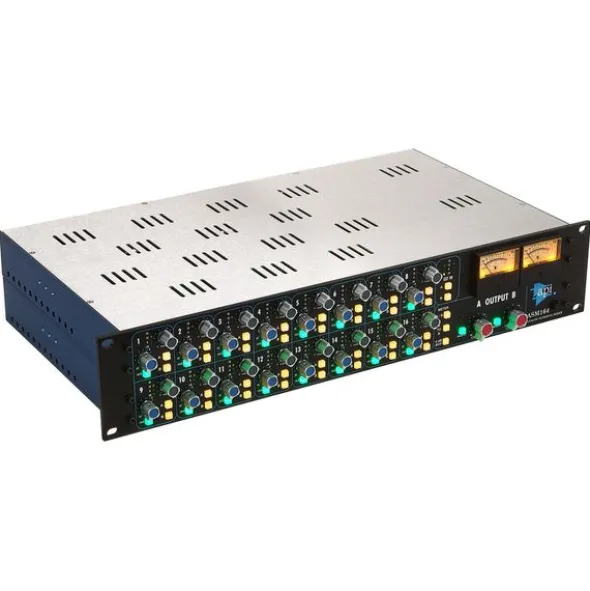

API Audio ASM164

Analogue Summing Mixer

• 16 channels
• API 2510 Input operational amplifier
• API 2520 OpAmps
• Insert send/return on each channel
• 2 stereo programme buses: Mix-A and Mix-B
• Each channel can be assigned to Mix-A and Mix-B
• Continuously variable panning with centre detent
• 31-step, rasterised volume control
• 4-segment LED level meter
• Analogue VU meter
• Format: 19″ / 2 U

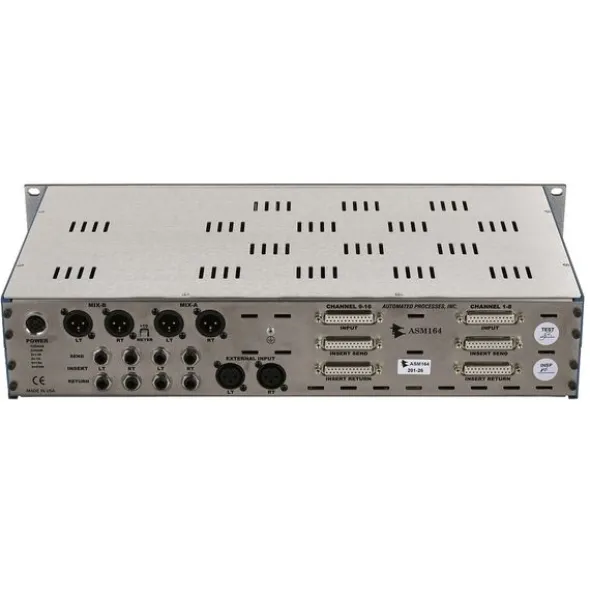

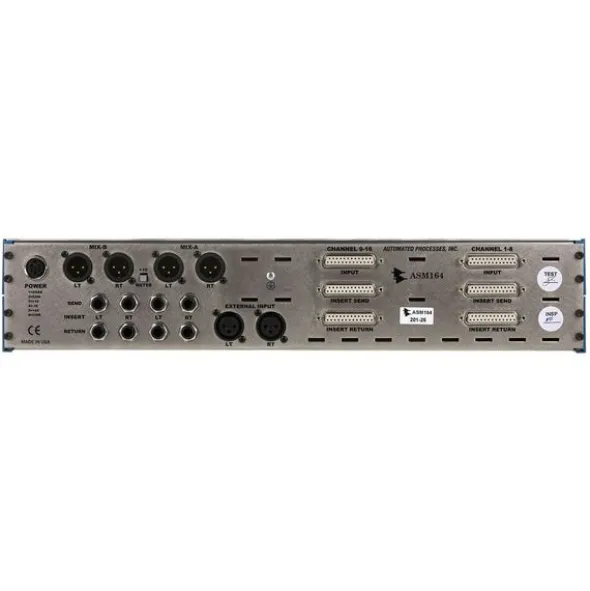

Connections:

• 2 line inputs: Sub-D25 (channel 1-8 and channel 9-16)
• 2 Insert Send: Sub-D25
• 2 Insert Return: Sub-D25
• 2 line inputs: XLR
• 2 line outputs Mix-A: XLR with insert Send / Return: 6.3 mm jack
• 2 line outputs Mix-B: XLR with insert Send / Return: 6.3 mm jack
