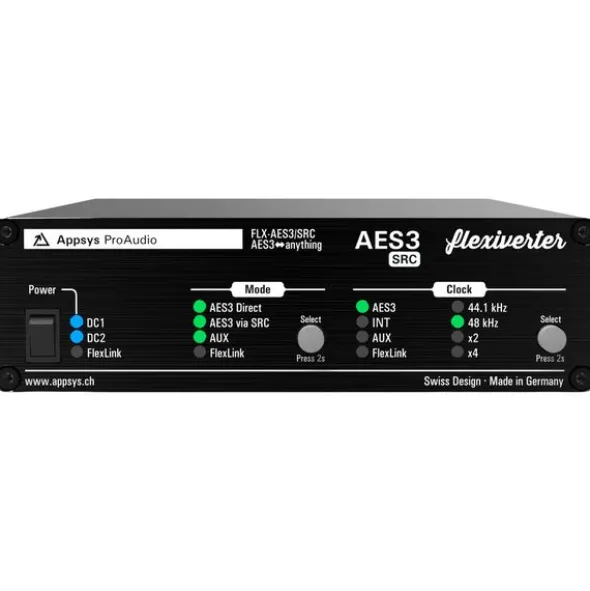

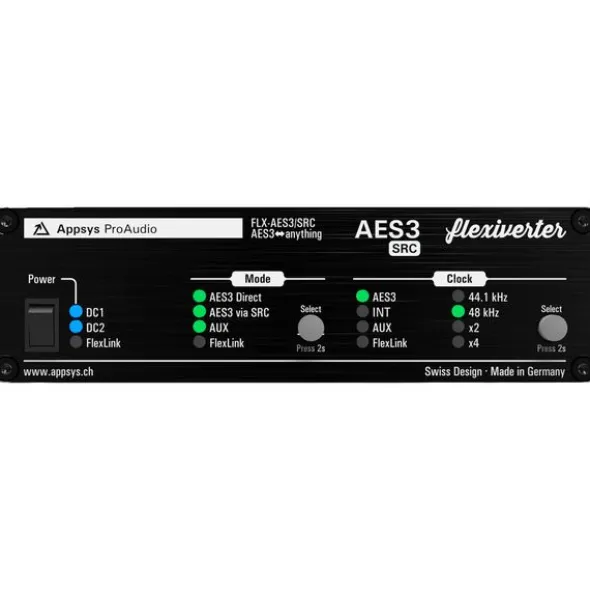

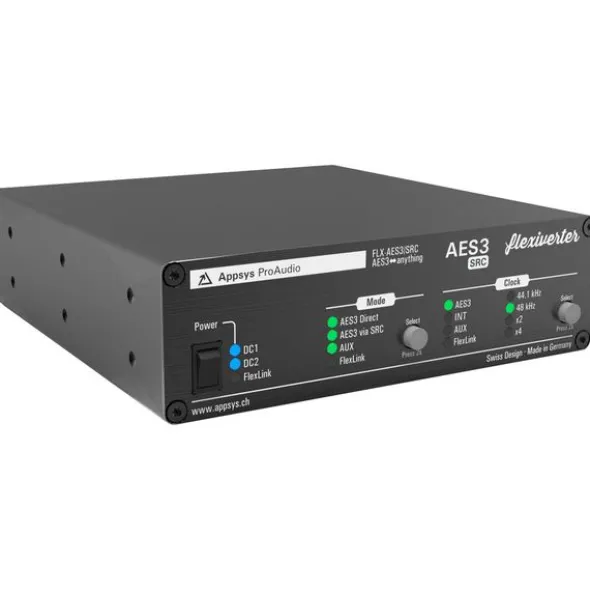

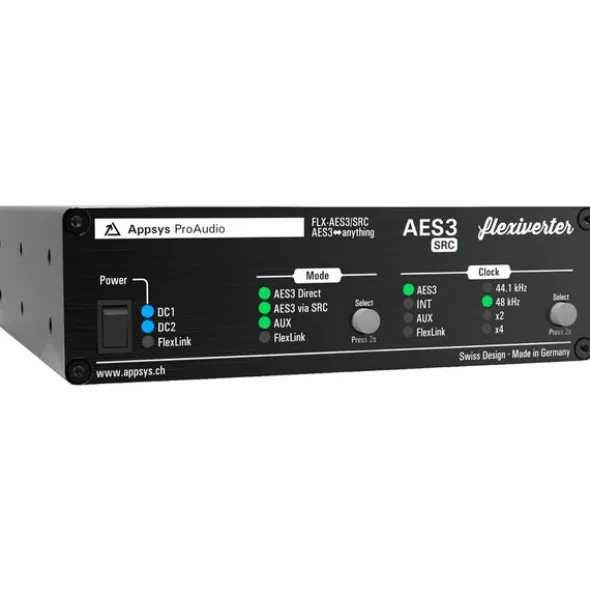

Appsys FLX-AES3/SRC

Converter

• AES3-to-any-protocol converter with integrated sample rate converters
• 16 x 16 AES3 channels, which can be converted to any protocol installed in the AUX slot
• All AES3 inputs can be routed via individual integrated SRCs to synchronise them to a common clock
• 16 × 16 AES/EBU channels, fully electrically isolated via transformers; inputs can optionally be routed via 8 individual sample-rate converters (SRCs) to synchronise streams with different clock rates to the house/master clock
• 8 different input clock domains are converted to the main clock domain using high-quality SRCs (>120 dB THD+N, >134 dB dynamic range)
• Can operate as an AES3/AES3 sample-rate converter (individually clocked inputs are converted to a common output clock)
• The AUX port supports any of the available AUX cards as a source or destination for signal conversion
• Supports any sampling rate in the range from 44.1 to 192 kHz
• The DB25 pin configuration (Tascam or Yamaha) can be selected individually for each connection via internal jumpers
• FlexLink port for bidirectional transmission of 192 audio channels, clock signals and power supply with minimal latency
• Web-based remote control (no software installation required) or control via the UART command line
• Triple-redundant power supply
• Dimensions: (W x H x D) 152 x 44 x 153 mm
• Weight: 590 g

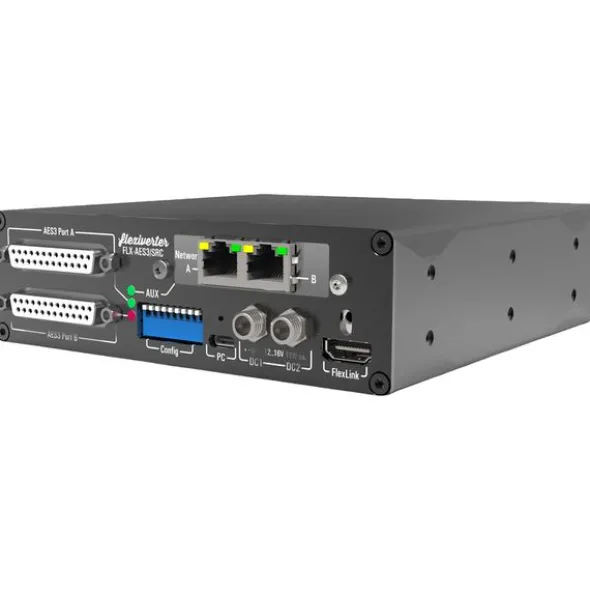

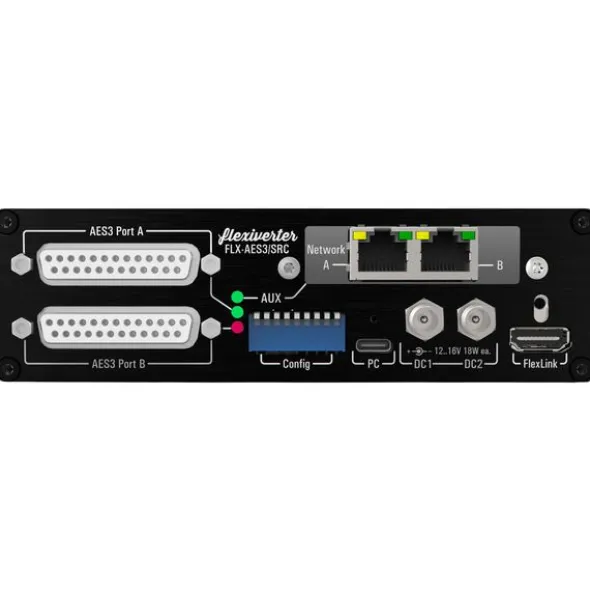

Connections:

• 2x SUB-D25
• 2x Ethernet RJ45
• FlexiLink
• USB-C
• 2x DC inputs for redundant power supply

Disponível desdeAgosto 2026

número de artigo651306

unidade de venda1peça(s)

Amount Of Channels32

AD ConversionNo

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorYes

ADATNo

Word clockNo

Number of analog inputs0

Number of Analog Outputs0

Headphone connectionNo

Special Features16×16 AES3 Channels
