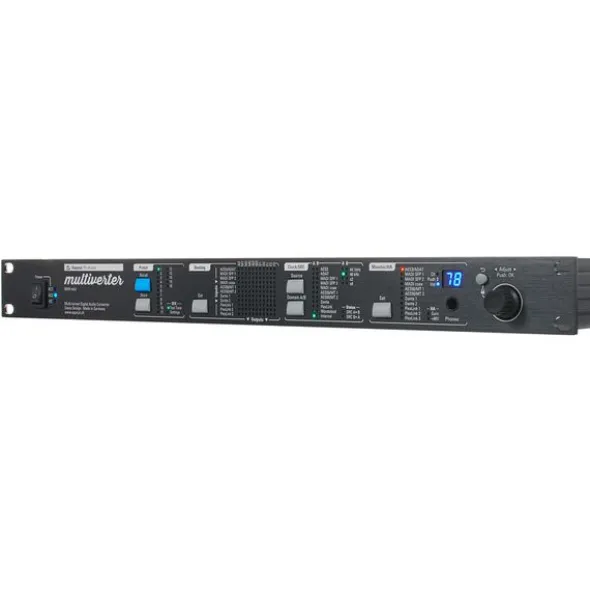

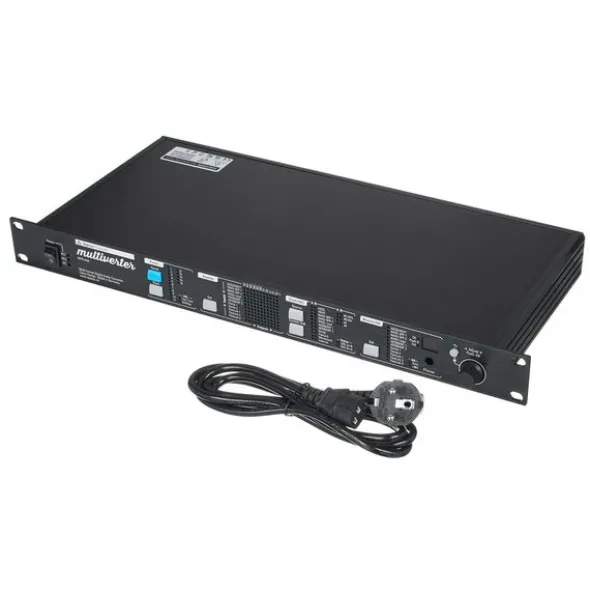

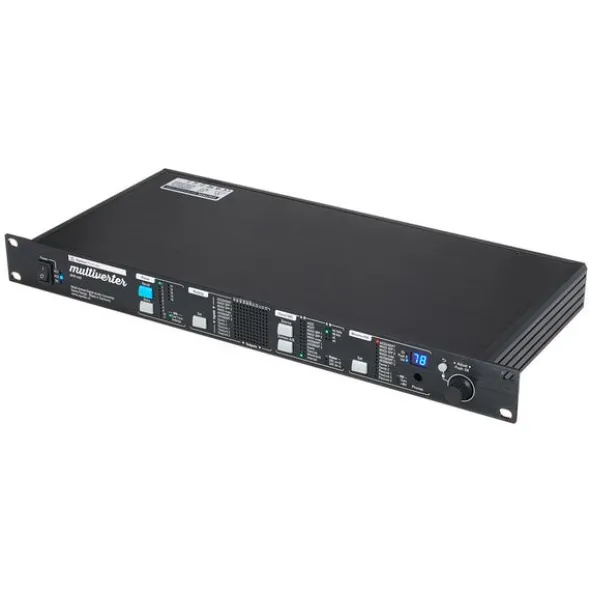

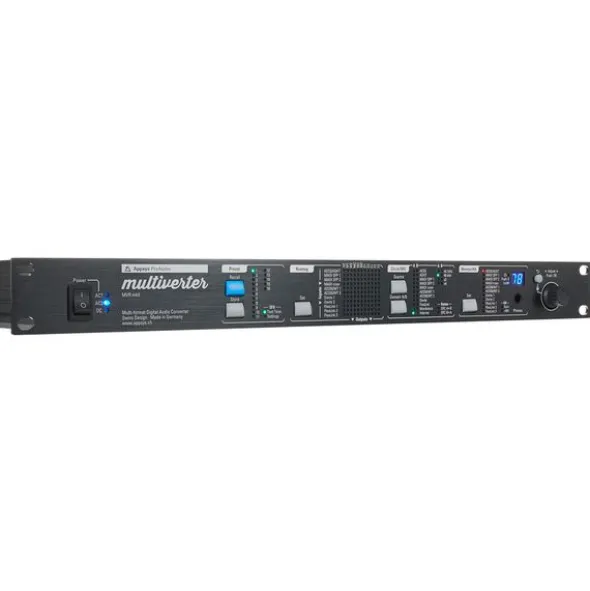

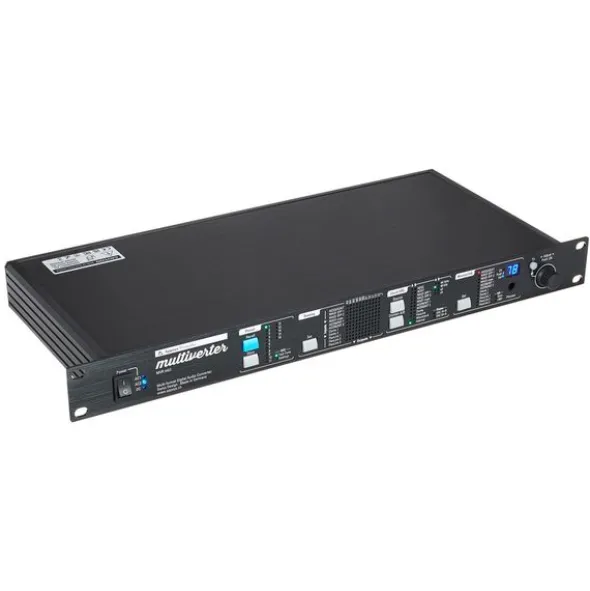

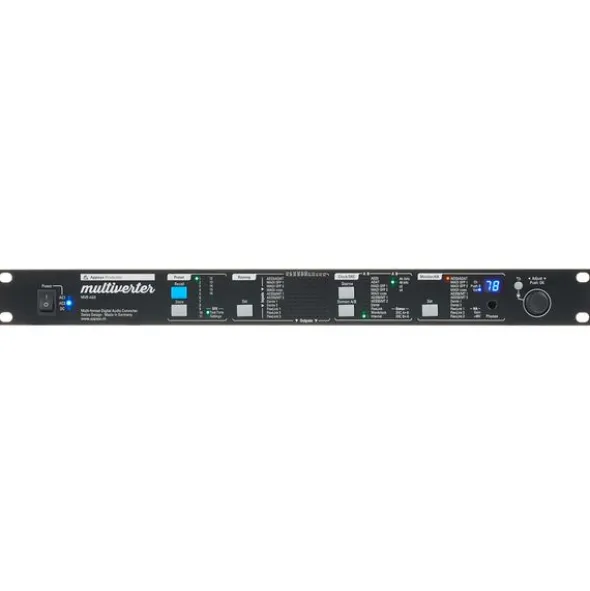

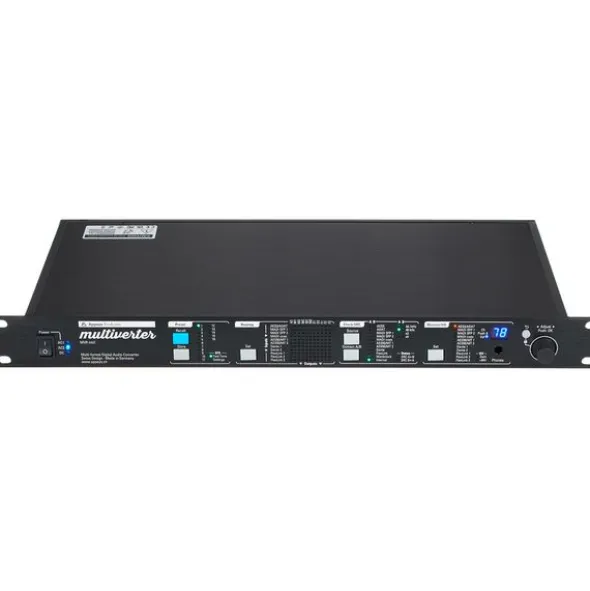

Appsys Multiverter MVR MKII

Muti-Format Converter and Splitter

• Recording of any signal source
• Universal interface in the OB van
• 64 x 64 Channel PC interface via Dante Virtual Soundcard
• Operation of various mixing consoles with diverse hardware from different manufacturers
• Low-latency transmission of 64×64 audio channels via normal Ethernet network
• Channel-based routing (crossbar) on 704 x 704 channels
• Integration of ‘legacy’ devices
• Integrated remote control via web browser via USB, Telnet and USB-C
• Integrated control of all MIDAS and Behringer stageboxes via web interface (Gain/Phantom)
• 16 Presets Store/Recall
• Headphone amplifier: Each input signal/channel can be listened to
• Test tone generator for easy troubleshooting in complex setups
• Triple redundant power supply (2x 90-240VAC, 1x 9-18VDC)
• Can be operated mains-independently from a camera battery pack (4-pin XLR connector)
• Sample rate converter 128 x 128 channels optional (not included – e.g. for MIDAS 96k consoles to Dante 48 kHz)
• Format: 19″ / 1 U

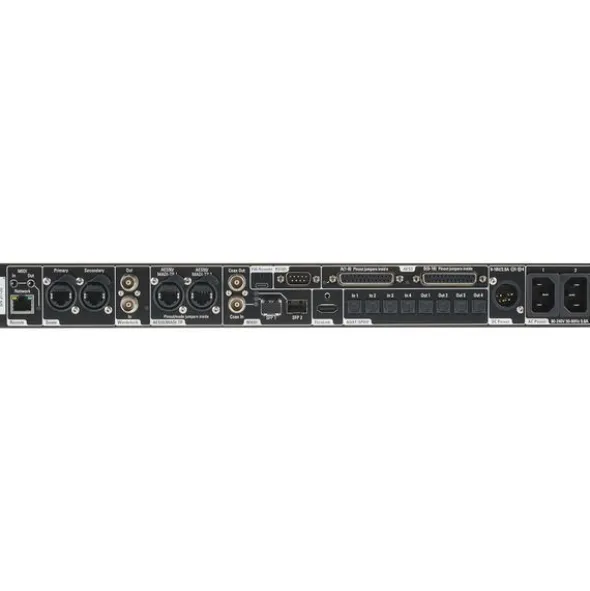

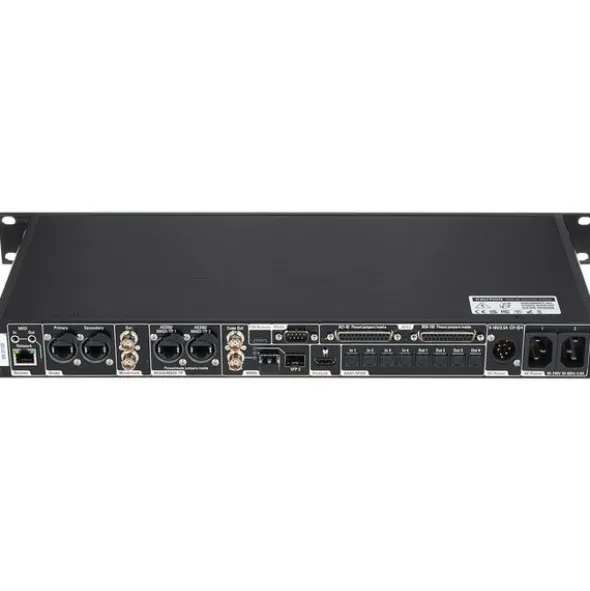

Connections:

• 4x ADAT input and output (32 x 32 ch @ FS1)
• 2x AES3 input and output on DB25 (16 x 16 ch)
• 2x MADI SFP
• MADI coaxial
• MADI-TP (max. 2 Ports)
• AES50 (max. 2 Ports)
• Dante/AES67 (2 ports/integrated switch)
• 2x TRS MIDI
• Word clock input and output
• RS485
• Expansion interface up to 192 channels

Disponível desdeOutubro 2023

número de artigo567955

unidade de venda1peça(s)

Amount Of Channels128

AD ConversionNo

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorYes

AES/EBU ConnectorYes

ADATYes

Word clockYes

Number of analog inputs0

Number of Analog Outputs0

Headphone connectionYes

Special FeaturesDante, MADI SPF
