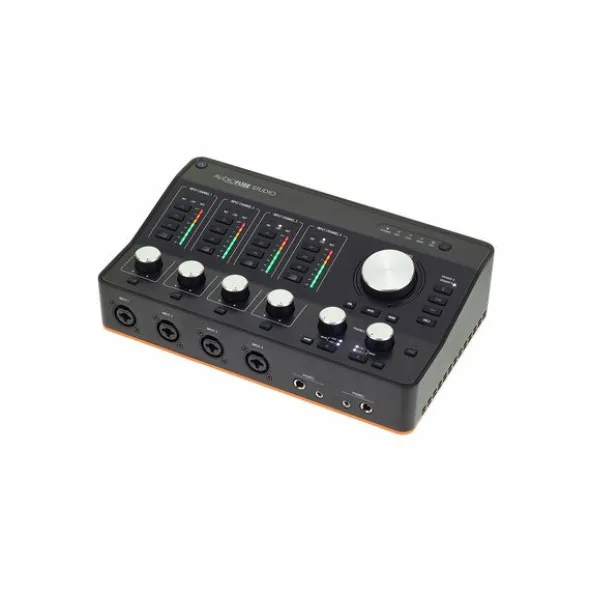

Arturia AudioFuse Studio B-Stock

USB 2.0 Audio Interface

• 24-Bit / 192 kHz
• 18 inputs and 20 outputs
• 4 mic / line inputs: XLR / TRS combo socket
• 4 line inputs: 6.3 mm TRS
• Phono input: Cinch
• Inputs: 1 – 4 switchable for instruments
• Inserts for inputs: 1 – 4: 6.3 mm TRS
• 4 line outputs: 6.3 mm TRS
• 2 AUX outputs: 6.3 mm TRS for line signals and reamping
• S/PDIF coaxial input and output: Cinch
• Switchable to word clock
• 2 headphone outputs: 6.3 mm TRS and 3.5 mm TRS
• 2 ADAT In / Out for max. 8 channels @ 96 kHz Sampling Rate
• Integrated Bluetooth audio receiver
• Compatible with AAC and aptX
• Integrated monitor controller with dim / mute / mono function
• Monitor and source selection
• Integrated 3-way USB hub for external devices
• USB-C socket
• Supports USB 2.0
• Compatible with Windows and Mac OS X
• Solid metal housing
• Dimensions: 265 x 160 x 72 mm
• Weight: 1.92 kg
• Includes AudioFuse Creative Suite

Disponível desdeMarço 2020

número de artigo490488

unidade de venda1peça(s)

Recording / Playback Channels18×20

Number of Mic Inputs4

Number of Line Inputs8

Instrument Inputs4

Number of Line Outs6

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors4

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other Connectors3x USB HUB

MIDI interfaceYes

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width265 mm

Depth160 mm

Height72 mm

Connection FormatUSB port Type B, 3x Type A

Included in deliveryPower Supply, USB-C Cable, USB-A to USB-C Cable, 2x TRS to DIN MIDI Adaptor

Zero latency monitoringYes

Mostrar mais
