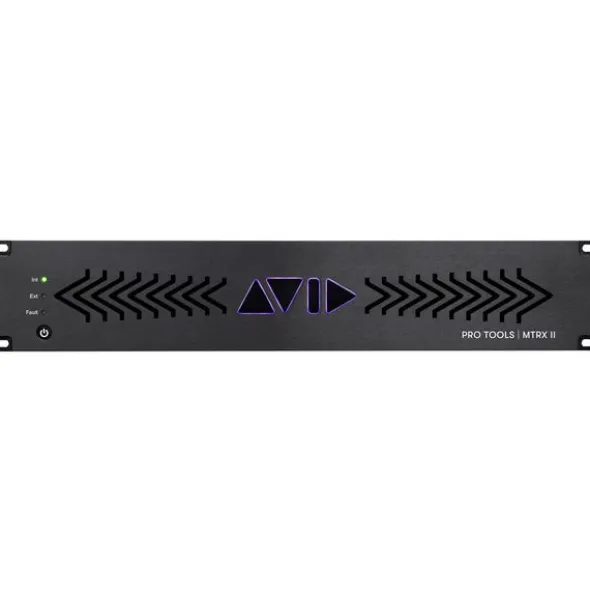

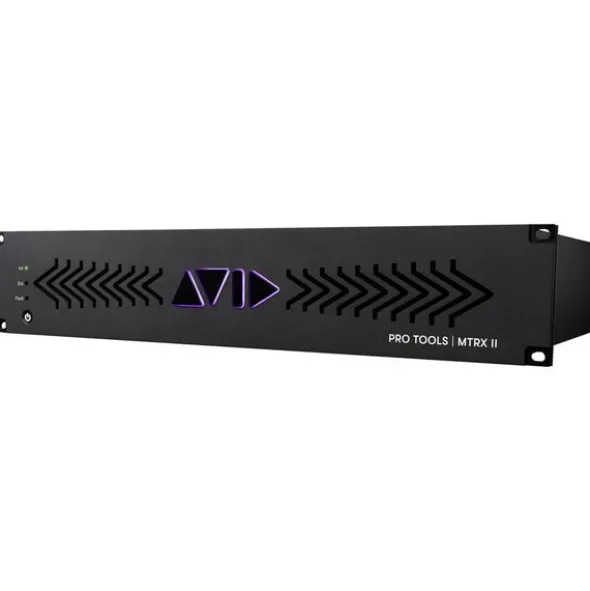

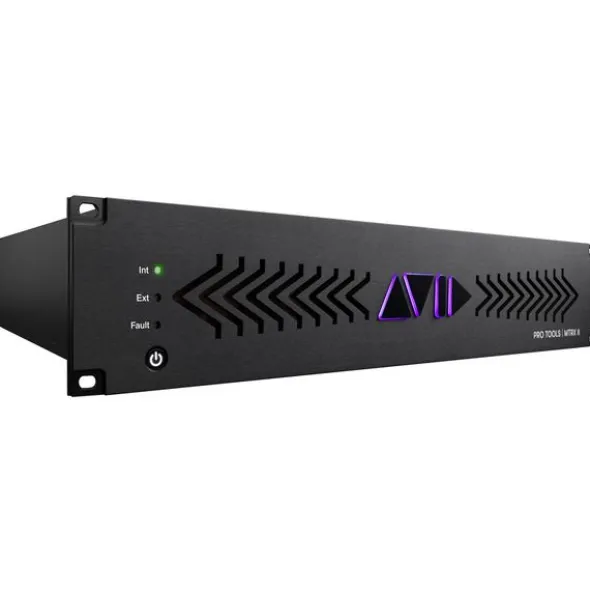

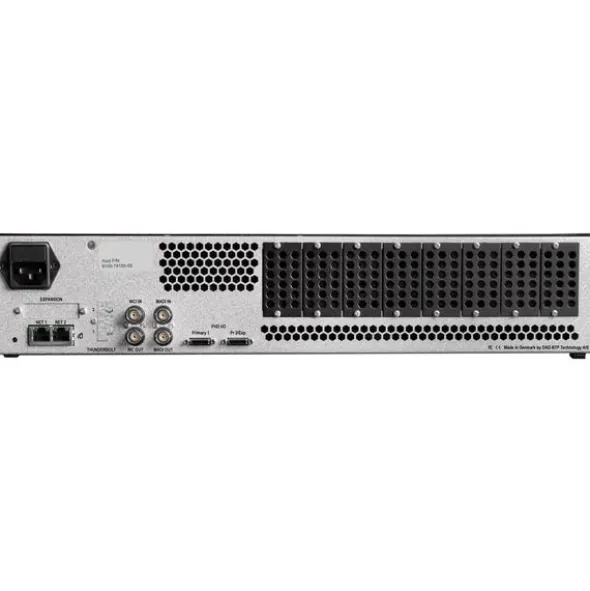

Avid Pro Tools MTRX II

Modular Interface and Digital Converter System

• For Pro Tools HD/HDX, HD Native and many other pro audio applications
• High-quality and powerful core for professional studio applications with versatile input and output configurations, routing and monitoring options
• Flexible concept for up to eight optional analogue or digital I/O cards with up to 64 channels
• Separately available Thunderbolt 3 option for native DAW integration with up to 256 channels
• 512 x 64 Summing mixers with monitor groups
• Fold downs and group formats for e.g. full Dolby Atmos configuration
• Room calibration via integrated SPQ speaker processing with 256 filters on 16 channels and delay management with up to 150 ms per channel
• Routing matrix with 4096×4096 points for signal distribution of all connected audio devices
• Calibration and control of the MTRX II with the supplied DADman and Pro
  Mon monitor control software
• 64 Channels of DigiLink at all sample rates for integration into Pro Tools HD / HDX systems
• 64 Channels of MADI I/O at 44.1/48 kHz
• 32 Channels at 88.2/96 kHz or 12 channels at 176.4/192 kHz
• 256 Channels Dante I/O at 44.1/48 kHz
• 128 Channels at 88.2/96 kHz or 64 channels at 176.4/192 kHz (IP core)
• 128 Channels SPQ speaker processing
• System synchronisation via Word Clock / Video Black Burst (VBB) I/O on BNC connectors or Dante Sync or digital inputs
• Supported sample rates from 44.1 – 384 kHz
• Dimensions (W x D x H): 485 x 360 x 90 mm
• Weight: 4 kg
• Incl. Pro
  Mon 3 monitoring control, DADman software and AC power cable

Disponível desdeJulho 2023

número de artigo561742

unidade de venda1peça(s)

Amount Of Channels64

AD ConversionNo

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz384 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorNo

ADATNo

Word clockYes

Number of analog inputs0

Number of Analog Outputs0

Headphone connectionNo

Special Features512×64 Mixer, SPQ-Speaker-Processing, Routing-Matrix
