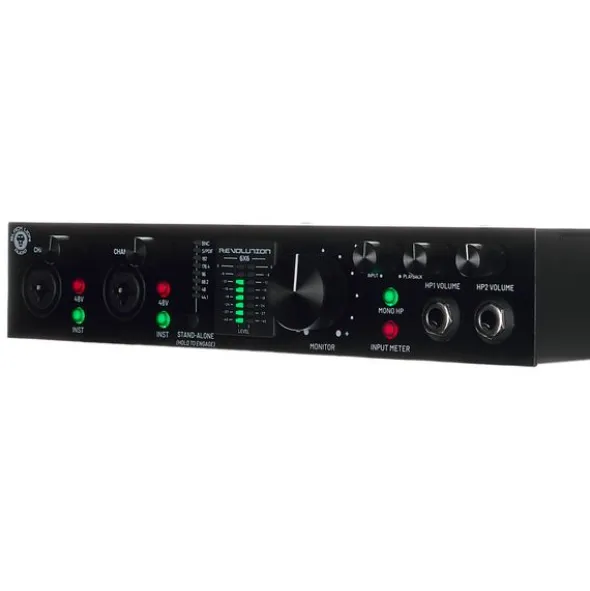

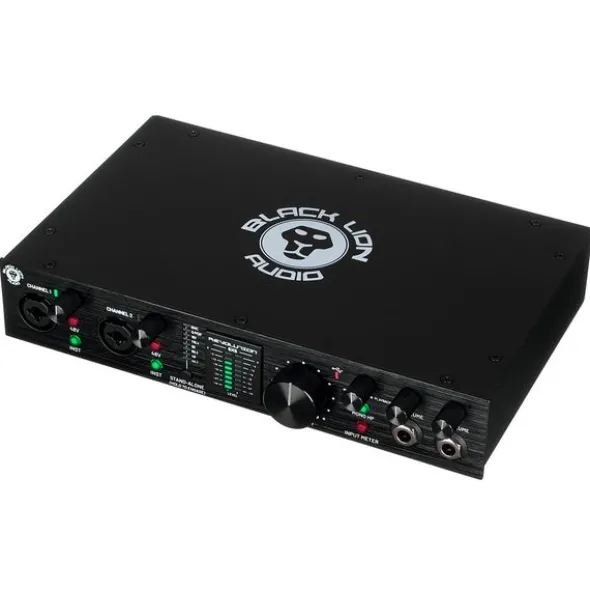

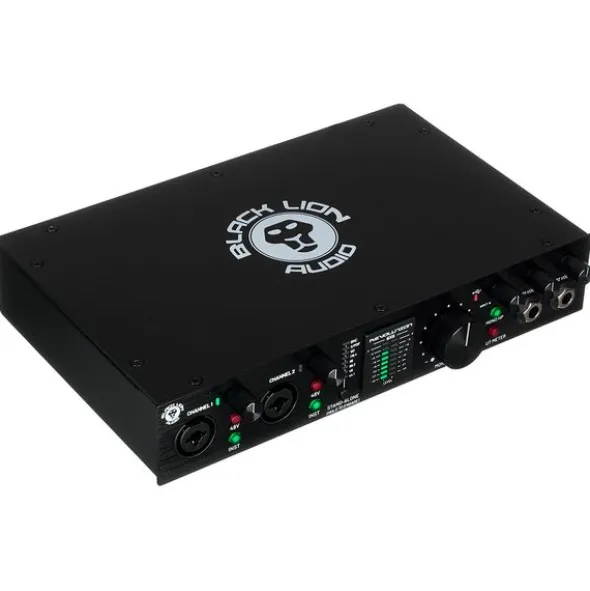

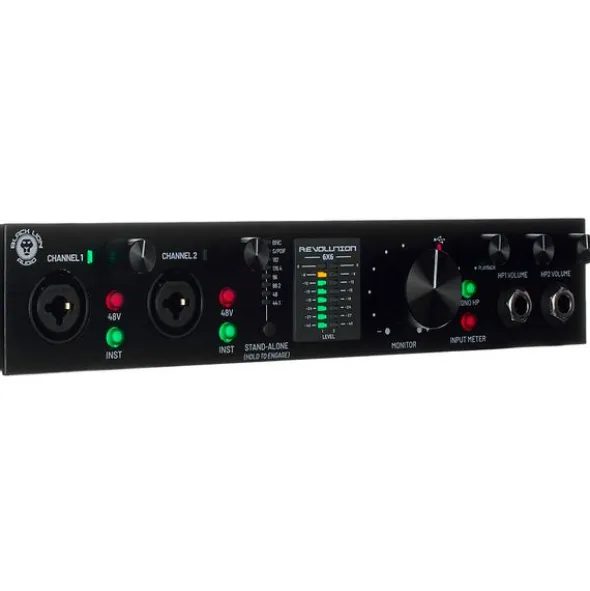

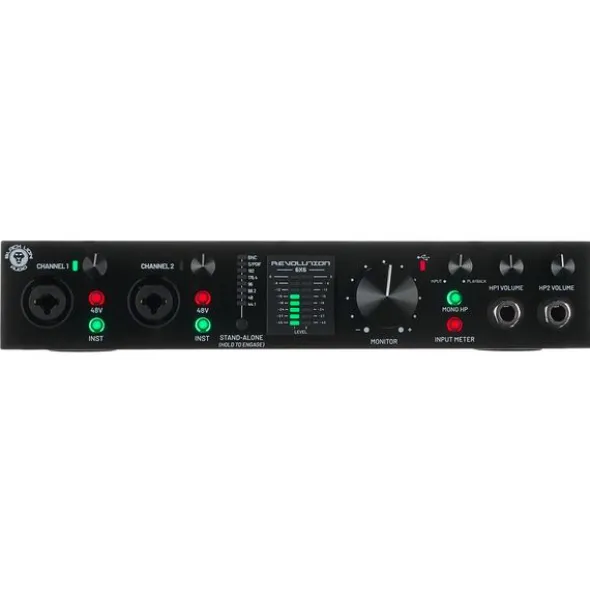

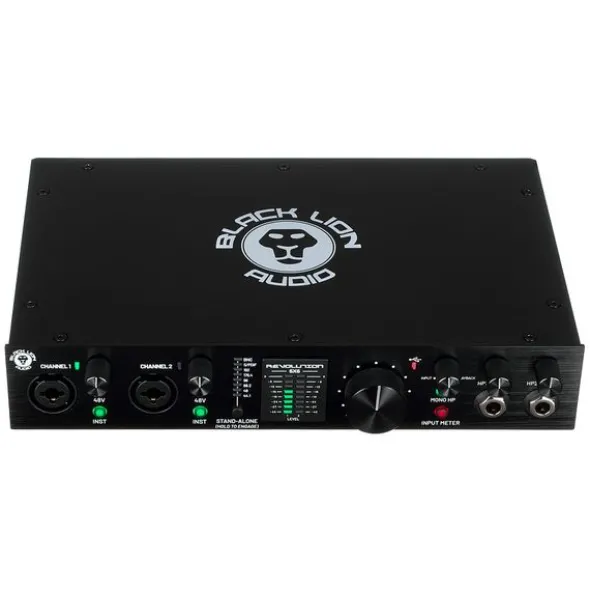

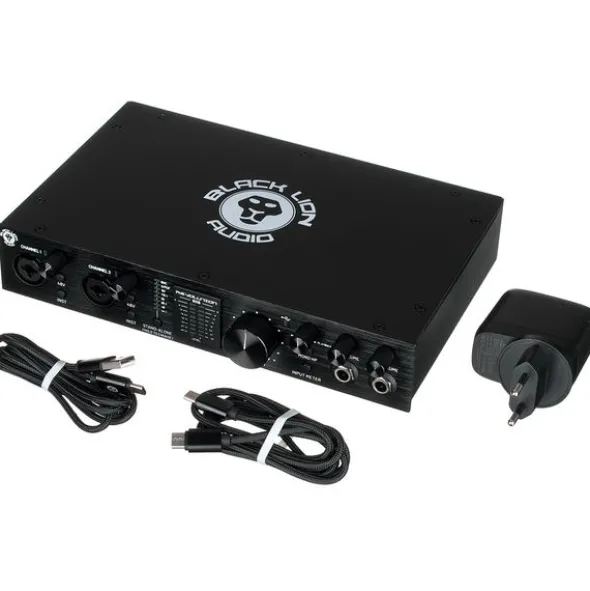

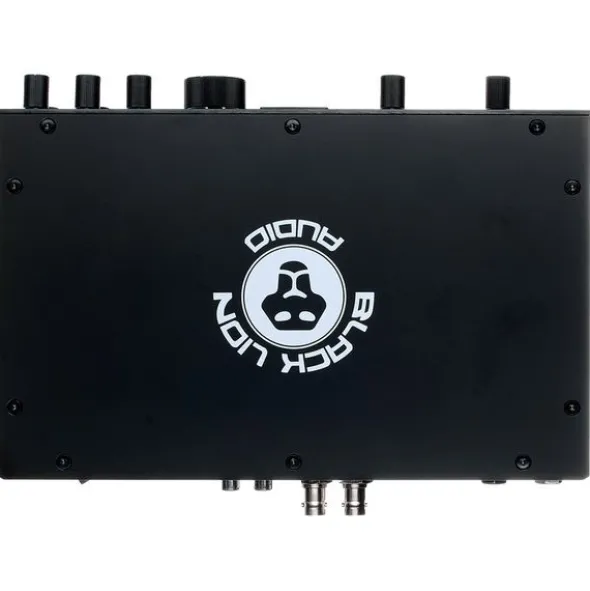

Black Lion Audio Revolution 6×6

6-Channel USB-C Audio Interface

• With word clock and USB OTG function
• Stand-Alone DAC mode
• Precise Macro-MMC clock
• Two stereo headphone outputs with separate control
• Direct monitoring with mix control and mono switch
• AD/DA conversion: 24bit / 192kHz
• LED level indicators
• Switchable 48V phantom power supply
• Volume control
• OTG cable or OTG adapter not included
• Dimensions (H x W x D): 10.16 x 25.4 x 22.86 cm
• Weight: 1.75 kg
• Software package included (download): Presonus Studio One Artist, iZotope Elements Suite, BrainWorx BX Digital, Lindell 6X500

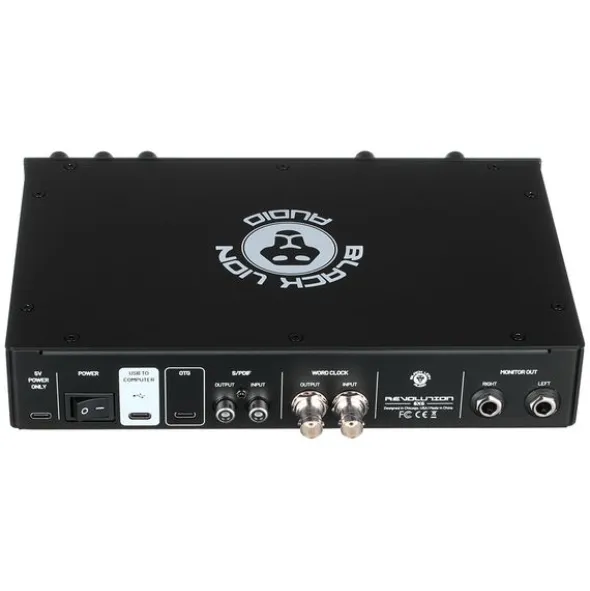

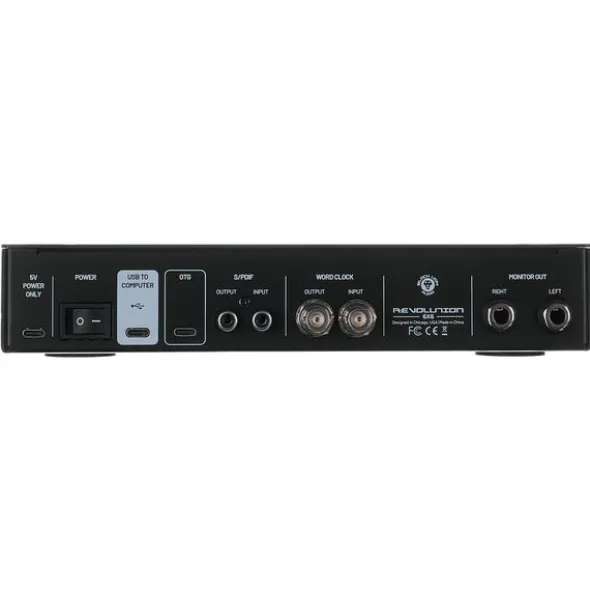

Connections:

• 2 Combo input mic/line: XLR/jack
• 1x Word clock input/output (BNC socket)
• 1 S/PDIF in/out
• 2 USB-OTG
• 2 S/PDIF
• 2 Line output: 6.3mm TRS jack, balanced
• 2 Stereo headphone output: 6.3 mm jack
• USB-C connection
• USB powered

Disponível desdeDezembro 2023

número de artigo581285

unidade de venda1peça(s)

Recording / Playback Channels2×2

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs2

Number of Line Outs2

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width254 mm

Depth230 mm

Height102 mm

Connection FormatUSB port Type C

Included in deliveryPower Supply, USB-C Cable, USB-A to USB-C Cable
