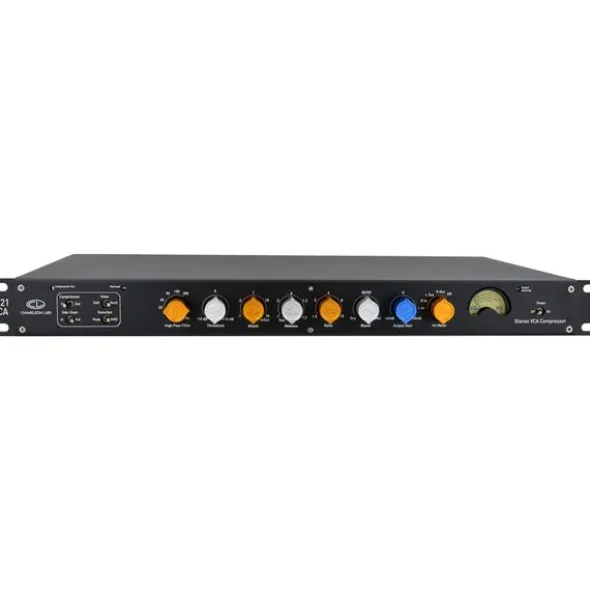

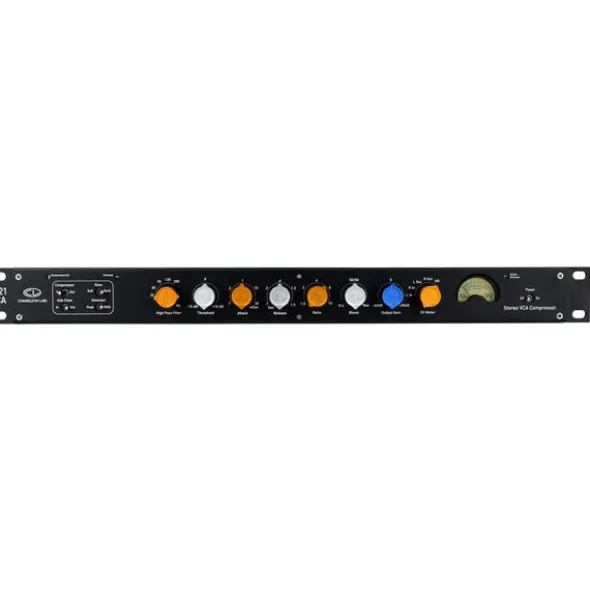

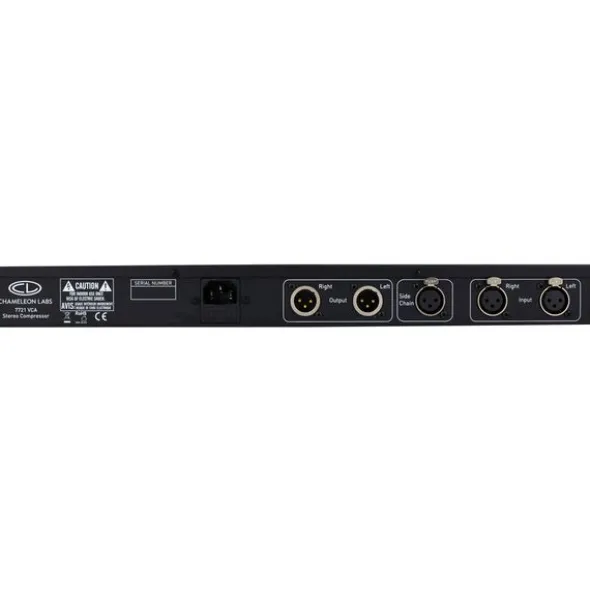

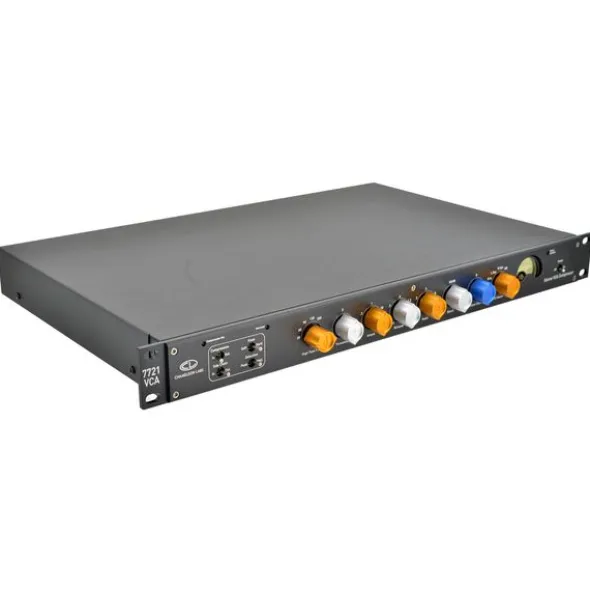

Chameleon Labs 7721 Stereo VCA Compressor

Stereo VCA Compressor

• Sidechain input
• Selectable high-pass filter: 60, 90, 130 or 200 Hz
• Detection type switchable: Peak or RMS
• Selectable compression types: soft or hard knee
• Threshold, attack, release and ratio controls
• Gridded blend control for parallel compression
• VU meter for monitoring the input/output level and gain reduction
• Signal-to-noise ratio: 116 dB
• Frequency range: 20 – 20,000 kHz (+/-0.25 dB)
• Threshold: -15 dB to +15
• Attack time: 0.1 / 0.3 / 1 / 3 / 10 / 30 ms
• Release time: 0.1 / 0.3 / 0.6 / 1.2 / 1.5 s
• Ratio: 1.5: 1 to 10:1
• Dimensions (W x D x H): 480 x 295 x 440 mm
• Weight: 5 kg
