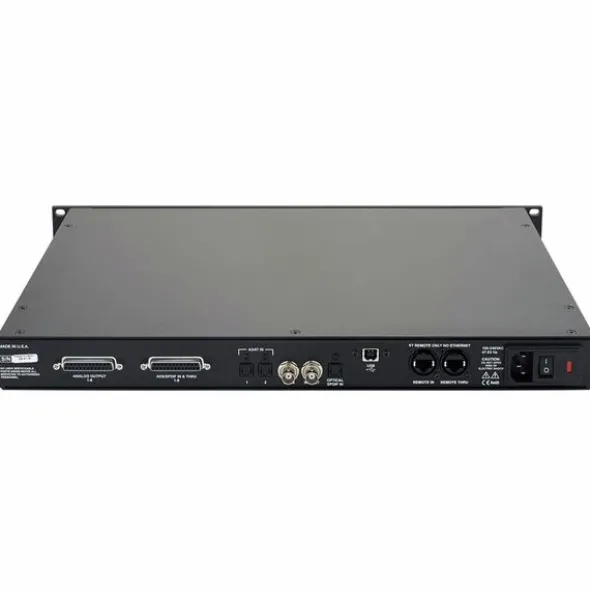

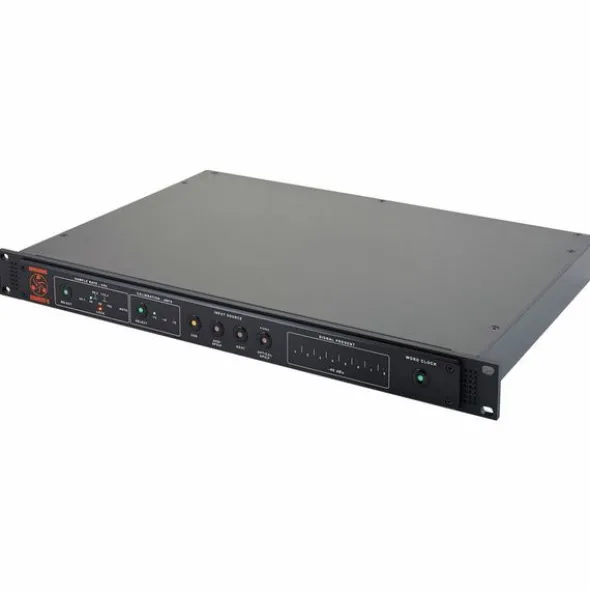

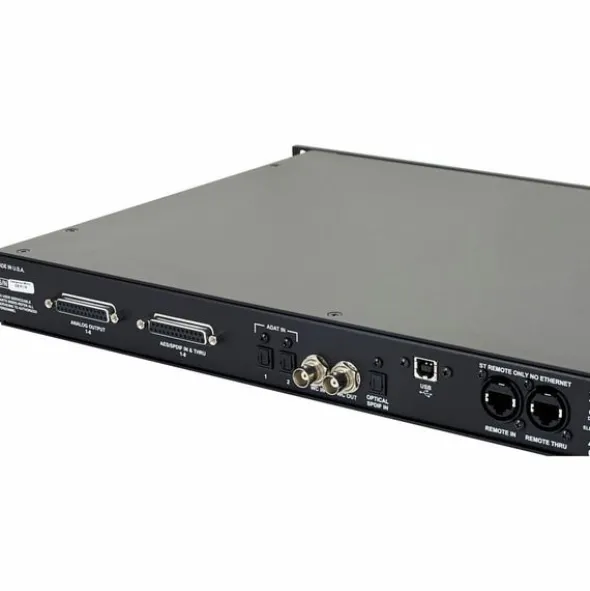

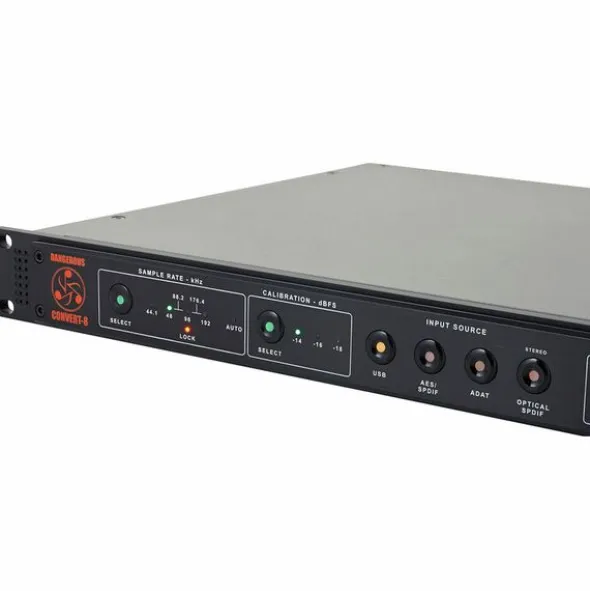

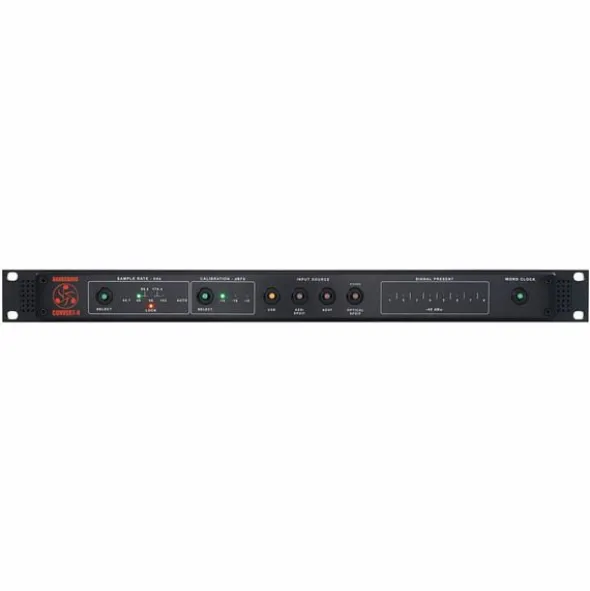

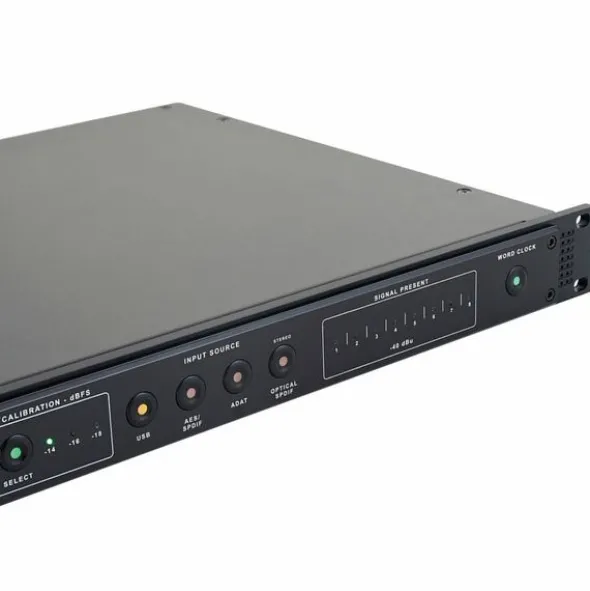

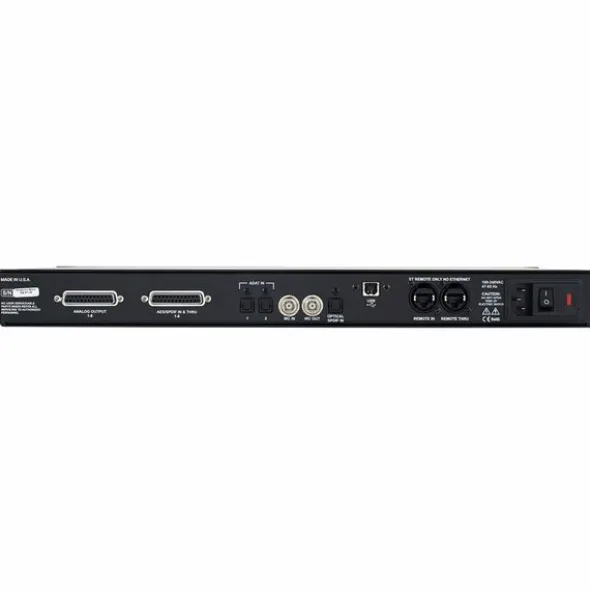

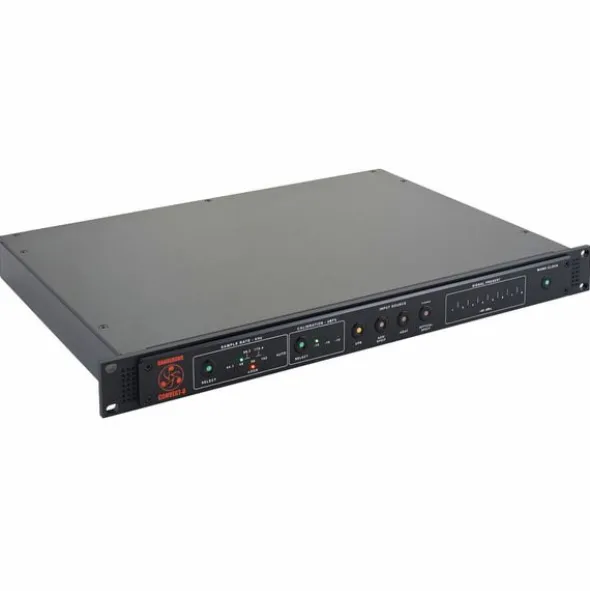

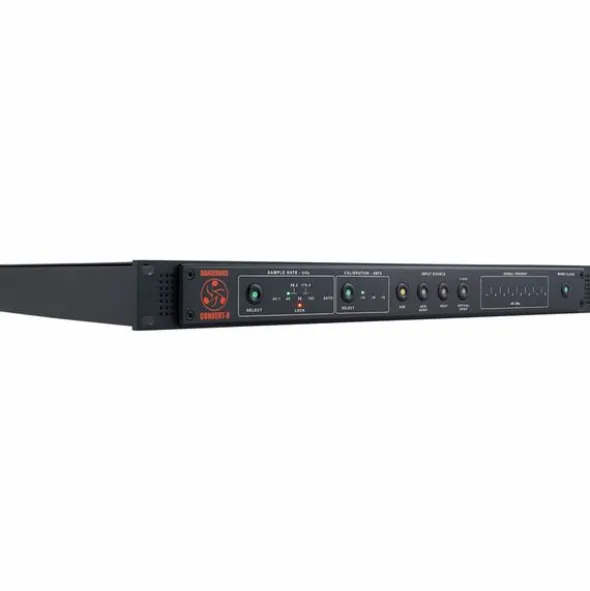

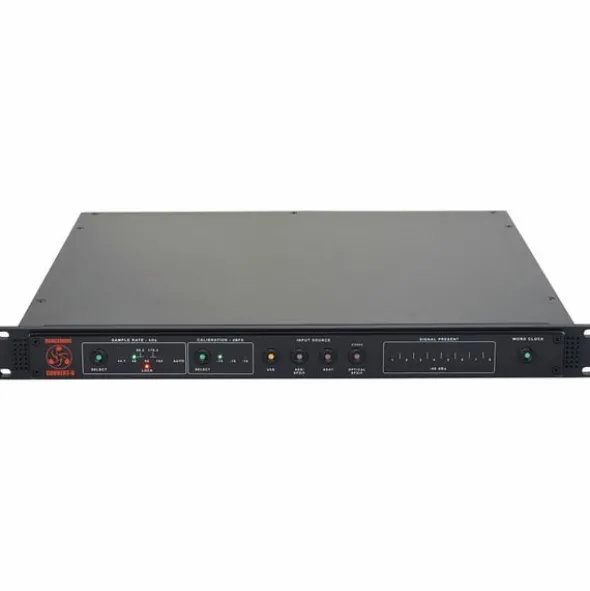

Dangerous Music Convert-8

Multi-Channel DA Converter

• Audiophile conversion that meets the highest mastering requirements
• 4 x Digital input formats: USB, AES, ADAT, Optical SPDIF (Toslink)
• Sampling frequencies from 44.1 to 192 kHz with automatic detection
• High-definition stereo reference monitoring for stereo or surround (up to 7.1)
• Ultra-low jitter clocking technology
• USB input for direct DAW connection
• Compatible with ST / SR monitor for remote switching
• “Signal present” LEDs (green: -40 dB or more, red: 3 consecutive samples)
• On The Fly Input switching and calibration

Specifications:

• Noise ratio A-weighted (20 – 20k Hz): <114 dB
• Noise balance unweighted (20 – 20k Hz): <113 dB
• Dynamic range A-weighted (20 – 20k Hz): <114 dB
• Dynamic range unweighted (20 – 20k Hz): <113 dB
• Total harmonic distortion (1 kHz unweighted, 20 – 20k Hz, +4 dBu out): <94.5 dB (0.00188%)
• Distortion factor (1 kHz unweighted, 20 – 20k Hz, + 22 dBu out): <106.5 dB (0.00048%)
• Frequency response (96 kHz sample rate):
• DC to 20 kHz: +0 / -0.25 dB
• DC to 30 kHz: +0 / -0.5 dB
• DC to 40 kHz: +0 / -1.0 dB
• Jitter: 16ps (100Hz to 40kHz), 18ps (100Hz to 1MHz)
• Crosstalk attenuation (at 1 kHz):> 114 dBu
• Format: 19″/ 1U

Disponível desdeJulho 2015

número de artigo368418

unidade de venda1peça(s)

Amount Of Channels8

AD ConversionNo

DA ConversionYes

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorYes

AES/EBU ConnectorYes

ADATYes

Word clockYes

Number of analog inputs0

Number of Analog Outputs8

Headphone connectionNo

Special FeaturesDigital Input Pass Thru
