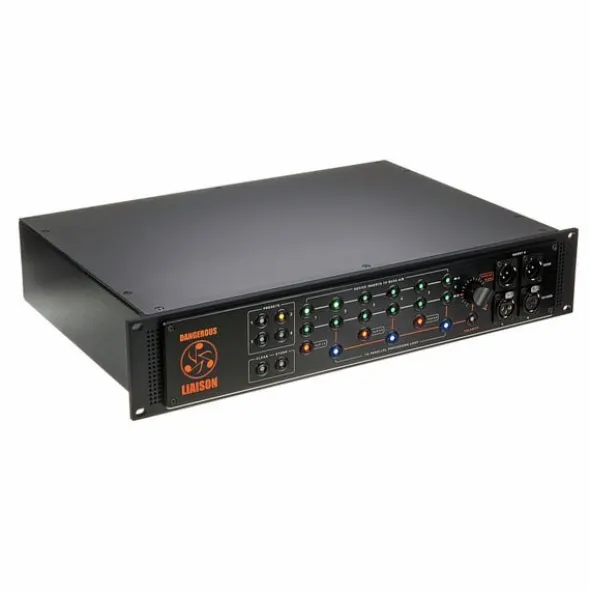

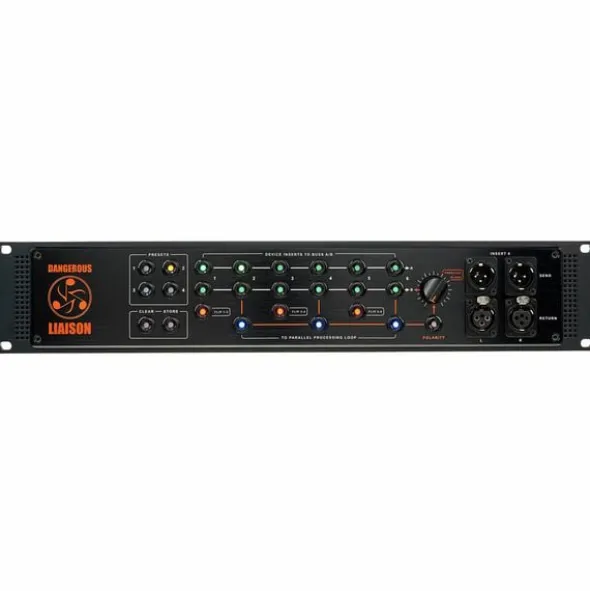

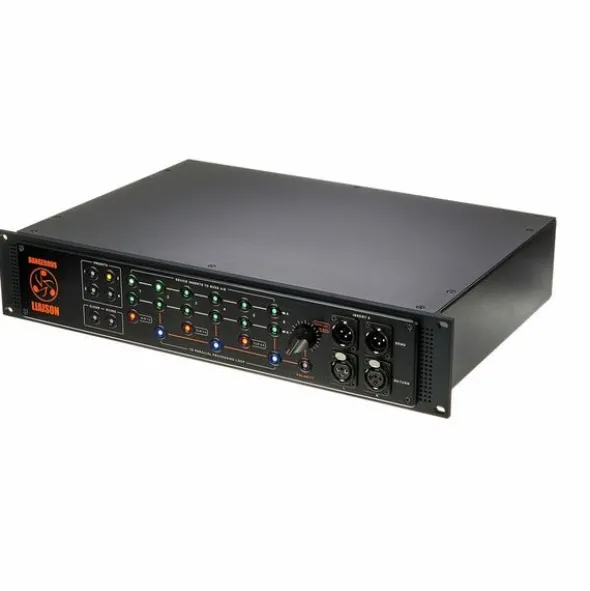

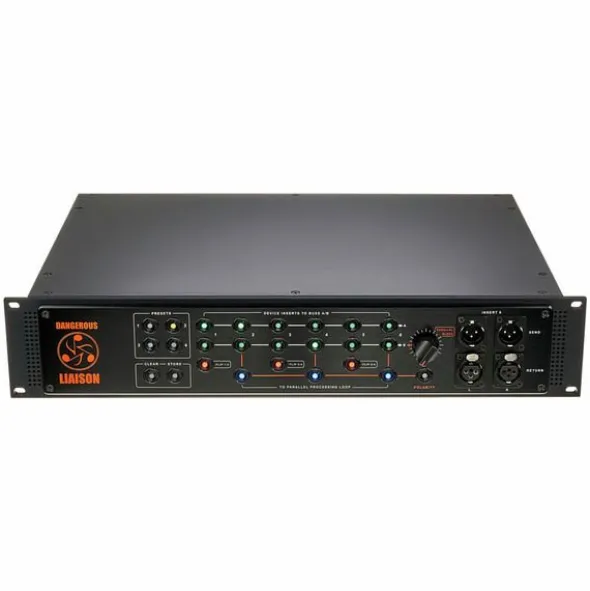

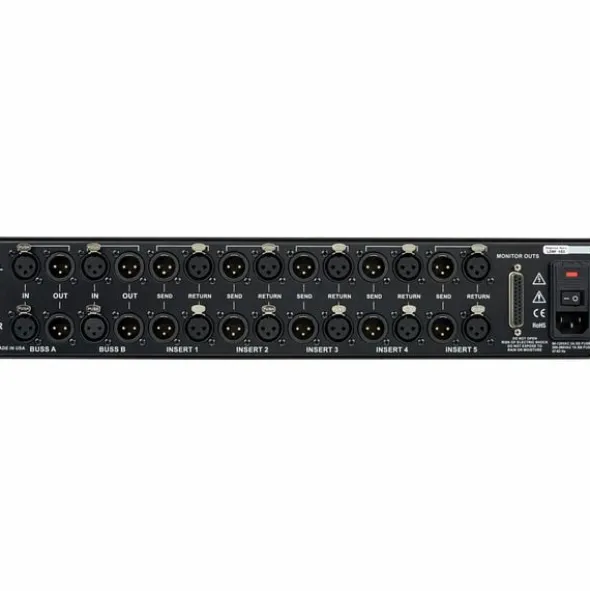

Dangerous Music Liaison

Mastering Patchbay – Router

• 6 Stereo insert loops – assignable to 2 stereo buses
• Flexible Potent Parallel processing loop, route, switch, matrix, flip and audition without delay, quality loss or cracking
• Restore any tracking, mixing, or mastering settings
• Seamless integration with Dangerous Master
• True hard-wire bypass relays
• Frequency Response (Passive Section) +0 -0.1 dB from 10 Hz to 100 kHz
• Frequency Response (Active Section) +0 -0.1 dB from 10 Hz to 100 kHz
• Maximum Level> +28 dBu
• Noise floor <-94.5 dBu 22 Hz – 22 kHz bandwidth
• THD + N <0.002%
• IMD <0.003%
• Crosstalk rejection (Passive Section)> 124 dB
• Crosstalk rejection (Active Section)> 113 dB
• Input Impedance: 20 kOhm
• Output Impedance: 20 Ohm
• Format: 19 “/ 2U
