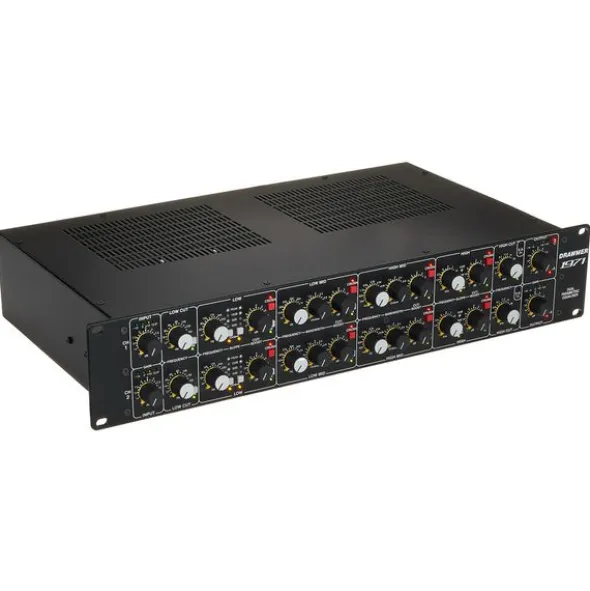

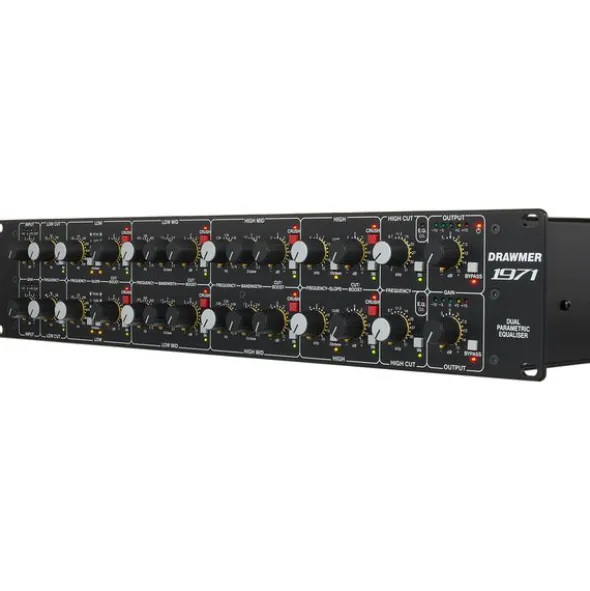

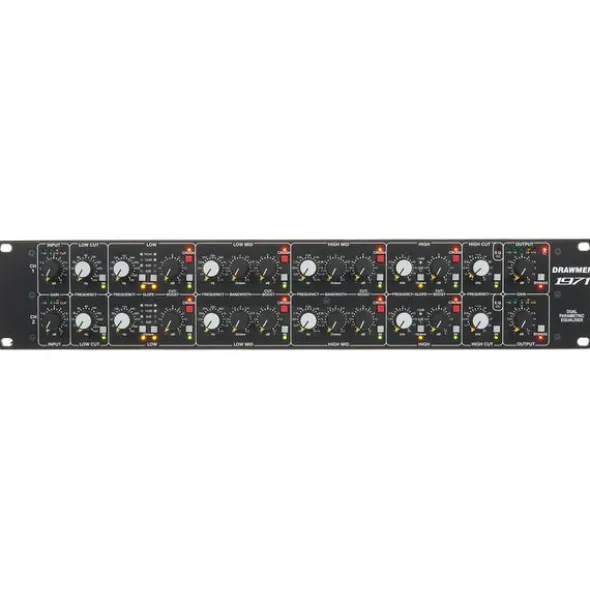

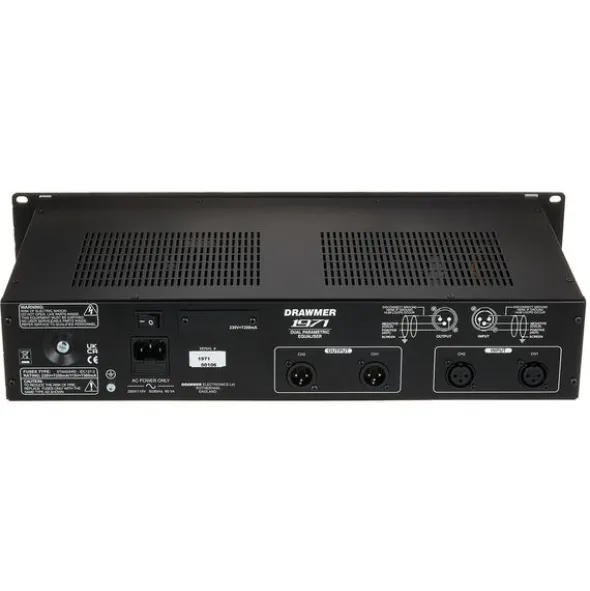

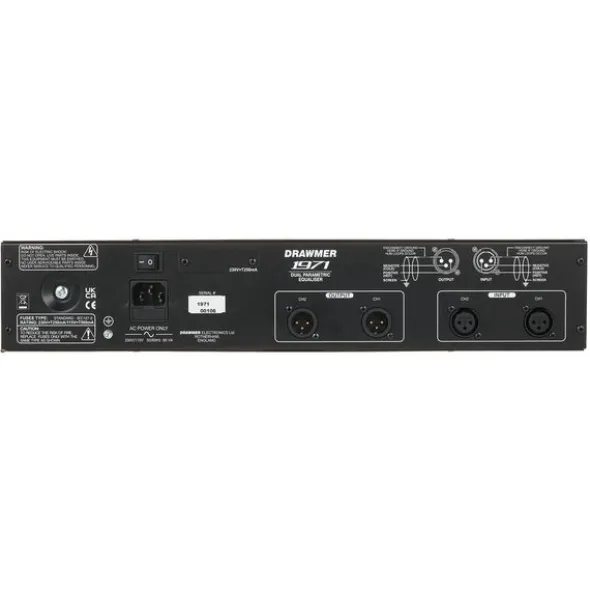

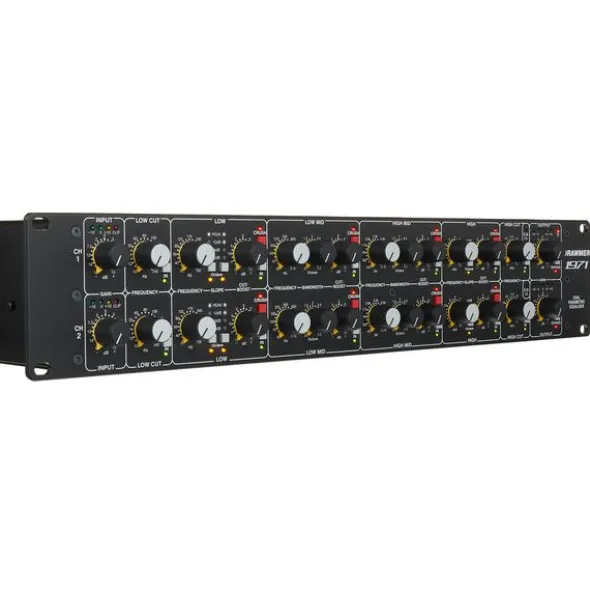

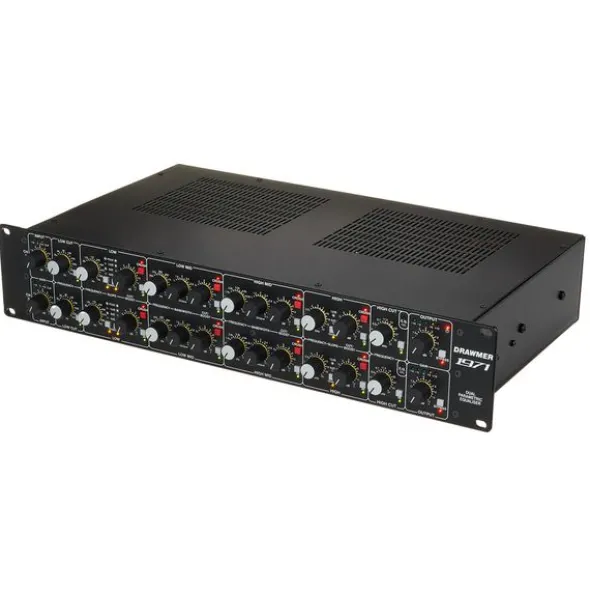

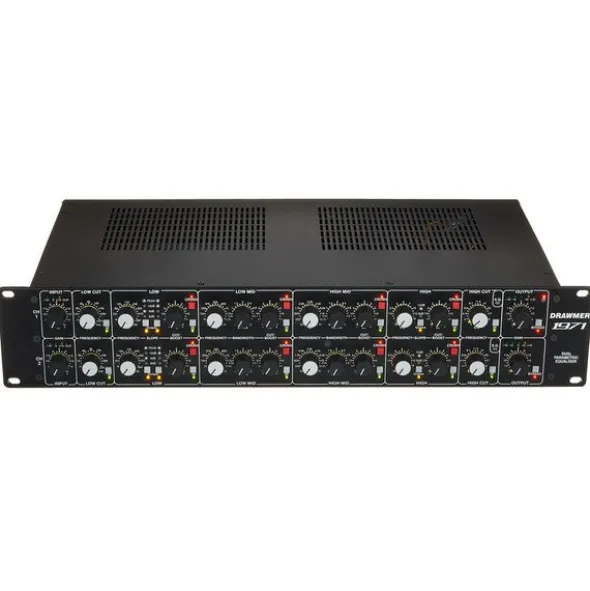

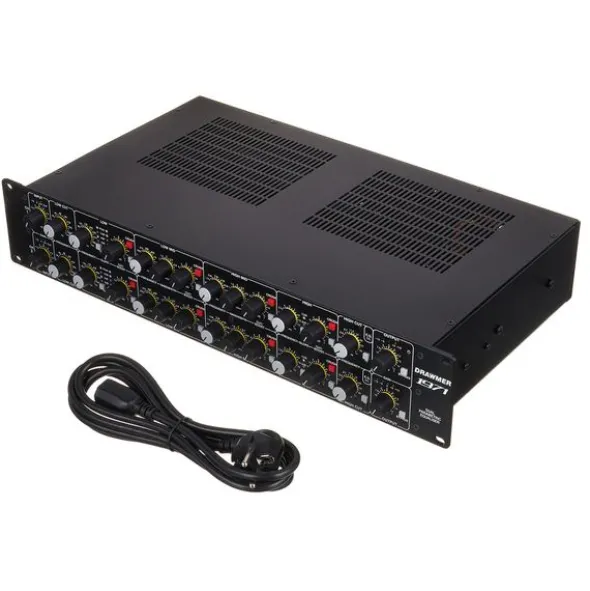

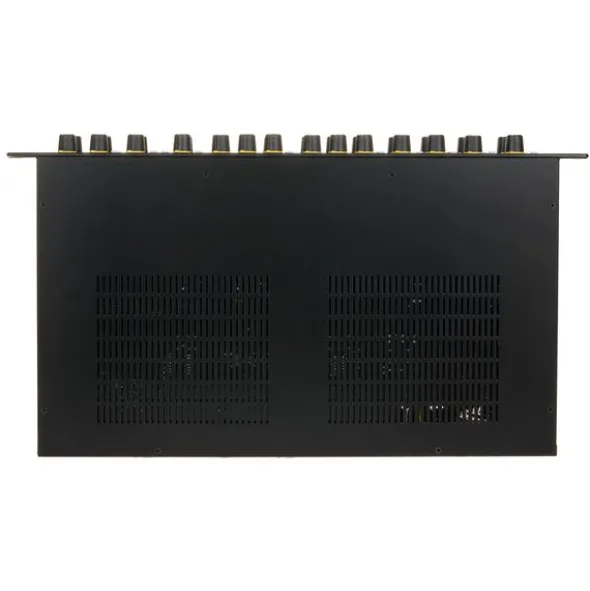

Drawmer 1971 Dual 4-Band Parametric

Parametric Four Band Equalizer in Vintage Design

• Classic sound control and transparency
• Variable high-pass and low-pass filters for perfect elimination of unwanted signal components
• Input impedance: > 20 kOhm
• Max. input level: +21 dBu
• Output impedance: <100 ohm
• Maximum output level: +21 dBu (10 kOhm load impedance)
• Frequency response: 35 – 20,000 Hz +/-0.2 dB
• Distortion (THD+N) @ 1,000 Hz/ 0 dB: 0.003%
• Crosstalk: -75 dB @ 1.000 Hz
• Low-cut frequencies: 10 to 225 Hz
• Low band: 35 – 700 Hz
• Low slope: 6, 9, 12 dB peak
• Low level: +/- 12 dB
• Low-mid frequencies: 55 to 2,100 Hz
• Low-mid bandwidth: 0.33 to 3.3 octave
• Low-mid level: +/- 12 dB
• High-mid frequencies: 400 to 14,000 Hz
• High-mid bandwidth: 0.33 to 3.3 octave
• High-mid level: +/- 12 dB
• High frequencies: 1,200 to 20,000 kHz
• High slope: 6, 12 dB
• High level: +/- 12 dB
• High-cut frequencies: 4,000 to 32,000 Hz
• Power supply: 230 V or 115 V, 15 V A
• Dimensions (W x H x D): 482 x 88 x 270 mm
• Weight: 4.2 kg
