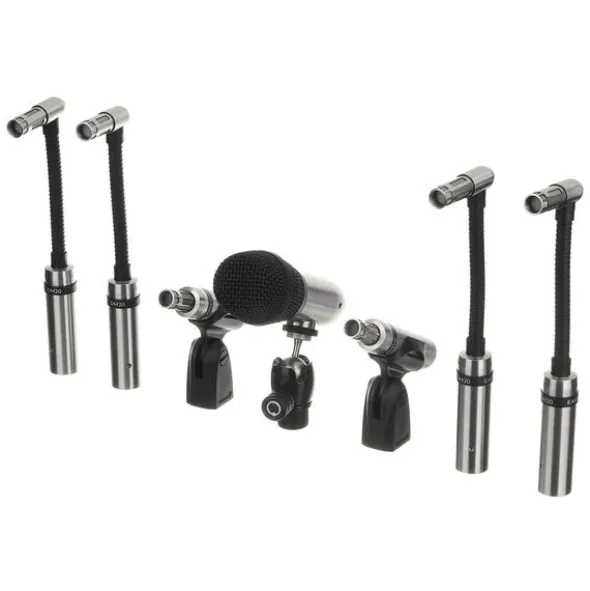

Earthworks Audio DK7 Gen2

Microphone Set for Drum Miking

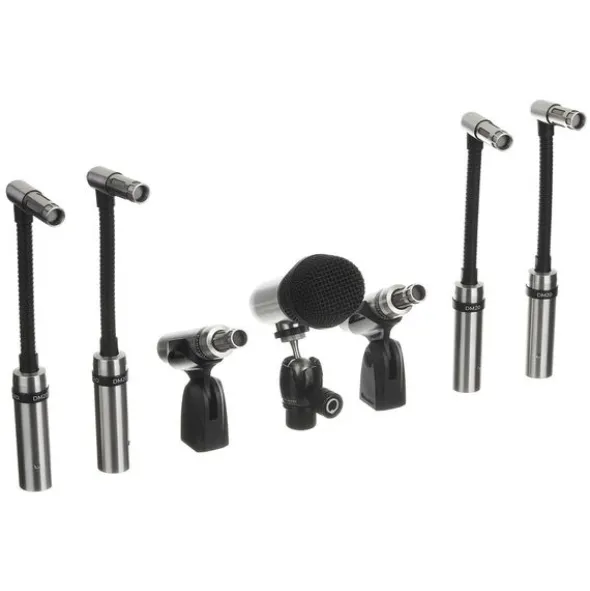

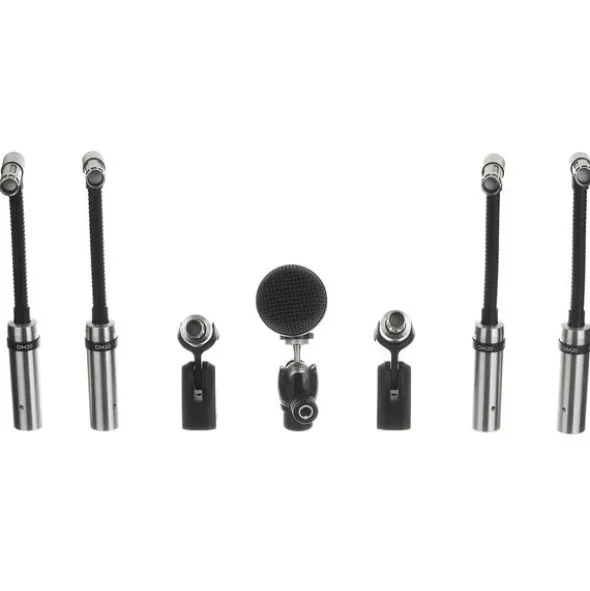

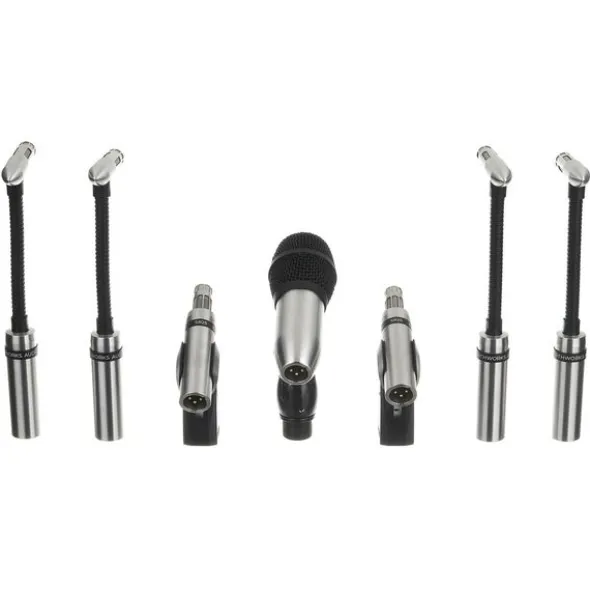

Consisting of:

• One SR25 Gen2 condenser microphones for overhead miking
• One DM6 for bass drum miking

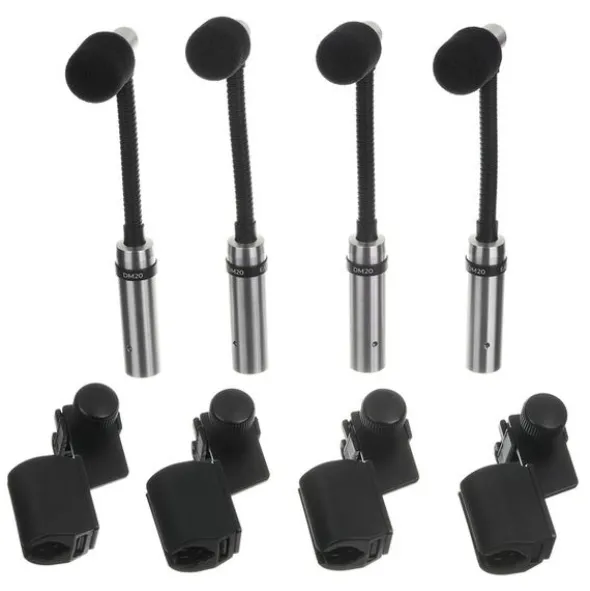

• Four DM20 Gen 2 condenser gooseneck microphones for tom and snare
• Four RM1 rim mounts
• Three MC1 microphone clamps
• Four PW1 windscreens

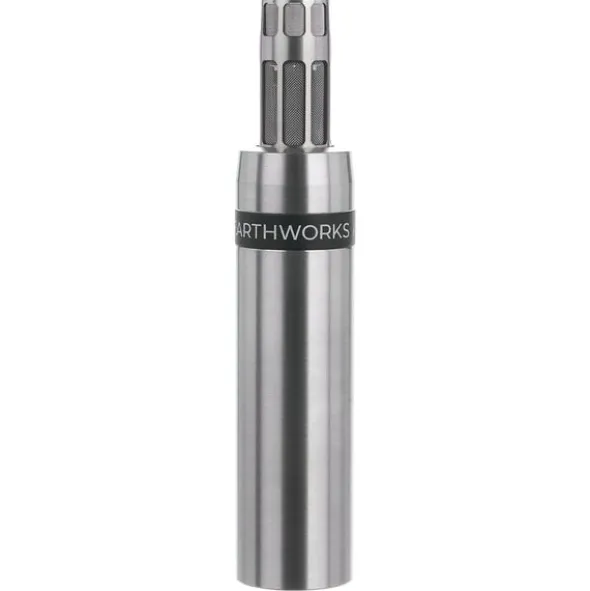

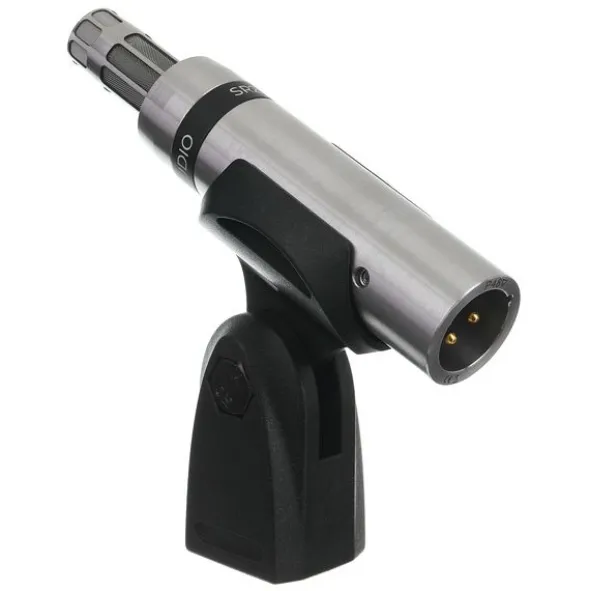

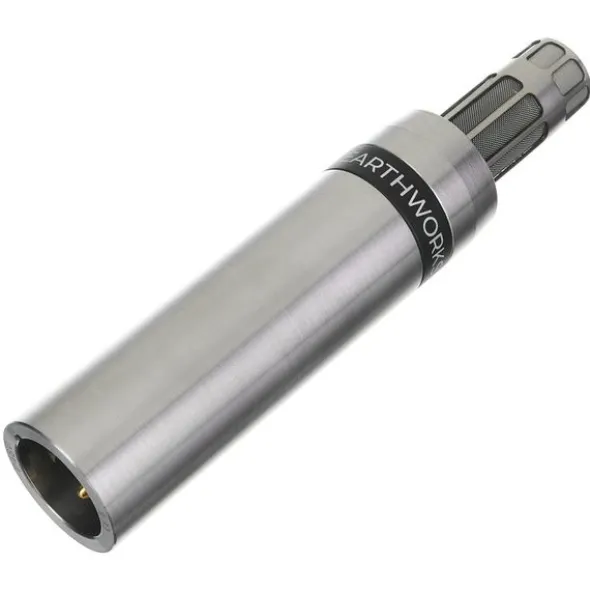

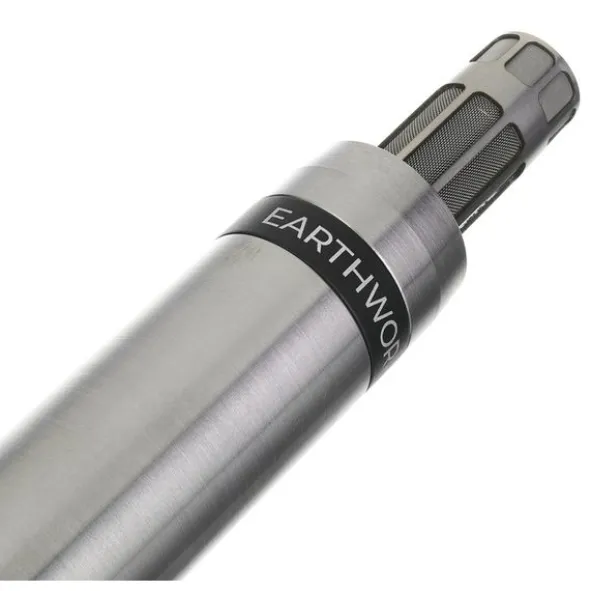

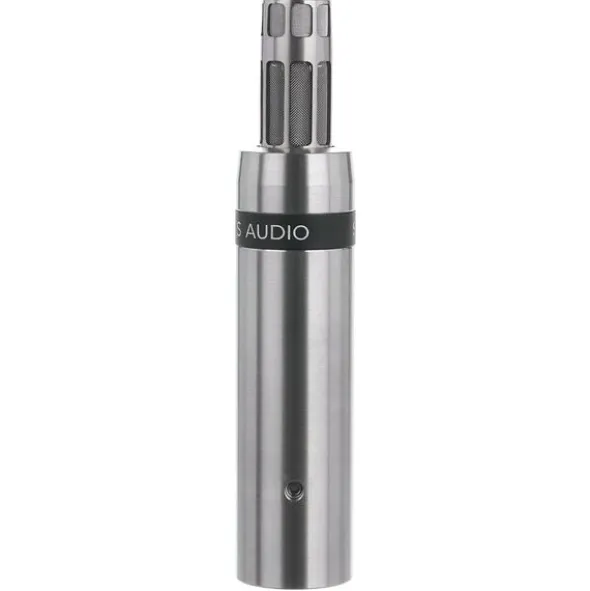

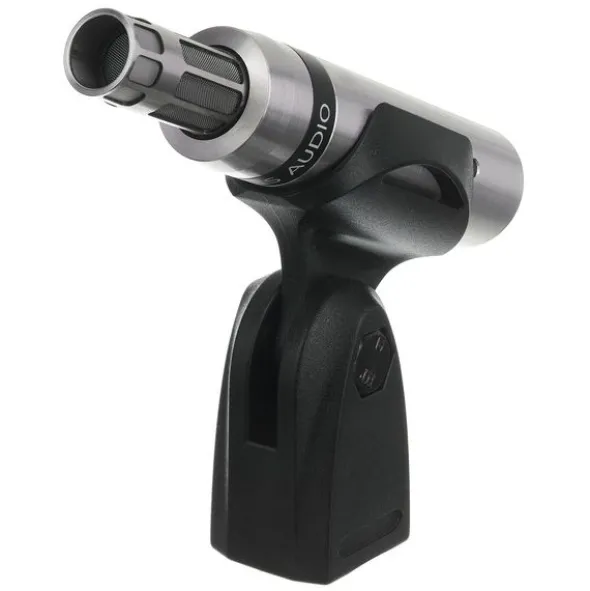

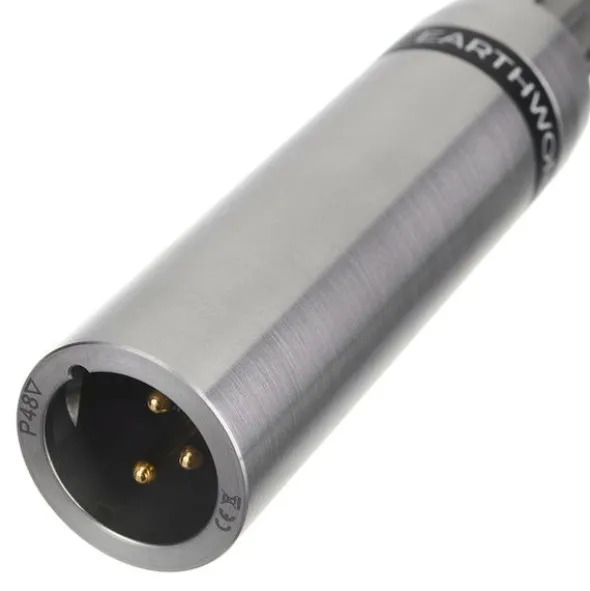

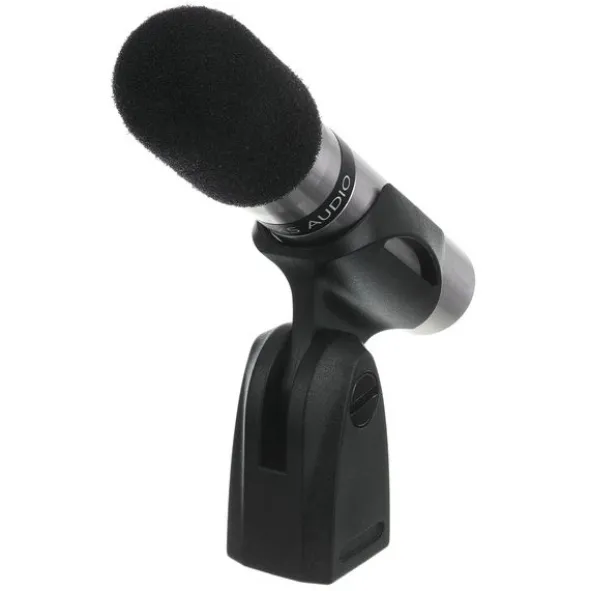

Technical data SR25 Gen2 condenser microphone:

• Polar pattern: Supercardioid
• Frequency range: 20-25,000 Hz
• Class-A amplifier
• Max. sound pressure level: 145 db
• Requires 48V phantom power
• Gen2 features: Requires only 6mA phantom power
• Integrated protection function against accidental ‘hot-swapping’
• New rim mounting system
• Dimensions (L x D): 165 x 22 mm
• Weight: 160 g
• Includes MC1 microphone holder

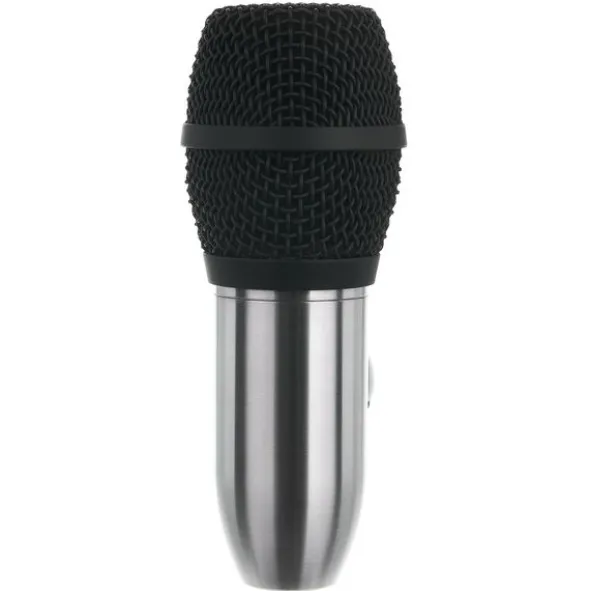

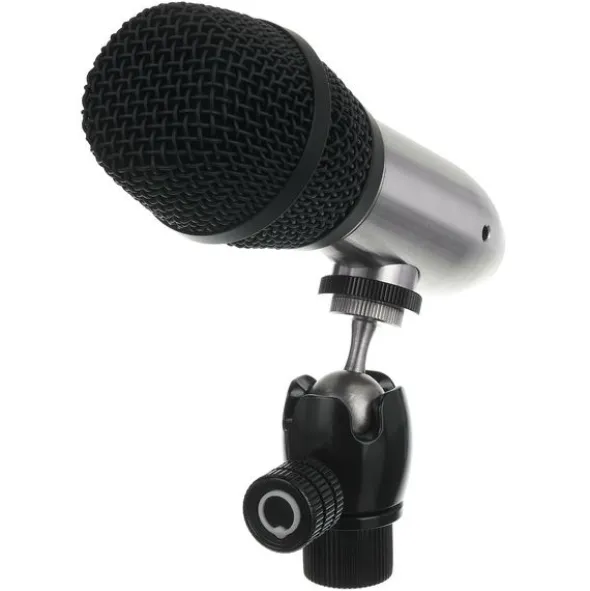

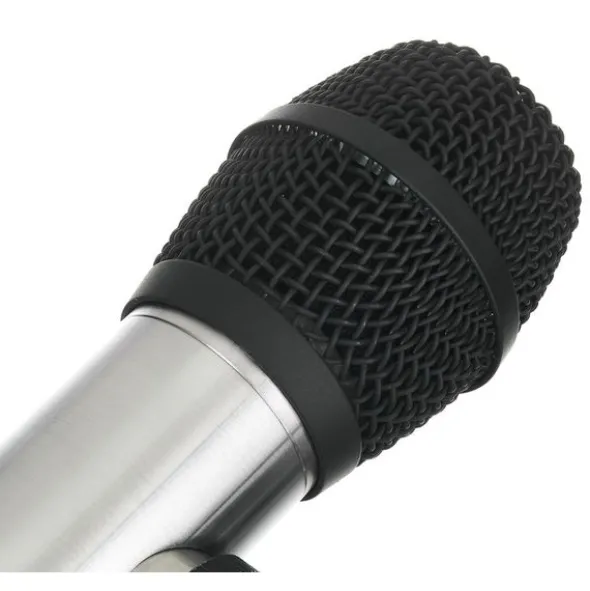

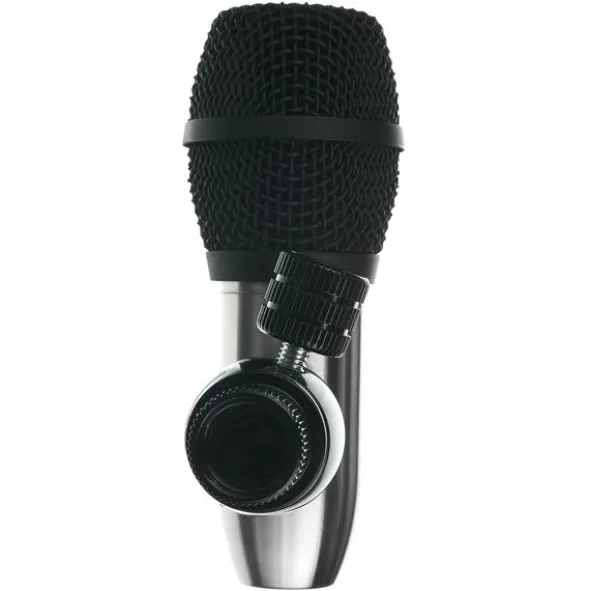

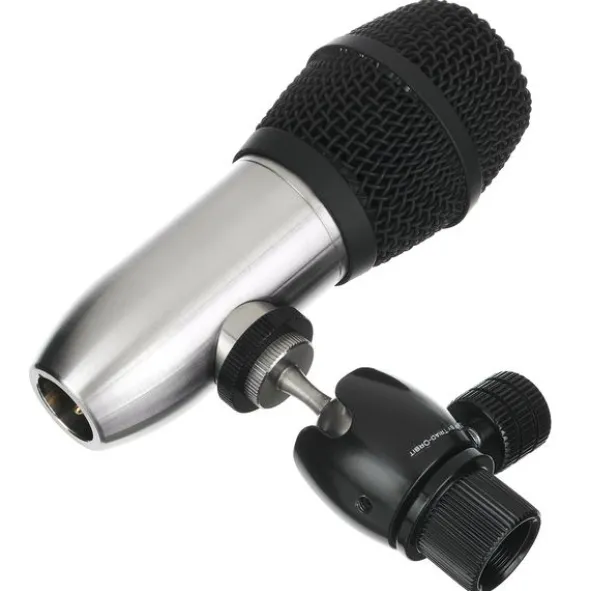

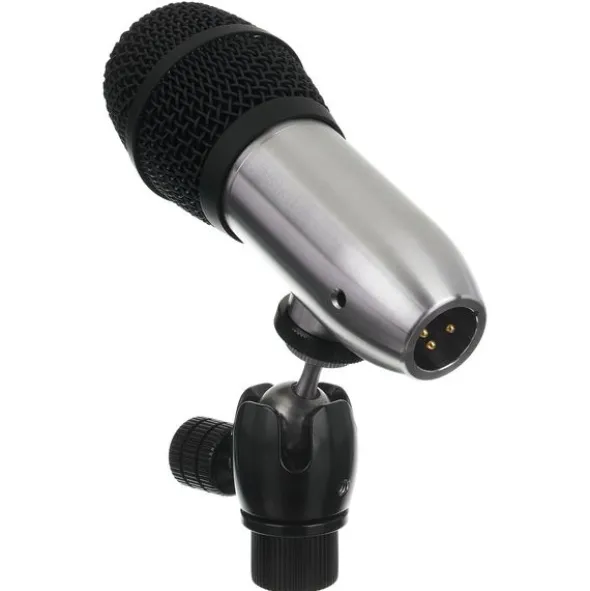

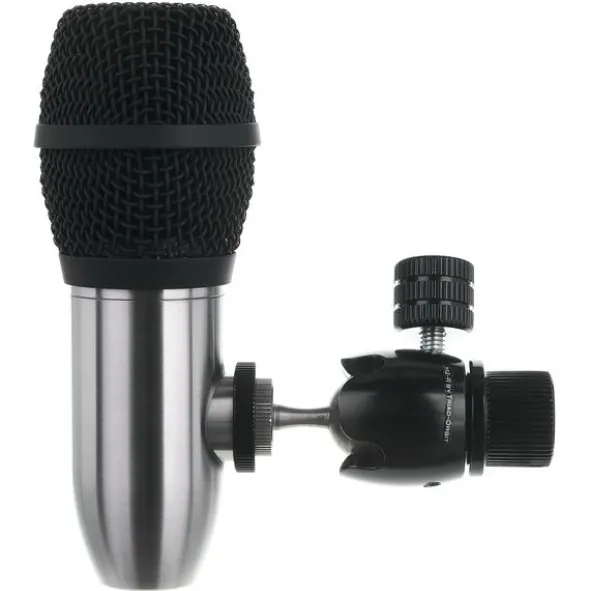

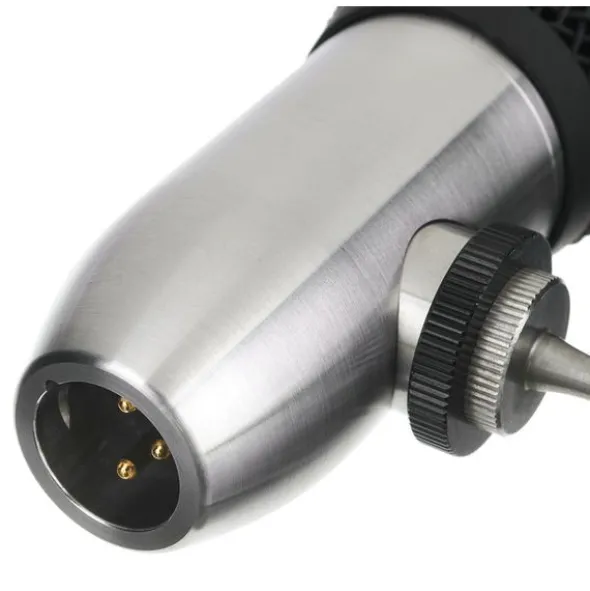

Technical data DM6 condenser microphone for kick drum miking:

• Polar pattern: Supercardioid
• Frequency range: 20 Hz – 20,000 Hz
• Sensitivity (1 kHz) – 60 dBV / Pa (1 mV / Pa)
• Requires +48V phantom power
• Max. sound pressure level: 150 db
• Dimensions (L x Ø): 126 x 49 mm
• Weight: 0.38 kg
• Includes ball joint mount and windscreen

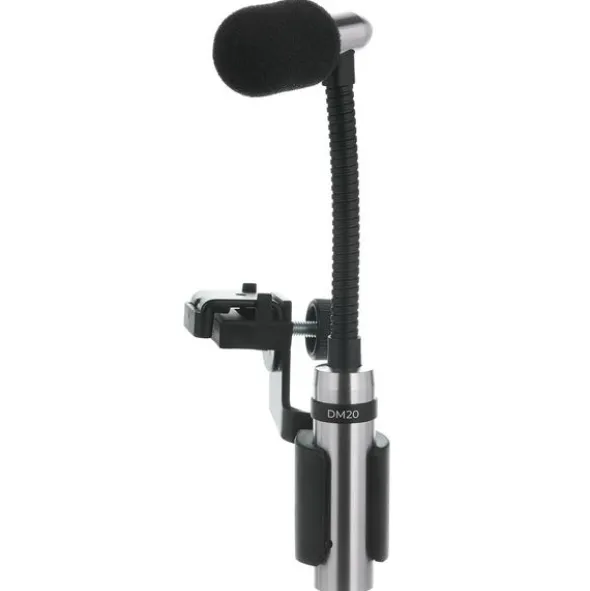

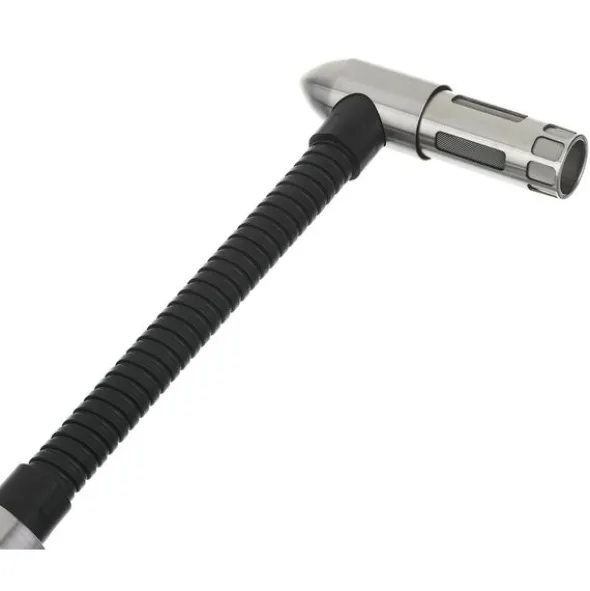

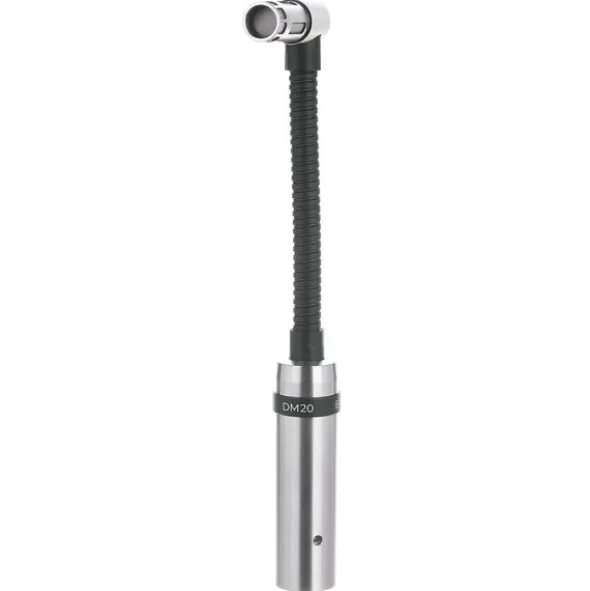

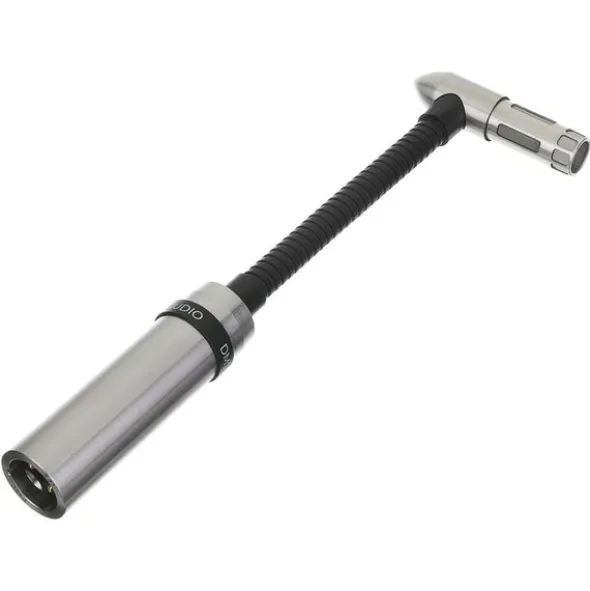

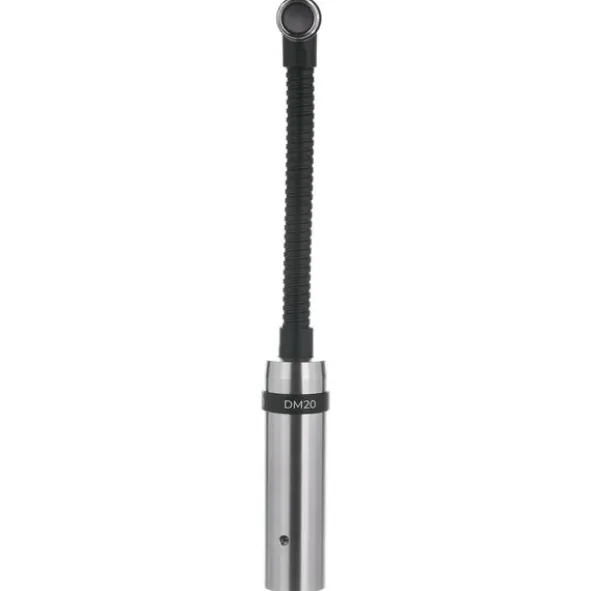

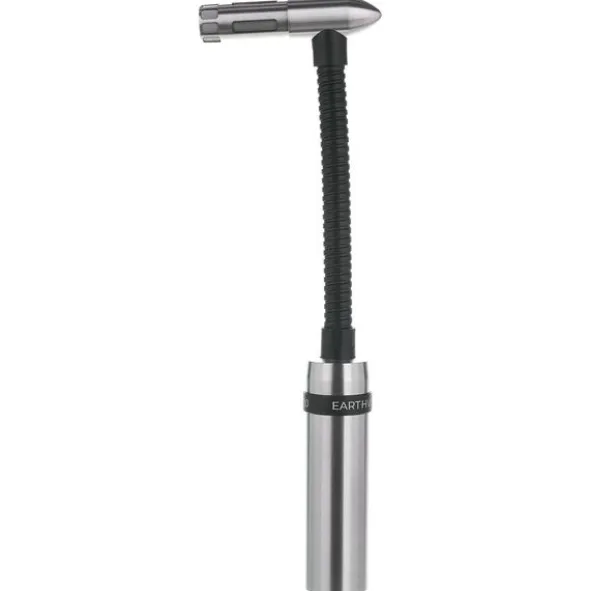

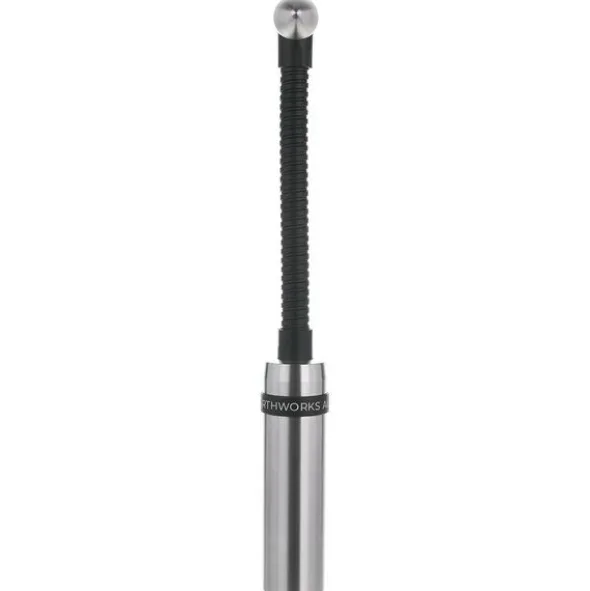

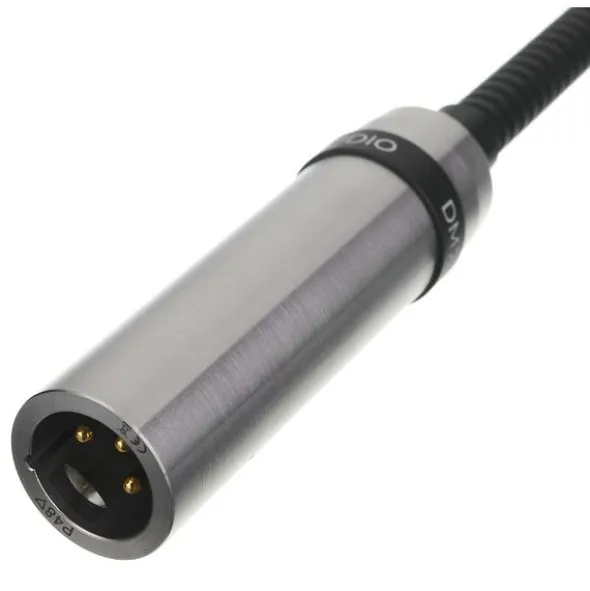

Technical data Condenser gooseneck microphone for tom and snare DM20 Gen2:

• Polar pattern: Cardioid
• Frequency range: 20 to 20,000 Hz
• Sensitivity: 8 mV/Pa (-42 dBV/Pa)
• Max. sound pressure level: 150 db
• Requires phantom power 24-48 V
• Gen2 features: Requires only 6mA phantom power
• Integrated protection function against accidental ‘hot-swapping’
• New rim mounting system
• Dimensions (L x Ø): 282 x 22 mm
• Weight: 250 g
• Includes RM1 clip and PW1 foam windscreen
