Erica Synths Razornator

Desktop Stereo Effects Unit

• Five delay-based, chromatically tuned resonators for shaping the overtone spectrum
• Signal path with an analogue gain stage up to +24dB
• Low-pass filter with resonance, compressor and output stage
• Resonator tuning can be modulated manually and via an envelope follower (adjustable attack/release)
• Root note
• Individual pitch controls and global pitch shift
• DAMP for low-frequency damping and switchable feedback polarity
• MIX control for dry/wet balance
• 12 parameters for direct control
• 40 factory presets and 60 user presets
• Save/Recall and Preset Morphing
• Quantisation of the resonators (semitone or microtonal)
• OLED display with data encoder
• MIDI control (all parameters except Gain and Volume), including note control
• Configurable foot switch input
• USB Type-B for updates and presets

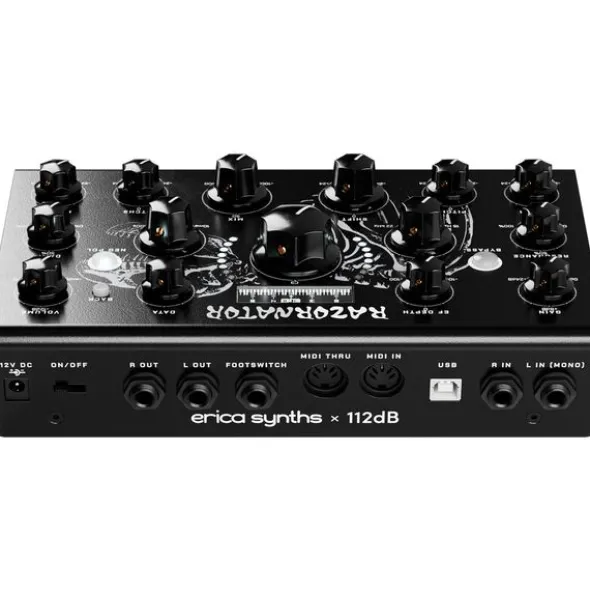

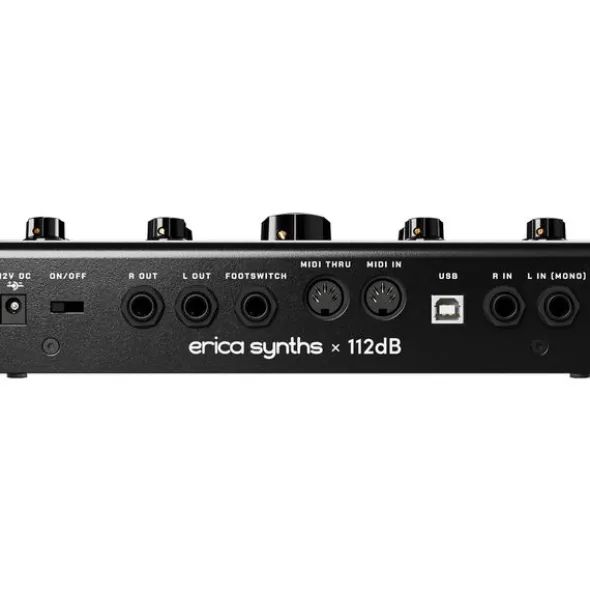

• Stereo input: 6.3 mm jack, balanced
• Stereo output: 6.3 mm jack, balanced
• MIDI In (5-pin DIN)
• MIDI Thru/Out (5-pin DIN)
• Footswitch input: 6.3 mm jack
• USB type B
• Aluminium housing
• Dimensions (W x D x H): 23 x 14.5 x 7 cm
• Weight: 0.84 Kg
• Includes power supply
