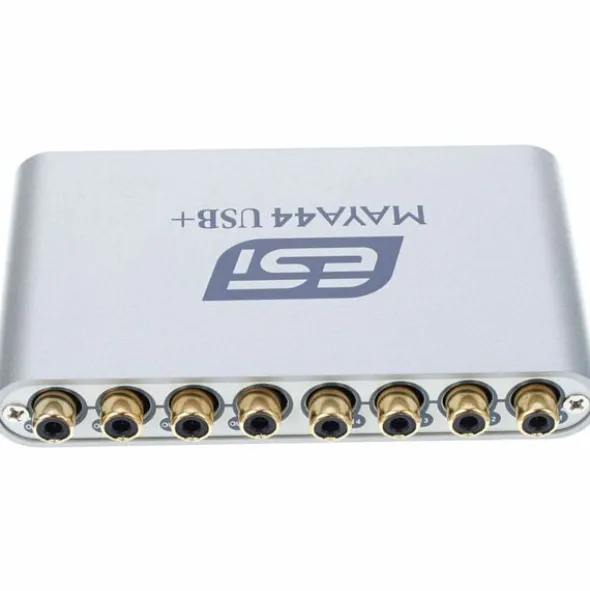

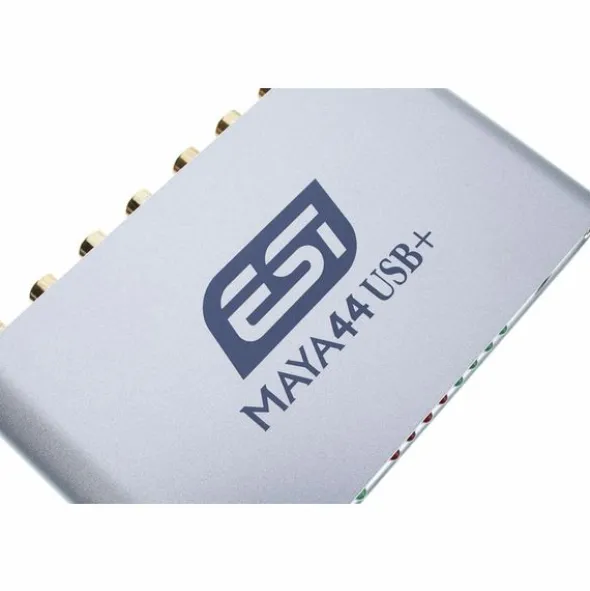

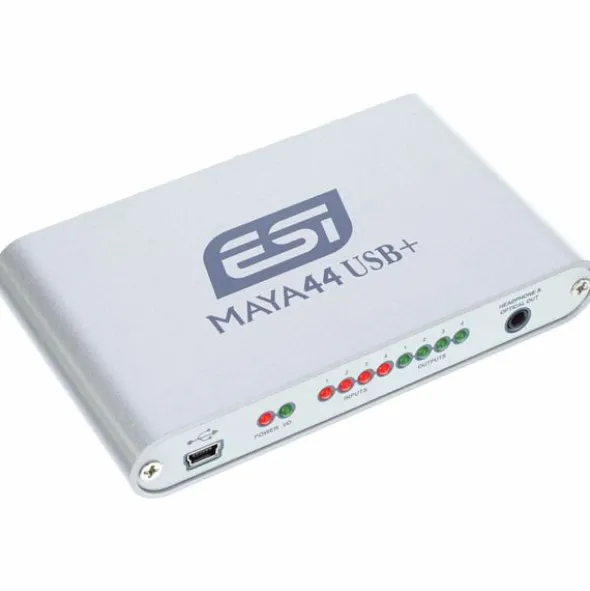

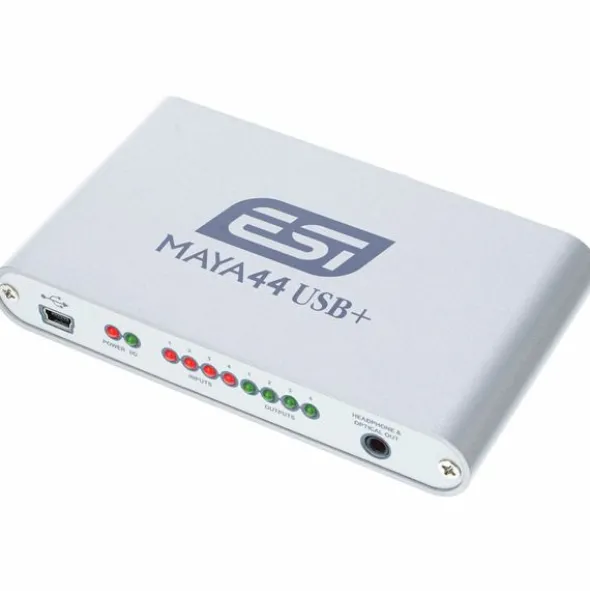

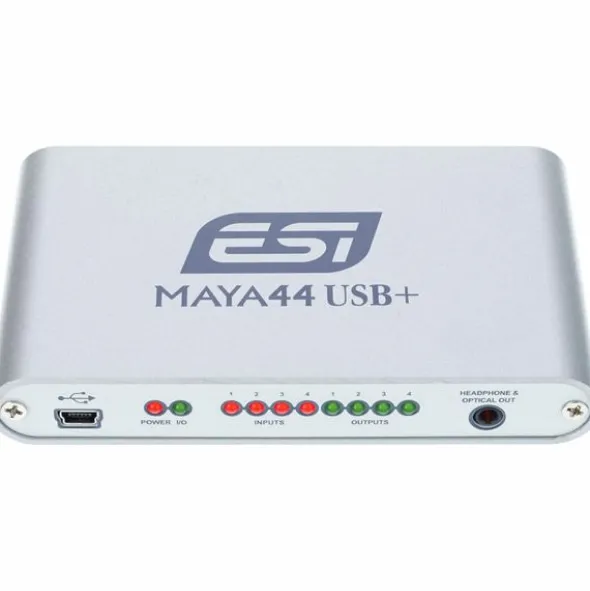

ESI Maya 44 USB+

USB Audio Interface

• With up to 48 kHz sample rate

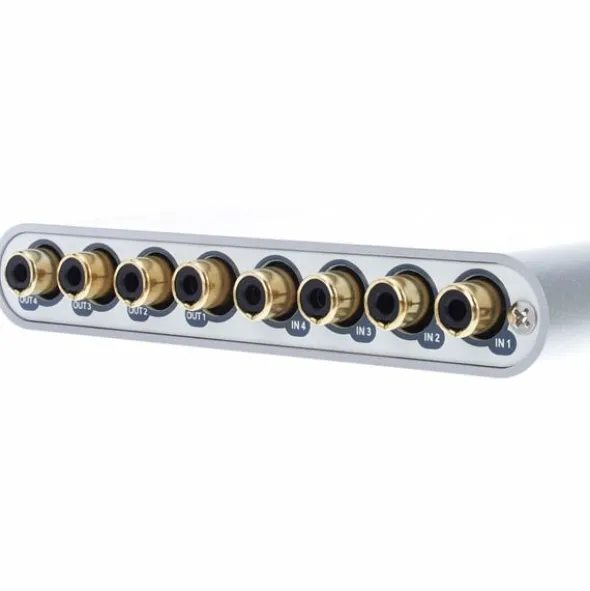

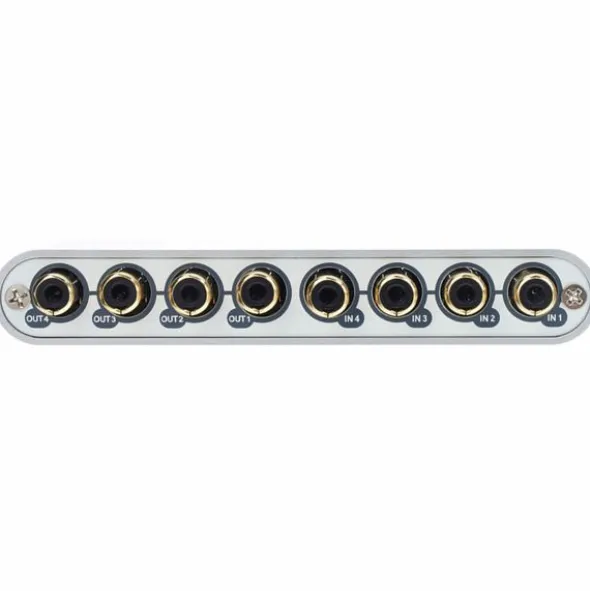

• 4 inputs and 4 outputs with cinch connections
• 18-bit A / D converter
• 20-bit D / A converter
• -10 dBV input and output level (unbalanced)
• Optical S / PDIF digital output with mini plug connection

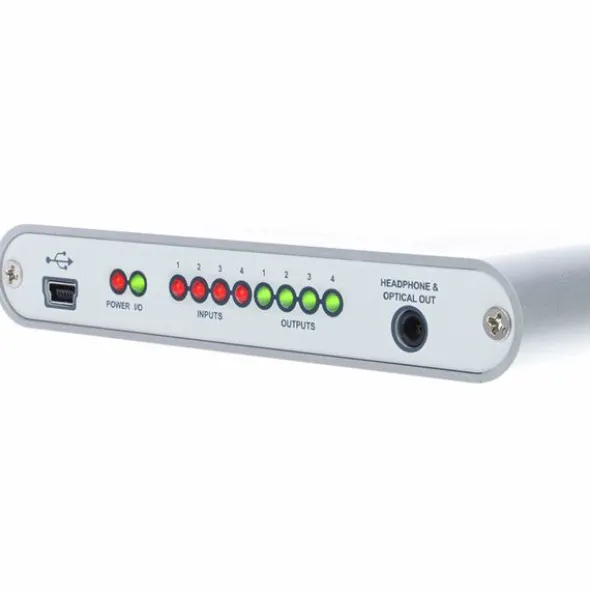

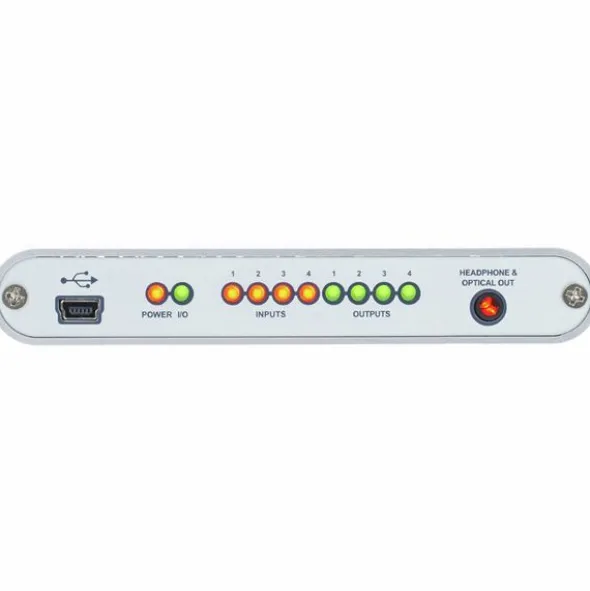

• Headphone output with 3.5 mm jack socket
• With integrated 60 mW amplifier
• ASIO 2.0 / CoreAudio support / MME and WDM support (4 input / 4 output channels)
• Standard USB connection to PC or Mac
• Compatible with Windows and Mac OS
• Compact and lightweight aluminum housing
• Dimensions: 120 x 70 x 20 mm

Disponível desdeMarço 2007

número de artigo111455

unidade de venda1peça(s)

Recording / Playback Channels4×4

Number of Mic Inputs0

Number of Line Inputs4

Instrument Inputs0

Number of Line Outs4

Headphone Outs1

Phantom PowerNo

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz48 kHz

Max. Resolution Rate in Bits16 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version1.1

Width120 mm

Depth70 mm

Height20 mm

Connection FormatUSB port Mini B

Included in deliveryUSB-A to Mikro-USB Cable
