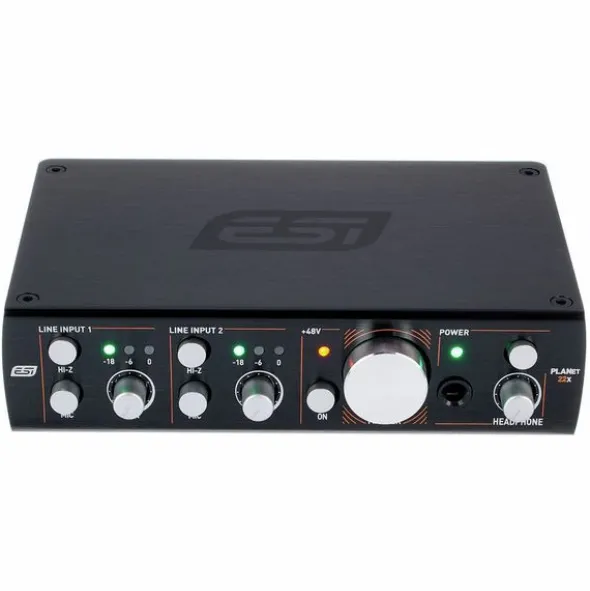

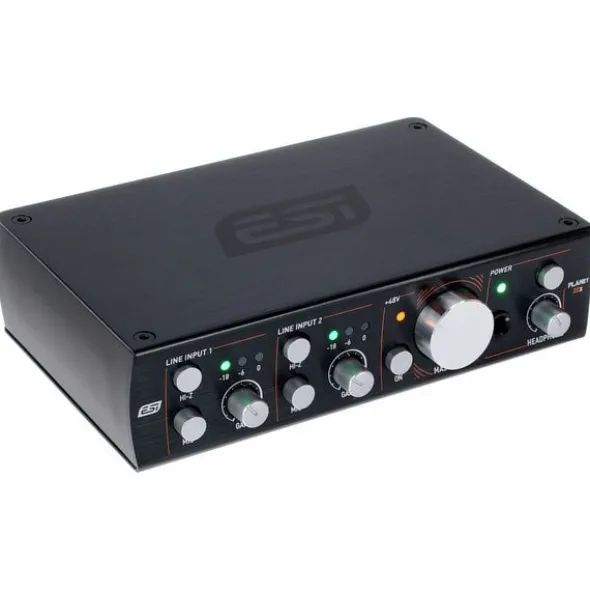

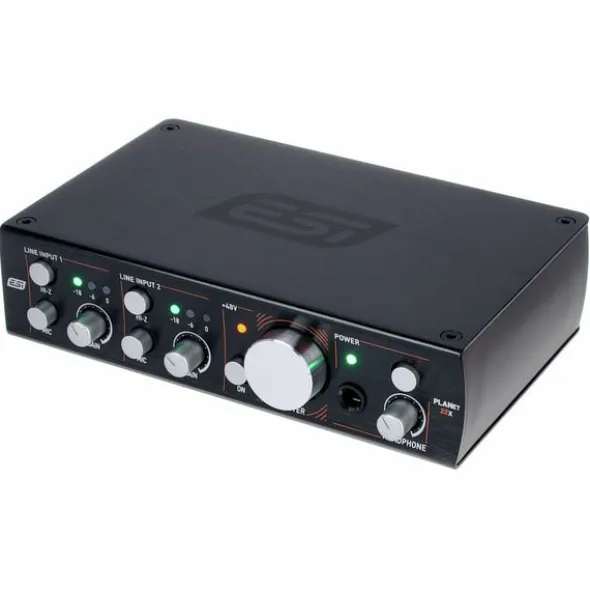

ESI planet 22x

Dante Network Audio Interface

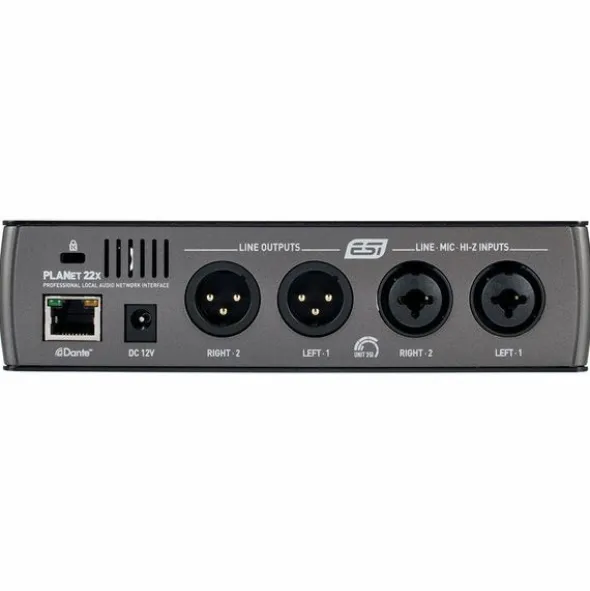

• 2 Analog input and 2 analog output channels

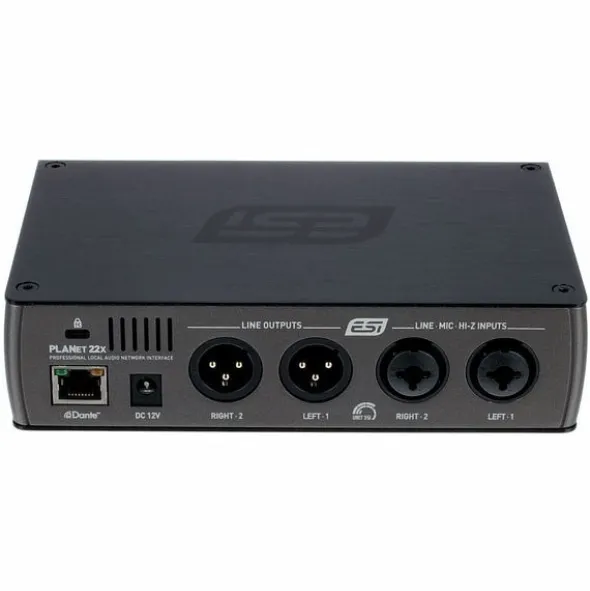

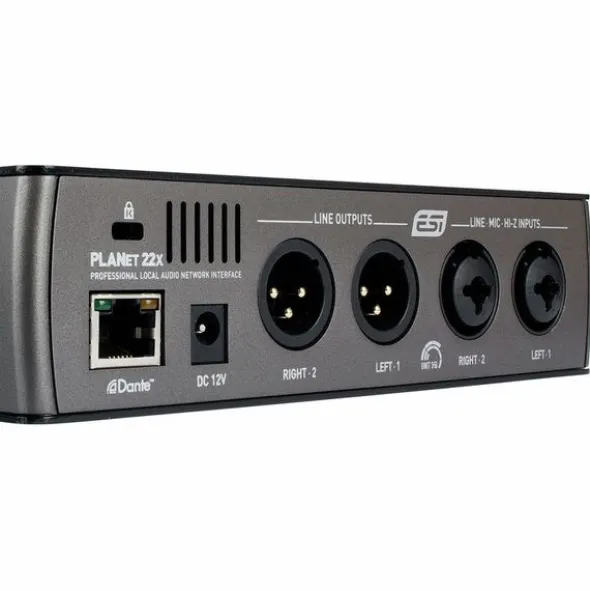

• 2 Balanced XLR/jack combo inputs
• 2 Balanced XLR outputs
• High-quality 24-bit / 96kHz AD converters with 118dB(a) dynamic range
• High-quality 24-bit / 96kHz DA-converters with 123dB(a) dynamic range

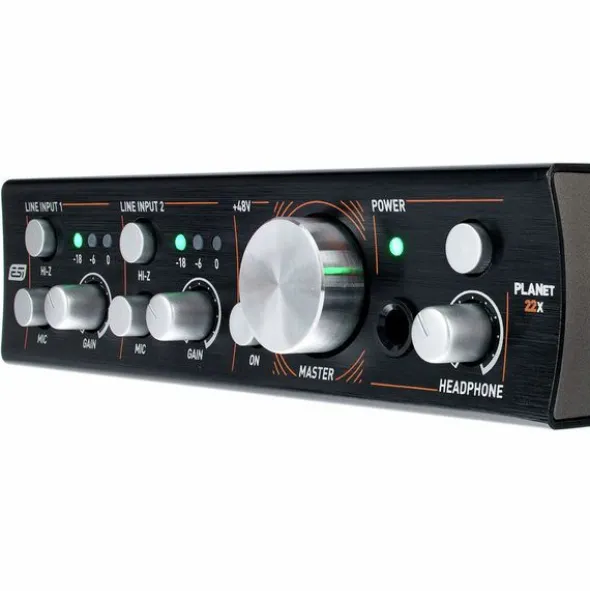

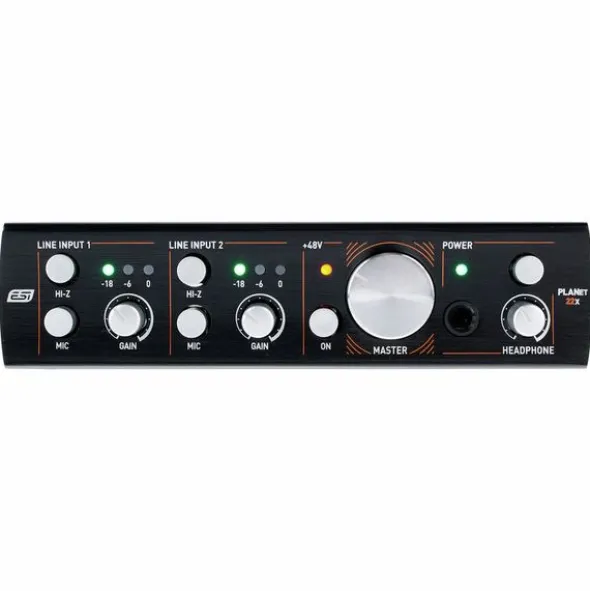

• Per channel microphone preamplifier switchable with adjustable gain and 48V phantom power
• Hi-Z instrument input stage switchable
• Step potentiometer for controlling the sum level via the line output
• Headphone output
• Power supply via network cable possible (PoE / Power over Ethernet)
• Supports Windows 7, 8.1 and 10 with WDM and ASIO 2.0
• Supports macOS with CoreAudio
• Dimensions (W x D x H): 174 x 115 x 45 mm
• Weight: 782 g

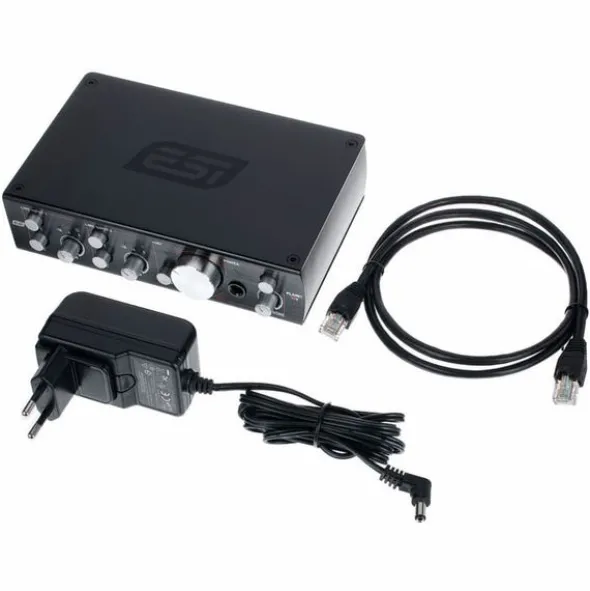

• Includes 12 V DC power supply, network cable, Bitwig 8-Track digital audio workstation software, license of the Dante Virtual Soundcard for Mac / PC

Important note: You can test the product without product registration for a period of 30 days without any restrictions. Please download a 14-day trial licence of the required software: https://my.audinate.com/support/downloads/dante-virtual-soundcard#trial
