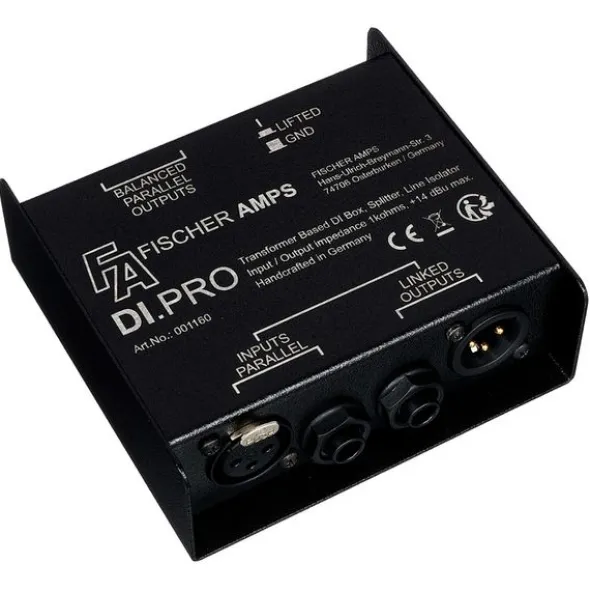

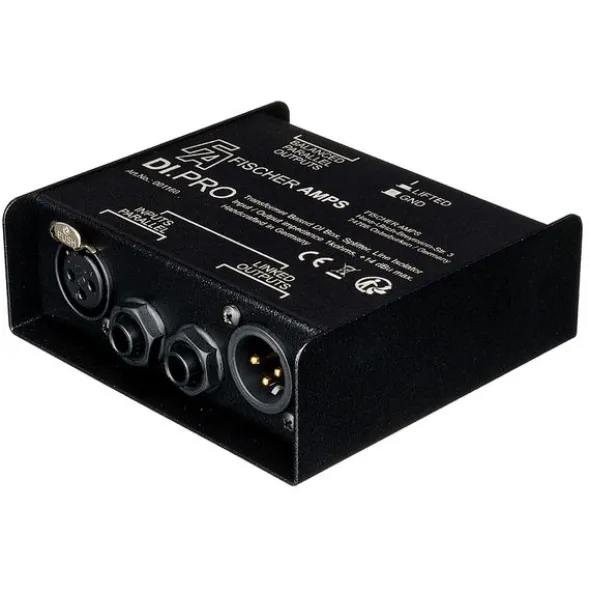

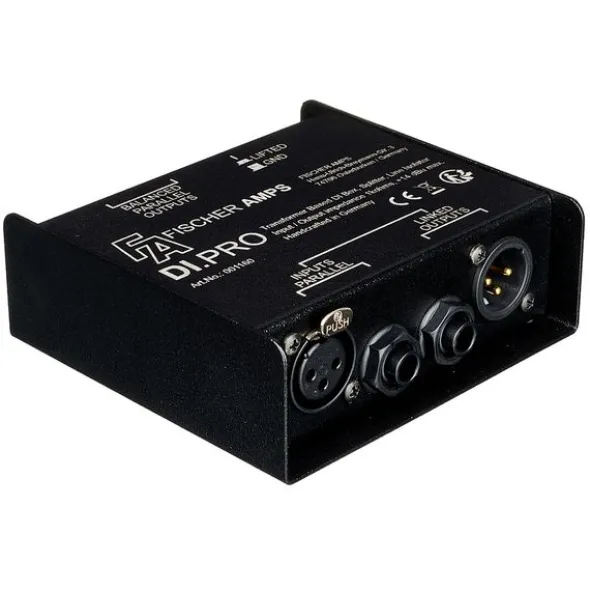

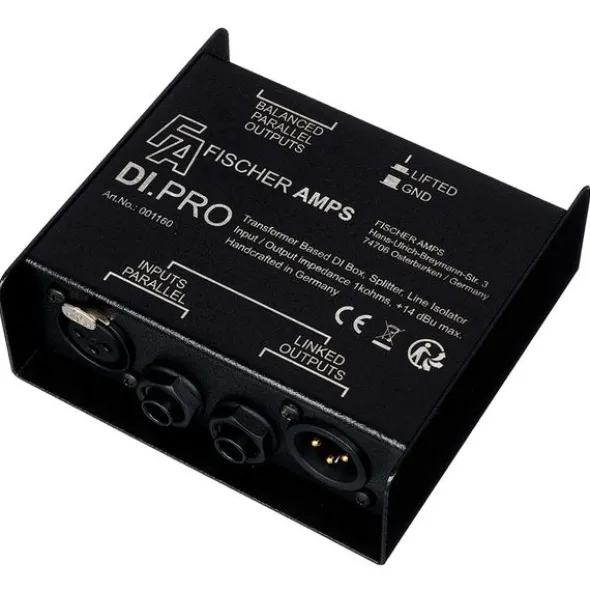

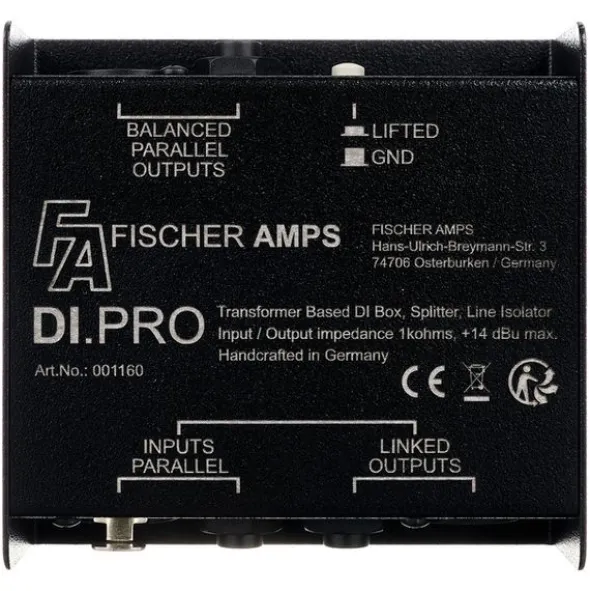

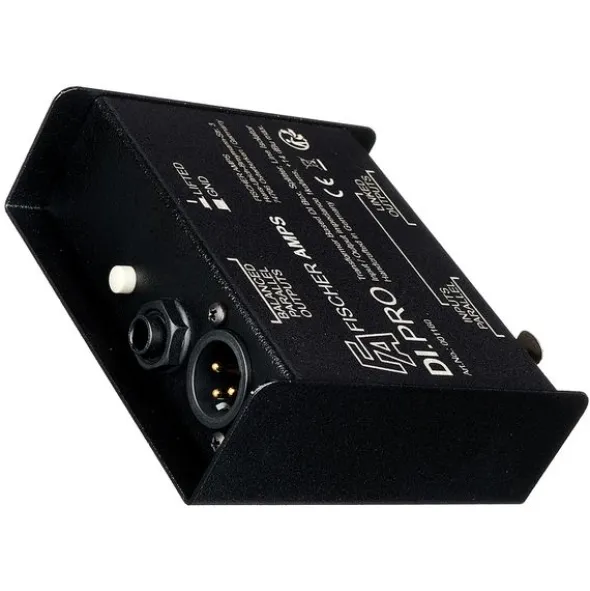

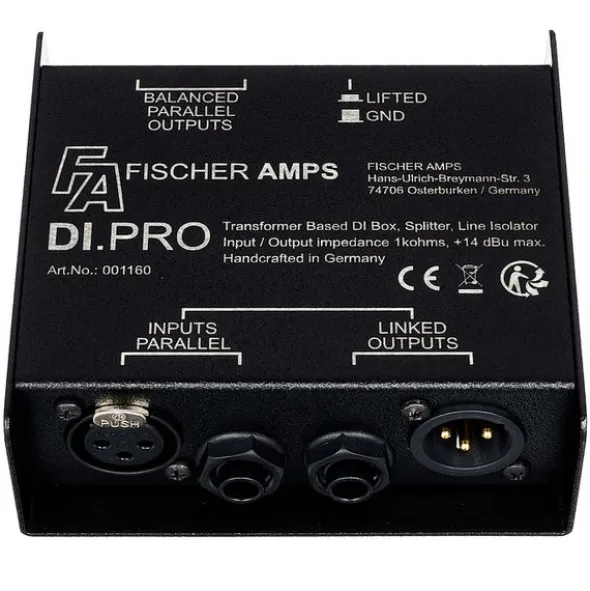

Fischer Amps DI.PRO

Passive DI Box

• Audio transformer-based passive DI box, splitter, line isolator

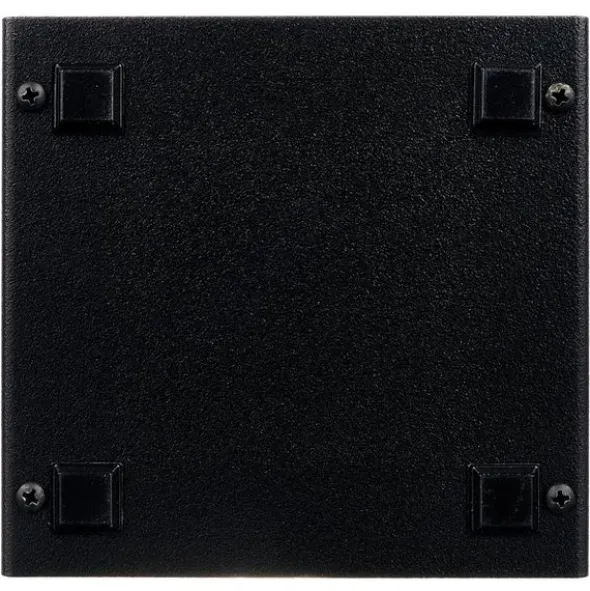

• Robust powder-coated sheet steel housing

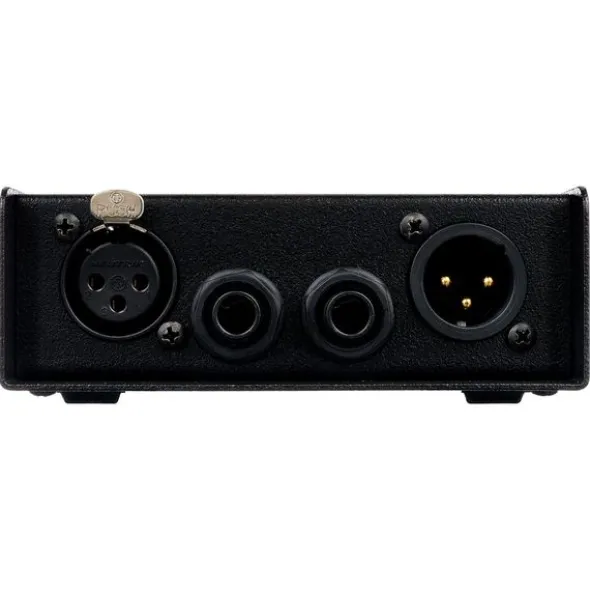

• Genuine Neutrik input and output sockets
• High-quality audio transformer that does not affect the sound, with ample signal headroom up to a signal level of +14 dB

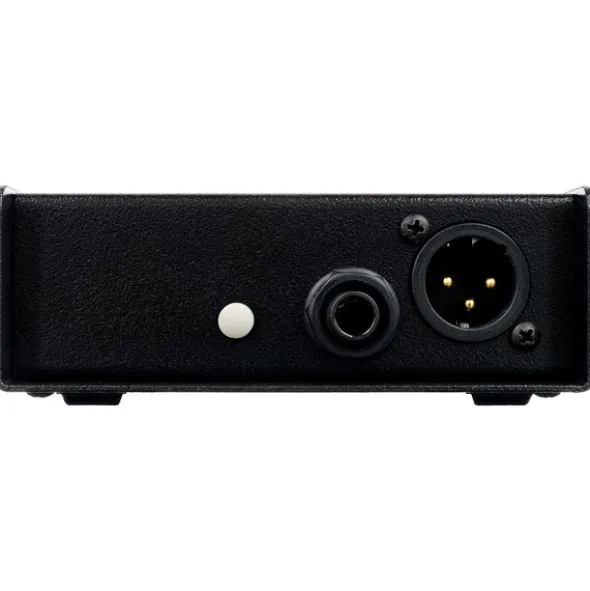

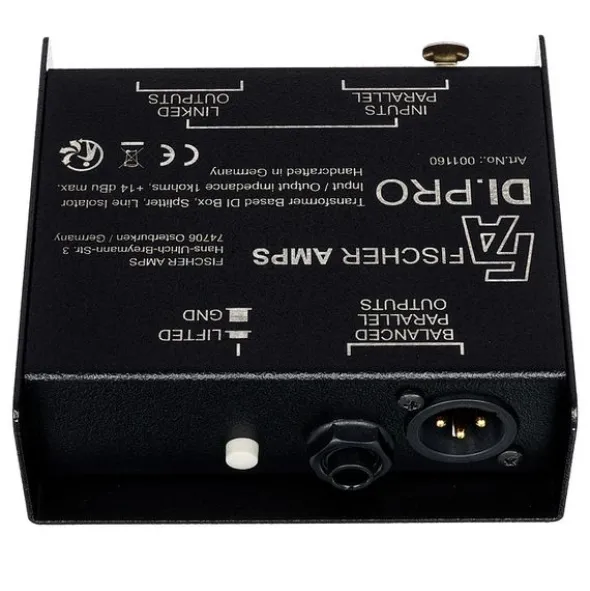

• Ground-lift switch to disconnect the ground line (pin 1) on the output side
• Input/output impedance: 1 kΩ
• Audio transmission 1:1
• DC resistance: 172 ohms
• Output: 172 ohms
• Frequency range: 20 – 20,000 Hz, ±1 dB
• Dimensions: (L x W x H): 100 x 105 x 35 mm
• Weight: 350 g
