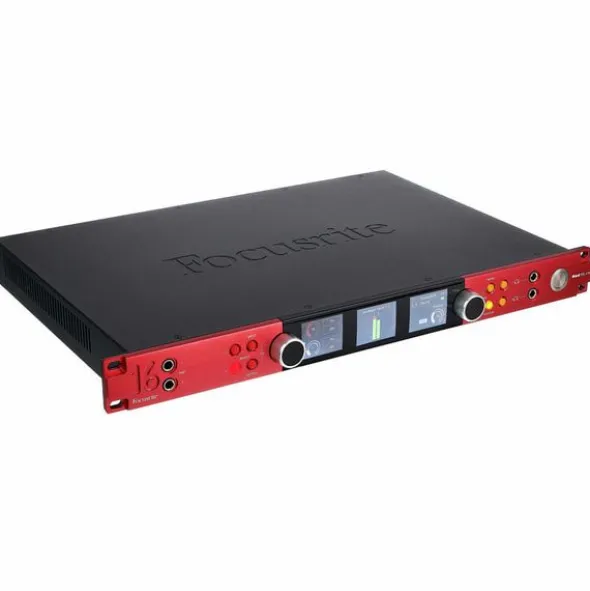

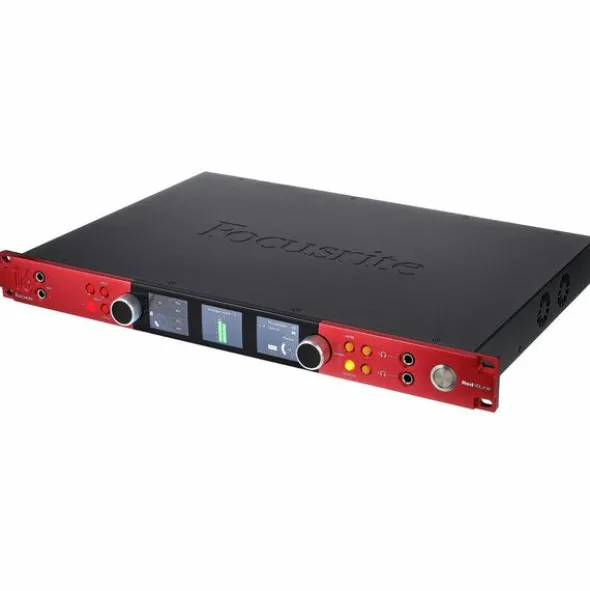

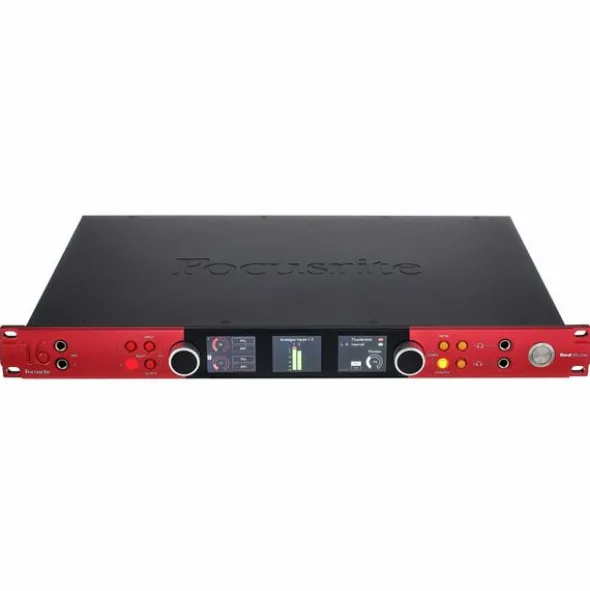

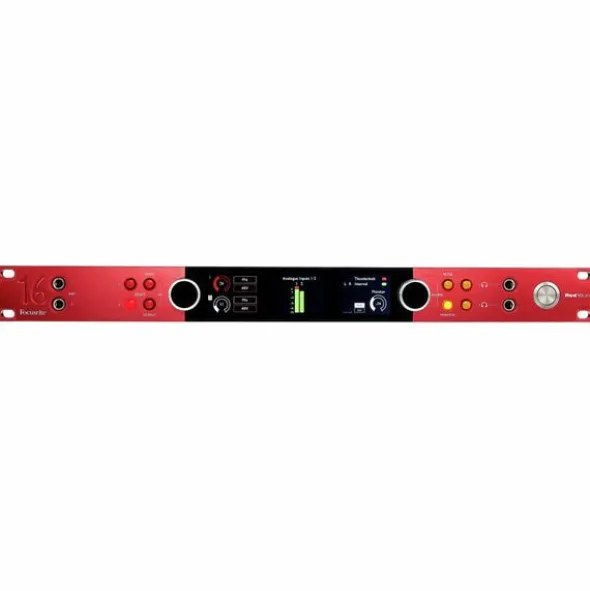

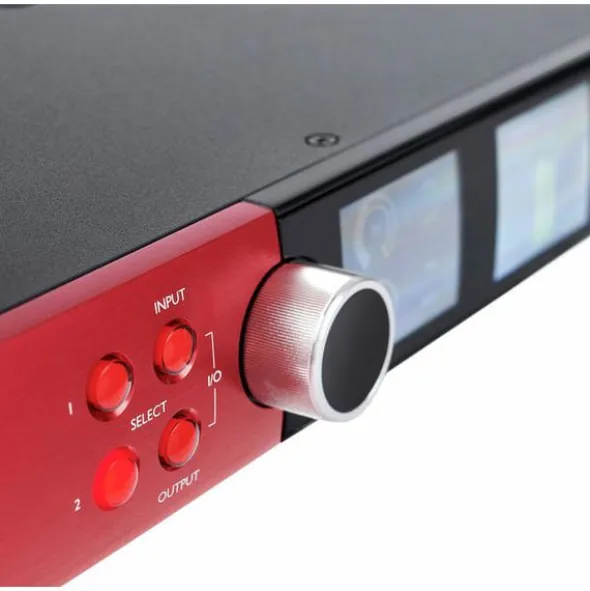

Focusrite Red 16 Line

64 x 64 Thunderbolt 3 Audio Interface

• Pro Tools HD connectors
• Dante audio network connections
• 24-Bit / 192 kHz
• Dynamic range AD converter: 118 dB
• Dynamic range DA converter: 121 dB
• Two digitally controlled Red Evolution microphone preamps with up to 63 dB gain, HP filter, phase reversal and switchable + 48V phantom power

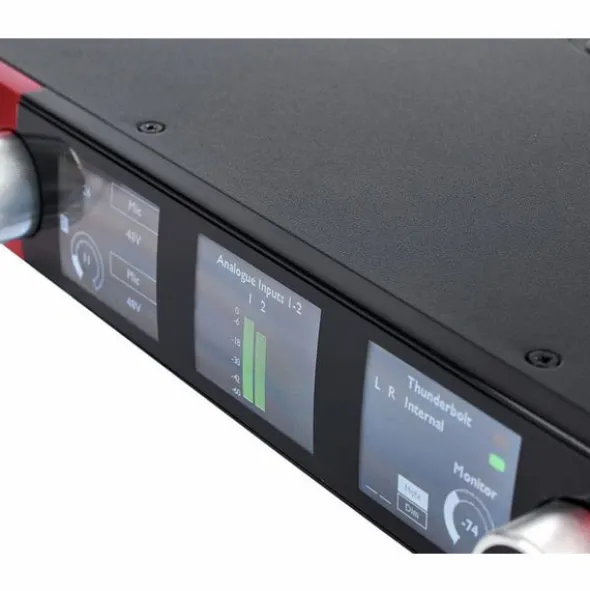

• Three OLED displays
• Type: 19″ 1 U
• Dimensions (W x H x D): 483 x 44 x 340 mm
• Weight: 5.04 kg
• Incl. Focusrite Control Software Mixer and Hitmaker Expansion Software Bundle (Ableton Live Lite, 3 months Splice Sounds membership and plugin bundle for songwriting, mixing and mastering, Pro Tools Artist (three-month subscription) and Avid Complete Plugin Bundle)

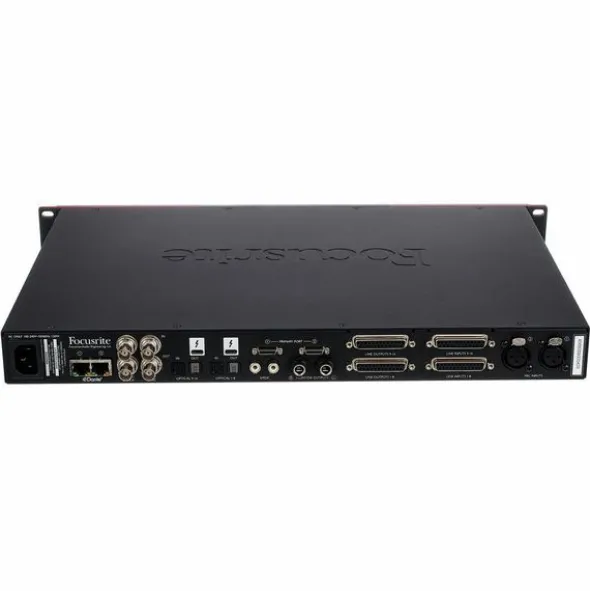

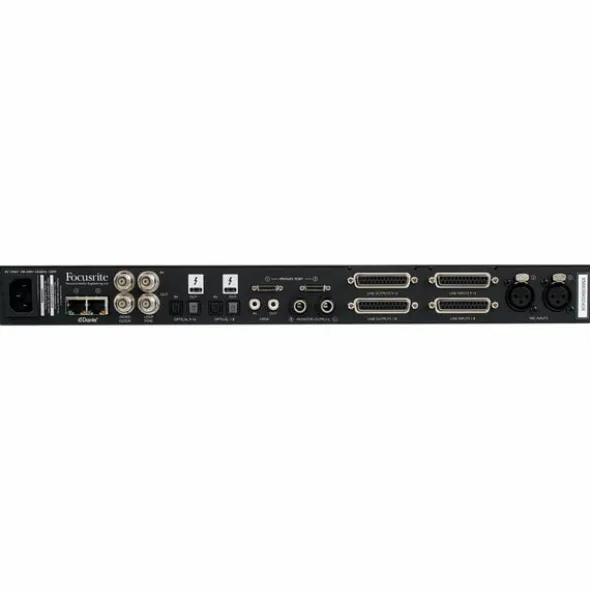

Connectors:

• 2 x Microphone input XLR
• 2 x Instrument input 6.3 mm jack
• 16 x Line input Sub-D 25
• 2 x Monitor output 6.3 mm jack
• 2 x ADAT input and output
• S/PDIF input and output coaxial
• Word Clock and Loop Sync input and output BNC
• 2 x DANTE connector
• 2 x Thunderbolt 3 connector
• 2 x Stereo headphone jack 6.3 mm jack
• 2 x Mini DigiLink

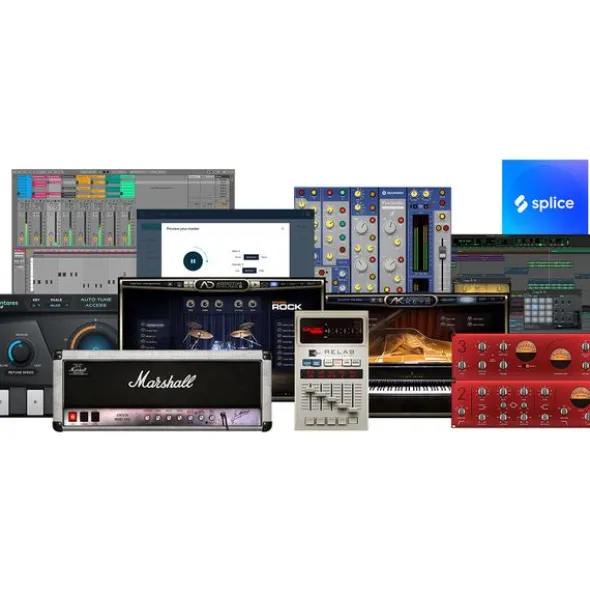

Hitmaker Expansion Plugins:

• LANDR – AI-based mastering tool (two-month subscription)
• Softube Flow Guitar Essentials
• XLN Audio Addictive Keys Studio Grand Piano – Virtual Keyboard Instruments
• XLN Audio Addictive Drums 2: Studio Rock – Virtual Drum Library
• Celemony Melodyne Essential
• Brainworx Bx_console Focusrite SC – Channelstrip
• Focusrite Red 2 & 3 Plug-in Suite – EQ and Compressor
• Relab’s LX480 Essentials – Reverb
• Native Instruments MASSIVE, FAST Balancer

Disponível desdeSetembro 2018

número de artigo447426

unidade de venda1peça(s)

Recording / Playback Channels64×64

Number of Mic Inputs2

Number of Line Inputs16

Number of Instrument Inputs2

Number of Line Outputs18

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors2

AES/EBU Connectors0

Number of MADI Connectors0

Ethernet2

Other ConnectorsHDX Port

MIDI ConnectorsNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm340 mm

Height in mm44 mm
