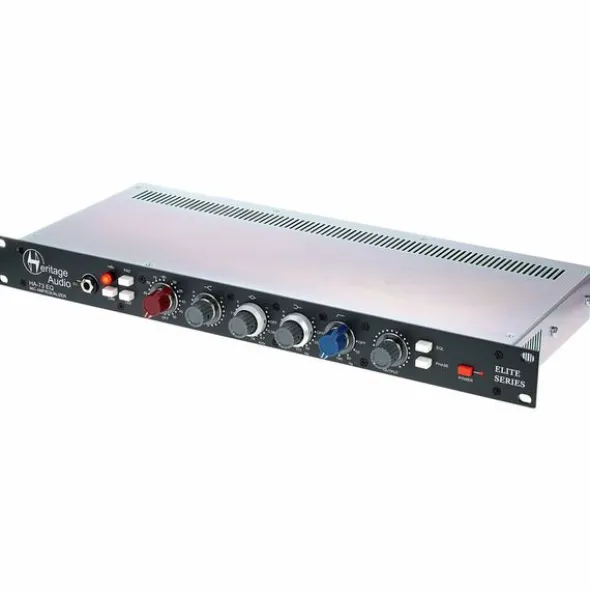

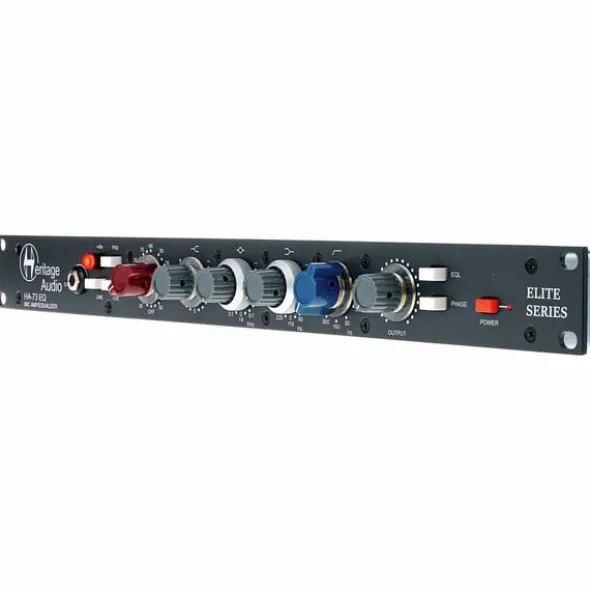

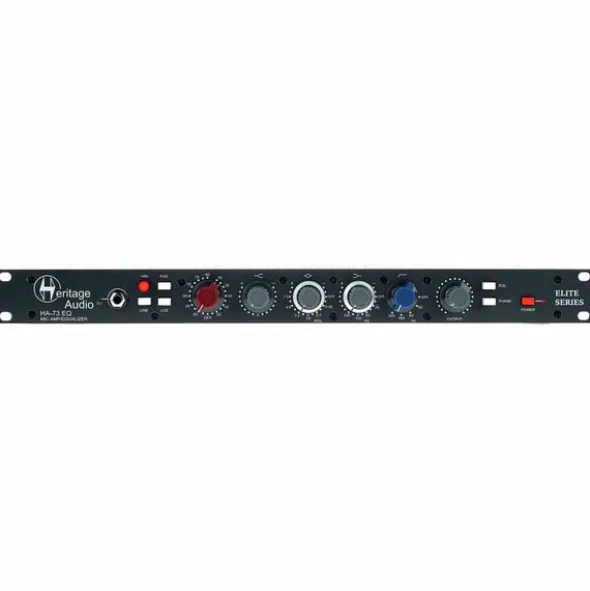

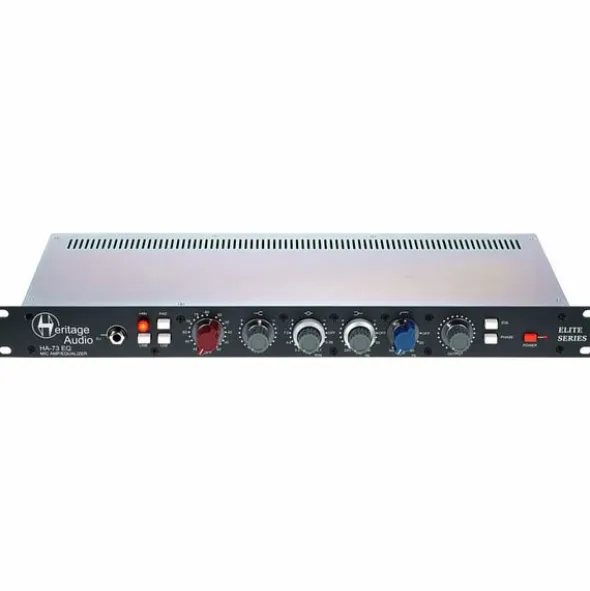

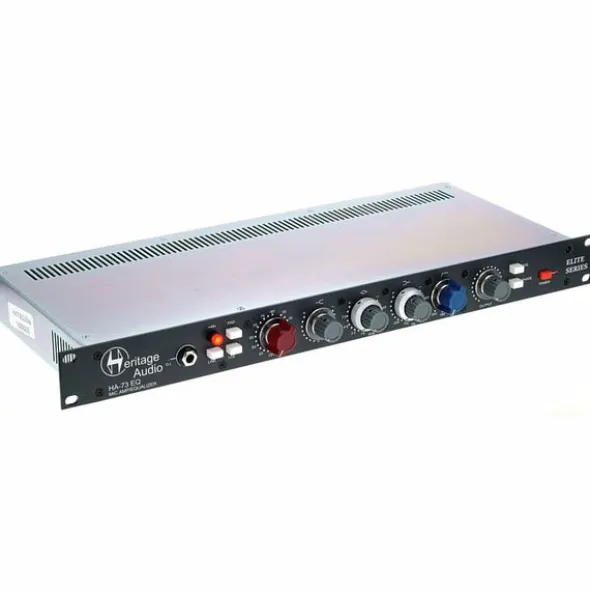

Heritage Audio HA-73 EQ Elite

Single-Channel Microphone Preamp with Equaliser

• Based on the 1073
• Hand-wound Carnhill transformers
• Completely discrete three-stage microphone preamp
• Amplification: 80 dB microphone and 50 dB line
• -20 dB pad
• LO-Z for switching the input impedance from 1200 to 300 Ohm
• HP filter at 80 Hz
• Completely discrete three-band vintage EQ with induction coils
• Hi-shelf filter at 12 kHz
• Mid-band switchable between six operating frequencies and OFF
• Lo-shelf filter switchable between four operating frequencies and OFF
• Coil-based high-pass filter switchable between four operating frequencies and OFF

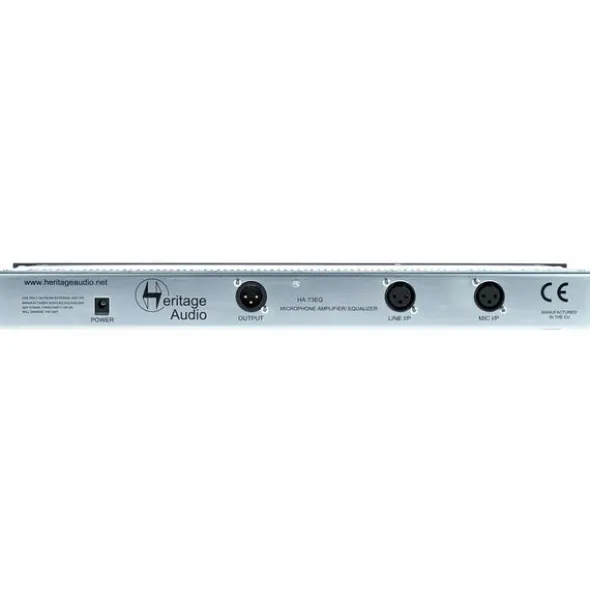

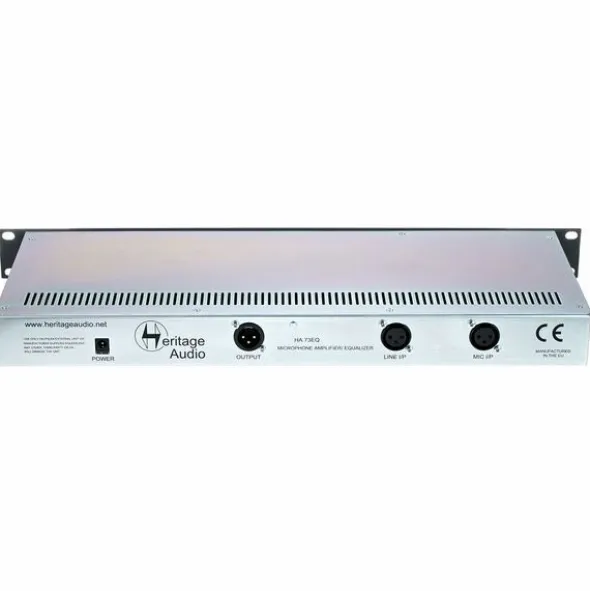

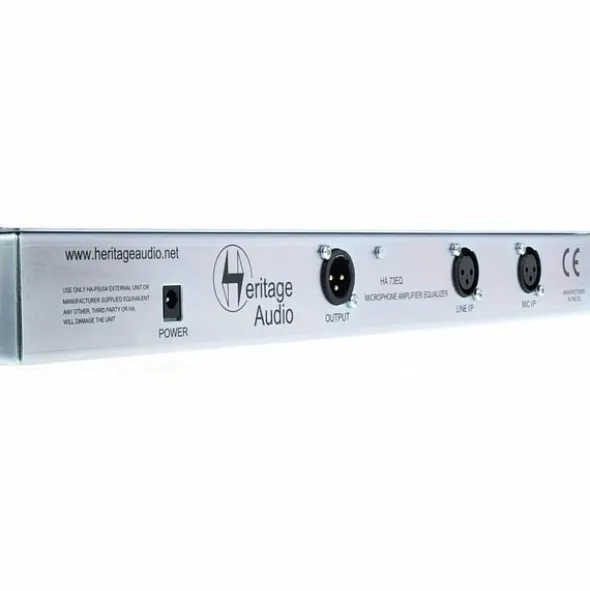

• Connections: XLR microphone input
• XLR line input
• XLR line output
• Instrument input: 6.3 mm jack
• Switchable 48 V phantom power

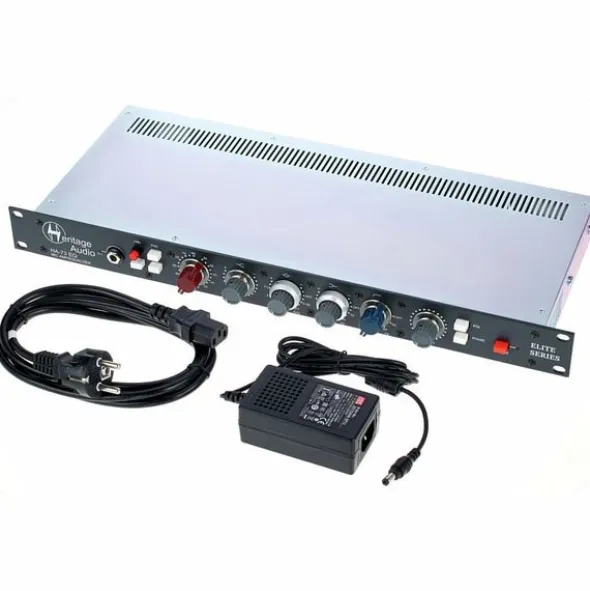

• External power supply unit included
• Build: 19″ / 1 RU

Disponível desdeAbril 2018

número de artigo431223

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesNo

Compressor/LimiterNo

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionNo

Level MeterNo

Design19″ / 1U
