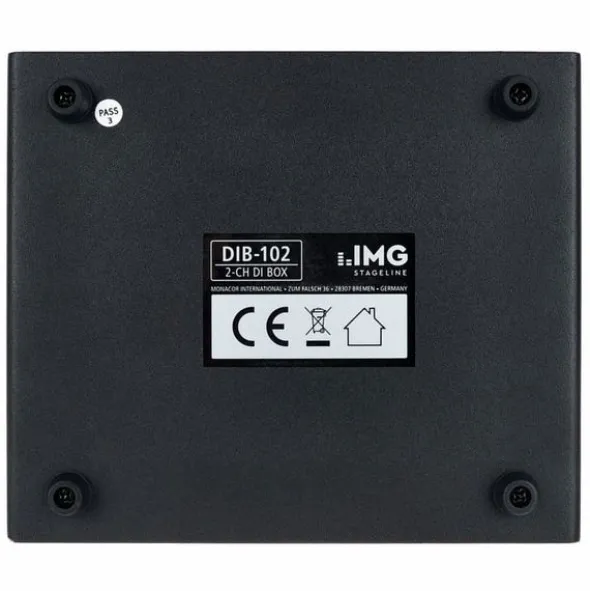

IMG Stageline DIB-102

2-Channel DI box

• For signal transmission from musical instruments to mixing console or amplifier
• Disturbances such as humming loops are avoided by transformer coupling
• Galvanically isolated inputs and outputs
• 3-Way attenuator switch (0/-20/-40 dB)
• Ground lift switch
• Instrument loop-through output
• Broadband balancing transformer
• Frequency range: 15-30000 Hz
• Input impedance: 50 kOhm
• Output impedance: 600 Ohm (symm.), 50 kOhm (asymm.)
• Gain: 0/-20/-40 dB
• Gear ratio: 10:1

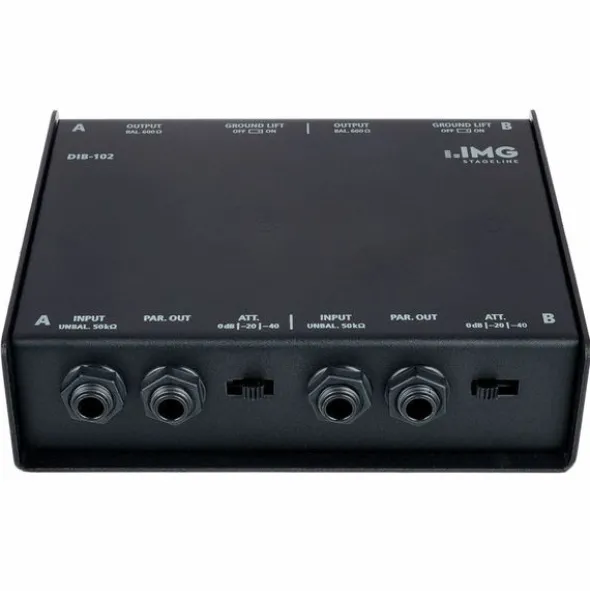

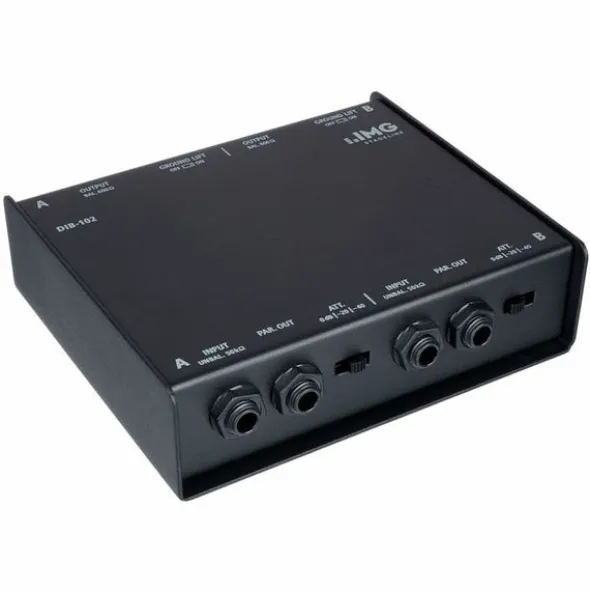

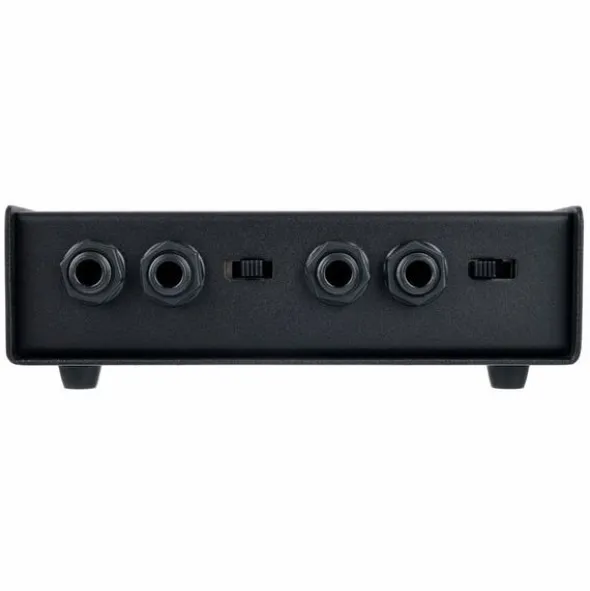

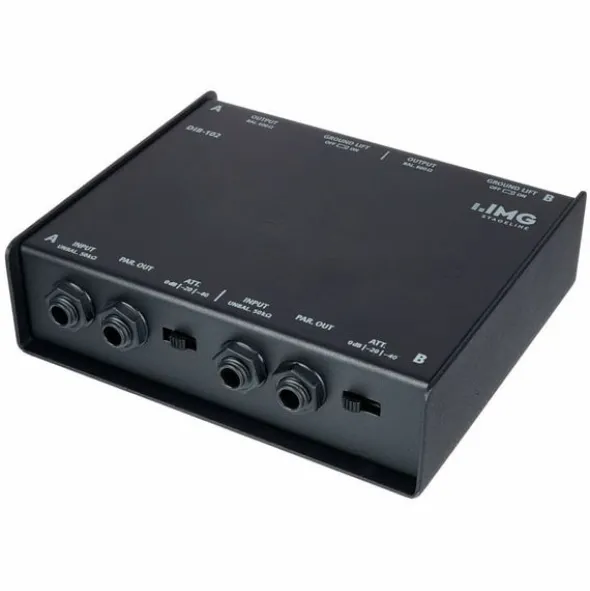

• Inputs: 2 x 6.3 mm Jack, asymmetrical

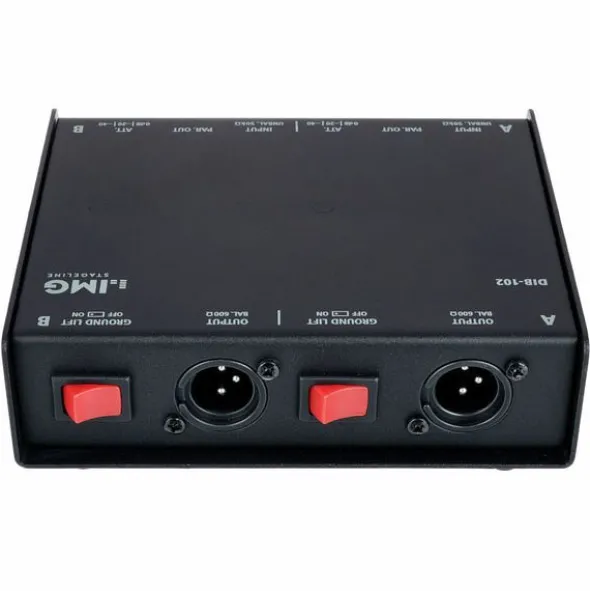

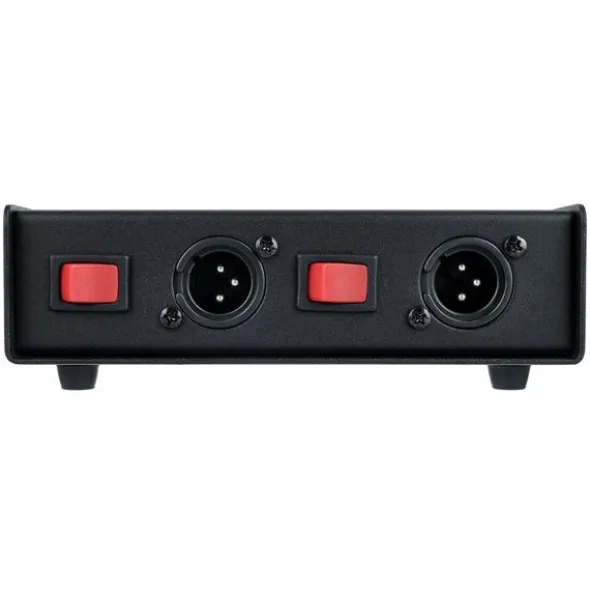

• Outputs: 2 x 6.3 mm Jack, asymmetrical, 2 x parallel out XLR, balanced
• Metal housing
• Dimensions (W x H x D): 148 x 50 x 130 mm
• Weight: 0.76 kg
