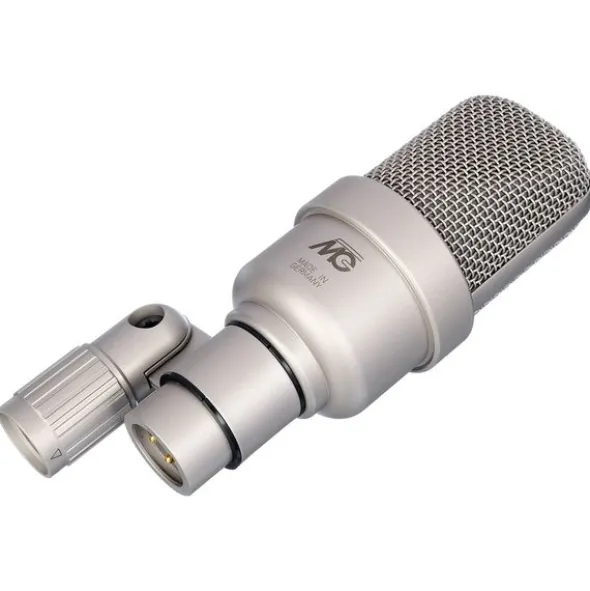

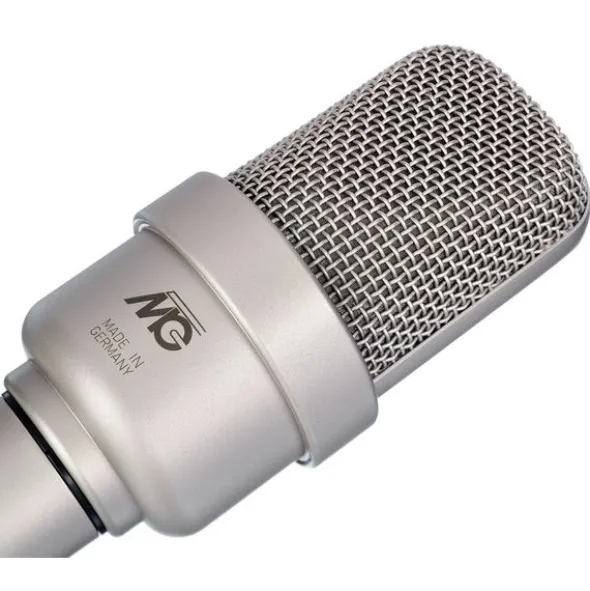

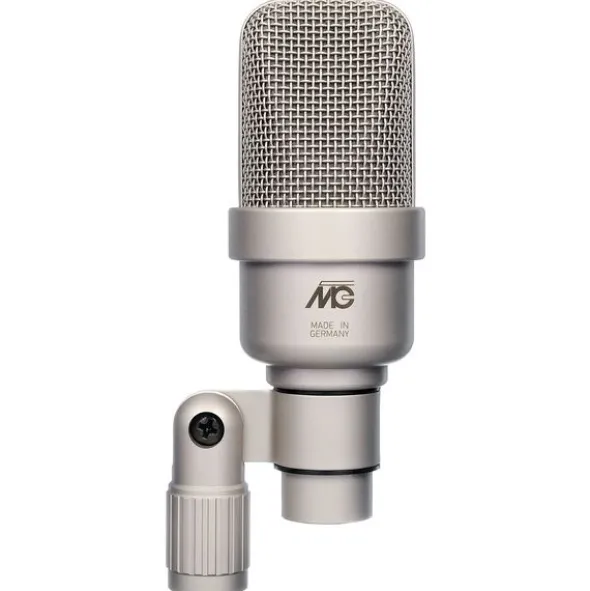

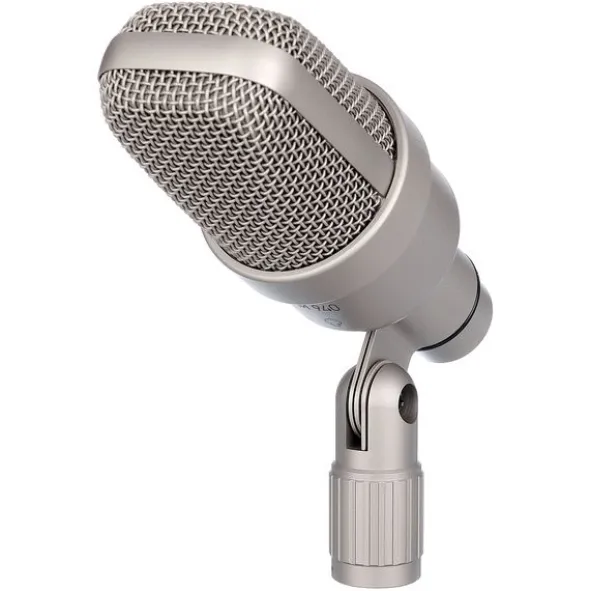

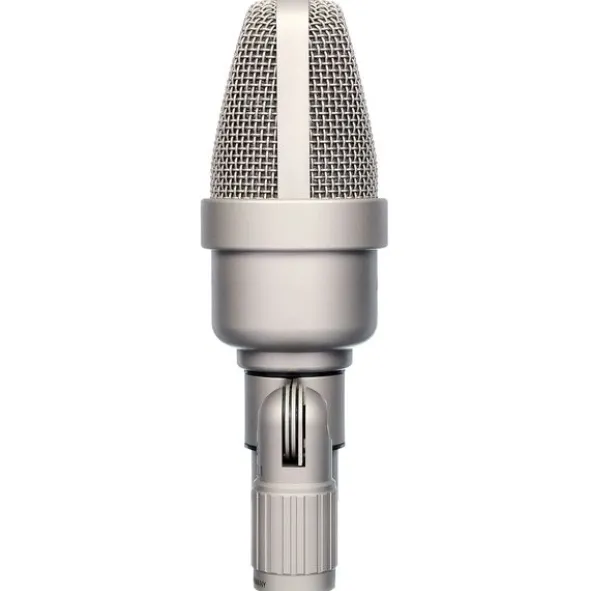

Microtech Gefell M 940 Satin Nickel

Large Diaphragm Studio Microphone

• Compact studio microphone with good acoustic directivity for a wide range of applications, from speech and vocal recordings, broadcast and podcasting to instrument pickup or as a support microphone in stereo and multi-channel setups.
• Combines modern PE large diaphragm capsule technology with the latest semiconductor circuit technology for low-noise, high-level signals.
• Polar pattern: Supercardioid
• Acoustic operating principle: Pressure gradient transducer
• Frequency range: 20 – 20,000 Hz
• Sensitivity: 23 mV/Pa at 1 kHz
• Nominal impedance: 100 Ohm
• Equivalent noise level: 6 dB A-weighted
• Equivalent noise level: 88 dB A-weighted (relative to 1 Pa at 1 kHz)
• Maximum sound pressure level: 141 dB at 0.5% THD
• Maximum output level: 18 dBu at RL = 10 kOhm
• Dynamic range: 135 dB
• Power supply: 48 V phantom power
• Current consumption: 3.6 mA

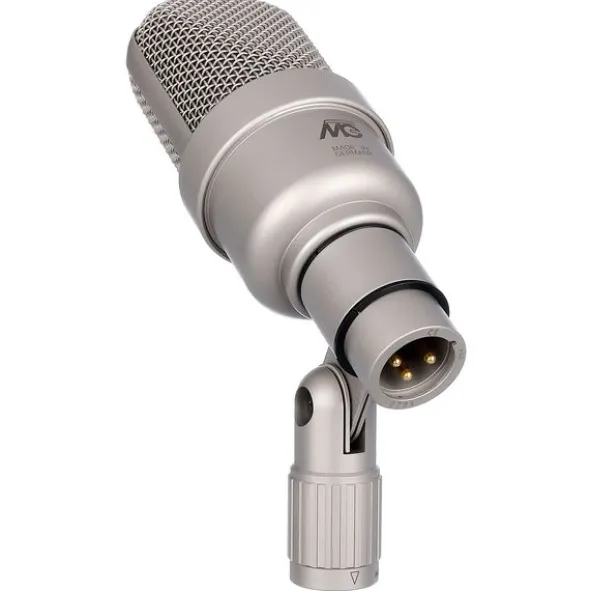

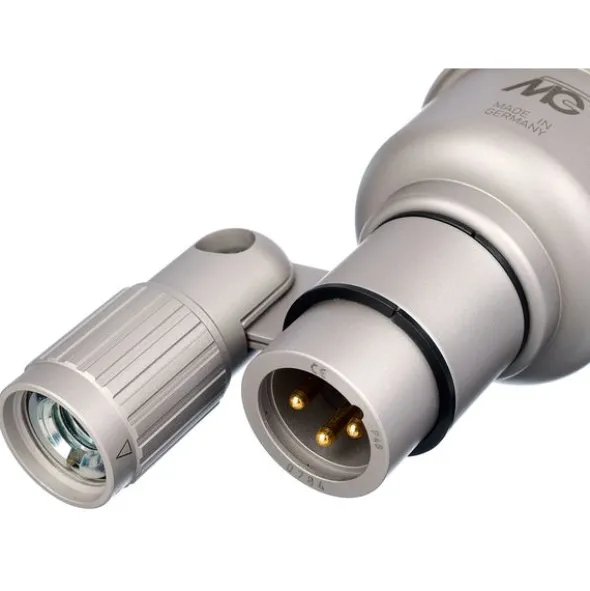

• Connector: XLR3M
• Dimensions (L x Ø): 118 x 45 mm
• Weight: 210 g
• Colour: Satin nickel

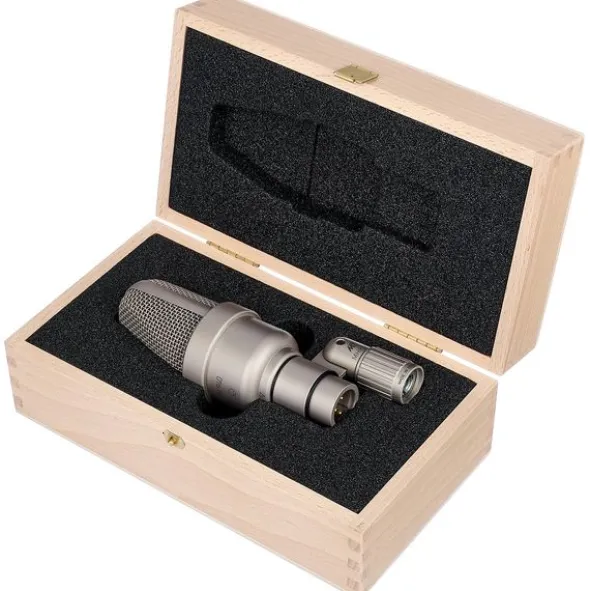

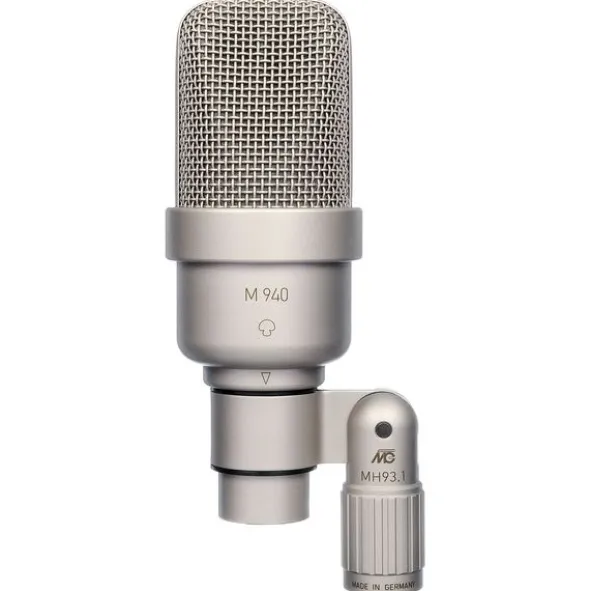

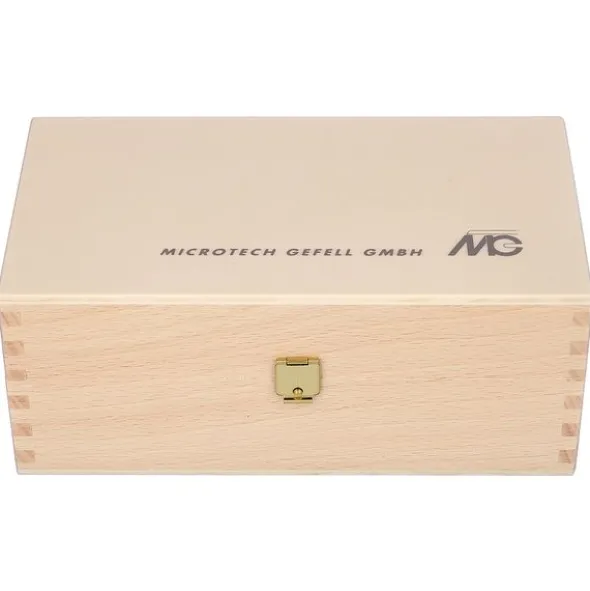

• Contents of delivery: M 940, MH 93.1 shockmount and wooden case
