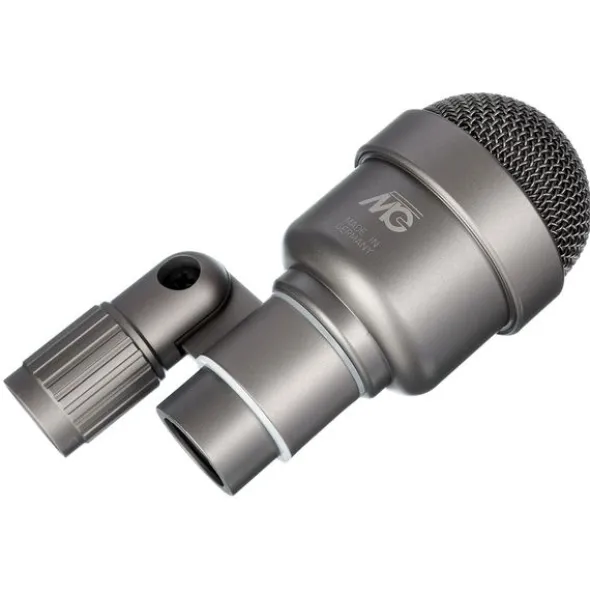

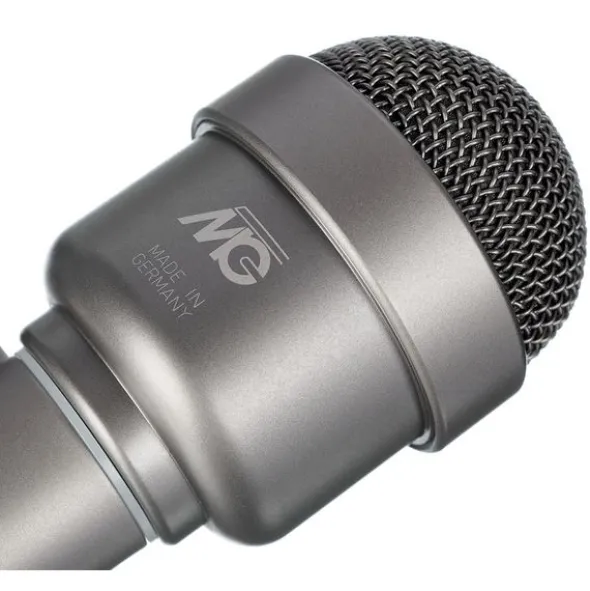

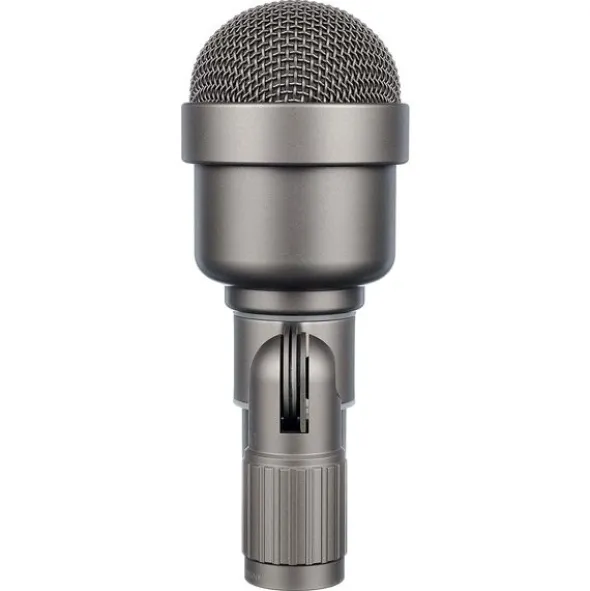

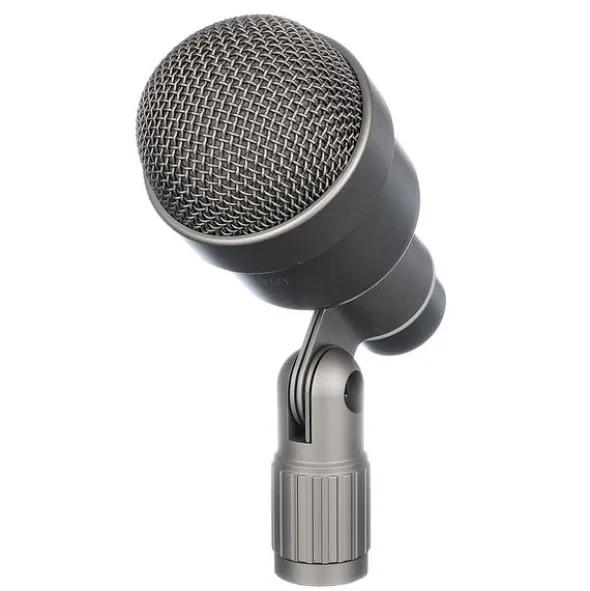

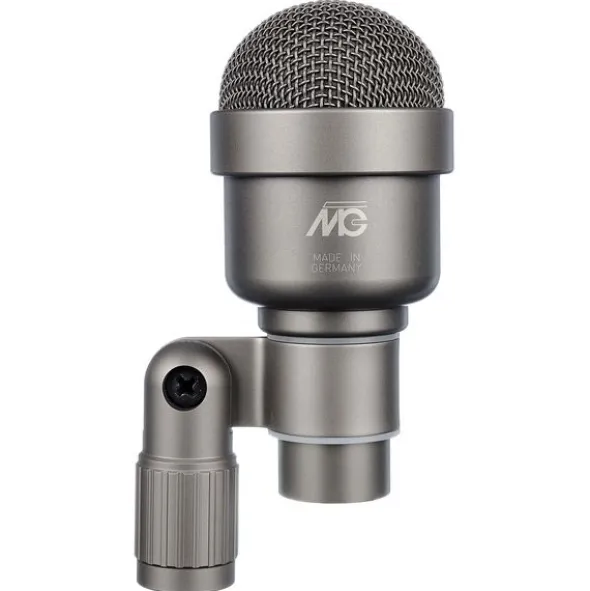

Microtech Gefell M 960

Large Diaphgram Studio Microphone

• Compact studio microphone for broadcast and studio applications in diffuse sound fields
• Emphasis on high frequencies in the range from 4,000 Hz to 12,000 Hz
• Applications include recordings outside the diffuse-field distance during choir or orchestra performances, e.g. in concert halls, churches and theatres.
• Combines modern PE large diaphragm capsule technology with the latest semiconductor circuit technology for low-noise, high-level signals.
• Polar pattern: Omnidirectional for diffuse-field
• Acoustic operating principle: Pressure gradient transducer
• Frequency range: 20 – 20,000 Hz
• Sensitivity: 16 mV/Pa at 1 kHz
• Nominal impedance: 100 Ohm
• Equivalent noise level: 9 dB A-weighted
• Signal-to-noise ratio: 85 dB A-weighted
• Maximum sound pressure level: 145 dB at 0.5% THD
• Maximum output level: 18 dBu at RL = 10 kOhm
• Dyamic range: 135 dB
• Power supply: 48V phantom power
• Current consumption: 3.6 mA

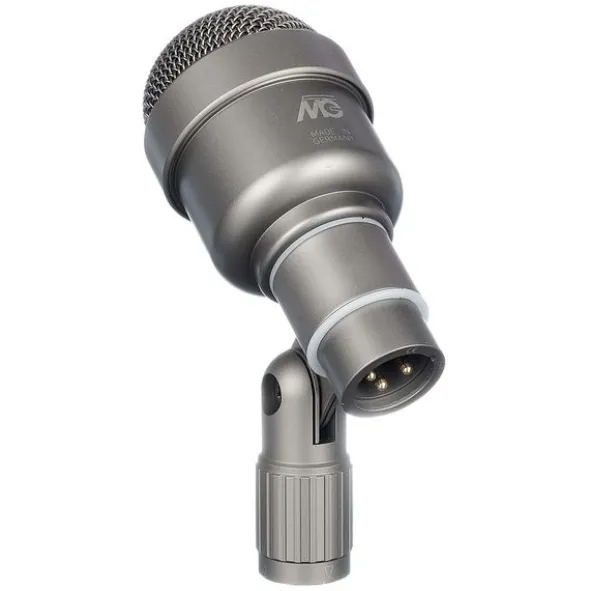

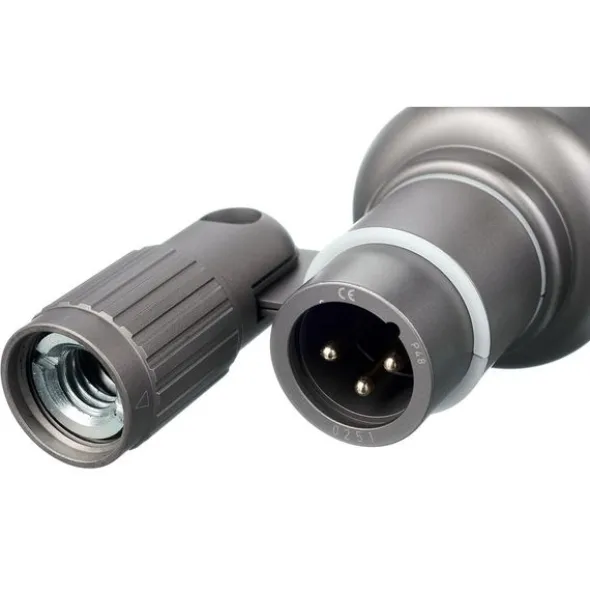

• Connector: XLR3M
• Length: 90 mm
• Diameter 45 mm
• Weight: 220 g
• Colour: Dark Bronze

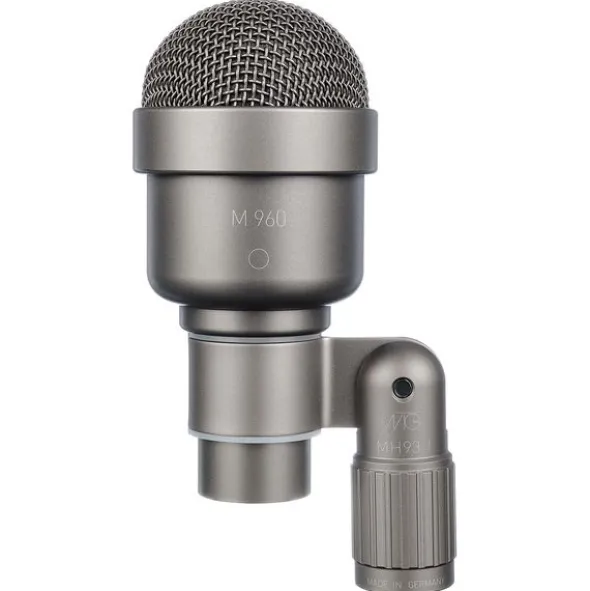

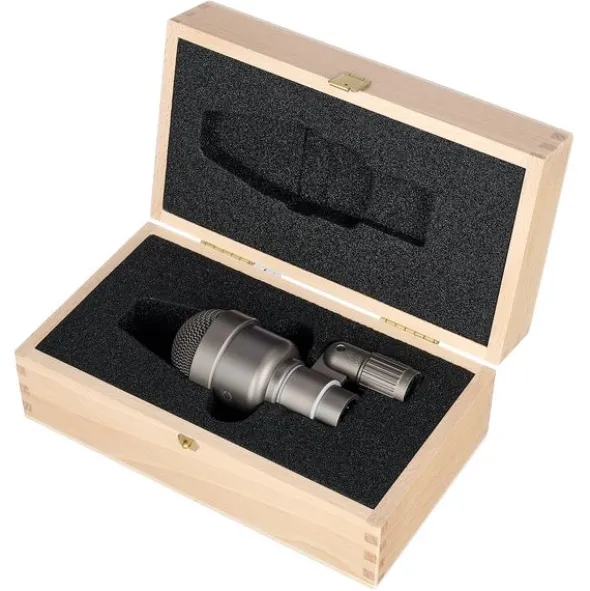

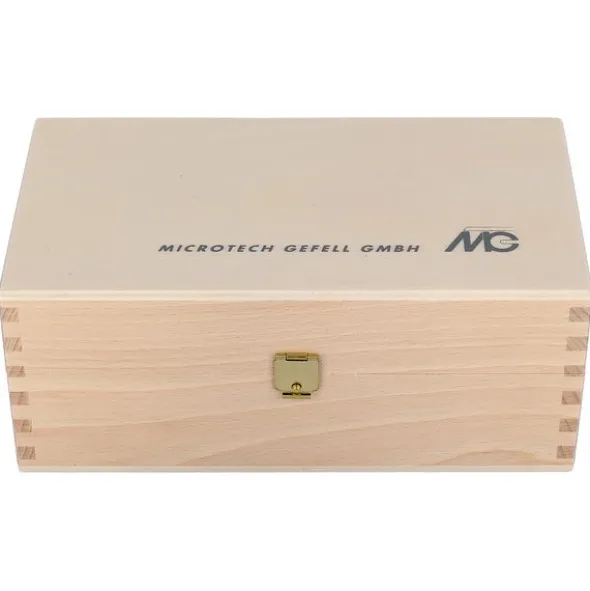

• Includes shock mount MH 93.1 and wooden case
