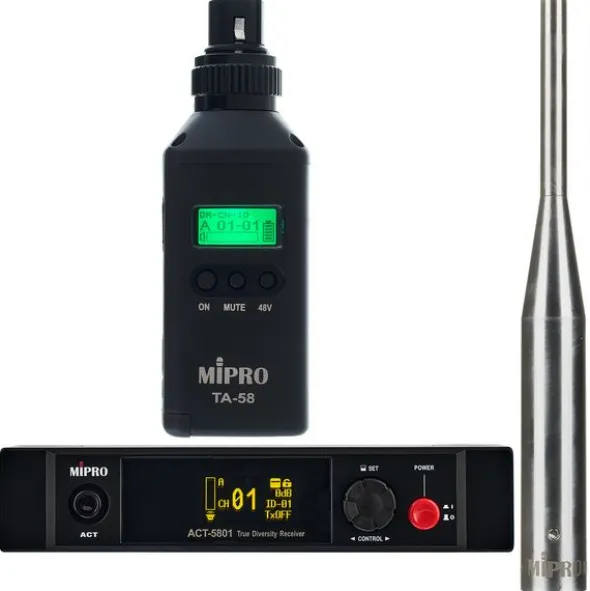

Mipro ACT-5801 Measurement Bundle

Bundle offer comprising

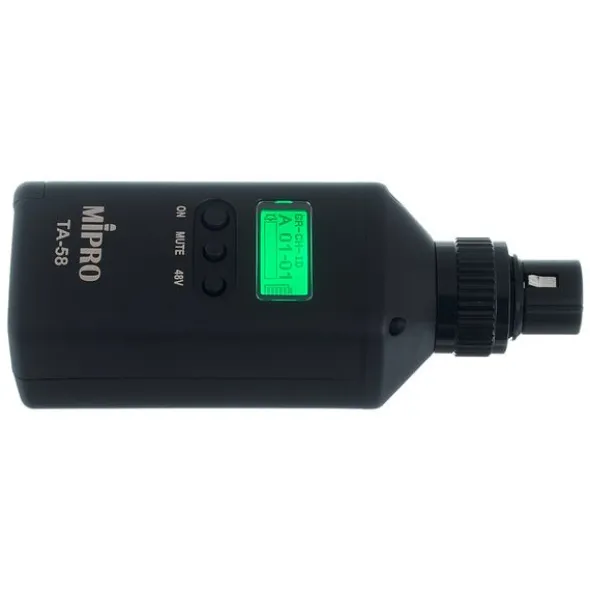

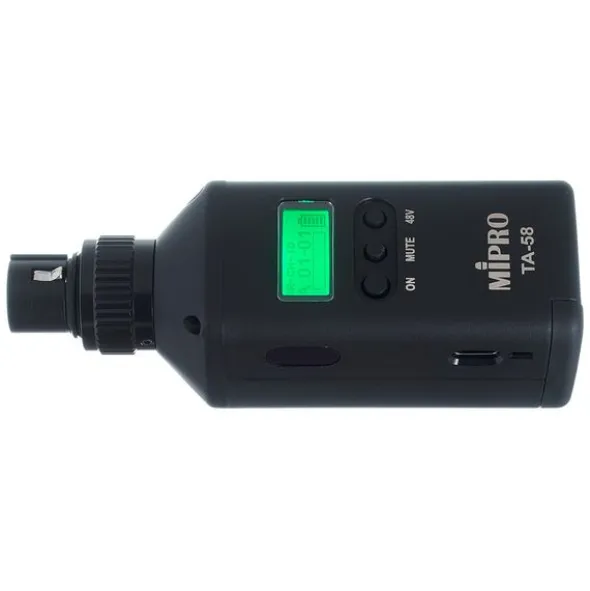

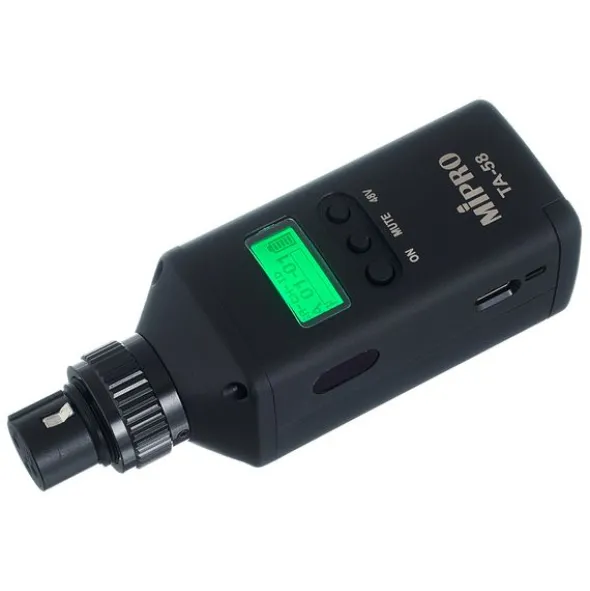

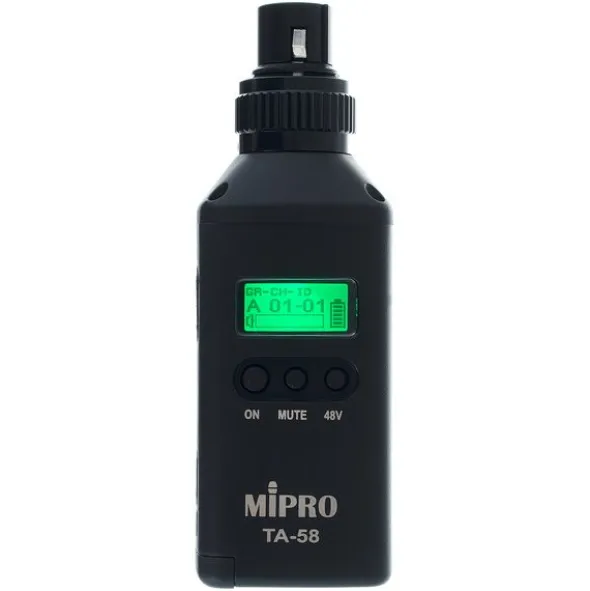

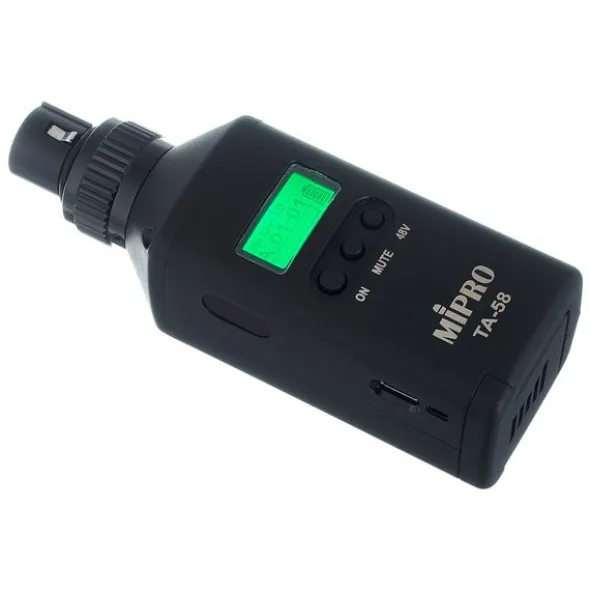

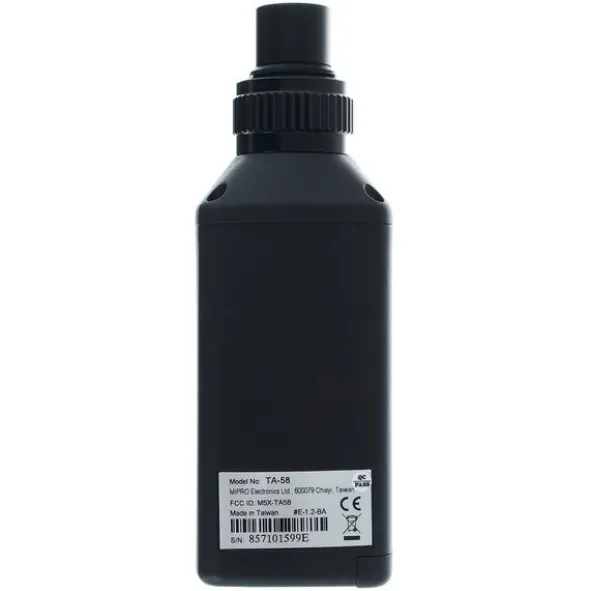

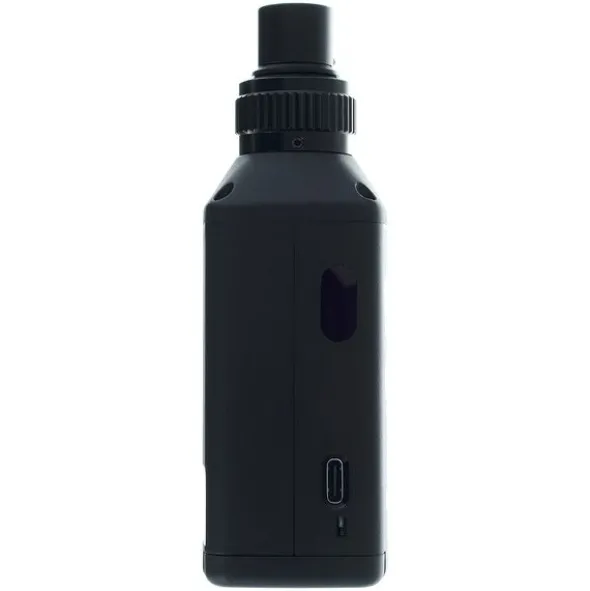

Mipro ACT-5800 TA-58

Digital 5.8 GHz Plug-On Transmitter

• Can be used with all dynamic microphones or condenser microphones with XLR plugs
• Switchable 48V phantom power supply
• Latency: 1.5 ms
• ACT-Sync function
• Battery charging directly in the transmitter via the included USB-C cable
• Battery life up to 12 hours

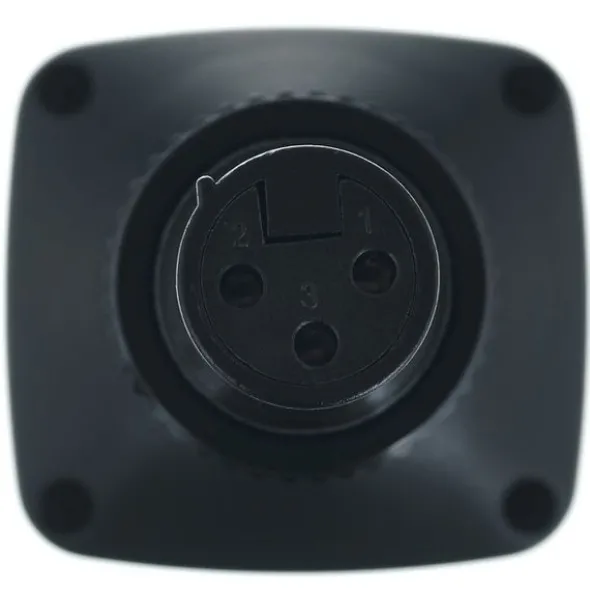

• Lockable XLR socket
• LED battery status indicator
• Dimensions: 40 x 117 x 38 mm
• Weight without battery: 120 g
• Colour: Black
• Includes rechargeable battery and USB-C cable

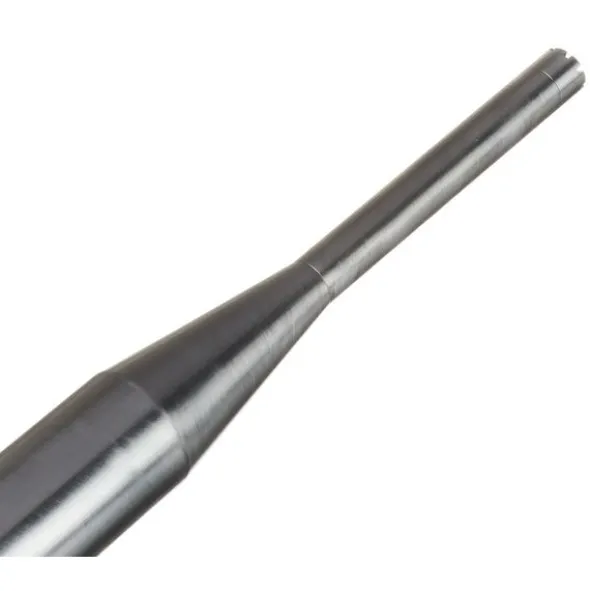

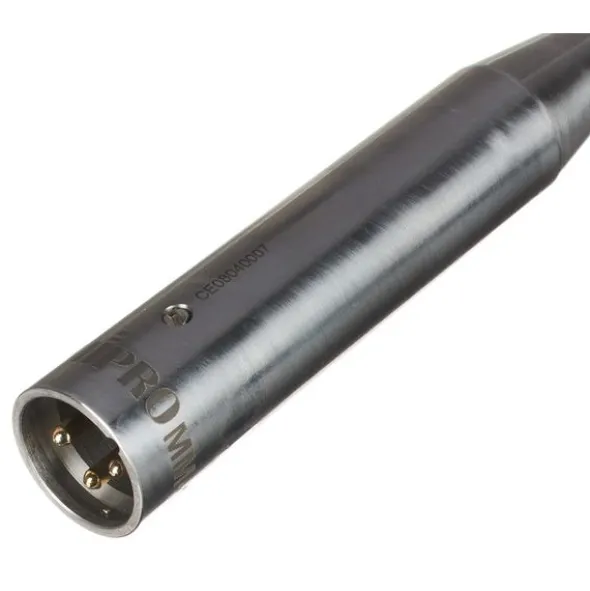

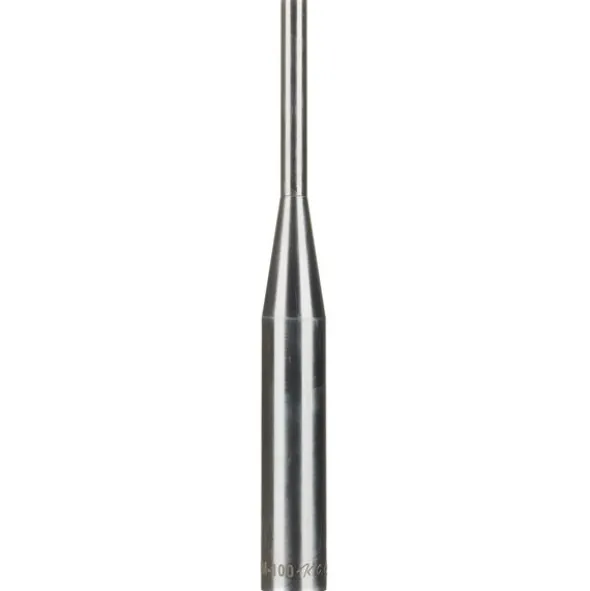

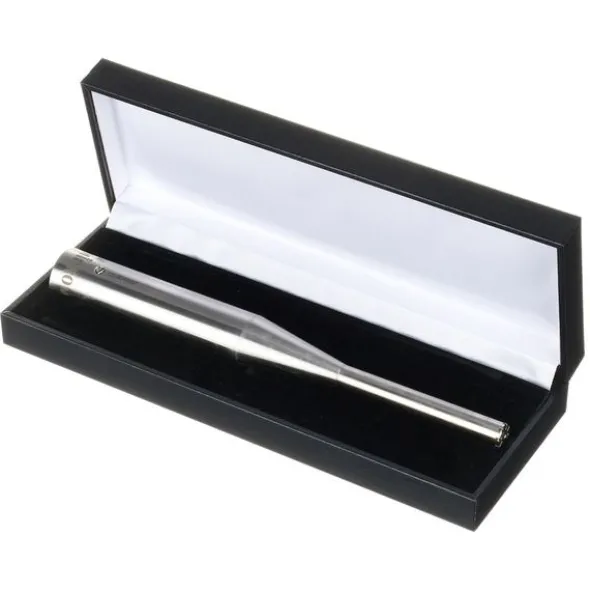

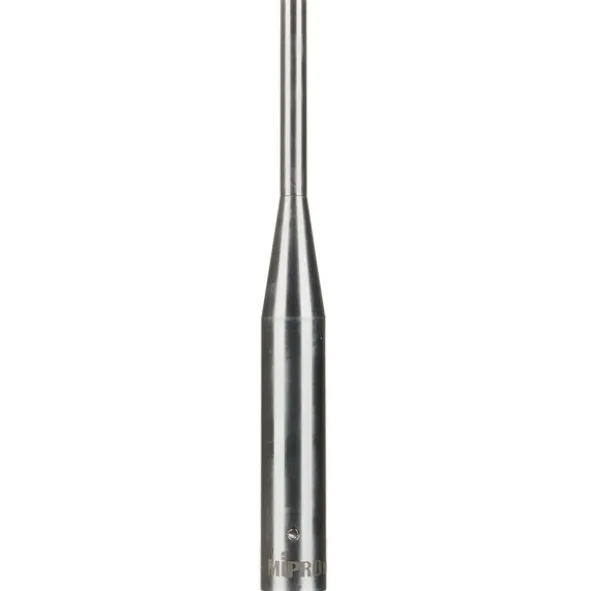

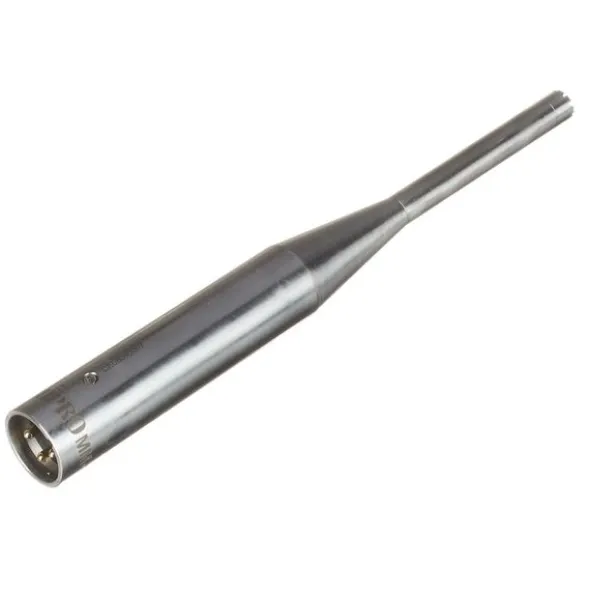

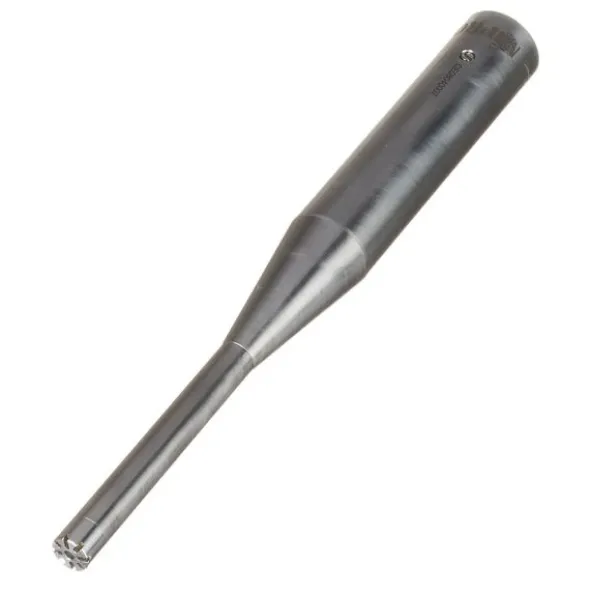

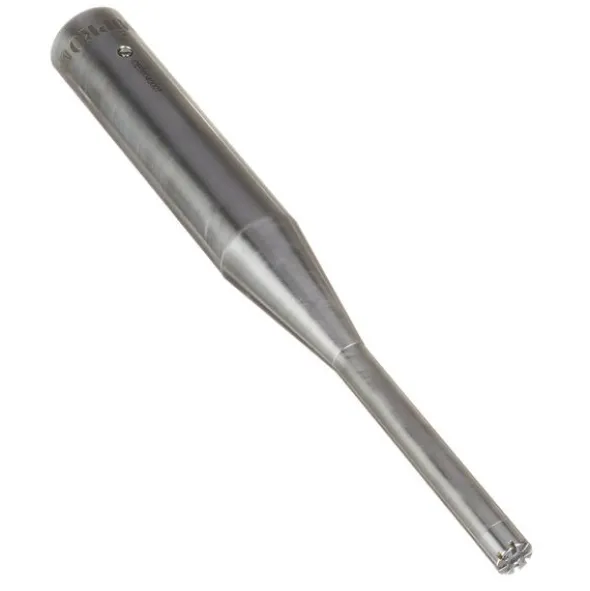

Mipro MM-100

Measuring microphone

• For calibrating sound systems and measuring sound levels and frequency curves
• Polar pattern: Omnidirectional
• Frequency range: 20 – 20,000 Hz
• max. SPL: 125 dB
• Sensitivity: -36 dBV / Pa (0 dB=1V)
• Impedance: 200 ohms
• 12-48 V phantom power
• Dimensions (D x H): 19 x 168 mm
• Weight: 109 g

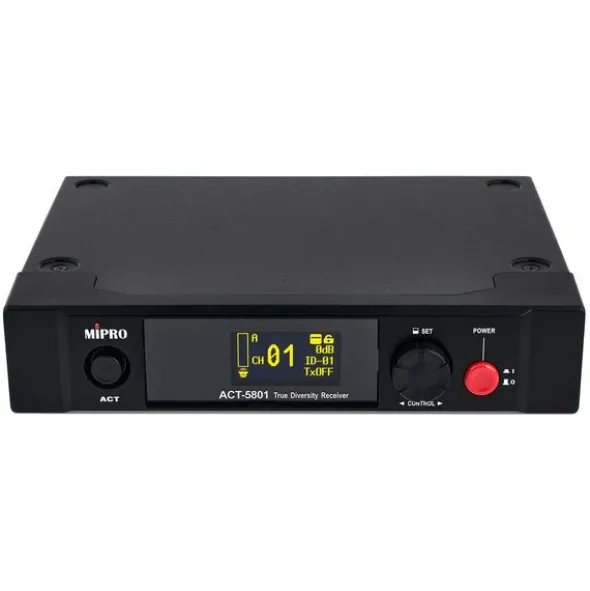

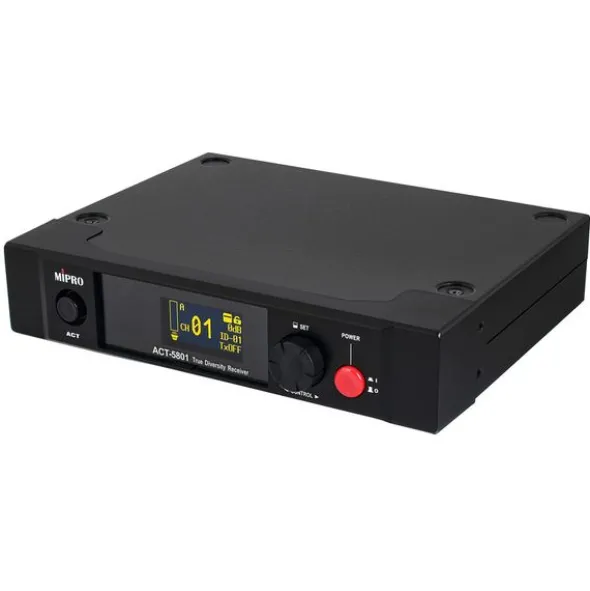

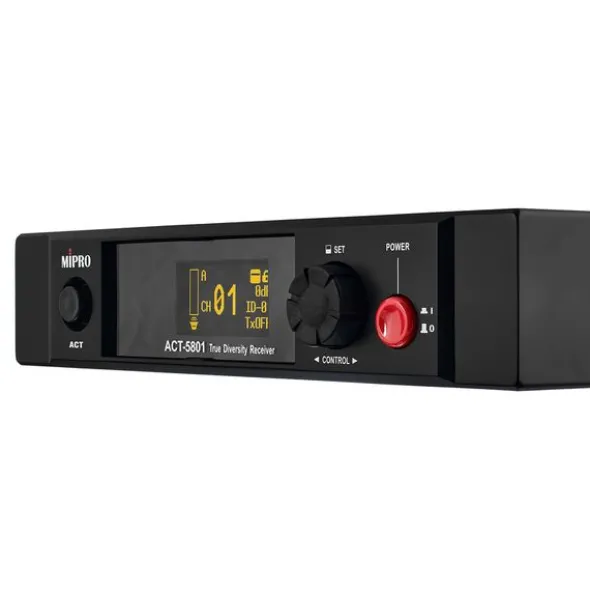

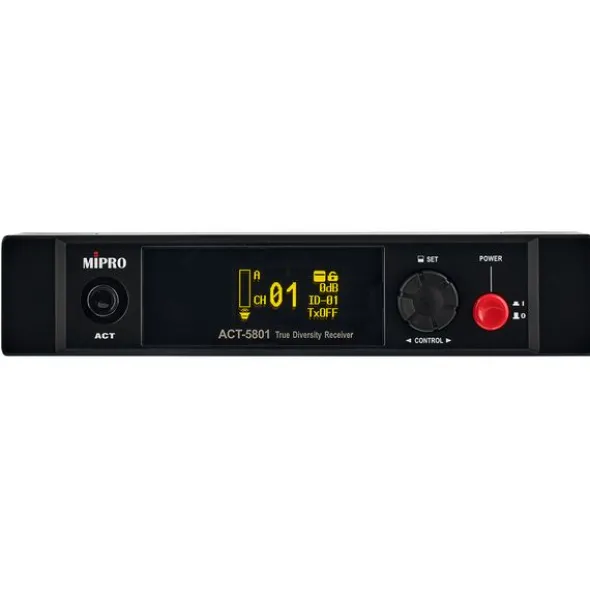

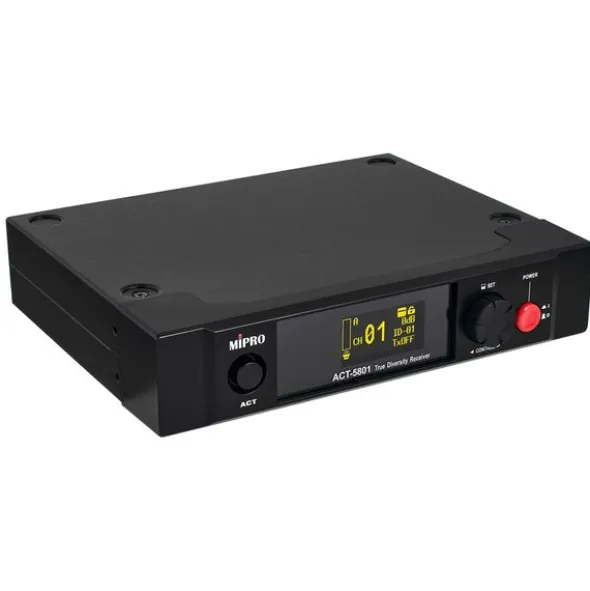

Mipro ACT-5801

Digital True Diversity 5.8 GHz receiver with integrated antennas

• Frequency range: 5,725 – 5,850 GHz
• 12 Interference-free channels in group A
• 24 Interference-free channels in group B1 & B2
• Range up to 100 metres
• Latency < 1.7 ms
• OLED display
• Due to the use of FHSS frequency-hopping technology, each channel operates on 4 pre-set hopping frequencies
• Programmed algorithm searches frequency band for interference-free frequencies (avoids frequencies of WiFi applications)

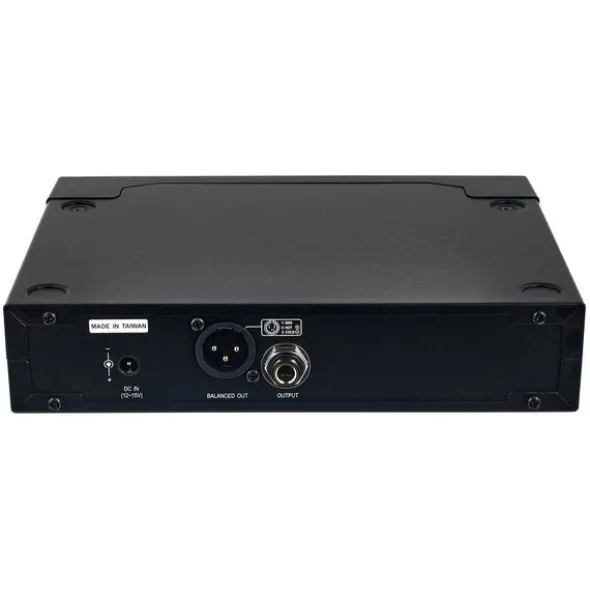

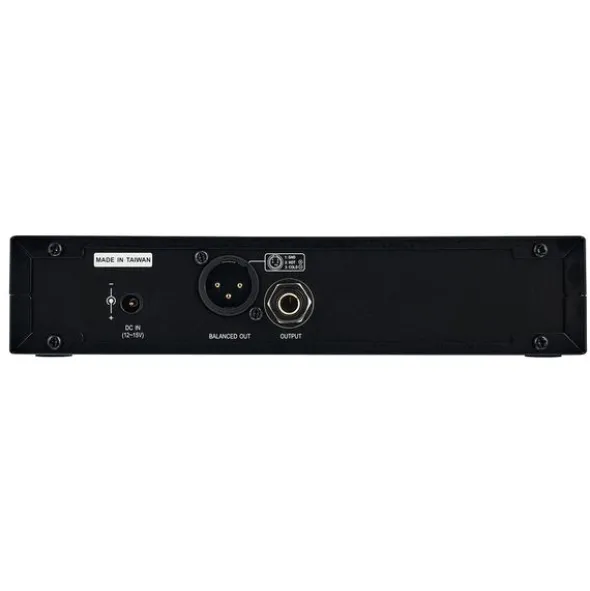

• Balanced XLR and unbalanced jack output
• Rack mounting possible using optional rack kits Mipro FB-71/FB-72
• Dimensions (W x H x D): 210 x 44 x 180 mm
• Weight: 0.75 kg
• Colour: Black
• Includes power supply and 6.3 mm jack cable

Disponível desdeMarço 2026

número de artigo640418

unidade de venda1peça(s)

Frequency Band5,8 GHz

DiversityYes

Switchable FrequenciesYes

Removeable AntennaNo

Transmitter powered withRechargeable battery

Frequency from5725 MHz

Frequency to5850 MHz
