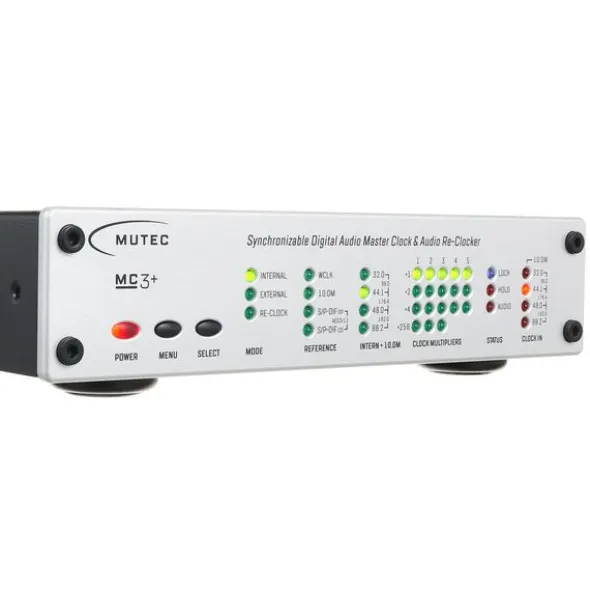

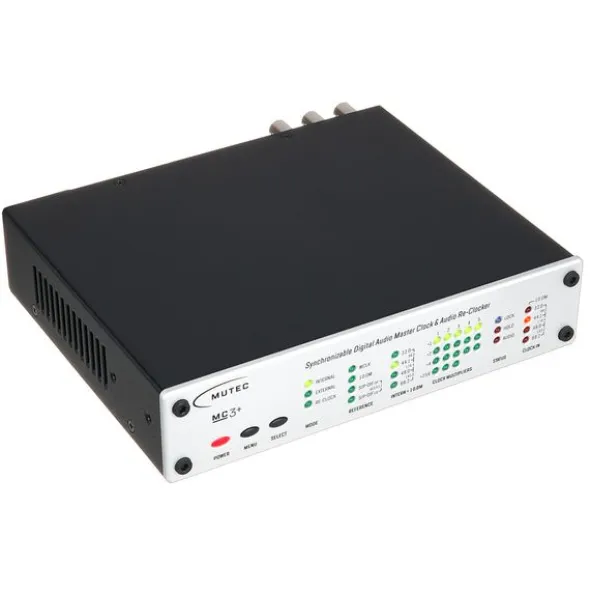

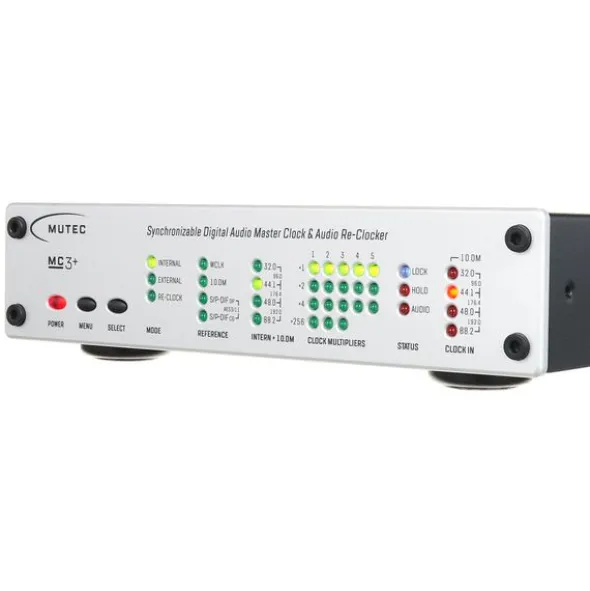

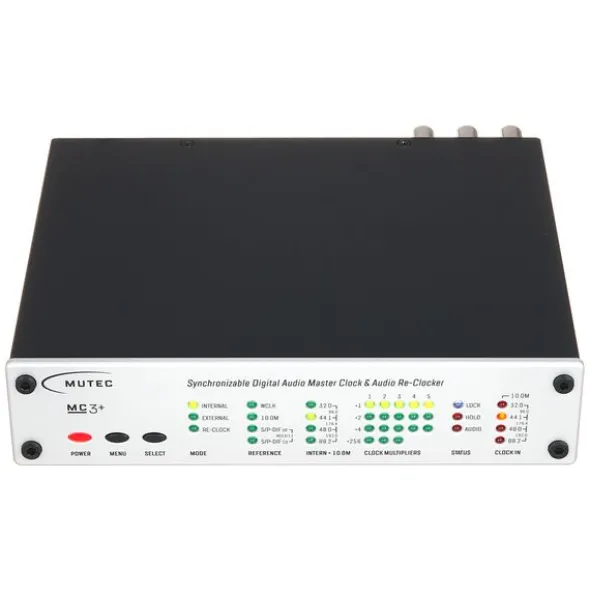

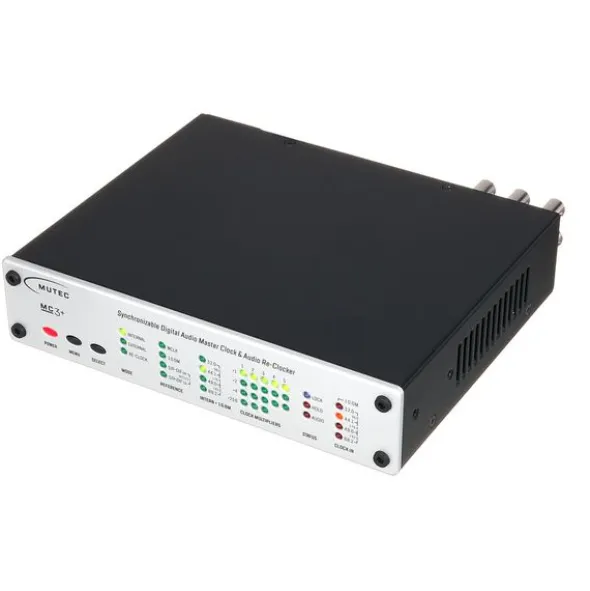

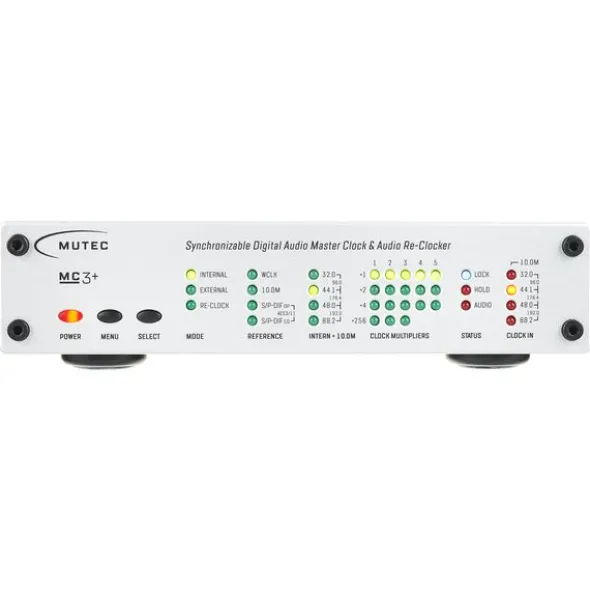

Mutec MC-3+ Smart Clock silver

Digital Audio Master Clock Generator

• Based on MUTEC 1G-clock technology
• Improves the audio quality of all connected digital audio devices
• Strongest re-clocking of digital audio signals
• Audibly increases the sound quality of each DA converter
• Prevents digital “clicks and pops” in audio recordings
• Digitally compensated clock accuracy for the highest precision of the generated clock signals
• Locks to 10 MHz clock signals of so-called Atomic clocks or GPS receivers
• Outputs clock signals fail-safe in any state of operation
• Generates Word Clocks, Super Clocks, AES3 + S/P-DIF blanks simultaneously
• Converts between AES3 and S/P-DIF as well as between AES11 and Word Clock
• Generates Word Clocks up to 768.0 kHz simultaneously
• Control elements can be switched off to prevent accidental operation
• Anodised 9.5″ aluminium housing
• Dimensions: 196 x 42 x 156 mm
• Weight: 1260 g

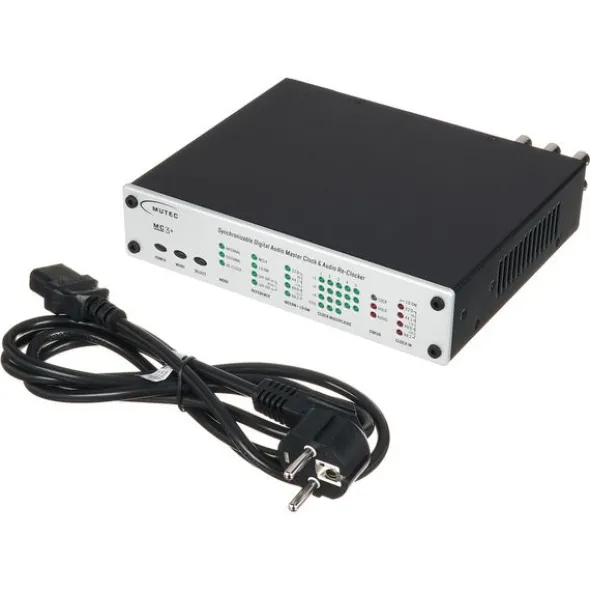

• Built-in international power supply unit
• Colour of front panel: Silver

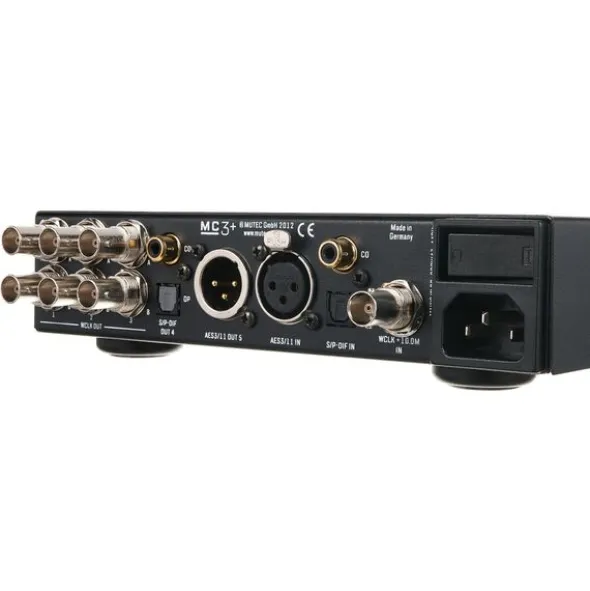

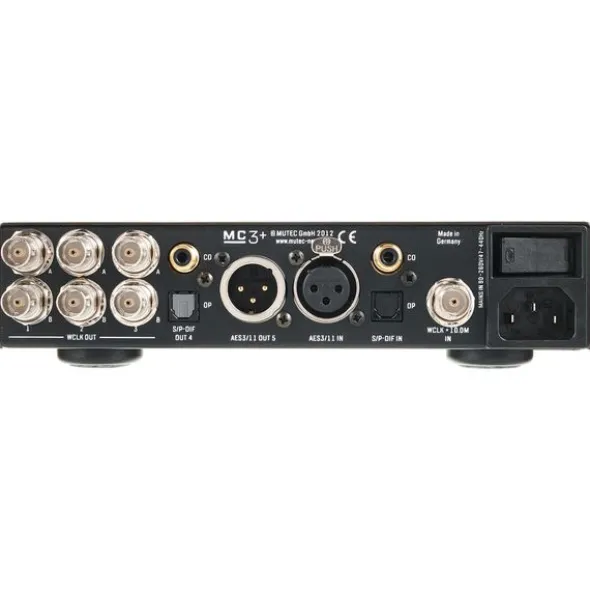

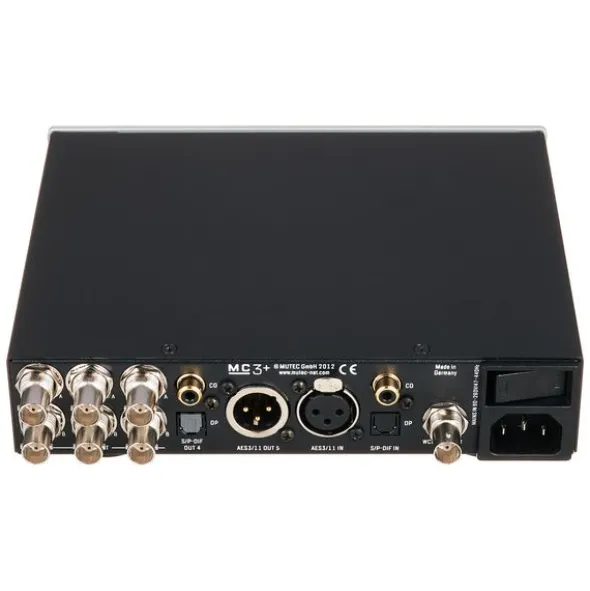

Interfaces:

• 1 x BNC input for Word Clock + 10 MHz, 75 Ohms termination switchable, unbalanced
• 1 x XLR input for AES3/11, 110 Ohms terminated, transformer balanced
• 1 x Optical input for S/P-DIF, Toshiba Toslink™, EIAJ RC-5720
• 1 x RCA input (coaxial) for S/P-DIF, 75 Ohms terminated, unbalanced
• 6 x BNC outputs for Word Clock, terminated, unbalanced, individually buffered, adjustable in pairs
• 1 X XLR output for AES3/11, terminated, transformer balanced buffered
• 1 X RCA output (coaxial) for S/P-DIF terminated, unbalanced, buffered
• 1 X Optical output for S/P-DIF, Toshiba Toslink, EIAJ RC-5720
