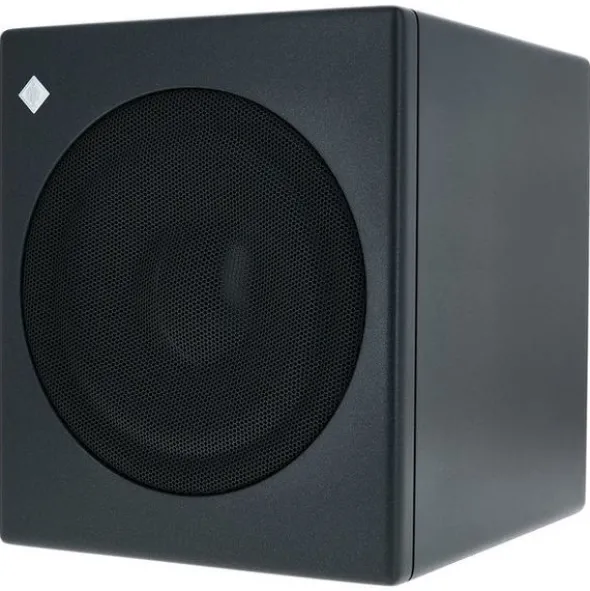

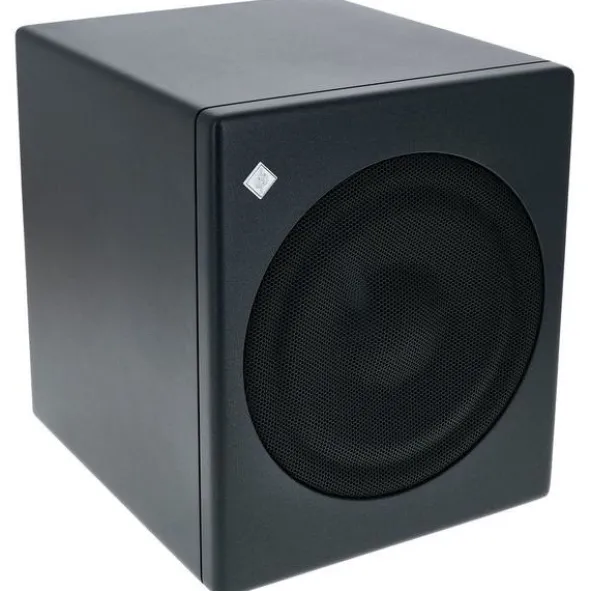

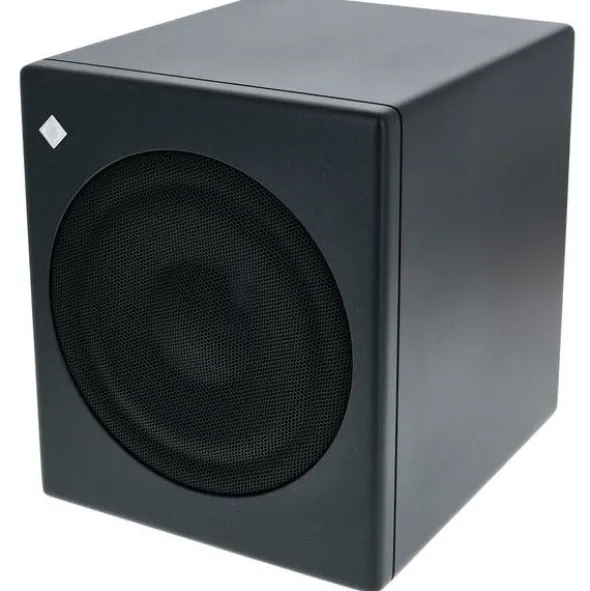

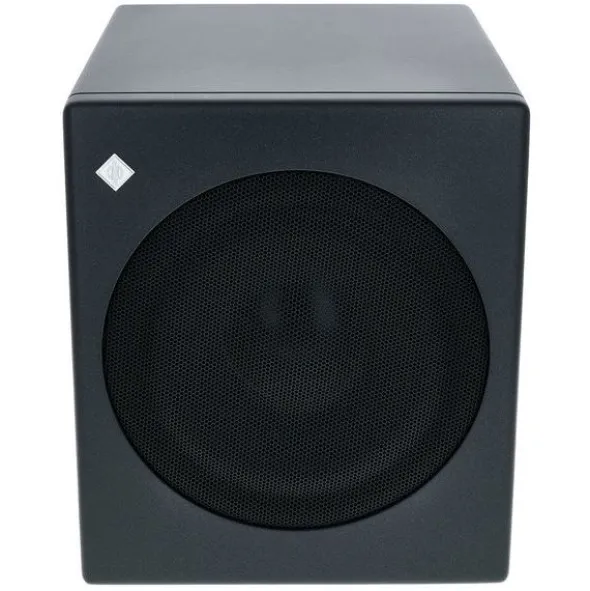

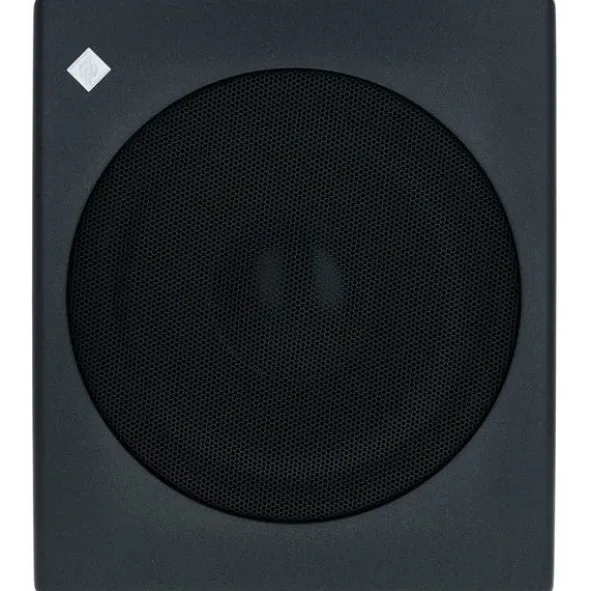

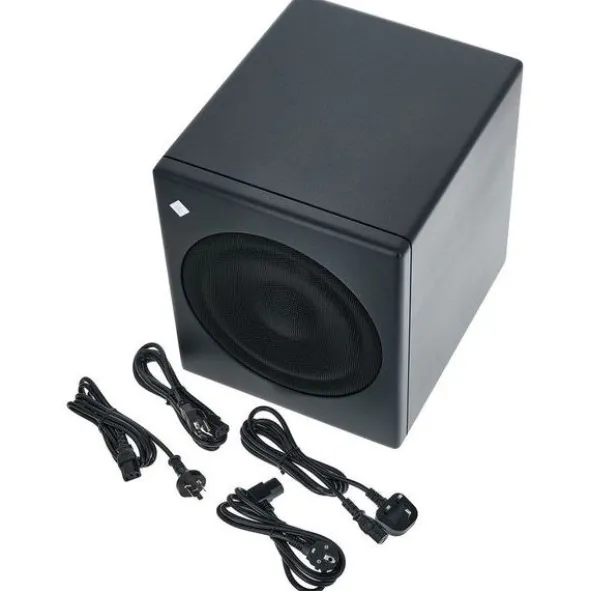

Neumann KH 750 DSP AES67

Active Studio Subwoofer

• With DSP and fully redundant AES67/ST-2100-capable audio network interface

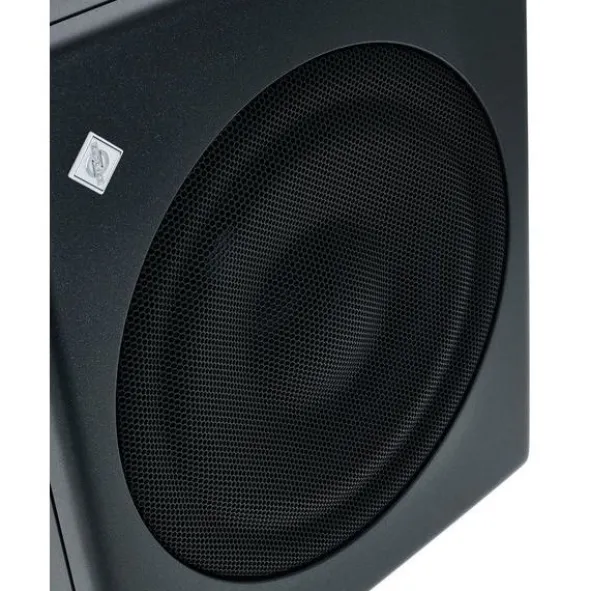

• Equipped with 10″ Ultra Long Excursion woofer
• Power: 256 watts
• Max. sound pressure level: 105.0 dB
• Frequency range: 18 – 750 Hz (+3 dB)
• Four different LFE modes selectable
• Crossover frequency: 80 Hz
• FIR phase correction for the connected analogue Neumann monitors via optional MA 1 (Art. 508756 – not included)
• Switchable stand-by mode
• NMOS IS-04 (detection & registration) and NMOS IS-05 (connection management)
• DANTE compatibility for the reception of DANTE AES67 streams

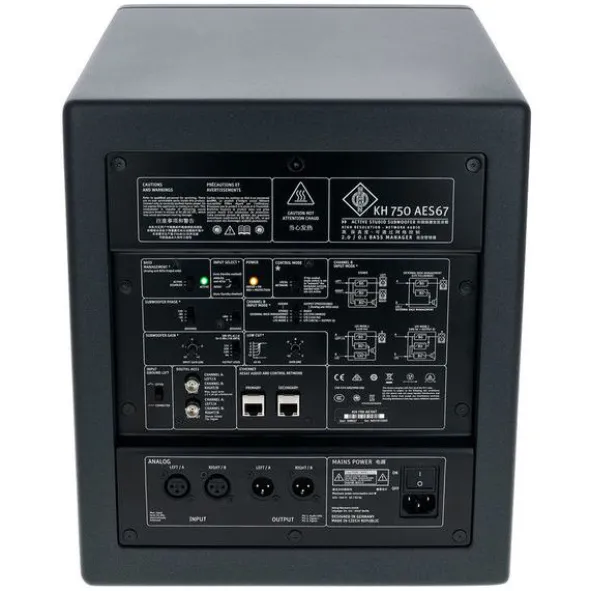

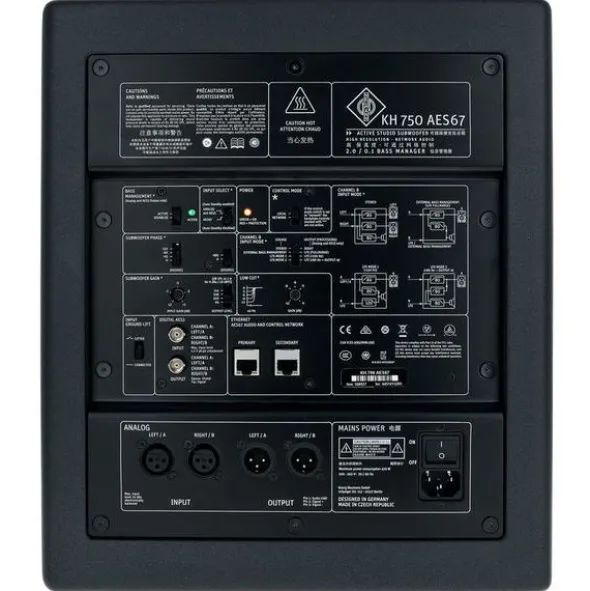

• Analogue inputs / outputs in XLR
• Digital inputs / outputs in BNC (75 Ohm, AES3)
• Two Ethernet interfaces
• Automatic calibration including the connected Neumann monitors via optional MA 1 software (MAC/PC)
• Dimensions: 383 x 330 x 383 mm
• Weight: 19.5 kg
