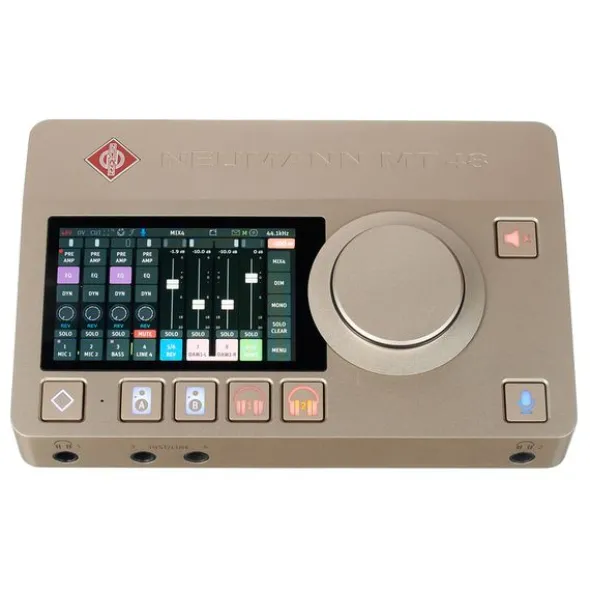

Neumann MT 48 U

12 x 16 USB 2.0 Audio Interface

• Individually configurable monitoring controller (mono, stereo, surround and immersive audio)
• Prepared for DANTE – optional Audinate licence is required for DANTE operation (not included)
• Microphone preamplifier with 136 dB(A) dynamic range
• Preamplification up to 78 dB
• Integrated DSP for EQ and dynamics processing on each channel and reverb effect

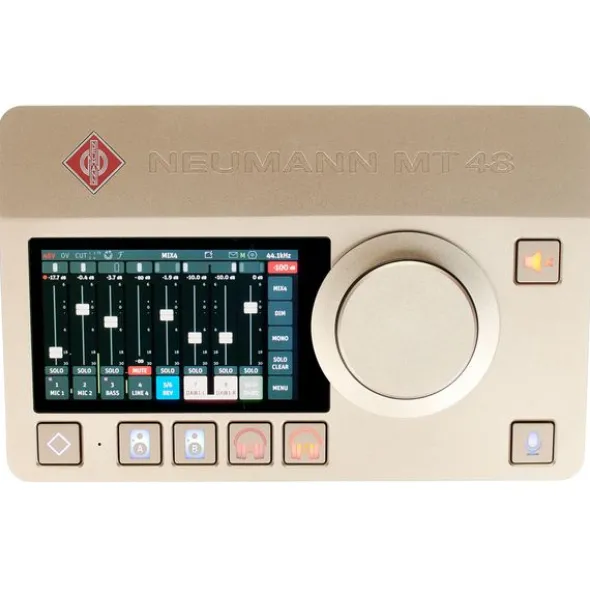

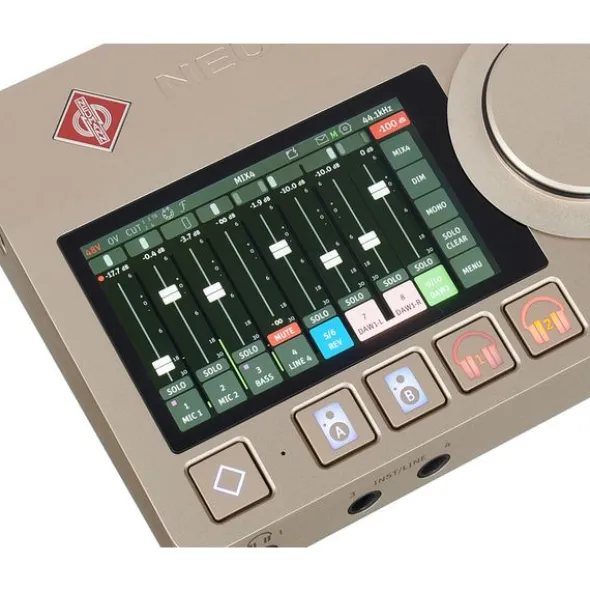

• Touchscreen with intuitive user interface
• Fully-fledged digital mixing console
• Dual Output Technology (pre-FX and post-FX recording simultaneously)
• +48 V phantom power
• AES67/RAVENNA compatible
• Tripod mounting possible, thread on bottom side

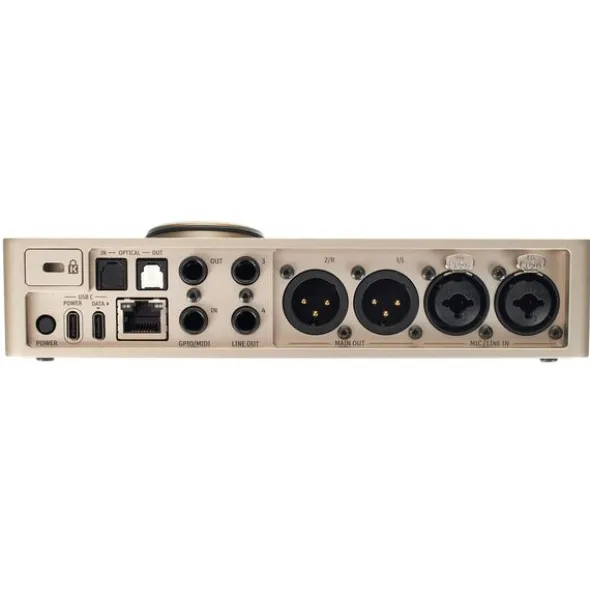

• Two mic/line inputs: Combo XLR/jack 6.3 mm
• Two line inputs: 6.3 mm jack
• Two line outputs: XLR
• Two line outputs: 6.3 mm jack
• Two stereo headphone outputs
• MIDI adapter input and output: 6.3 mm jack (suitable adapter: Art.569910 – not included)
• Ethernet
• ADAT / SPDIF input and output optical
• USB-C port for data transfer
• USB-C connector for external power supply
• Format: Desktop
• Dimensions (W x H x D): 200 x 128 x 40 mm
• Weight: 1.58 kg

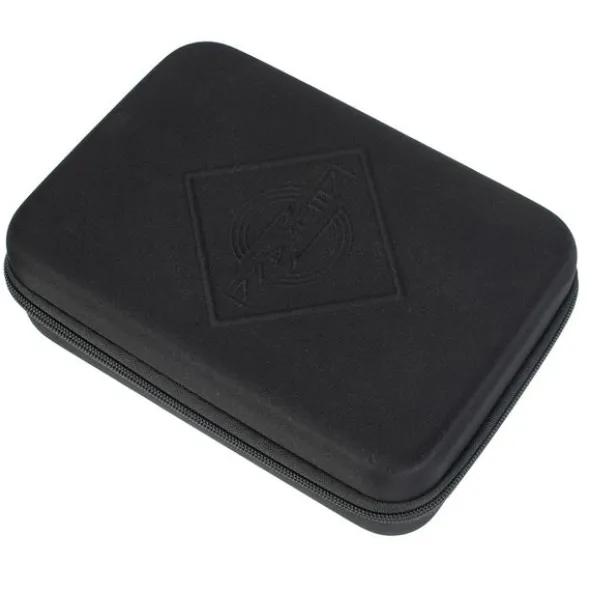

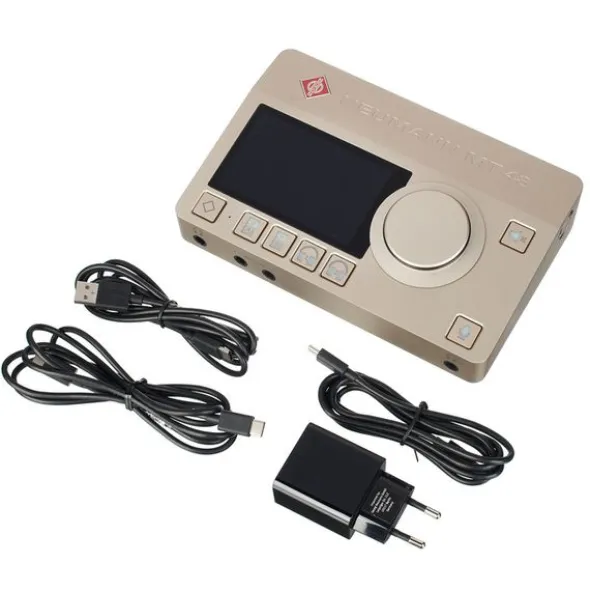

• Includes soft case, USB-A and USB-C data cable and external power supply with USB-C connection

Disponível desdeDezembro 2024

número de artigo603005

unidade de venda1peça(s)

Recording / Playback Channels12×16

Number of Mic Inputs2

Number of Line Inputs4

Instrument Inputs2

Number of Line Outs4

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet1

Other ConnectorsUSB-C

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits32 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width200 mm

Depth128 mm

Height40 mm

Connection FormatUSB port Type C

Included in deliveryPower Supply, USB-A to USB-C Cable, 2x USB-C Cables, Gigbag

Zero latency monitoringYes
