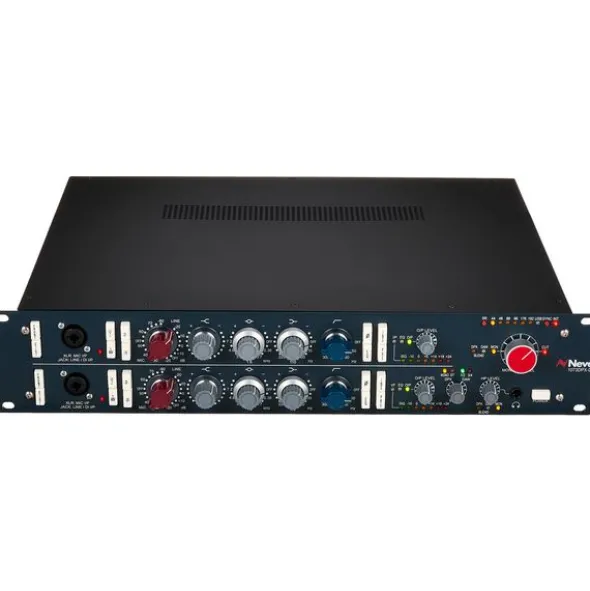

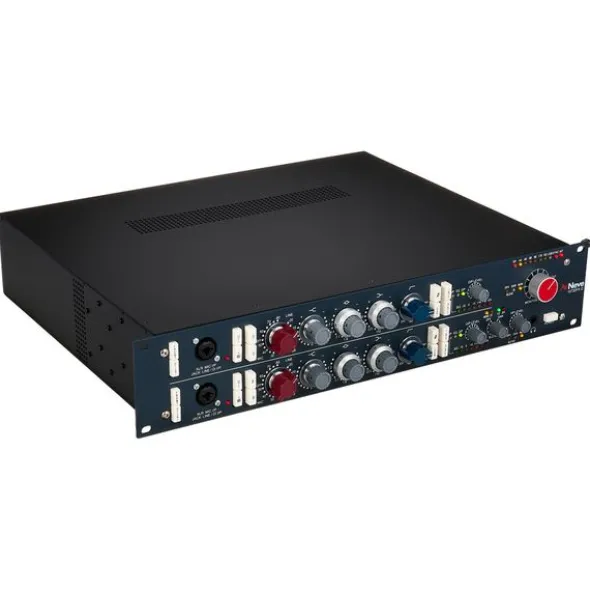

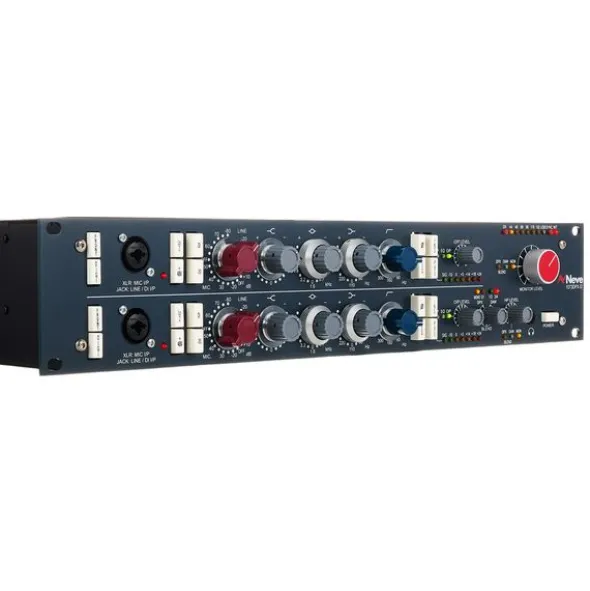

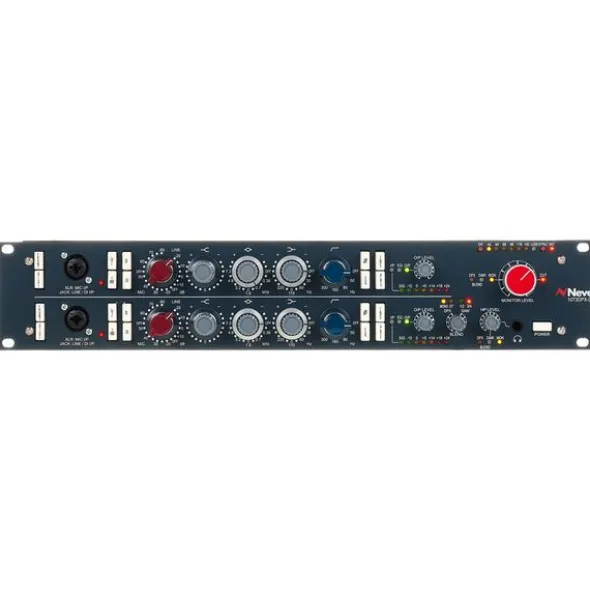

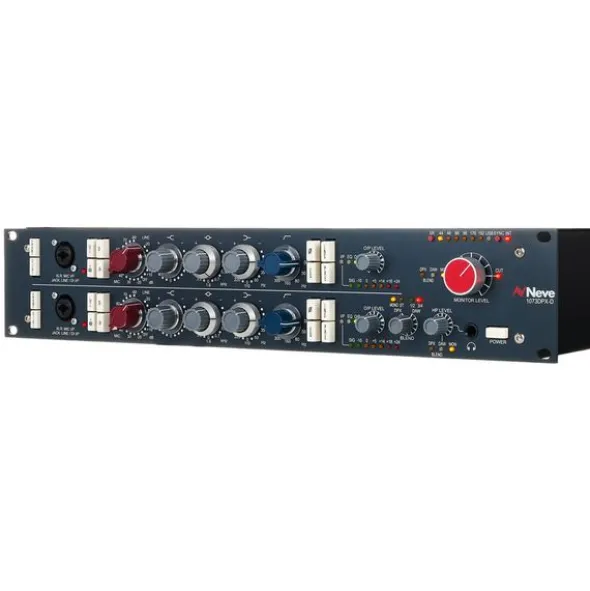

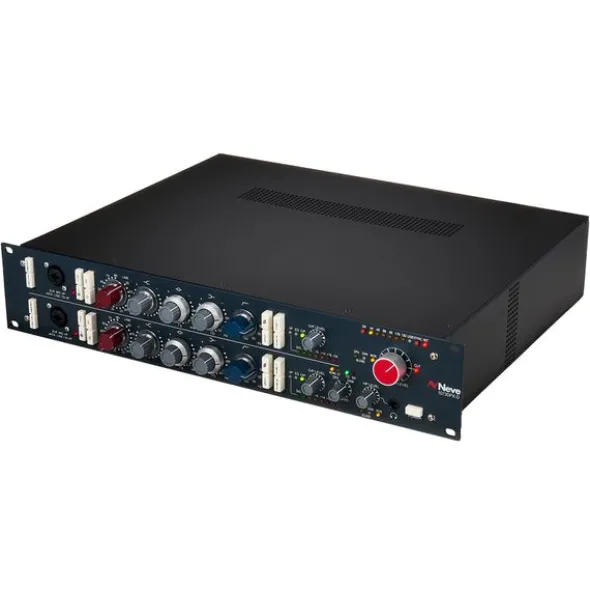

Neve 1073DPX-D

10 x 12 USB 10 Audio Interface

• 24 bit / 192 kHz AD/DA converter
• Two 1073 Microphone/line/instrument preamplifiers with EQ circuit
• 80 dB gain

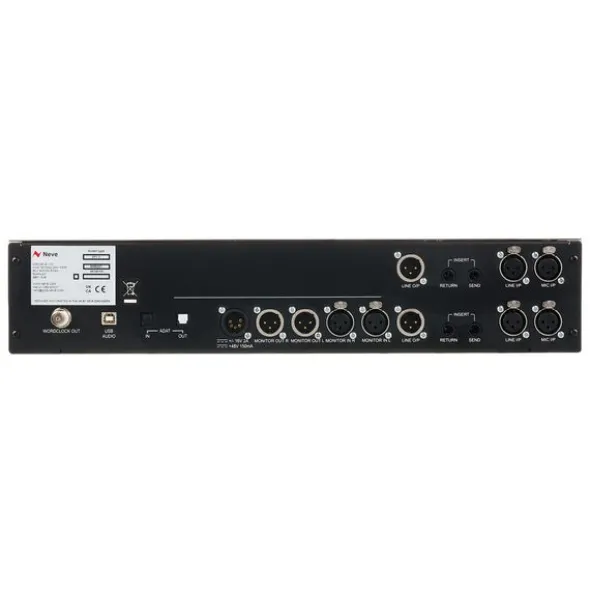

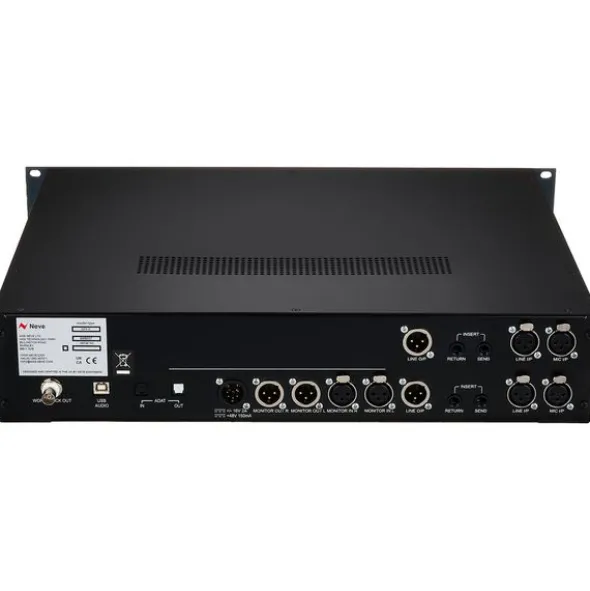

• Monitor outputs: Two XLR
• Monitor inputs: Two XLR
• One stereo headphone output
• Line output: One XLR
• One ADAT I/O
• Neve Marinair transformers in the input and output stages
• Balanced pre/post EQ insert
• Switchable +48V phantom power supply
• Hi/Lo impedance, -20dB pad and DI ground lift
• 7-level LED signal level display
• Dimensions (W x D x H): 480 x 360 x 88 mm
• Weight: 9 kg

Disponível desdeAbril 2026

número de artigo635243

unidade de venda1peça(s)

Recording / Playback Channels10×12

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs2

Number of Line Outs2

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors1

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word Clock1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width480 mm

Depth360 mm

Height88 mm

Connection FormatUSB port Type B

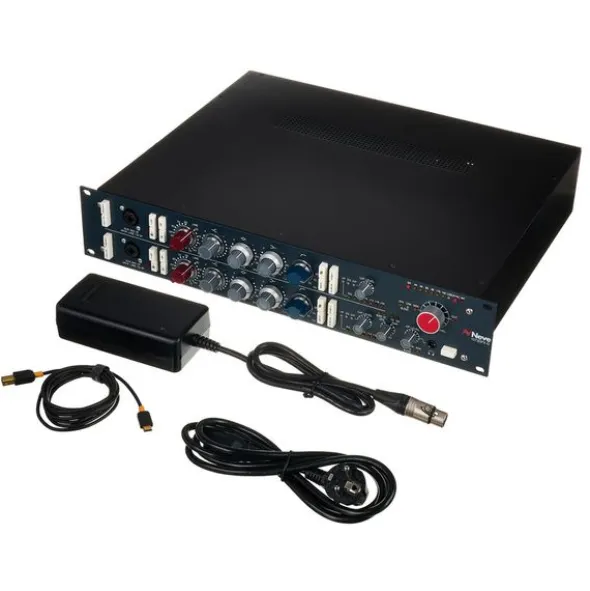

Included in deliveryPower Supply, Power Cable, USB-B to USB-C Cable

Zero latency monitoringYes
