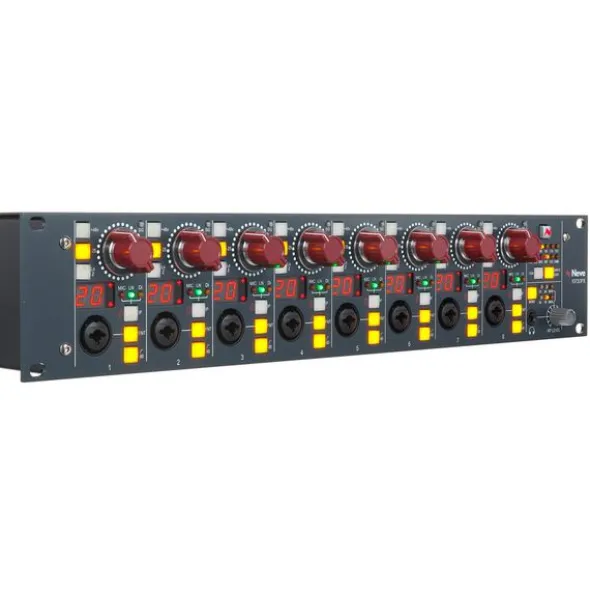

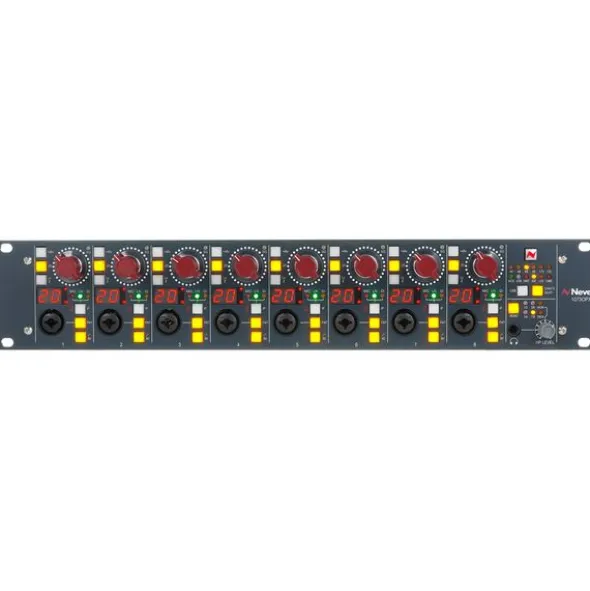

Neve 1073OPX with ADAT/USB card

8-Channel Microphone Preamplifier

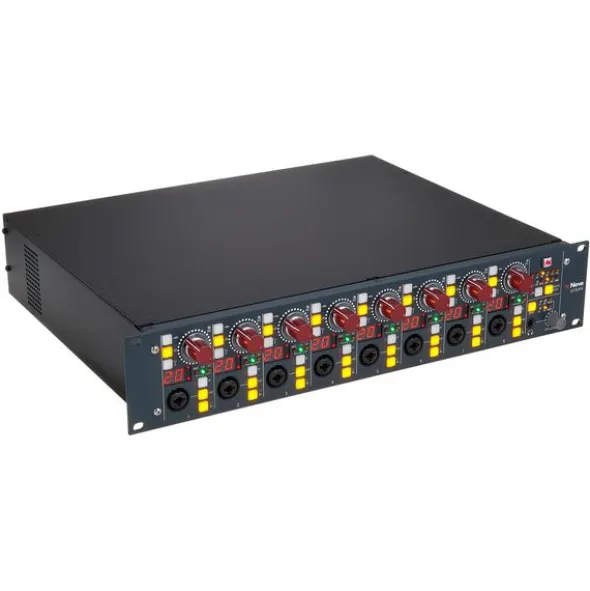

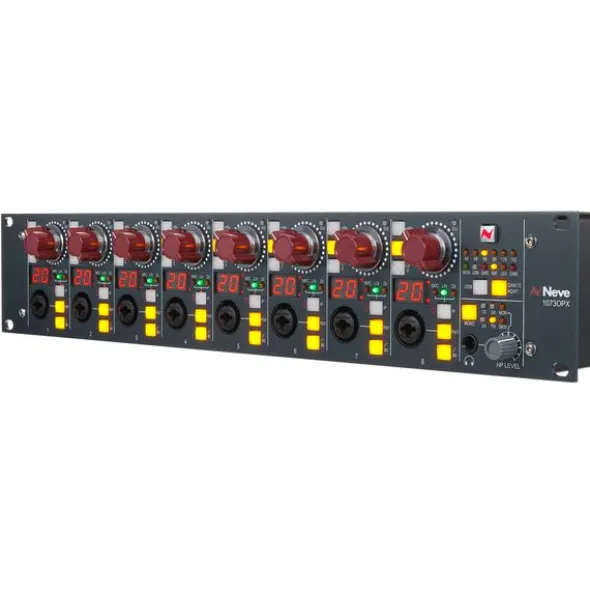

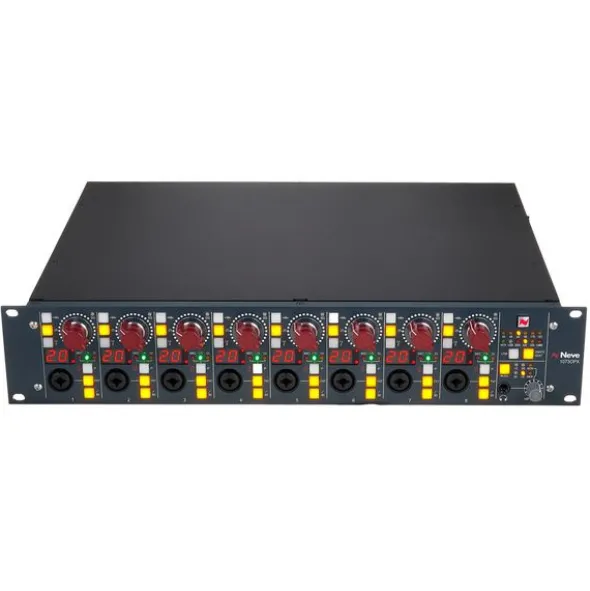

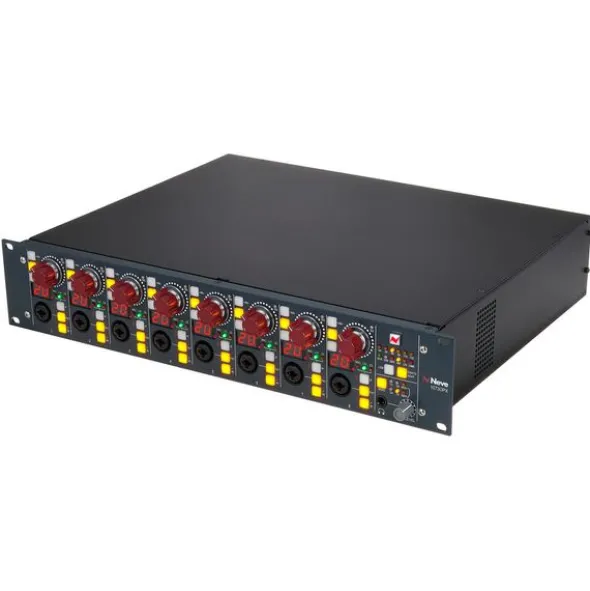

• 8x combo jack Microphone/Line/Instrument input on the front panel

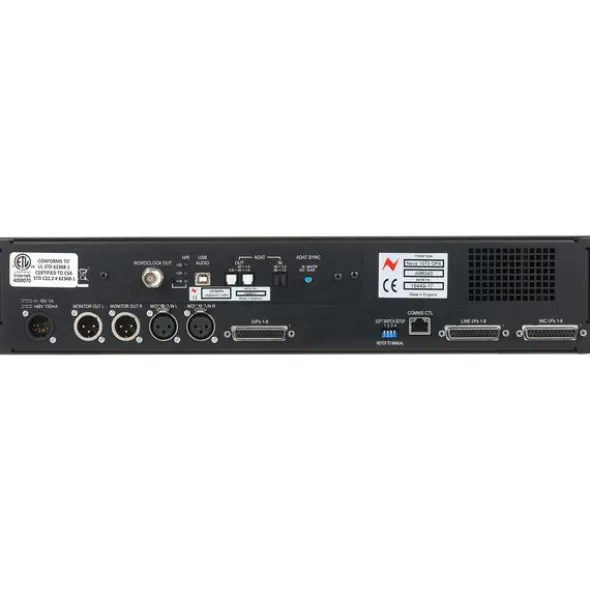

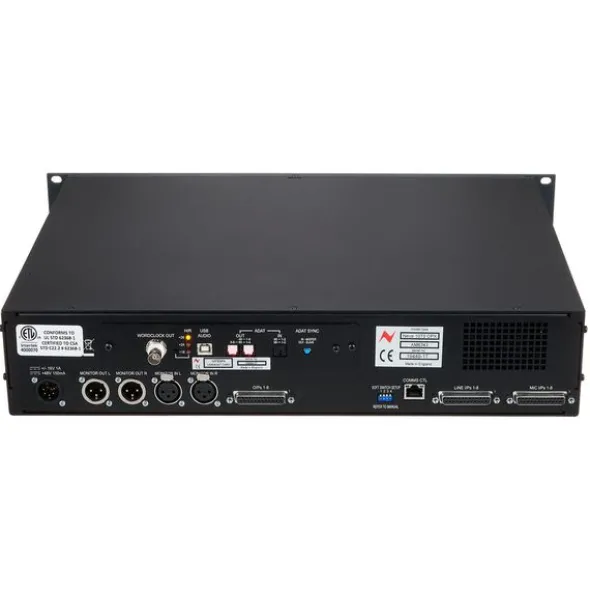

• Separate Sub-D25 line and mic inputs on the rear panel
• 8x Line-out sub-D25
• Remote-control software for easy access to all parameters and recall functionality
• Per channel: 48V phantom power, 25 dB pad, switchable input impedance (300/1300 Ohm), 80 Hz low cut
• Phase inversion
• Separate stereo monitor path with independent level control
• Built-in expansion board with 8 channels A/D conversion for each preamp output and two channels D/A conversion for the digital monitor return signal
• Word clock out
• Digital headroom selector switch for switching the DMON input and
• Digital preamp outputs 1 to 8 from +18dBu, +24dBu or +26dBu
• Can be used as an audio interface via the USB-B connection
• ADAT sync switch (master/slave)
• Dimensions: 19″ / 2U

Disponível desdeNovembro 2023

número de artigo568113

unidade de venda1peça(s)

Channels8

Number of microphone inputs8

Instrument inputYes

TubesNo

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsSub-D 25-pol

Headphone connectionYes

Level MeterNo

Design19″ / 2U
