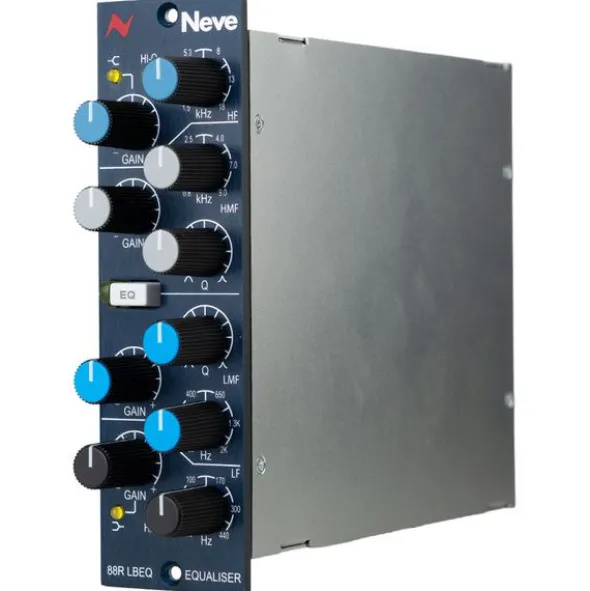

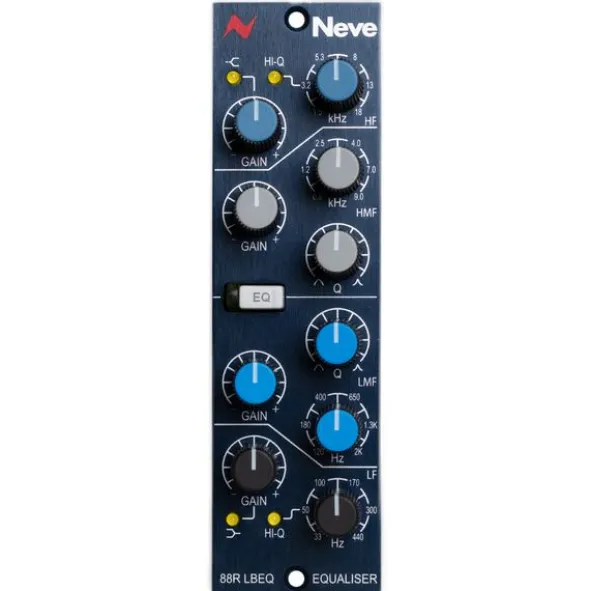

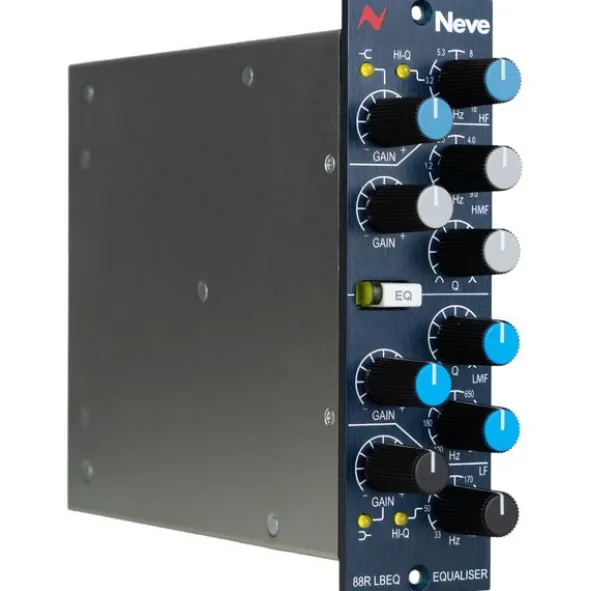

Neve 88R LBEQ

500 Series 4-Band Fully Parametric EQ

• Based on the 88RS console circuit
• ±20 dB gain per band
• Low band: 33–440 Hz with selectable shelf filter (standard/resonant) or bell filter
• Low-mid band: 120 Hz – 2 kHz with adjustable Q from 0.3 – 7
• High-mid band: 0.8–9 kHz with adjustable Q from 0.3–7
• High band: 1.5–18 kHz with selectable shelf filter (standard/resonant) or bell filter
• THD+N: < 0.004 %
• Inherent noise: -88 dBu
• Dynamic range: > 107 dB
• Requires a 500 slot
• Design: 500 Series module
• Weight: 0.57 kg
