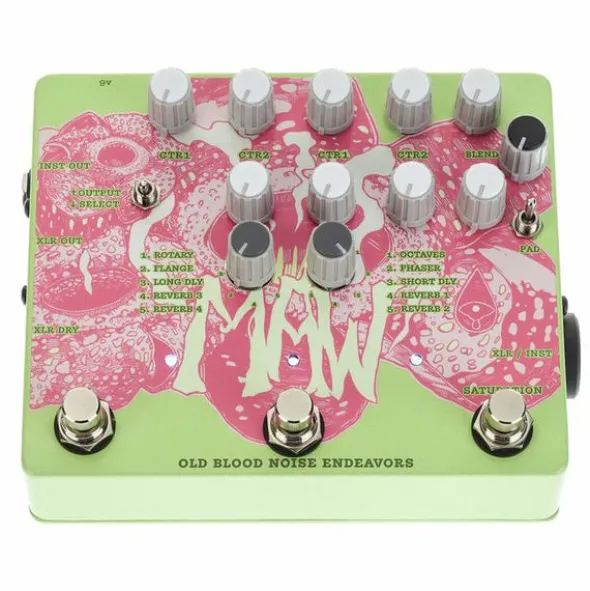

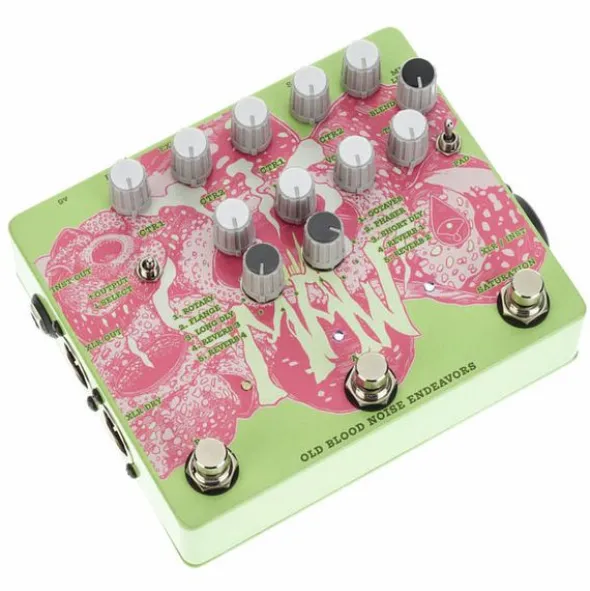

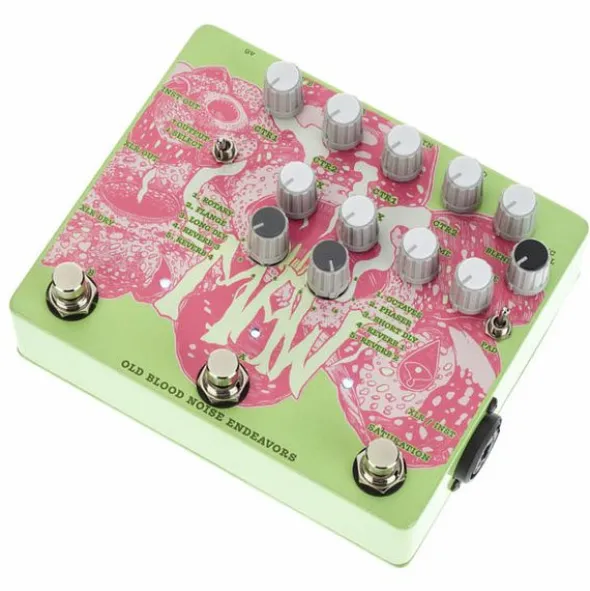

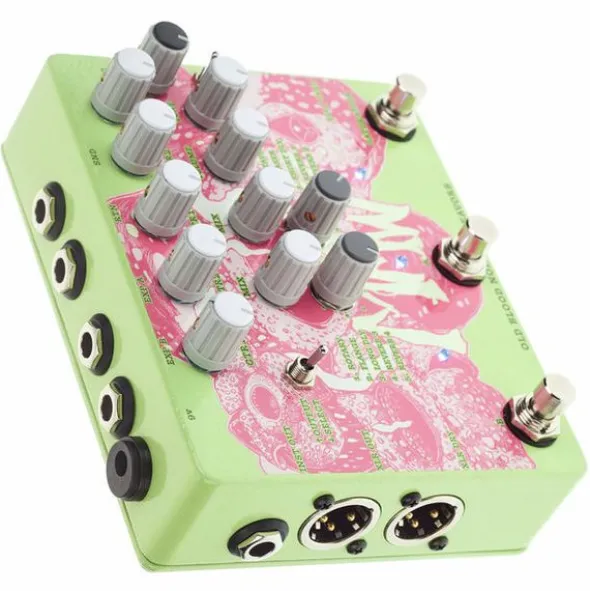

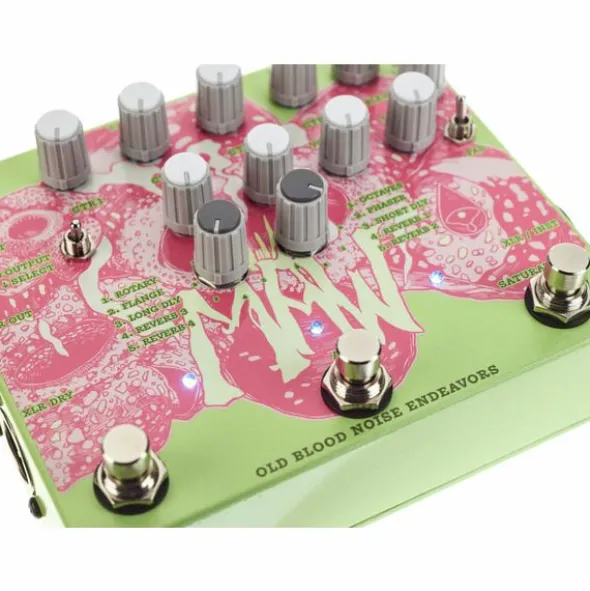

Old Blood Noise Endeavors MAW XLR Pedal

Multi-Effect Pedal for Microphones

• XLR microphone preamplifier for dynamic microphones with gain and pad switch
• 2 Foot-switchable multi-effects units
• Unit 1: 2 reverbs, short delay, phaser, lower and upper octaves
• Unit 2: 2 additional reverbs, long delay, flanger & rotary, FX loop
• Low pass filter
• Switchable saturation range
• True bypass
• 2 Expression pedal inputs

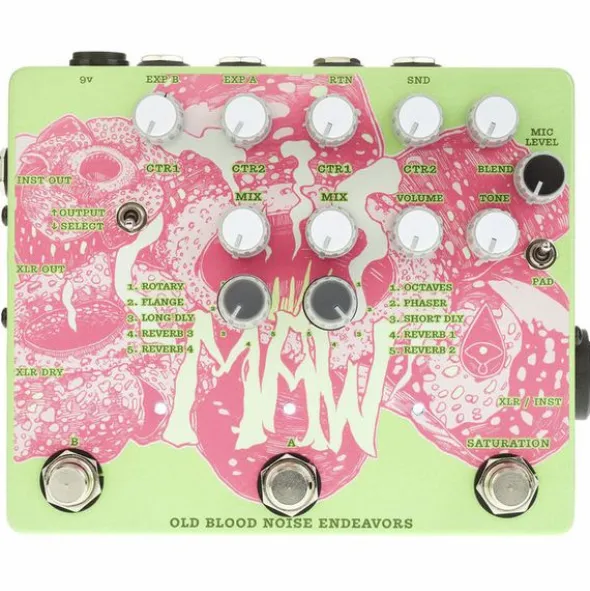

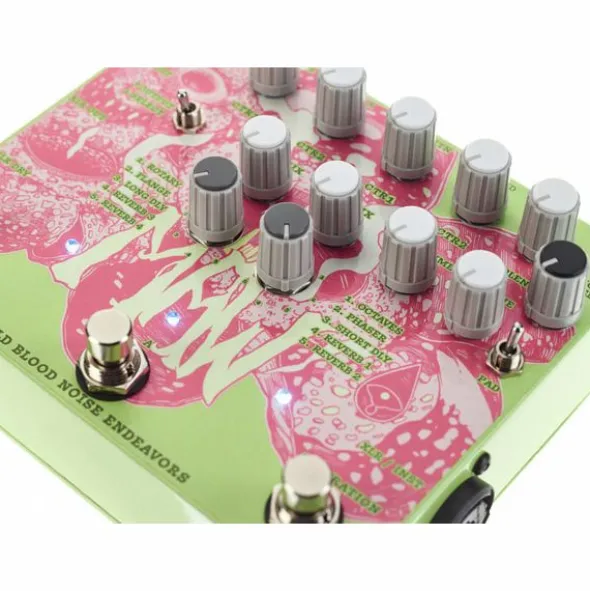

• Controls: 2x CTR1, 2x CTR2, Blend, 2x Mix, Volume, Tone, 2x FX Select, Mic Level
• Switch: Output Select, Pad
• LED: Effect A on, Effect B on, Saturation on
• Foot switch: Effect A Bypass, Effect B Bypass, Saturation Bypass
• Current consumption: 210 mA
• Power supply via 9 V DC power supply (not included – suitable power supply: Art.409939)
• Dimensions (W x D x H): 113 x 142 x 59 mm
• Weight: 490 g
• Handmade in USA

Note: Battery operation is not supported.

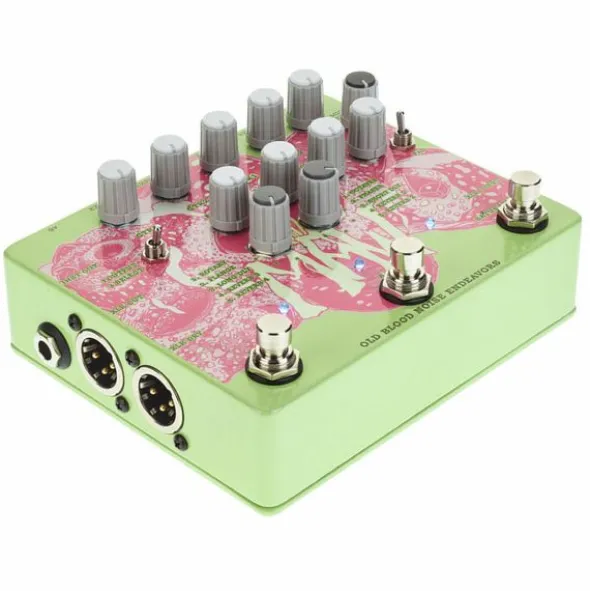

Connections:

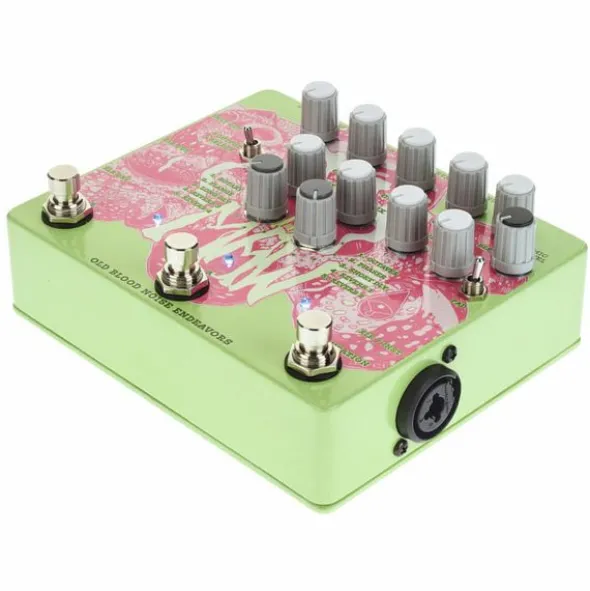

• Input: Comboi socket 6.3 mm jack / XLR
• Outputs: XLR and 6.3 mm jack
• EXP A: 6.3 mm jack
• EXP B: 6.3 mm jack
• Send: 6.3 mm jack
• Return: 6.3 mm jack
• Expression A input: 6.3 mm stereo jack
• Expression B input: 6.3 mm stereo jack
• Power connection: barrel connector 5.5 x 2.1 mm, negative polarity inside
