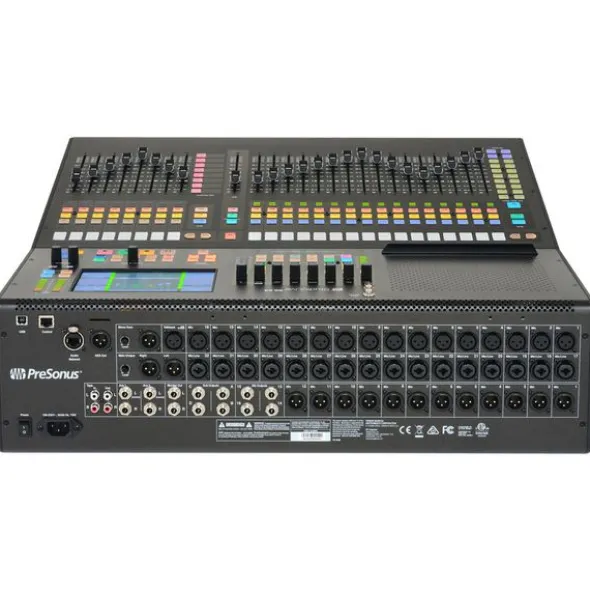

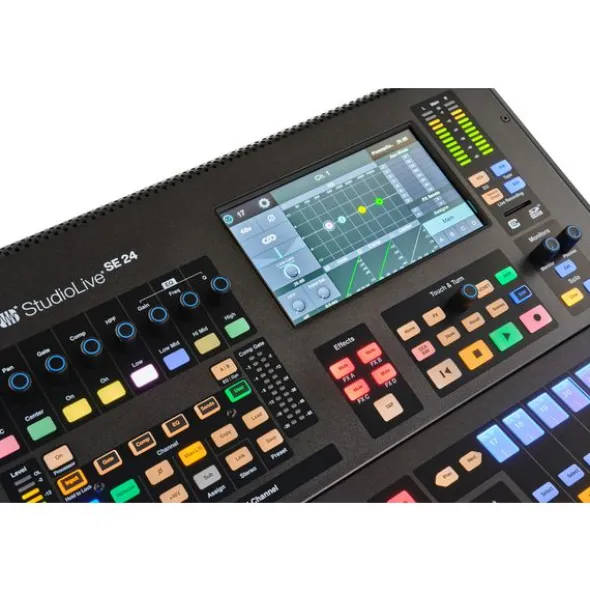

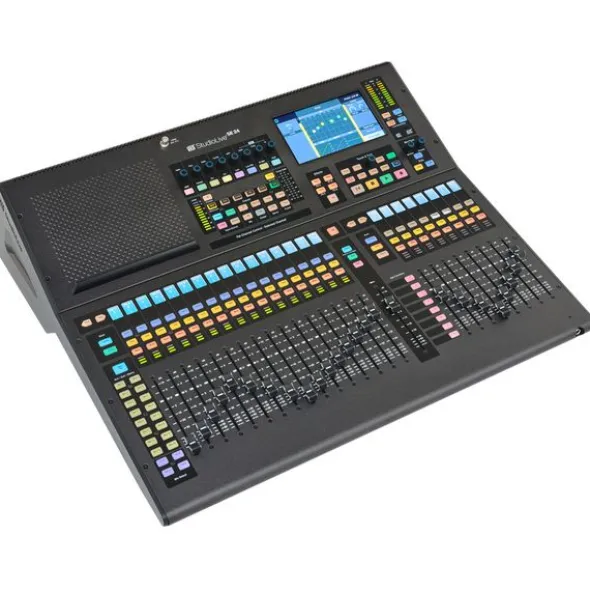

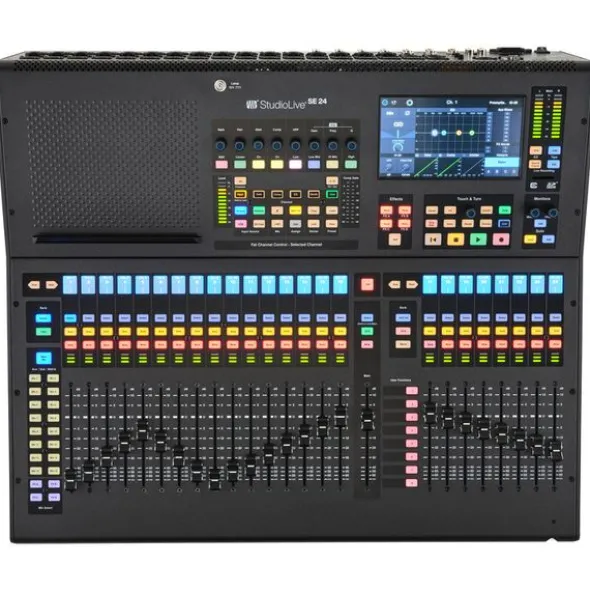

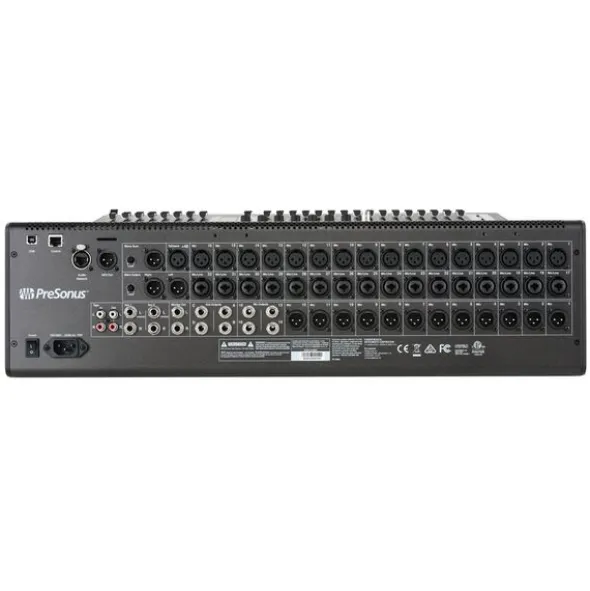

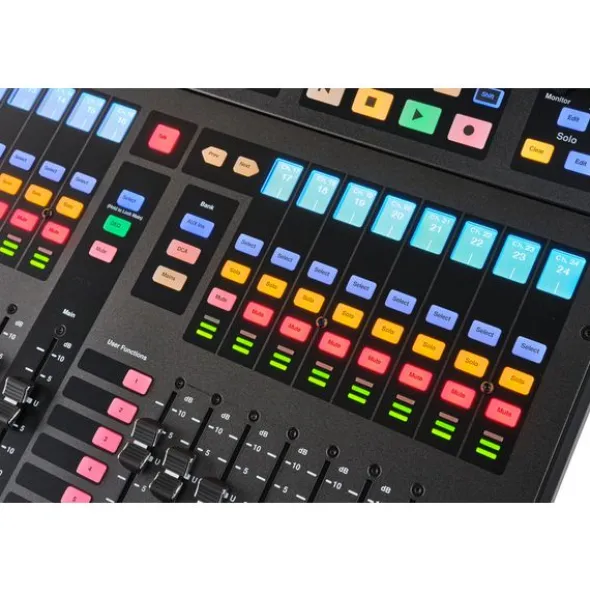

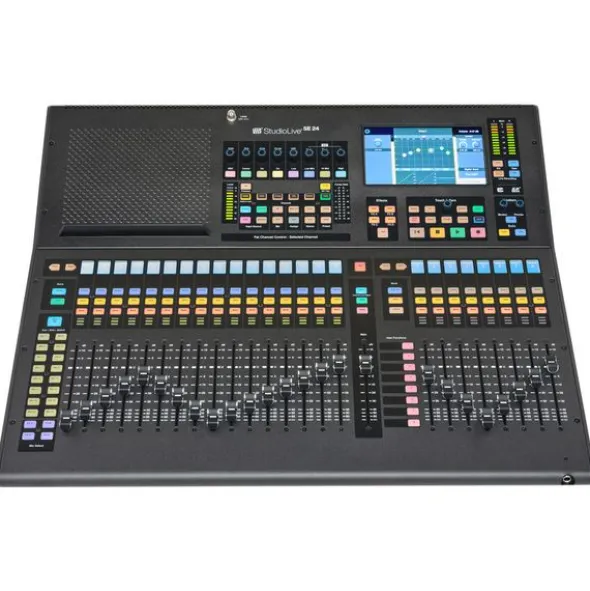

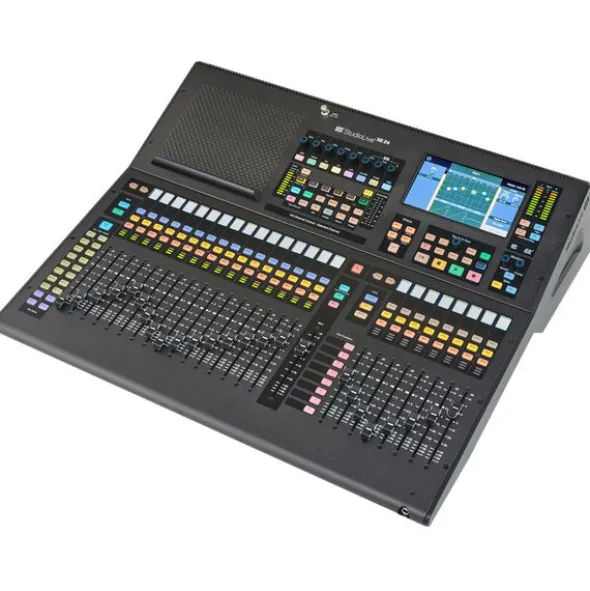

Presonus StudioLive Series III SE 24

32-Channel Digital Mixer with Built-In 64×64 USB Recording Interface

• Extensive compatibility thanks to Milan certification
• 32 mono inputs (analogue and AVB)
• 32 XMAX preamp
• 1 x stereo tape in plus 2 x stereo aux in
• Main stereo output plus one mono sum output
• 16 balanced mix outputs (12 x XLR, 4 x TRS jack)
• Two balanced TRS jack monitor outputs
• 26 buses
• Four dedicated subgroups and 24 DCA groups

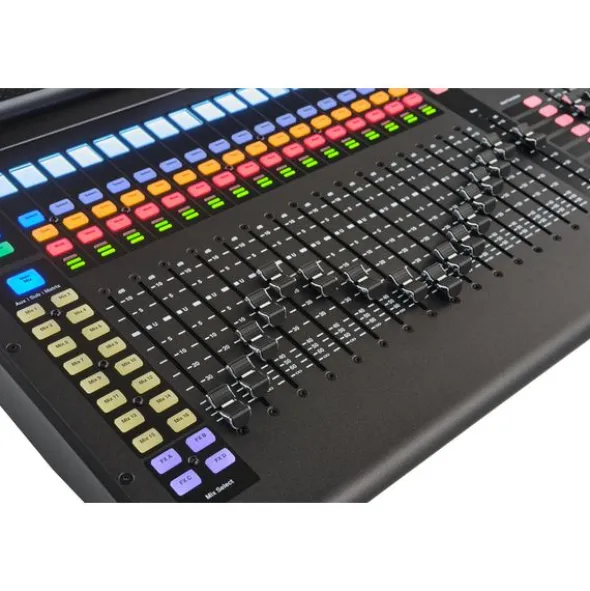

• 25 touch-sensitive motorised faders (24 x channel and 1 x main fader)
• 16 FlexMixes: Can be configured as AUX, subgroup or matrix mix
• Multi-effects processor with four slots for loading effects
• Extensive parameter sets for reverb and limiter

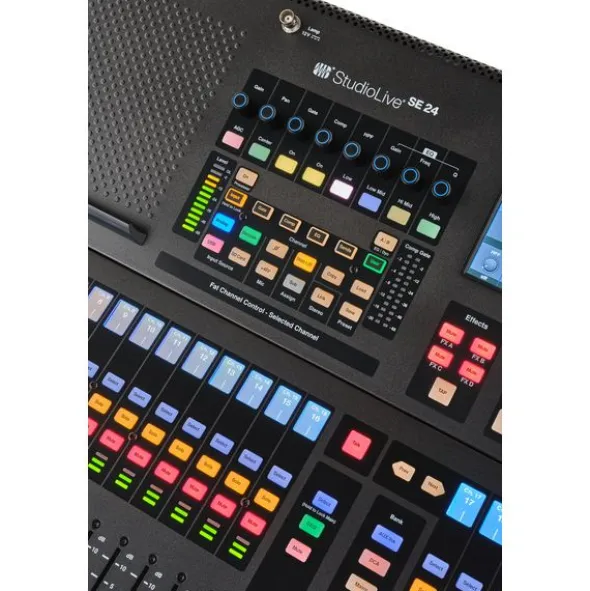

• Fat Channel plugins per channel (all 8 compressor and seven EQ models from the Fat Channel Collection)
• AVB network compatible
• Up to 34 tracks can be recorded directly to the on-board SD card recorder
• Password-protected user profiles
• 64×64 USB audio interface for easy live recording and virtual sound checks thanks to included software such as Studio One Pro and Capture
• Deep integration of hardware into software – Fat Channel plugins can be operated in Studio One
• UC/Metro enables remote connection to the mixing console via the Internet and mixing, including monitoring, with the UC Surface software (included) – ideal for producing live streams.
• Dimensions (W x D x H): 659 x 583 x 165 mm
• Weight: 13.6 kg
• Includes Fender Studio Pro Perpetual (download) and Fat Channel Collection (download)

Disponível desdeAgosto 2025

número de artigo622963

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs32

Analog Line Inputs16

Analog Line Outputs24

Analog in/ out with plug-in card expandableNo

Digital in-/ outputs expandableNo

Word ClockNo

MotorfaderYes

Computer interfaceUSB, Ethernet

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders25

DSP Input channels32

DSP Output Channels22

Busses16

Number of Microphone Inputs32

Number of Mono Line Inputs16

Number of Stereo Line Inputs3

Physical outputs26

Digital stagebox connectionAVB

EthernetEthernet

HotspotNo

Multitrack RecordYes

Special FeaturesAVB / Milan

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV

Scribble StripsYes

RTAYes

FX Processor4

31 Band EQ8

Delay InputYes

Delay OutputYes

Matrix16

DCA/VCA Groups24

MIDI InterfaceNo

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots0

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBNo

Digital MADINo

Digital DanteNo

110V capableYes

CaseOptional

19″ RackmountNo

Height165 mm

Width659 mm

Depth583 mm

Weight13,6 kg
