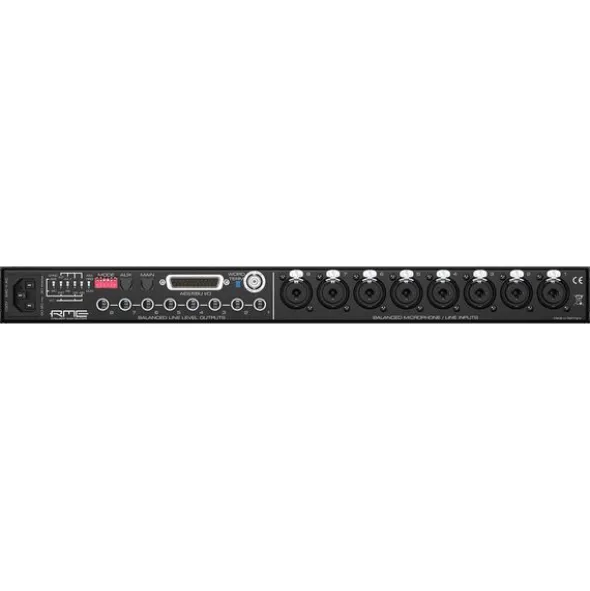

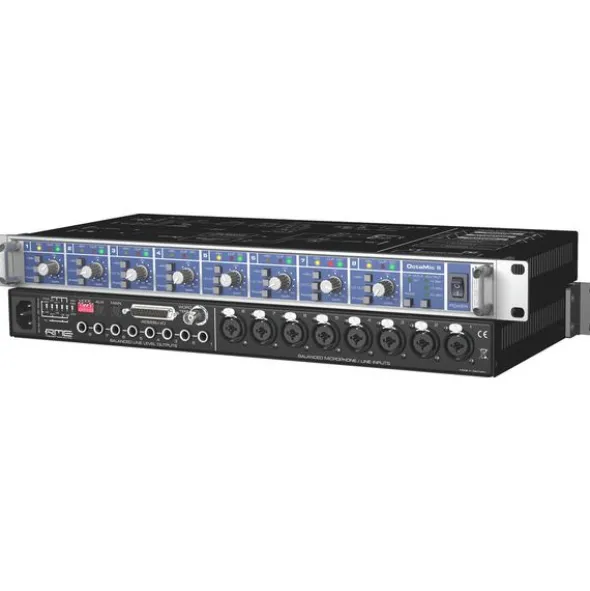

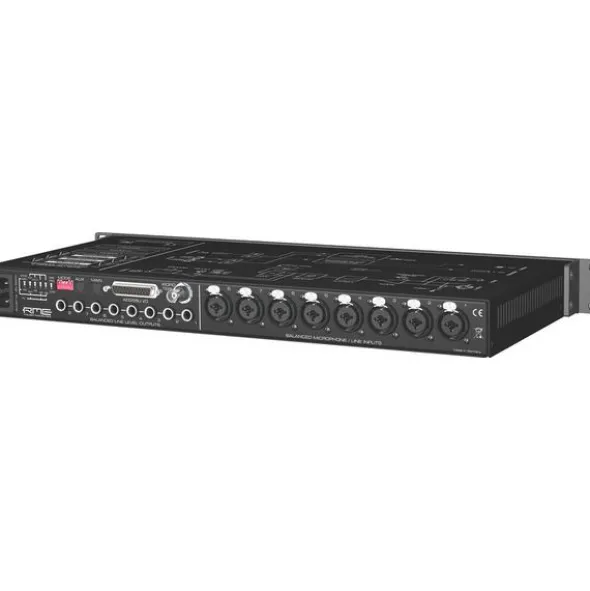

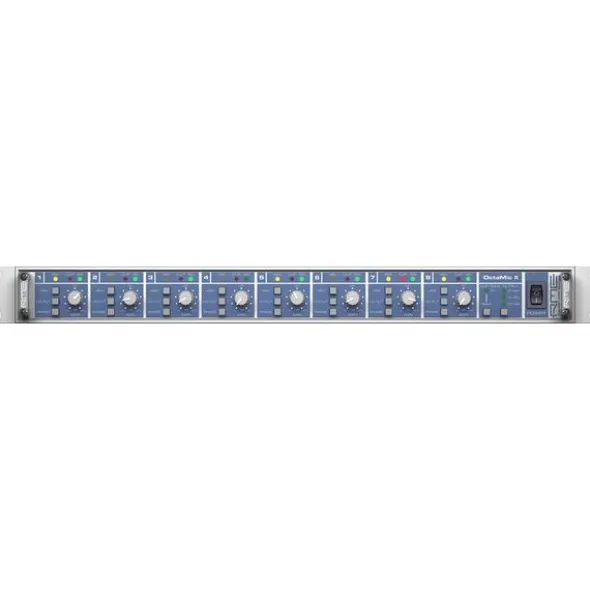

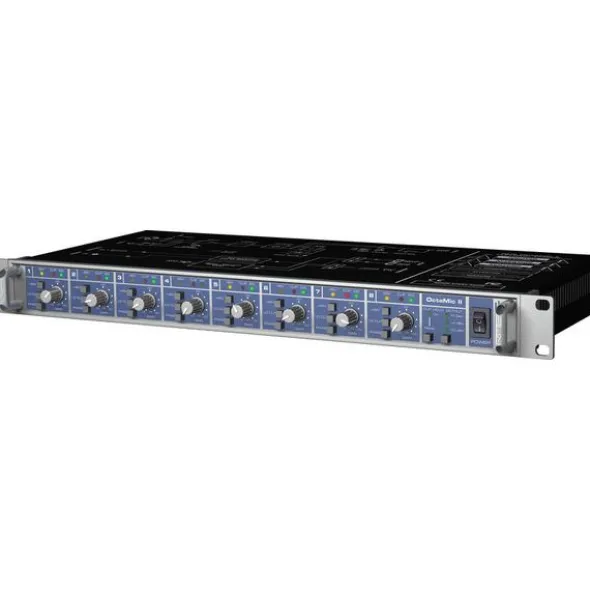

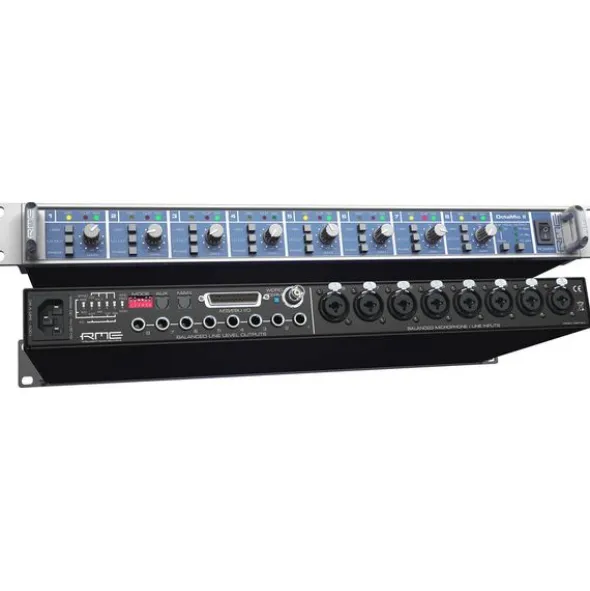

RME OctaMic II

Eight-Channel Microphone Preamp and AES/ADAT/AD Converter

• 192 kHz / 24-bit conversion
• +48 V phantom power switchable
• Max. input level: +21 dBu
• Clip LEDs
• Type: 19″ / 1 U

Connections:

• Eight mic / line combo inputs: XLR / 6.3 mm jack balanced
• Eight line outputs: 6.3 mm jack balanced
• Two ADAT outputs (S/MUX – up to 96 kHz)
• AES/EBU input and output: 25-pin D-sub
• Wordclock BNC

Disponível desdeSetembro 2007

número de artigo119911

unidade de venda1peça(s)

Channels8

Number of microphone inputs8

Instrument inputYes

TubesNo

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsJack

Digitale OutputsADAT, S/PDIF

Headphone connectionNo

Level MeterYes

Design19″ / 1U
