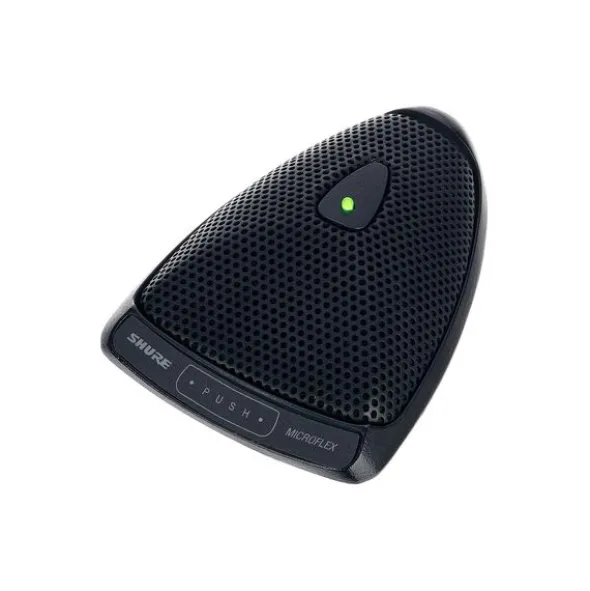

Shure MX393/C B-Stock

Condenser Boundary Microphone

• Directional characteristic: Half-cardioid
• Frequency response: 50 – 17,000 Hz
• Output impedance: 180 Ohm
• Open circuit voltage: -27.5 dBV/Pa (42.2 mV)
• Max. sound pressure level (1 kHz at 1% THD (total harmonic distortion), 1 kOhm load): 117 dB
• Inherent noise: 23 dB
• Common mode rejection: At least 45.0 dB
• Power requirement: 11 to 52 V
• Power consumption: 2 mA
• Interchangeable capsule (modular)
• Ideal for installation applications
• Can be mounted on a table or lectern plate
• Remote controllable logic In/Out connections via SCM-810
• Built-in preamplifier
• Very flat housing
• Very linear frequency response with a slight presence boost
• Dimensions (L x W x H): 107 x 77 x 22 mm
• Includes a plastic dust cover
