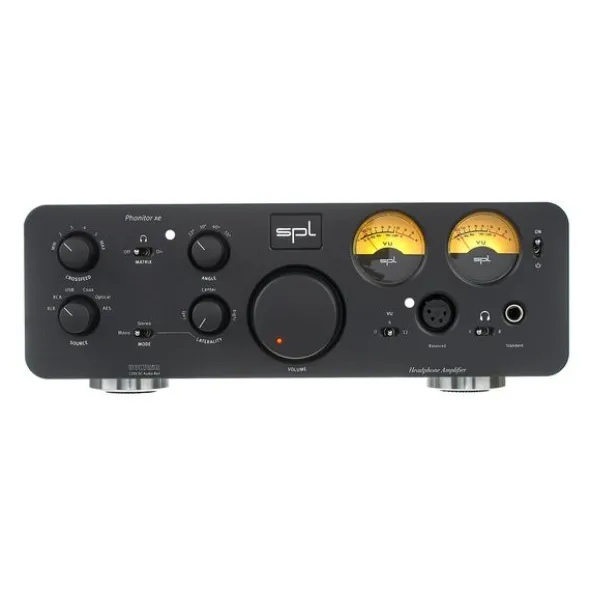

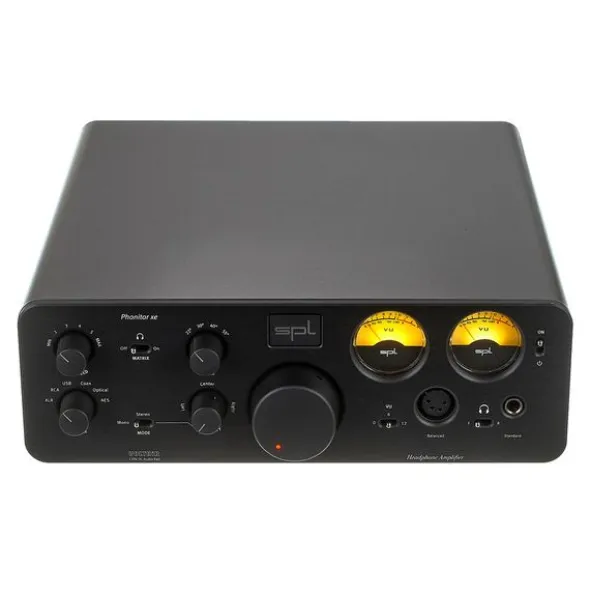

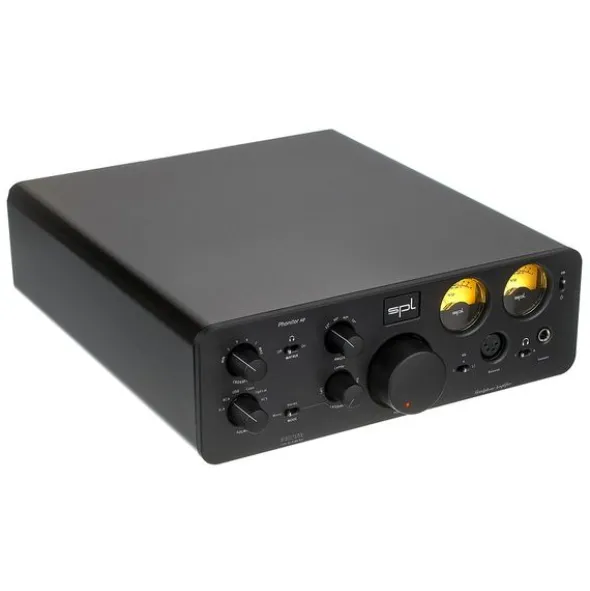

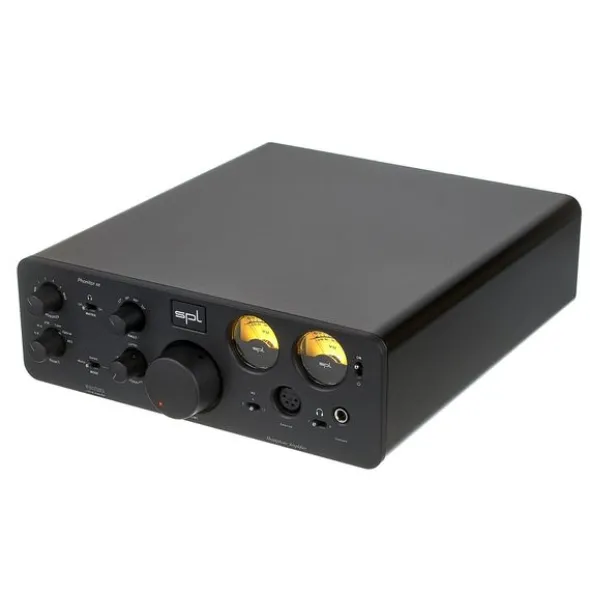

SPL Phonitor xe black + DAC768v2

Headphone Amplifier

• Suitable for headphones with jack plug and balanced headphones with 4-pin XLR plug
• Provides the option of integrating up to 6 stereo sources: XLR, RCA, USB, Coax, Optical and AES/EBU
• AKM converter chip for high sound details
• 32-Bit resolution and up to 768kHz sampling rate
• Direct Stream Digital up to a resolution of DSD4 or DSD256

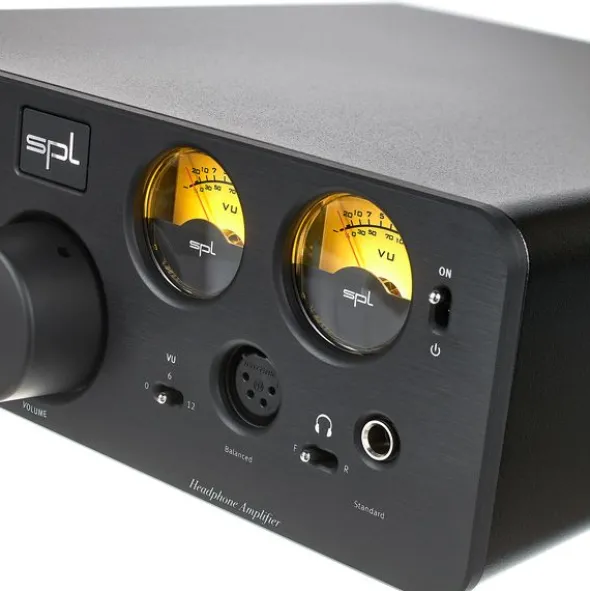

• 2 VU meters for left and right audio channel
• Laterality control for detailed balancing
• MODE switch for mono/stereo switching
• With phonitor matrix for fatigue-free listening
• Crossfeed control for level and frequency adjustment of the left and right audio channel

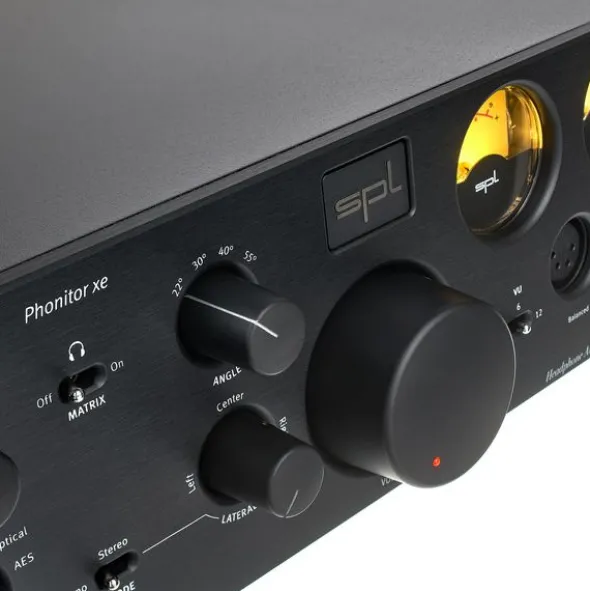

• Angle control for determining the interaural time difference

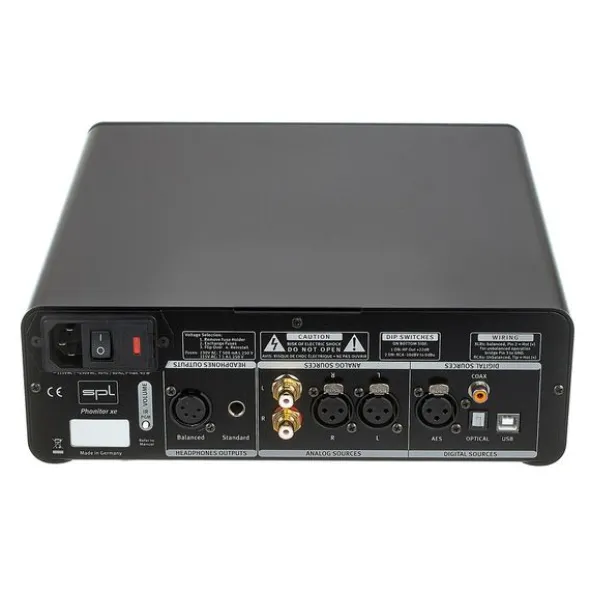

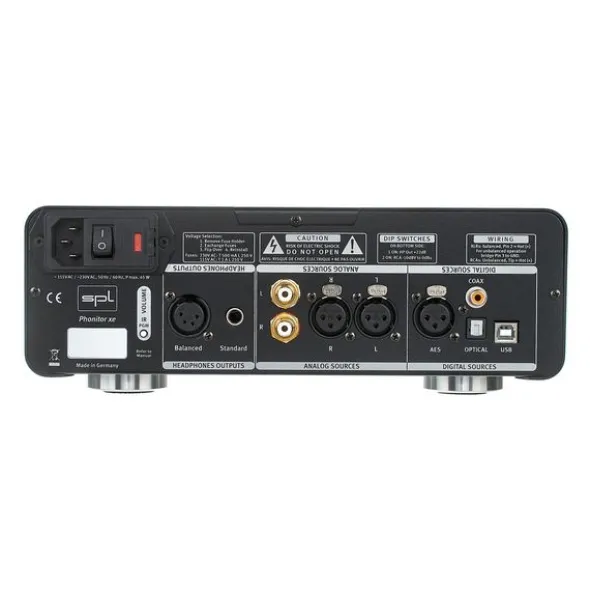

• Analogue inputs: 2x XLR (female, balanced), 2x RCA (unbalanced)
• Digital inputs: 1x AES/EBU (XLR), 1x Coaxial SPDIF (RCA), 1x Optical SPDIF (Toslink), 1x USB (B)
• Headphone output: 1x TRS (6.3 mm, jack), 1x XLR (4-pin, balanced)
• Output power (TRS): 2 x 5 W (into 250 Ohm)
• Dynamic range (TRS): 135.5 dB
• Output power (4-pin XLR): 2 x 3.5 W (into 250 ohms)
• Dynamic range (4-pin XLR): 130.5 dB
• Frequency range: 10 – 300,000 kHz (+/-3 dB)
• THD + N (10Hz – 22kHz, 0dBu): 0.00082%
• Linear power supply with toroidal transformer
• Power consumption: max. 40 W
• Stand-by power consumption: < 0.3 W
• System requirements: Win 10 or later, Class Compliant under Mac
• Dimensions (W x H x D): 278 x 100 x 300 mm
• Weight: 4.9 kg
• Colour: Black
• Made in Germany
