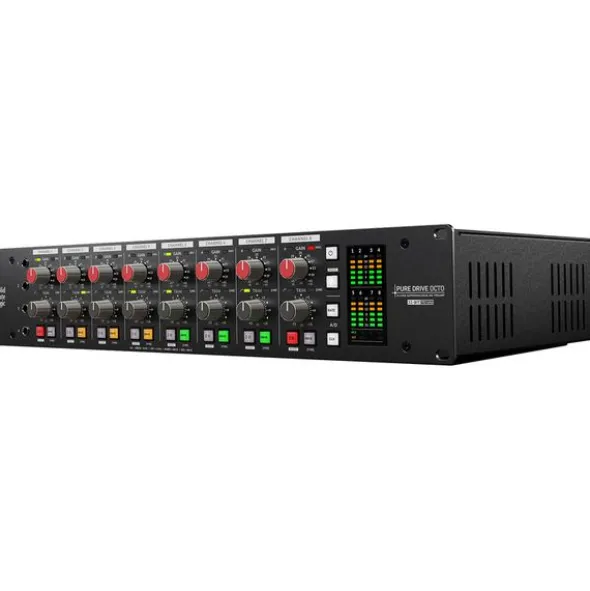

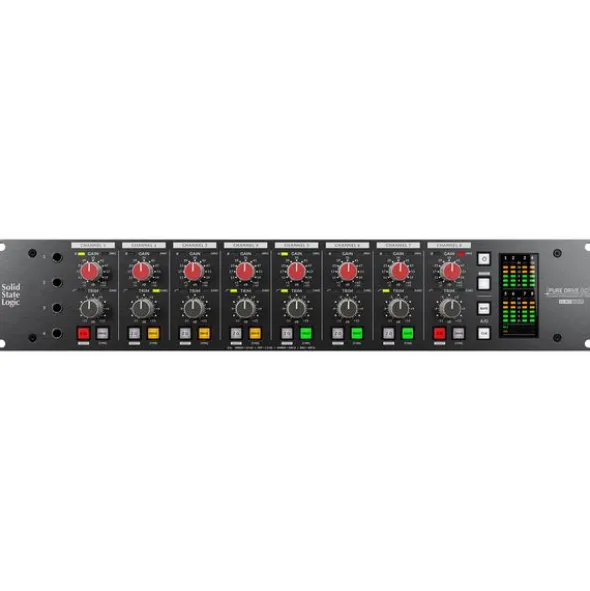

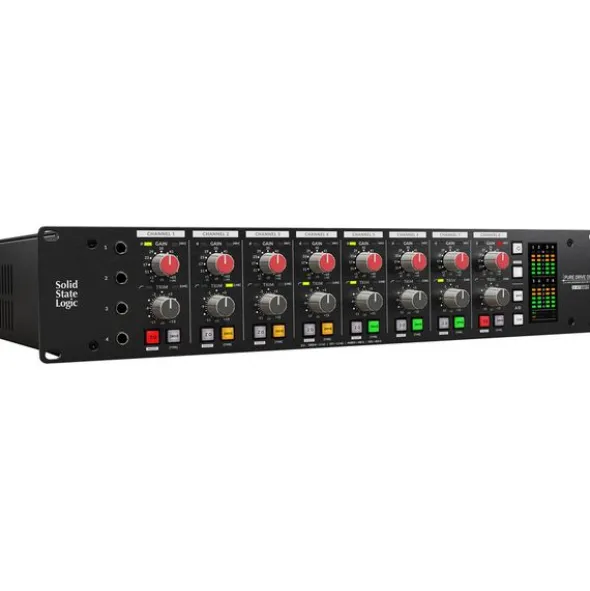

SSL Pure Drive Octo

8-Channel Microphone Preamplifier

• 192 kHz / 32-bit AD converter (up to 192 kHz / 32-bit)
• 8×24 USB audio interface (44.1 / 48 kHz – 8 analogue input channels + 8 AES and 16 ADAT output channels)
• SuperAnalogue PureDrive microphone preamp technology from the ORIGIN mixer
• Stepped gain control with up to +65 dB gain
• 31-stage trim control with precise 1 dB steps
• 3 Modes for each preamp – Clean, Classic Drive and Asymmetric Drive
• Mic/Line input switch
• Four input impedance options for microphone preamps
• +48V phantom power
• Polarity switch and high-pass filter
• Design: 19″ / 2 U

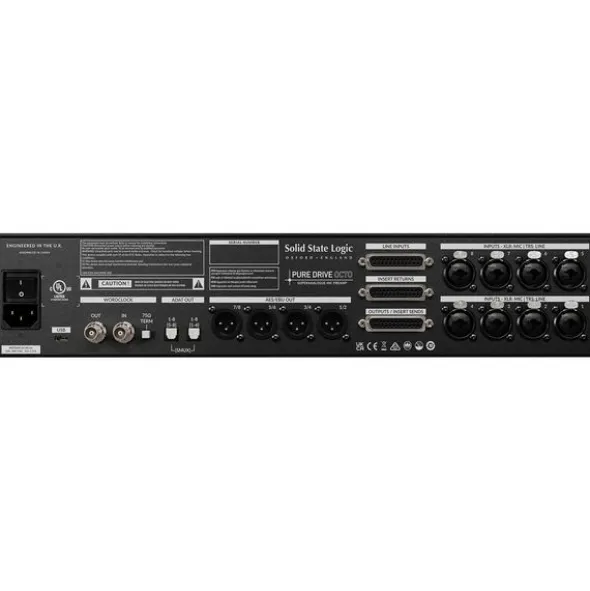

Connections:

• 8 Combo inputs: XLR / 6.3 mm jack
• Line input: Sub-D25
• Insert Return: Sub-D25
• 4 Hi-Z / DI instrument input: unbalanced
• 8 Line outputs / insert send: Sub-D25
• ADAT input and output
• 8 AES/EBU outputs: XLR
• Word Clock input and output BNC
• USB

Disponível desdeJaneiro 2024

número de artigo578445

unidade de venda1peça(s)

Channels8

Number of microphone inputs8

Instrument inputYes

TubesNo

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsYes

Analogue OutputsSub-D 25-pol

Digitale OutputsADAT, AES/EBU

Headphone connectionNo

Level MeterYes

Design19″ / 2U
