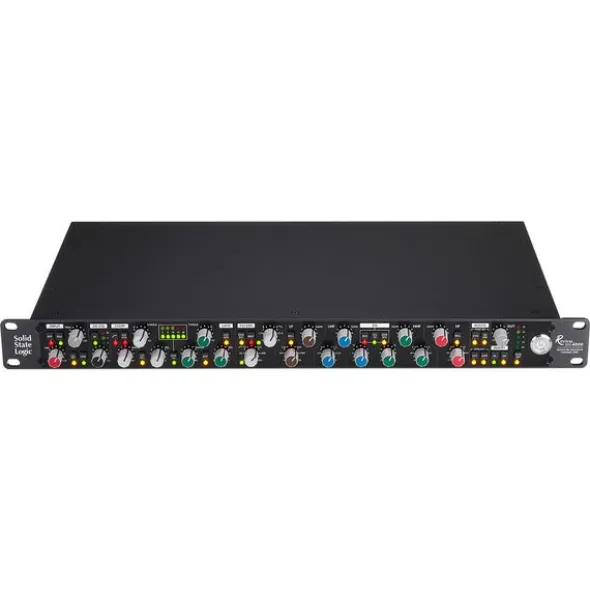

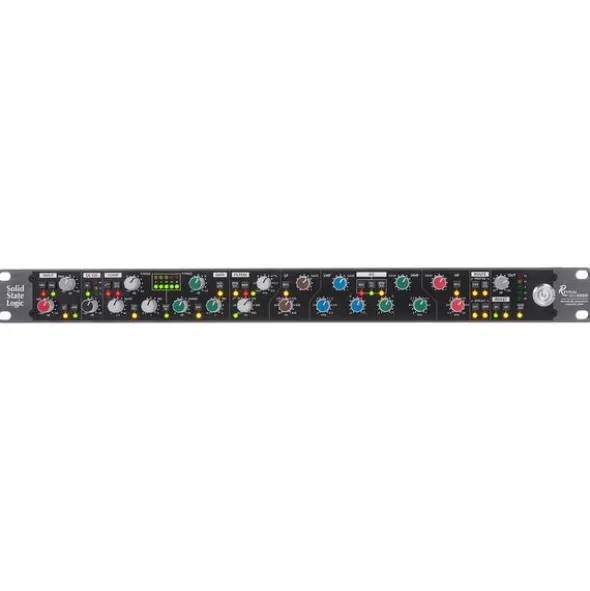

SSL Revival 4000

1-Channel Strip

• 1-Channel Strip
• Microphone preamplifier with Jensen JT-115K-E transformer
• +48 V phantom power
• Pad switch
• Phase switch
• Line input
• De-Esser based on the SSL 4000B series
• Class-A VCA compressor with soft/hard knee
• Fast Attack On/Off
• Gate/expander section with classic SSL design
• 4-band equaliser with fully parametric mid bands
• Switchable EQ characteristics: ‘Brown Knob’ / ‘Black Knob’
• High/low pass filter: Brown mode: 12 dB/octave/ Black mode: 18 dB/octave HPF, 12 dB/octave LPF
• Balanced insert point
• External sidechain input (key)
• Sidechain link for stereo applications
• Switchable processing order: filter, dynamics, EQ, insert
• Line output trim
• Input and output metering
• Format: 19″/ 1U
• Weight: 5 kg

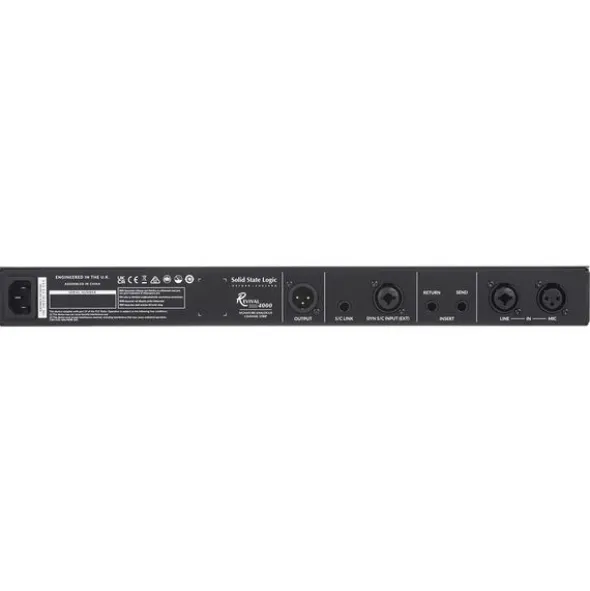

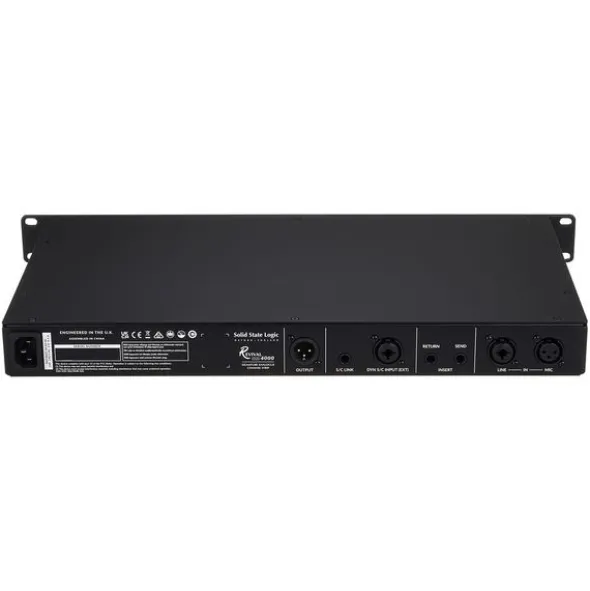

Connections:

• Microphone input: XLR
• Line input: XLR / 6.3 mm jack combo
• Insert Send & Return: 6.3 mm jack
• Sidechain input: XLR / 6.3 mm jack combo
• Link connection: 6.3 mm jack
• Line output: XLR

Disponível desdeAgosto 2025

número de artigo624214

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputNo

TubesNo

Compressor/LimiterYes

EqualizerYes

De-EsserYes

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR

Digitale Outputs0

Headphone connectionNo

Level MeterYes

Design19″ / 1U
