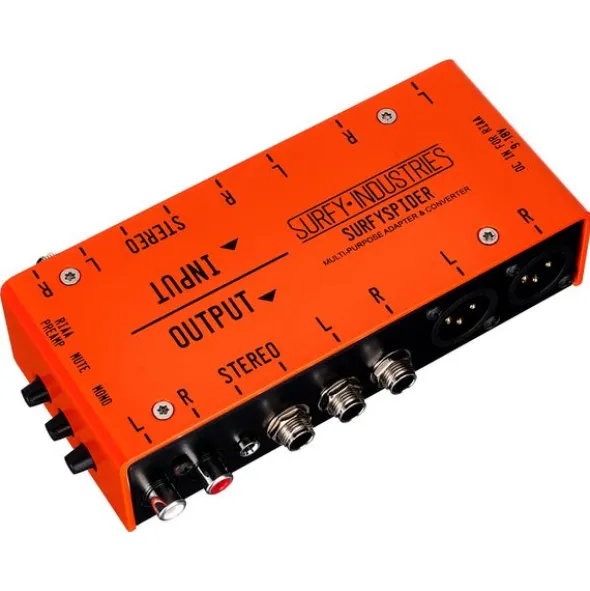

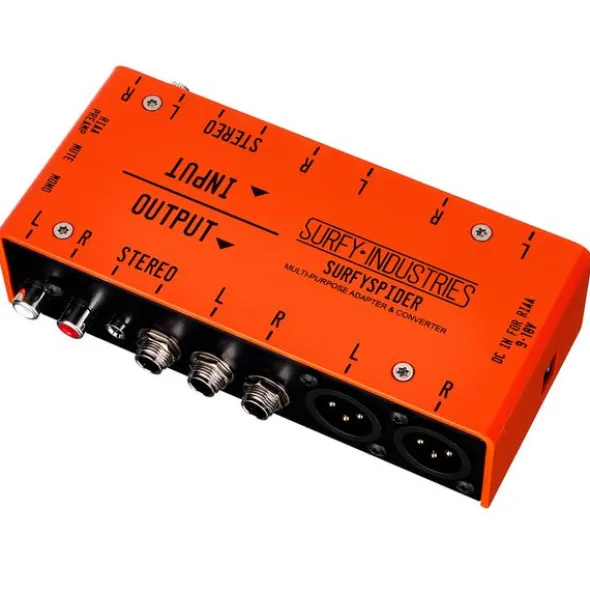

Surfy Industries SurfySpider Multi-Adapter/DI

Multi-Adapter / DI-Box

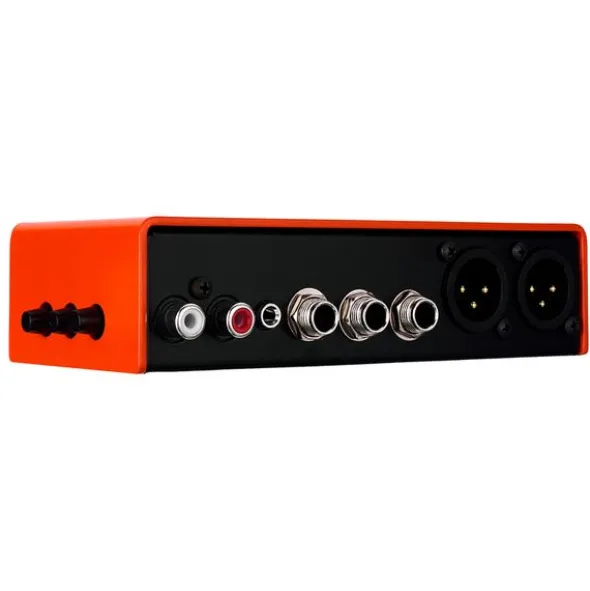

• Supports and converts multiple input and output formats via XLR, 6.3 mm mono and stereo jack sockets, 3.5 mm stereo jack sockets and RCA/Cinch connectors
• Compatible with both balanced and unbalanced mono, stereo and dual-mono signals
• Built-in phono preamplifier for direct connection of turntables
• No external preamplifier required
• Dedicated mute and mono switches for quick signal management
• Operates passively for most applications – an external power supply is only required when using the phono preamplifier
• All output terminals operate in parallel and allow simultaneous connections
• Turning on the RIAA preamp switch activates the phono preamp for all inputs

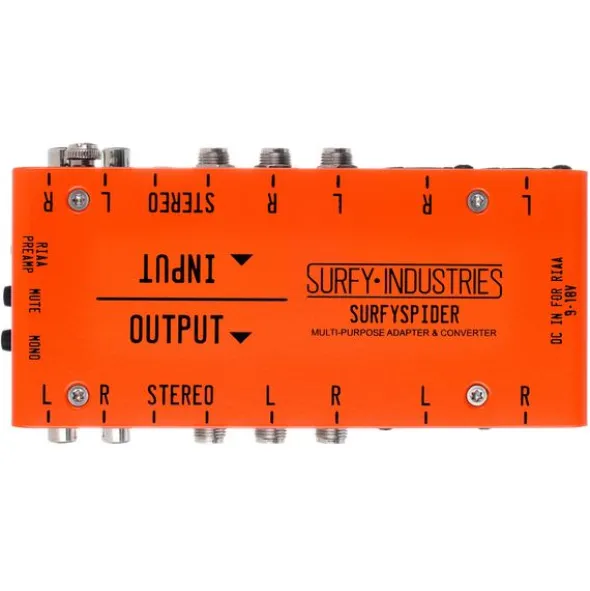

• Push buttons: RIAA preamp, mute, mono

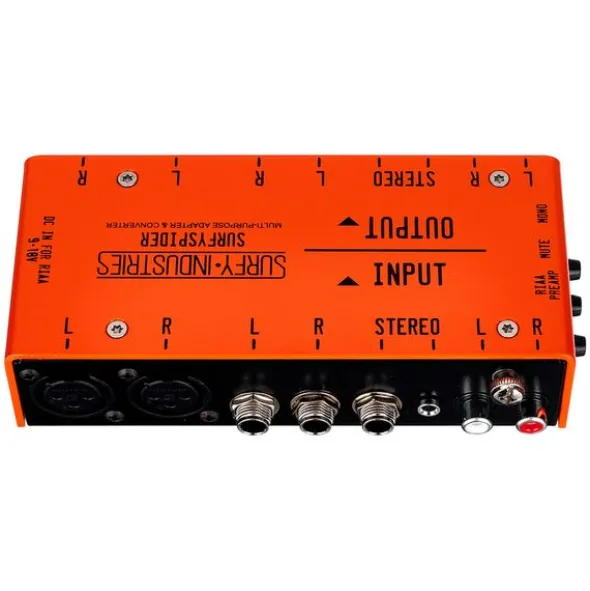

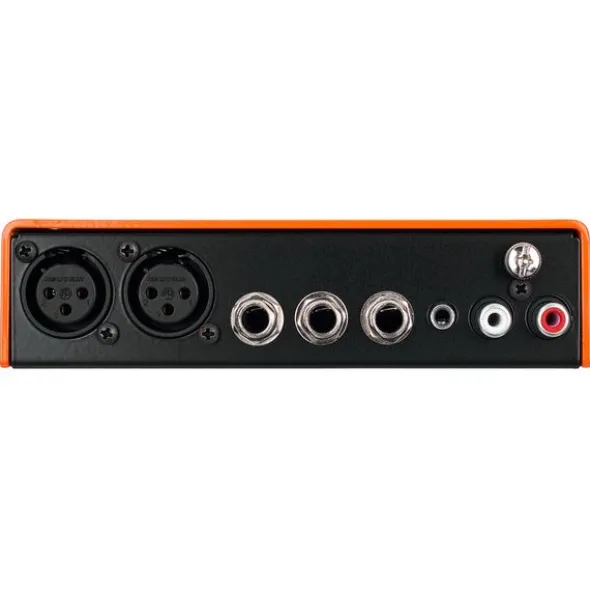

• 2 x XLR, 2 x 6.3 mm jack inputs
• 1 x 6.3 mm stereo jack input
• 1 x 3.5 mm stereo jack input
• 2 x RCA inputs

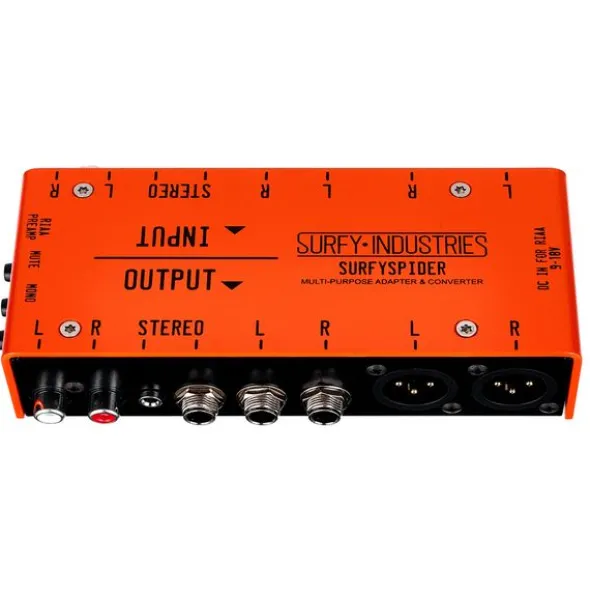

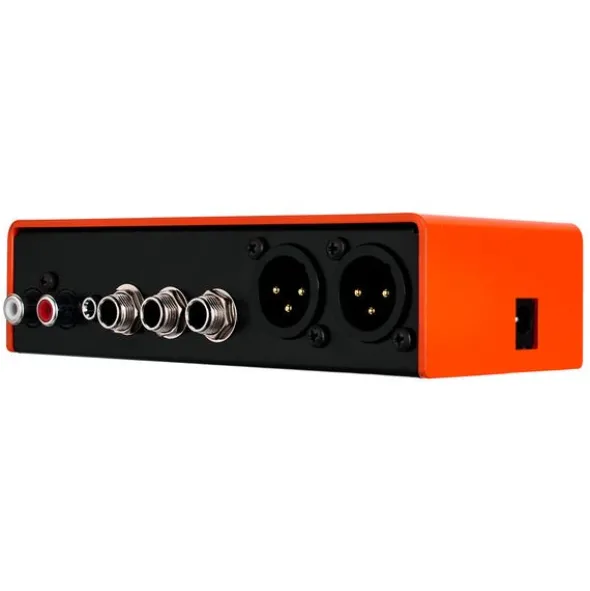

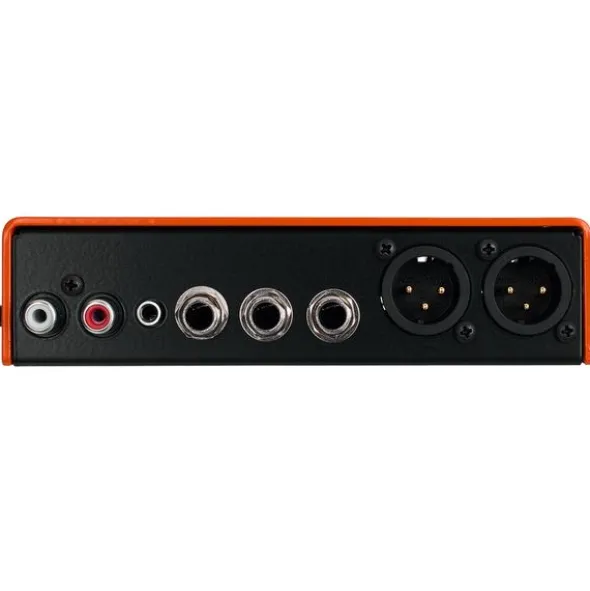

• 2 x XLR, 2 x 6.3mm jack outputs
• 1 x 6.3 mm stereo jack output
• 1 x 3.5 mm stereo jack output
• 2 x RCA outputs

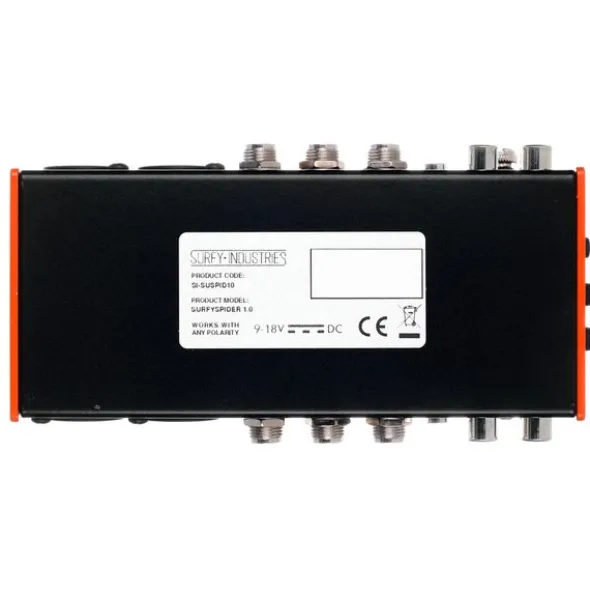

• Mains adaptor connection: 5.5 x 2.1 mm barrel connector, centre negative
• Current consumption: 20 mA
• Power supply with a 9-18 V DC mains adapter (not included)
• Suitable optional power supply unit Art. 409939 (not included)
• Dimensions: (W x D x H): 145 x 65 x 37 mm
• Weight: 400 g
• Made in Sweden

Note: Battery operation not supported
