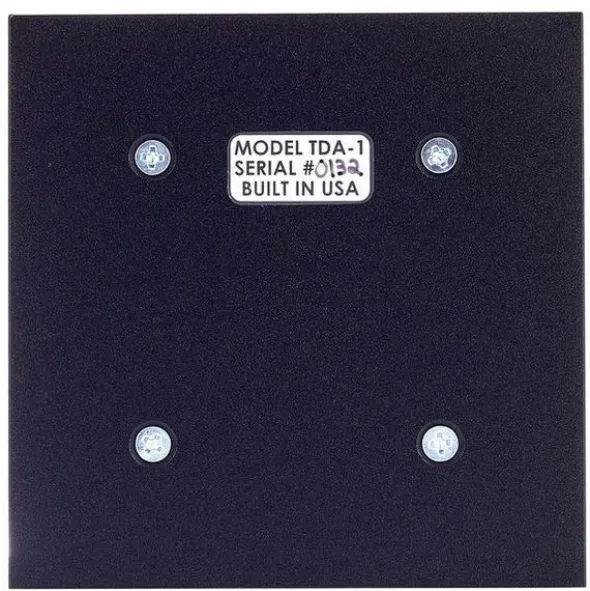

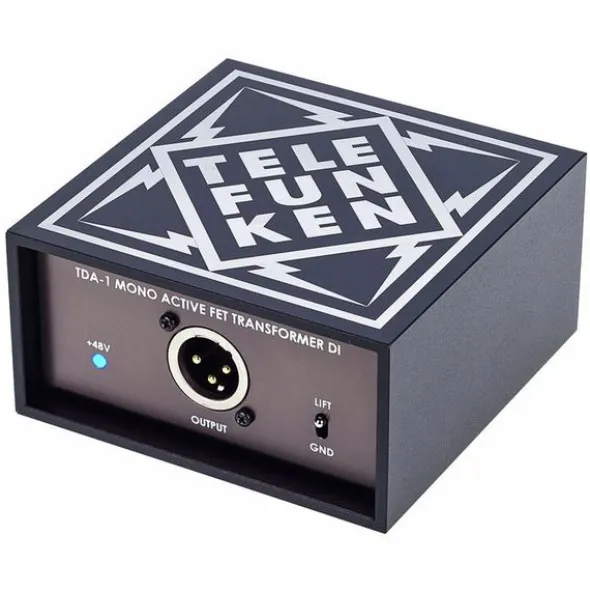

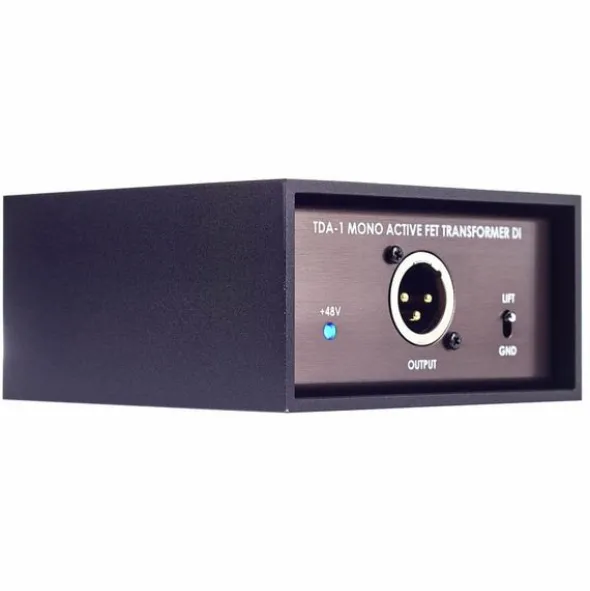

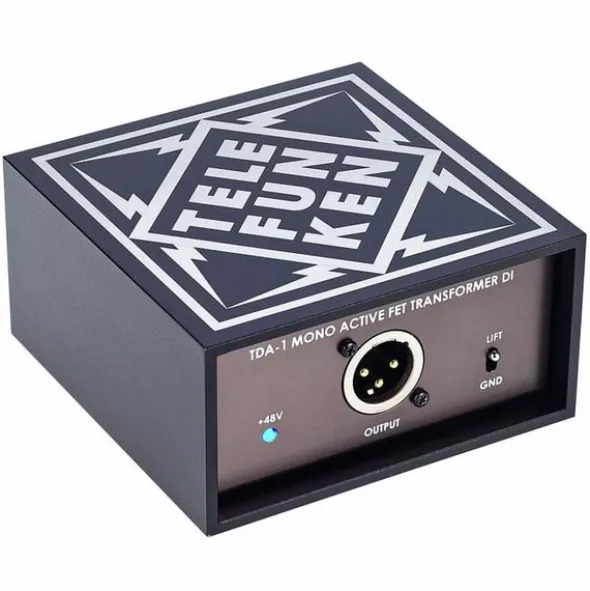

Telefunken TDA-1

Active Mono DI Box

• OEP / Carnhill transformer
• Discrete Class-A-FET circuit
• Power supply with +48 V phantom power with LED indicator
• Power consumption: 3.8 mA

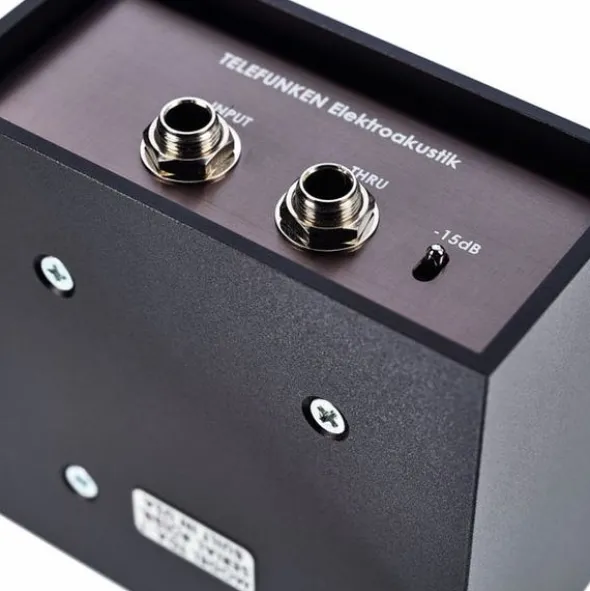

• Switch for pad -15 dB
• Switch for ground lift
• Solid aluminium construction
• WIMA and Nichicon capacitors

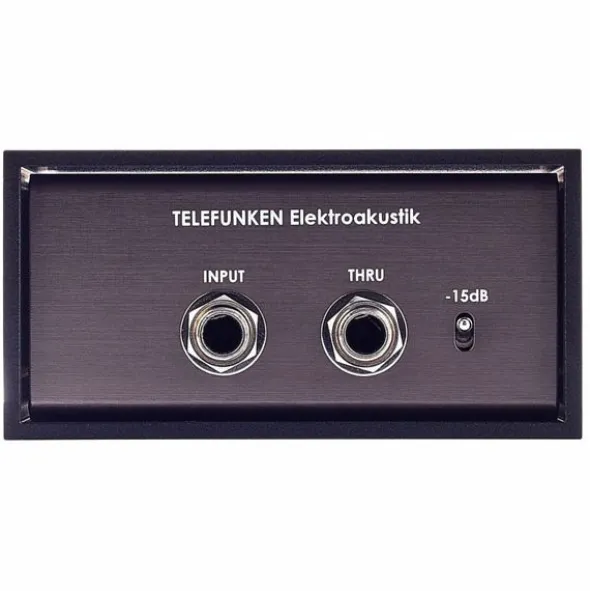

• Input: 6.3 mm jack

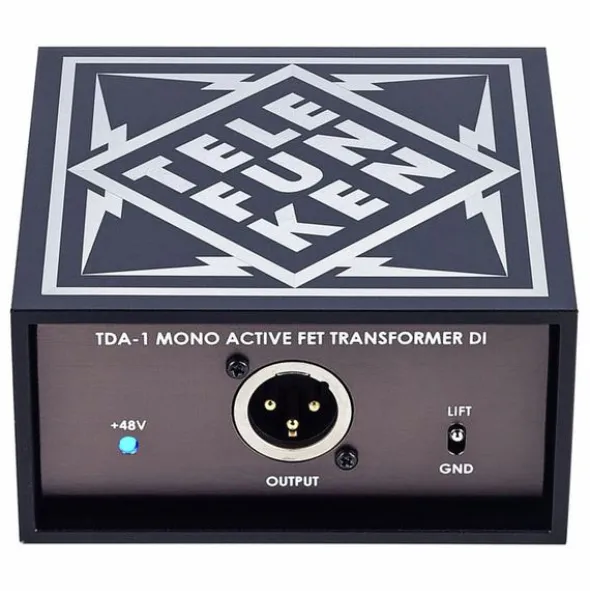

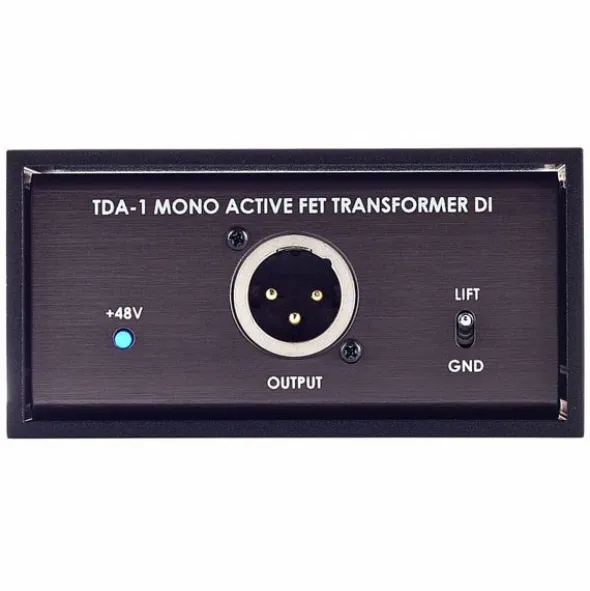

• Outputs: XLR & 6.3 mm jack (Thru)
• Metal film resistors 1% 1/4W
• Frequency range: 20 Hz – 70 kHz, ± 2 dB
• Input impedance: 1 MΩ
• Output impedance: <10 Ohm
• Maximum input level: >1 dBV (without pad), 17 dBV (with pad)
• Dimensions (W x H x D): 100 x 50 x 100 mm
• Weight: 459 g
• Made in the UK
