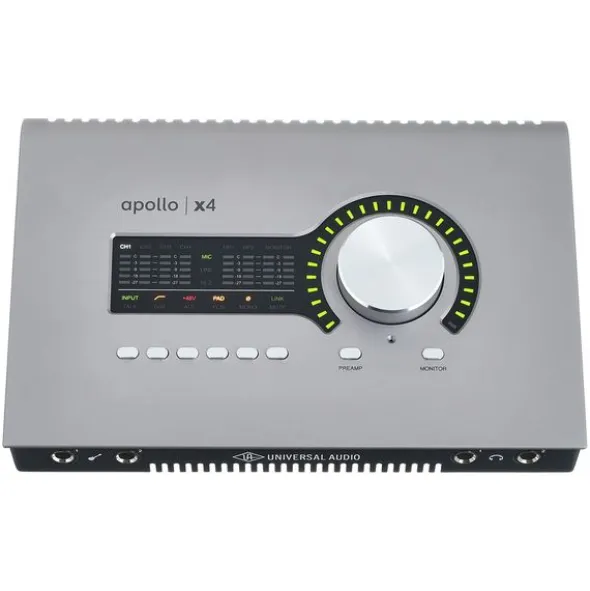

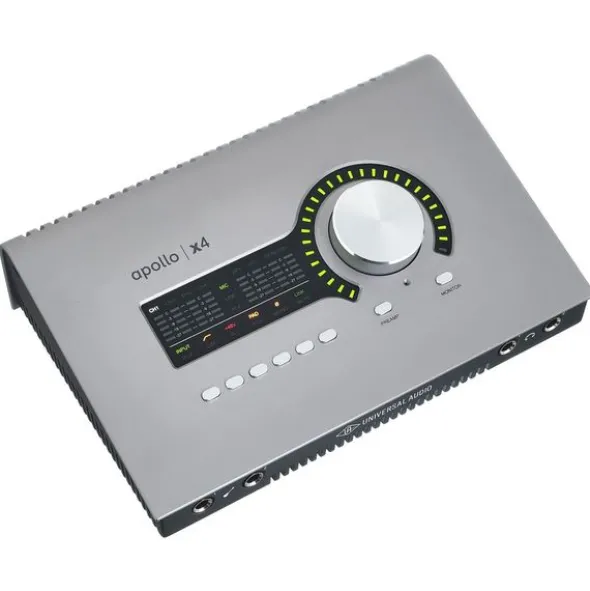

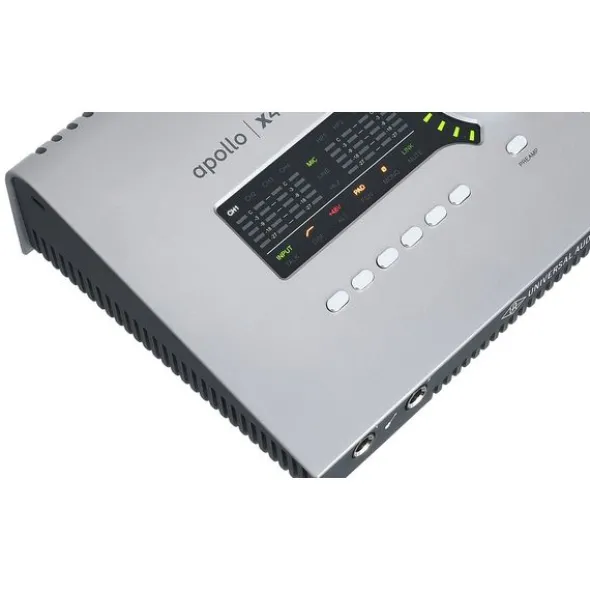

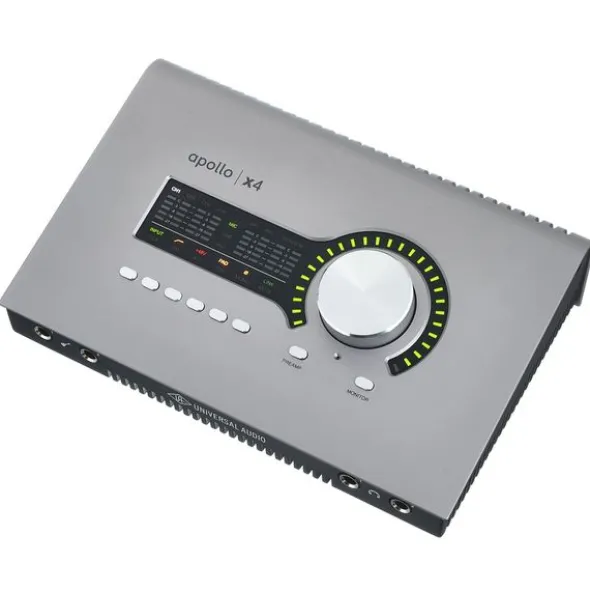

Universal Audio Apollo X4 Gen2 AC Pro

12×18 Thunderbolt 3 Audio Interface with UAD-2 Quad Processor

• 24 Bit / 192 kHz AD/DA converter
• 4 Unison microphone preamps
• Auto Gain function
• +48 V phantom power
• Built-in talkback microphone
• Dynamic range: 127 dB

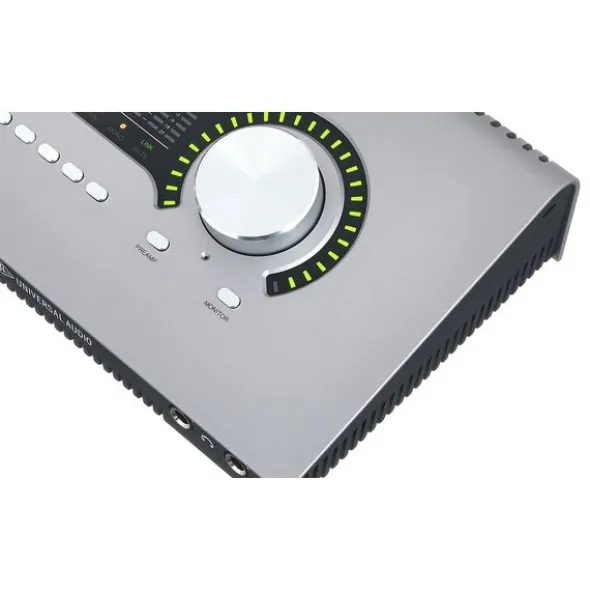

• Monitor functions with controls for mono, mute, DIM and ALT
• Design: Desktop
• Dimensions (W x D x H): 233 x 66 x 151 mm
• Weight: 1.46 kg

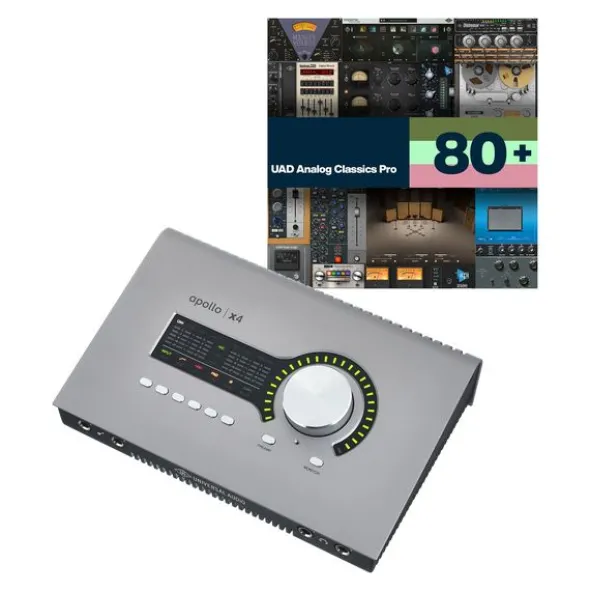

• Includes UAD Analog Classics Pro Plug-in Bundle for Mac OS and Windows
• Suitable case: Art. 495524 (not included)

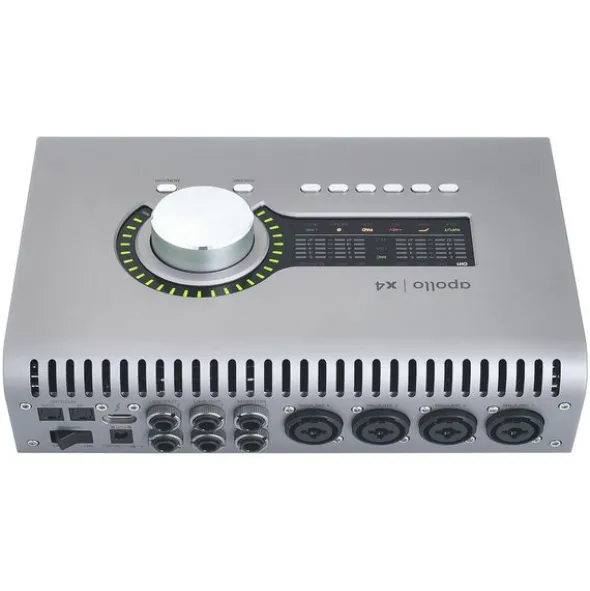

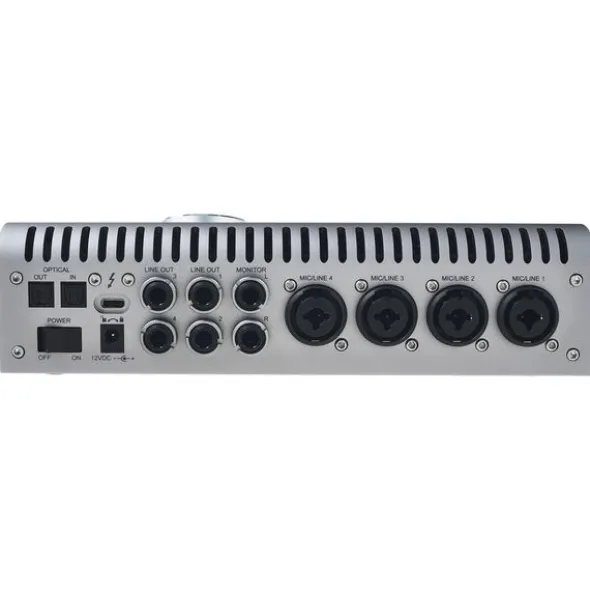

Connectors:

• 4 Microphone / line combo inputs: XLR / jack 6.3 mm
• 2 Hi-Z instrument inputs: 6.3 mm jack
• 4 Line outputs: 6.3 mm jack
• 2 Monitor outputs: 6.3 mm jack
• ADAT/SPDIF input and output: optical
• 2 Stereo headphone outputs: 6.3 mm jack
• Thunderbolt 3 connection

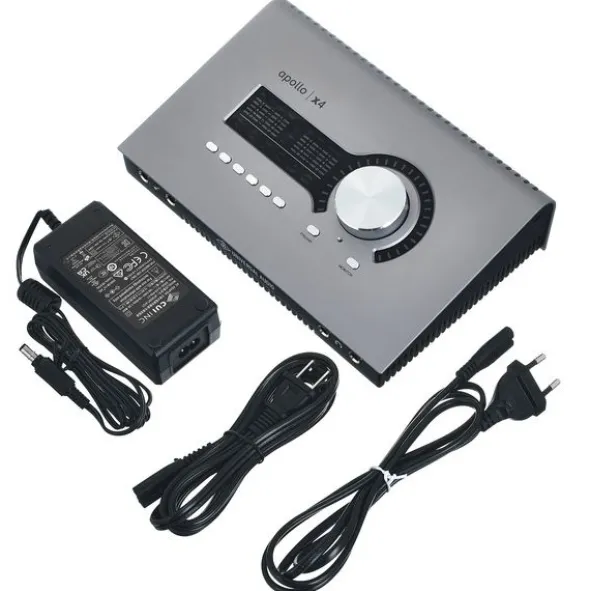

• Input for external power supply

Note: Thunderbolt cable not included

Disponível desdeOutubro 2024

número de artigo600573

unidade de venda1peça(s)

Recording / Playback Channels12×18

Number of Mic Inputs4

Number of Line Inputs4

Number of Instrument Inputs2

Number of Line Outputs6

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors1

AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI ConnectorsNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm280 mm

Depth in mm200 mm

Height in mm130 mm
