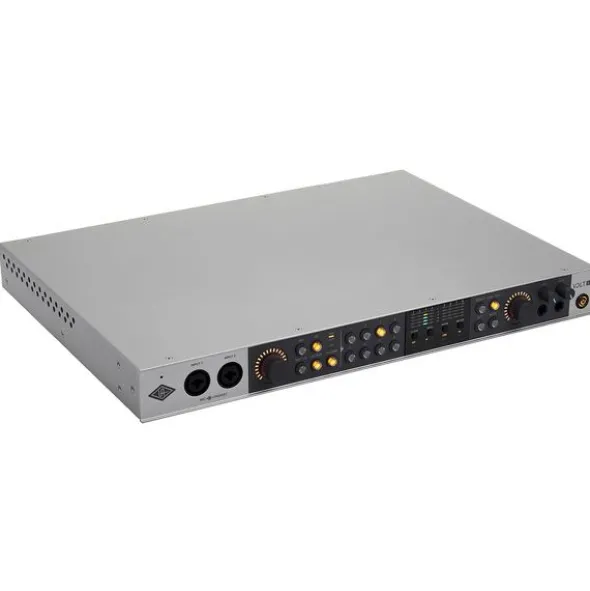

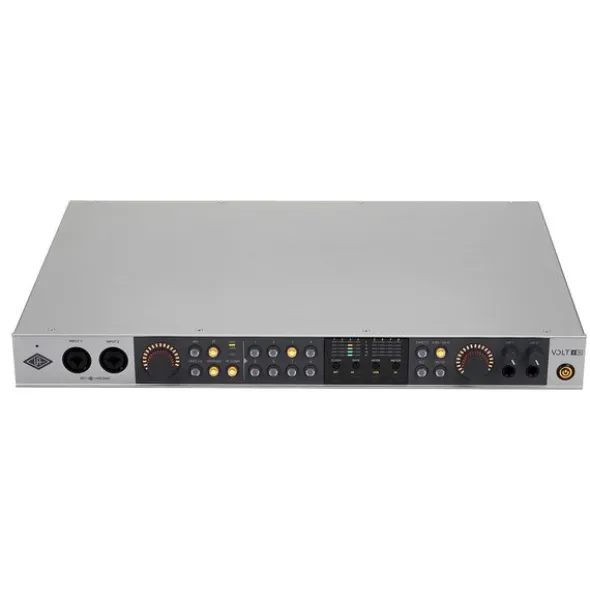

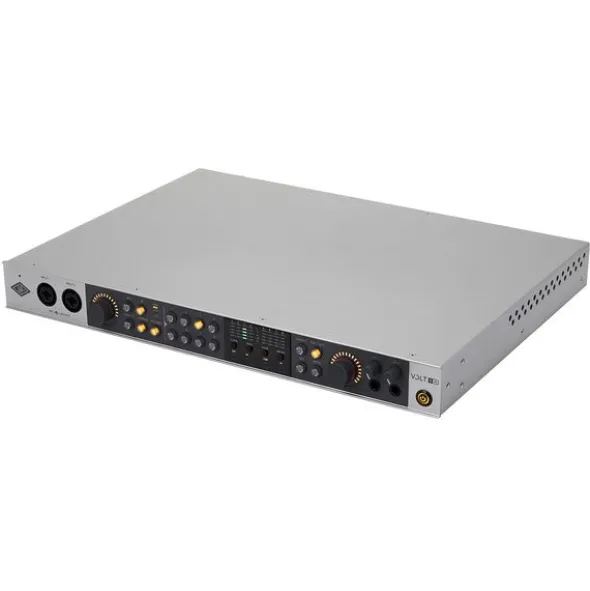

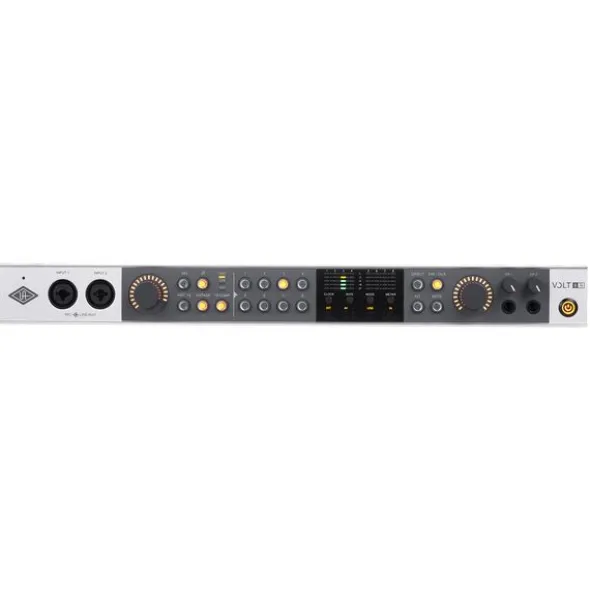

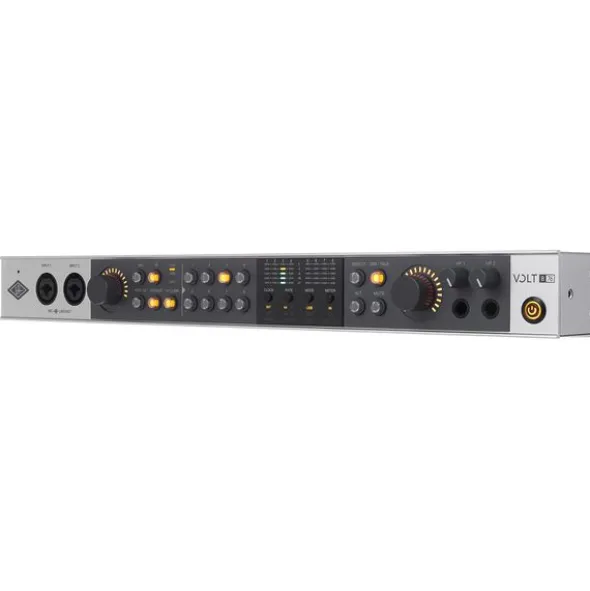

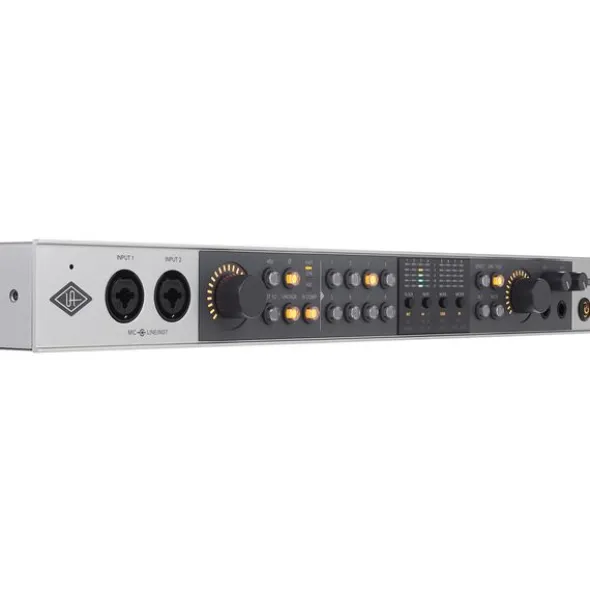

Universal Audio Volt 876 USB Recording Studio

24×28 USB Audio Interface in Rack Format

• Eight built-in vintage preamps and analogue 1176-style compressors
• 32 bit / 192 kHz converter
• Digitally controlled microphone preamplifiers with assistive auto gain and full session recall via the UAD Console app
• Standalone ADAT mode
• Built-in talkback microphone
• Real-time direct monitoring with dedicated controls on the front panel and two low-latency stereo cue mixes when used with UAD Console or LUNA DAW
• iPad and iPhone mobile recording
• +48 V phantom power switchable per channel
• LED meter
• Format: 19″ / 1 U
• Dimensions (without rack ears): 432 x 333 x 43 mm (W x D x H)
• Weight: 4.08 kg
• Includes LUNA DAW mit Volt 876 Fernsteuerungs-Integration und KI-gesteuerten Tools, UA Plugin Sammlung mit T, PolyMAX Polyphonic Synth / PolyMAX Synth, Century Tube Channel Strip, Teletronix LA-2A, Pure Plate Reverb, UA 610 Tube Preamp & EQ Collection, UA 1176 Classic FET Compressor, Vibe Analog Machines Essentials, Showtime ’64 Tube Amp, Ableton Live Lite, Melodyne Essential from Celemony, Ampeg SVT-VR Classic Bass Bundle from Plugin Alliance, Marshall Plexi Classic Amp Bundle from Softube, DEEP Virtual Drummer from UJAM, DANDY Virtual Bassist from UJAM, and LABS from Spitfire Audio

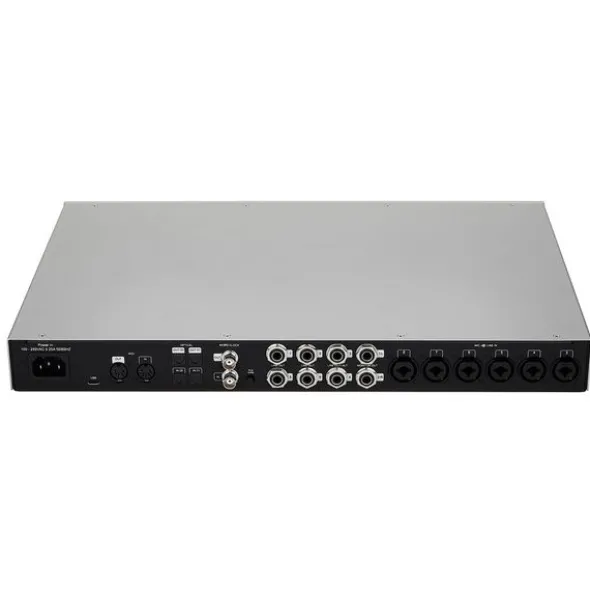

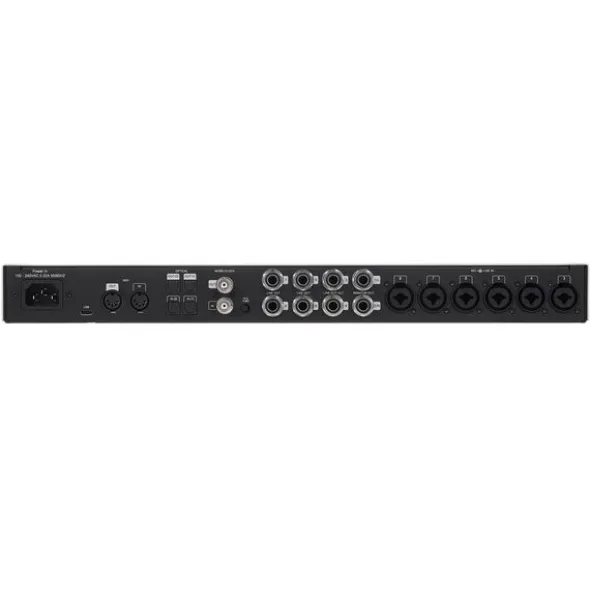

Connectors:

• Eight microphone/line combo input XLR/6.3 mm jack (two of which are instrument inputs on the front panel)
• Eight line outputs 6.3 mm jack (including 2x monitor and 2x ALT output)
• Two stereo headphone outputs: 6.3 mm jack
• Two ADAT inputs / two ADAT outputs (S/PDIF optical usable)
• Word clock input and output: BNC
• MIDI input and output
• USB-C connector

Disponível desdeOutubro 2025

número de artigo626152

unidade de venda1peça(s)

Recording / Playback Channels24×28

Number of Mic Inputs8

Number of Line Inputs8

Instrument Inputs2

Number of Line Outs8

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors2

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits32 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width432 mm

Depth333 mm

Height43 mm

Connection FormatUSB port Type C

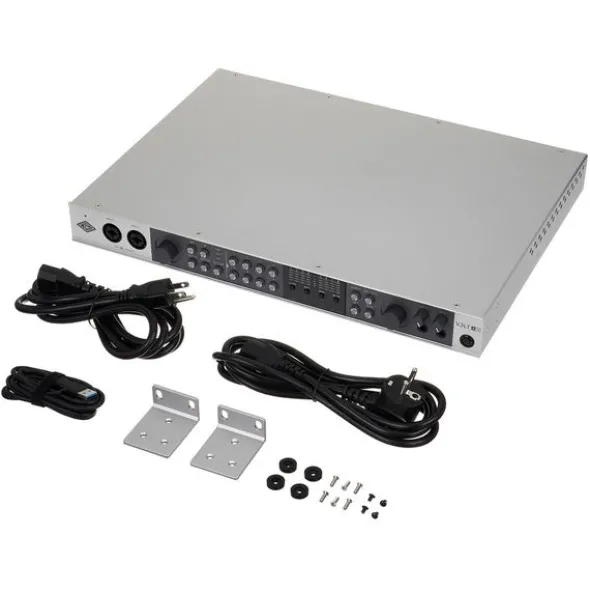

Included in deliveryPower Cable, USB-A to USB-C Cable, Rack Mount Accessories

Zero latency monitoringYes
