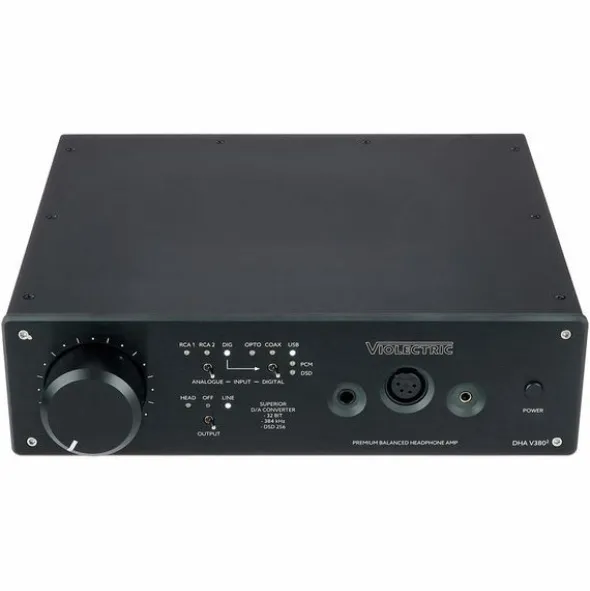

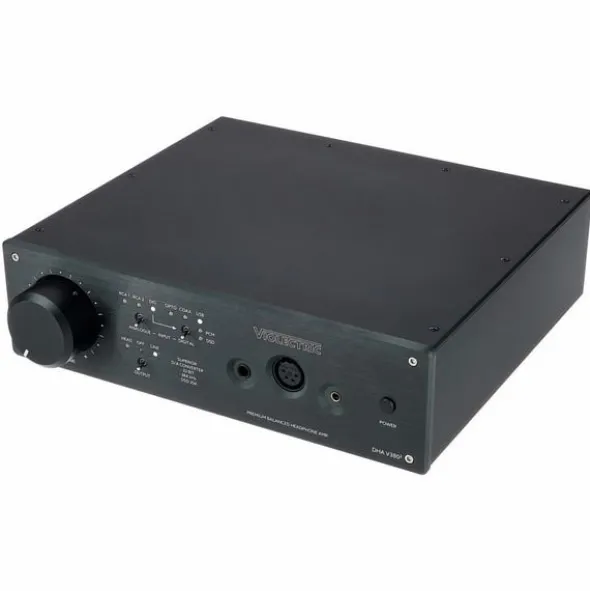

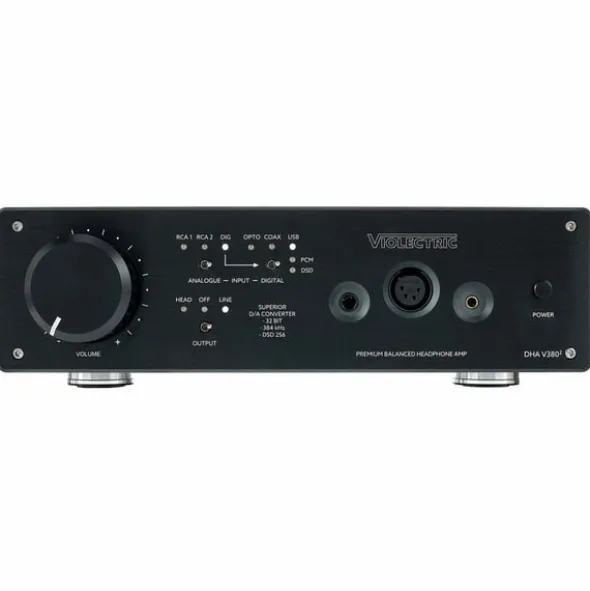

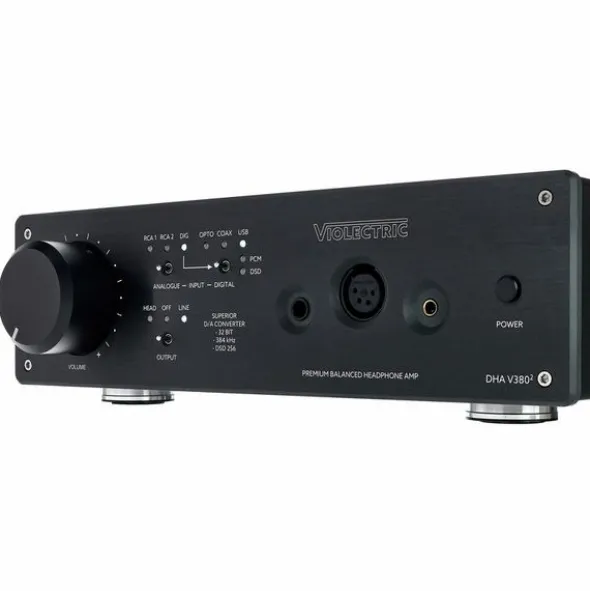

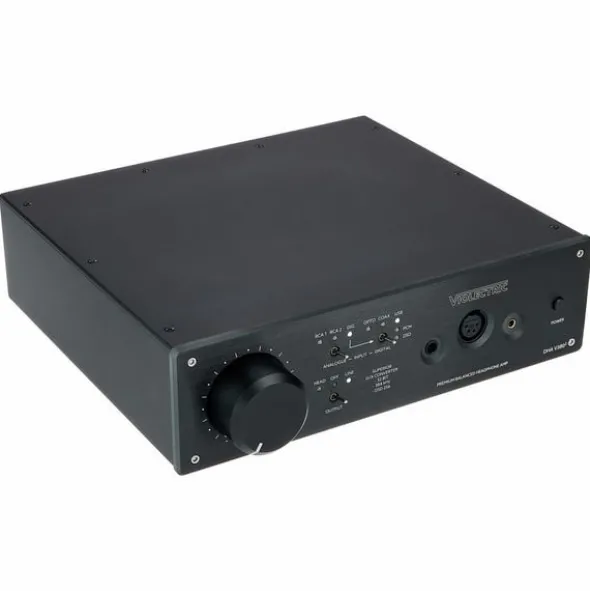

Violectric DHA V380 MK2

Headphone Amplifier And D/A Converter

• With ESS-Tech ES9026 PRO converter

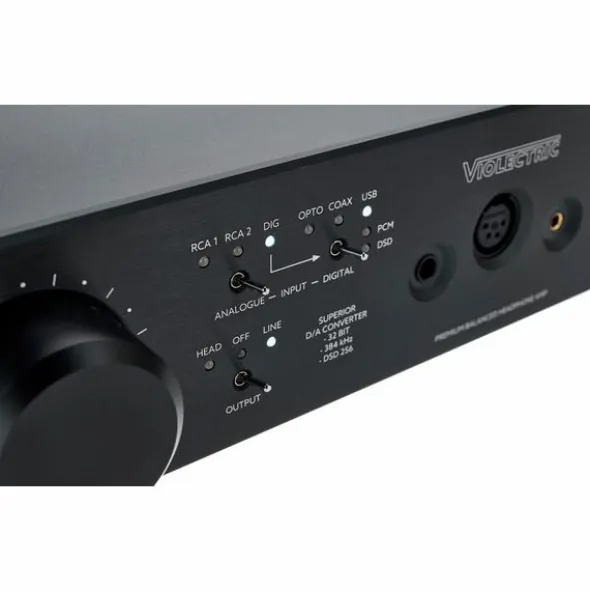

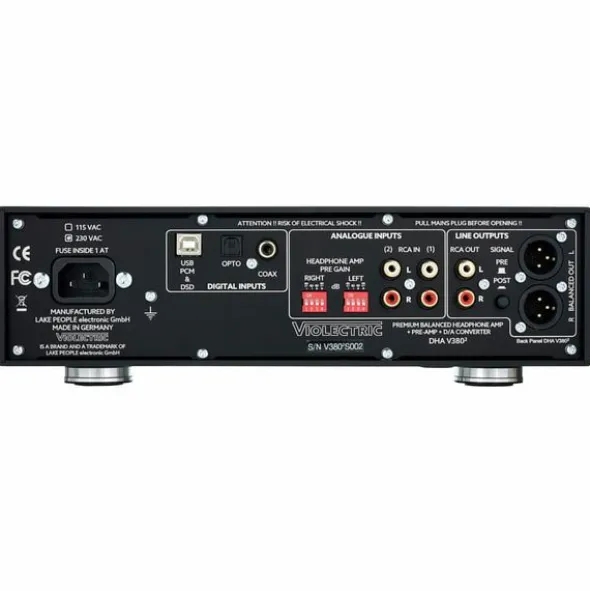

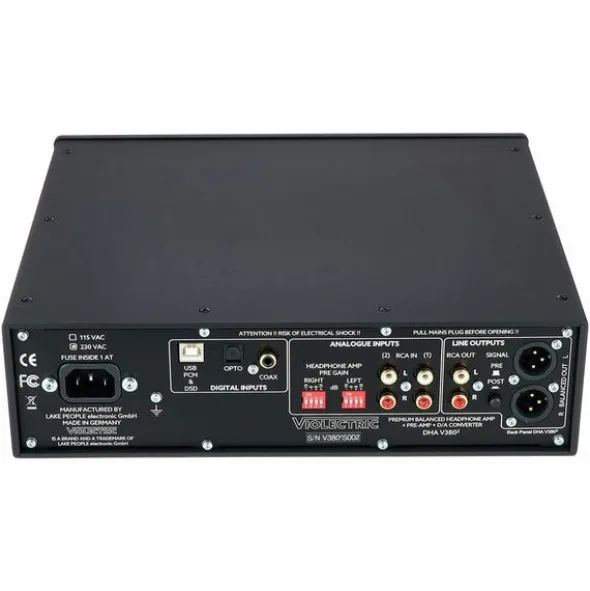

• 2 Analogue stereo inputs: 2 x Cinch (unbalanced)
• 3 Digital inputs: Opto, Coax with 24 Bit and 96/192 kHz, USB 2.0 with up to 32 Bit / 384 kHz for PCM signals, DSD 64 – 256
• 2 x 32 Bit Converters per each channel with -110 dB THD+N and 124 dB dynamic range
• Pre-gain: +/- 18 dB for an optimum matching to the source and headphones
• Volume control with RK27 potentiometer
• 4 Powerful amplifiers, 5000 mW Pmax at 50 Ohm, 21 V RMS at 600 Ohm
• A delayed connection of the headphones after power-on
• The headphone and line-out path are separately selectable
• Headphone outputs: 1 x jack (6.3 mm, unbalanced), 1 x XLR (4-pin, balanced), 1 x Pentaconn
• Line outputs: 1 x cinch L/R (unbalanced), 1 x XLR L/R (balanced)
• Toroidal transformer
• Dimensions (W x H x D): 290 x 80 x 248 mm
• Weight: approx. 6 kg
• Colour: Black

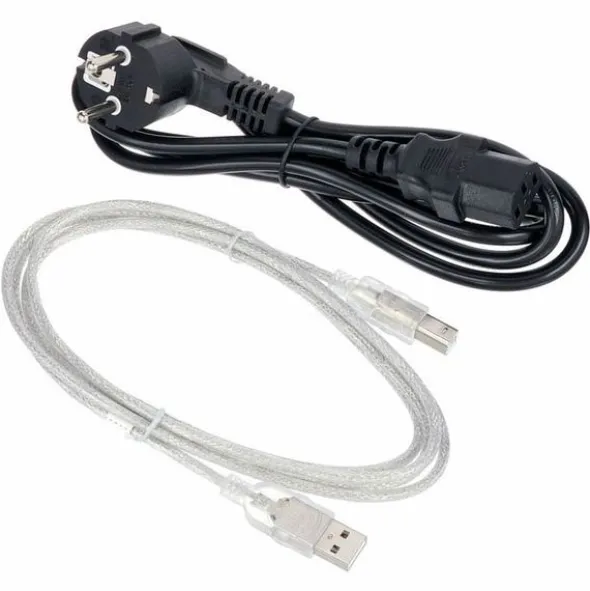

• Incl. a power cord and user manual
