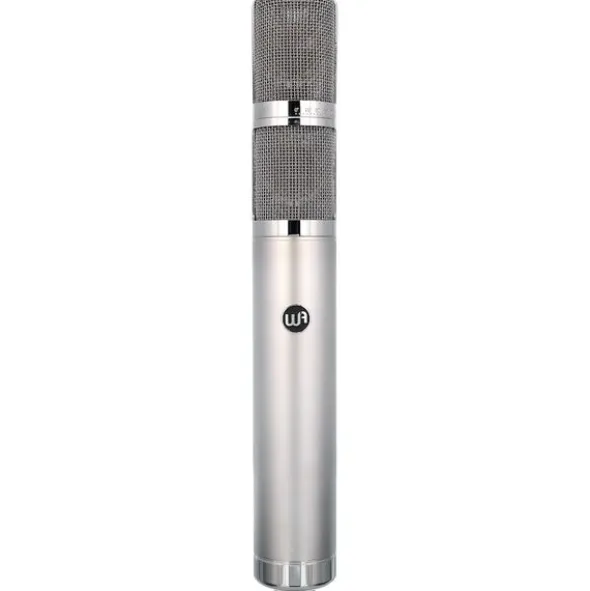

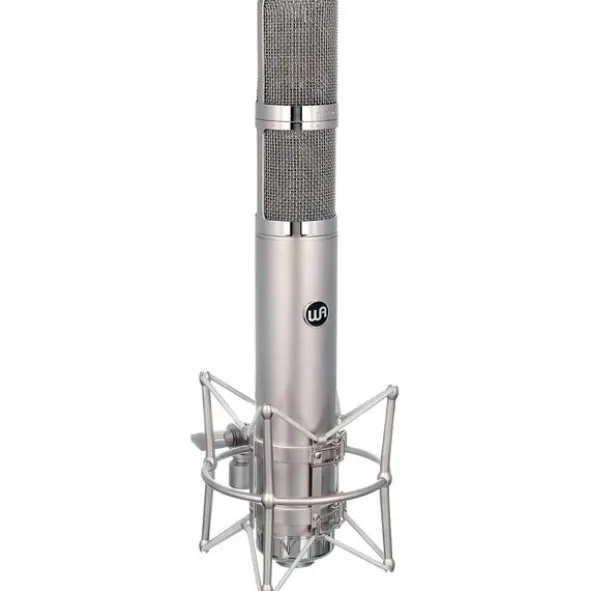

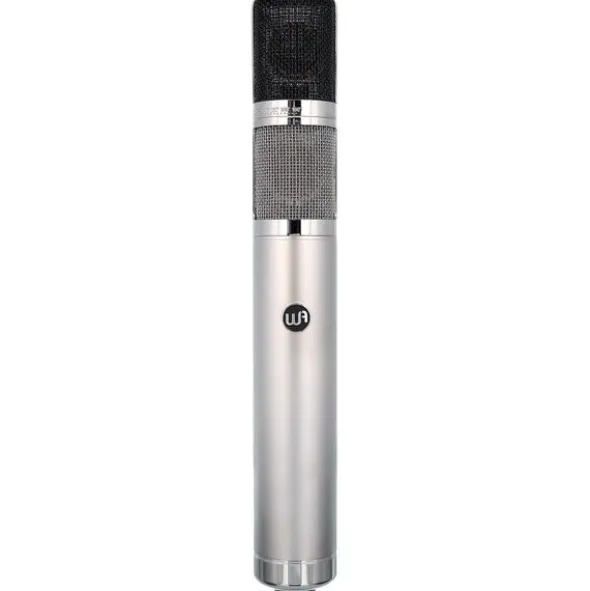

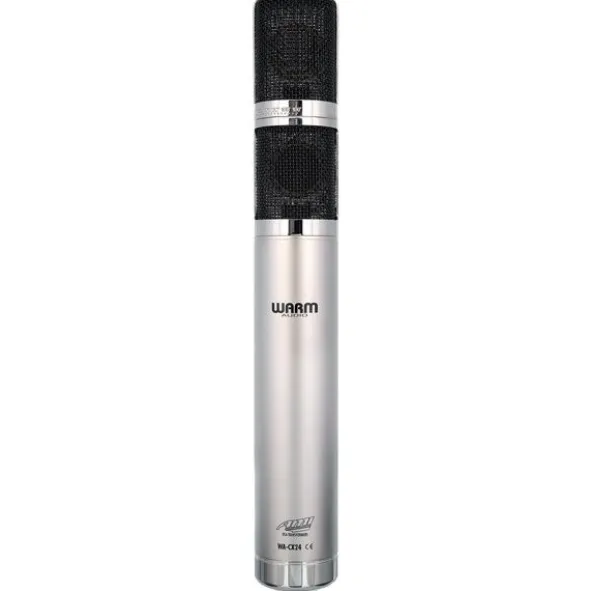

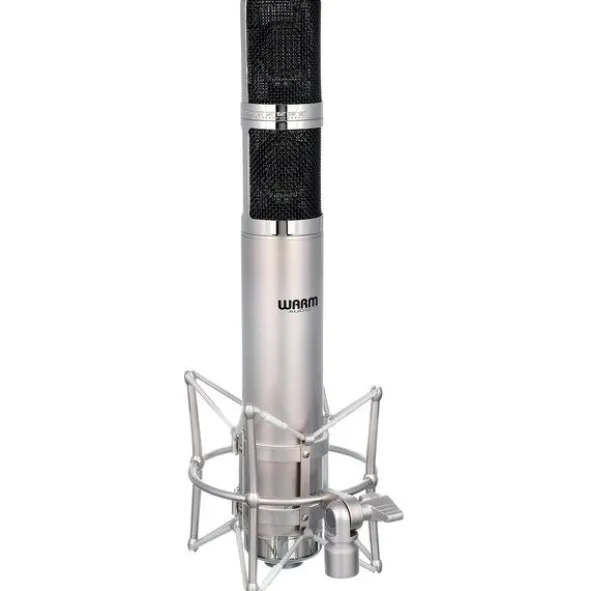

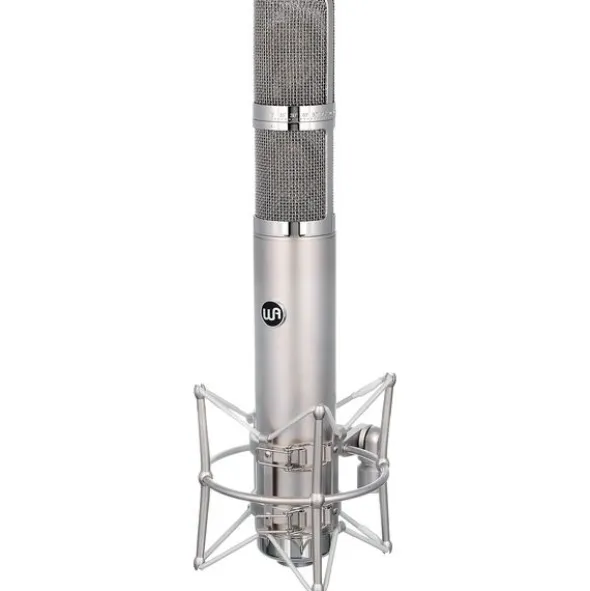

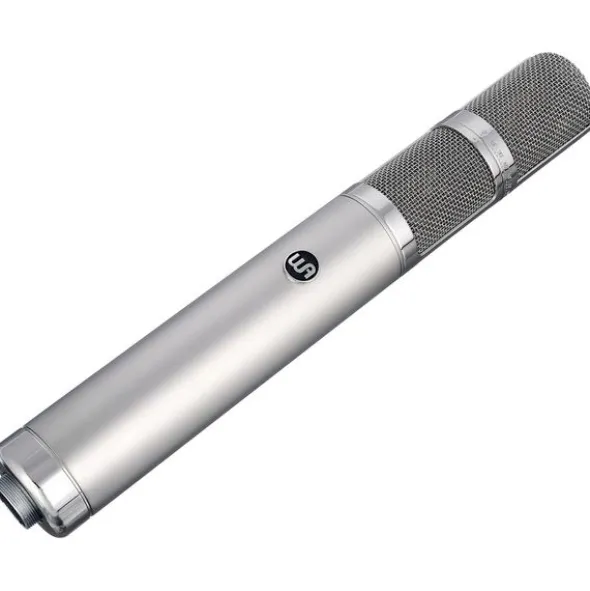

Warm Audio WA-CX24

Stereo Tube Condenser Microphone

• Two dual diaphragm capsules in CK12 design

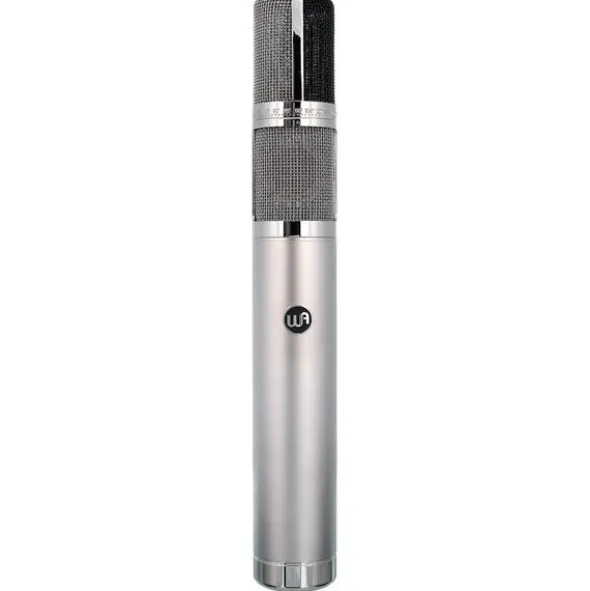

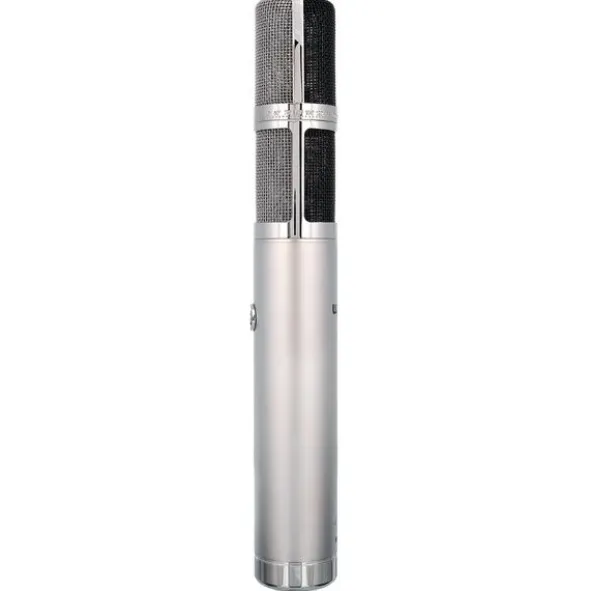

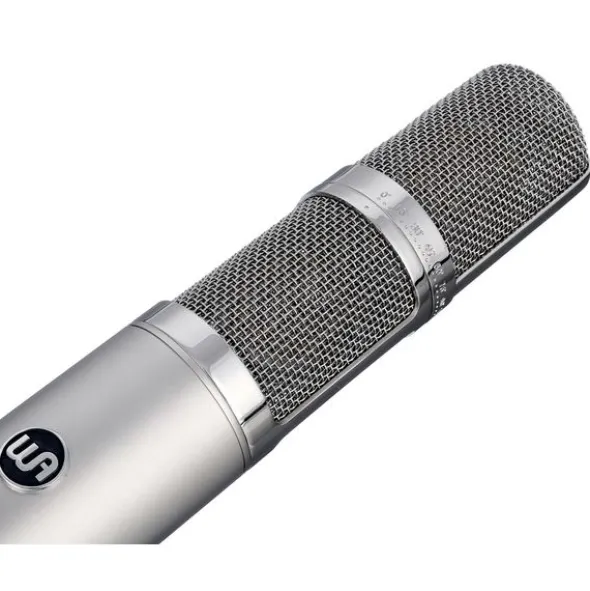

• Upper capsule can be rotated 180º
• Polar pattern separately adjustable for each capsule: Cardioid, omnidirectional, figure-of-eight, plus 6 additional intermediate stages
• Various stereo configurations can be realized without any problems
• Twp TAB spark mechanisms (AMI) USA Output transformer
• 12AY7 vacuum tube
• Maixmum sound pressure level SPL: 149 dB
• Frequency range: 30 Hz – 20,000 Hz
• Output impedance: 200 ohm
• Signal-to-noise ratio: 73 dB
• Inherent noise: 22 dBA

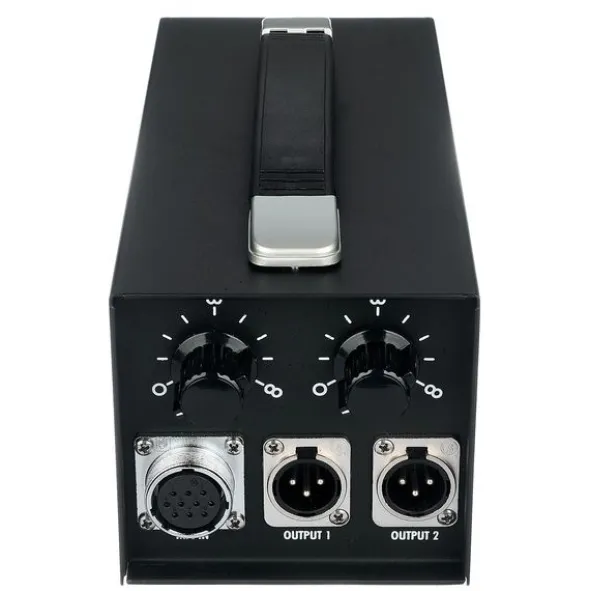

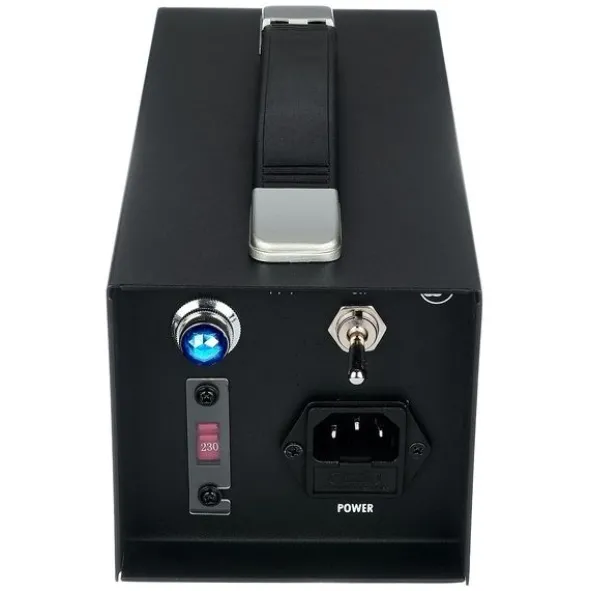

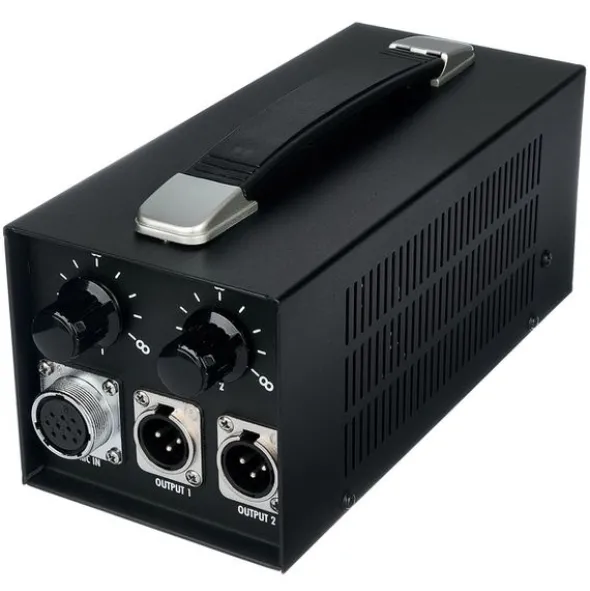

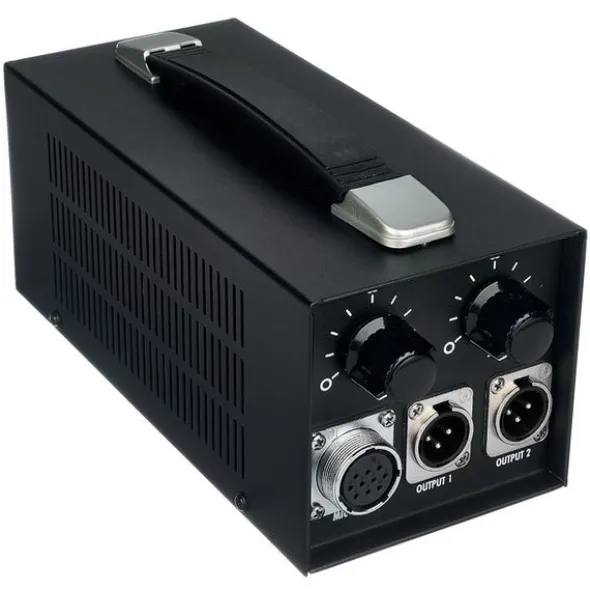

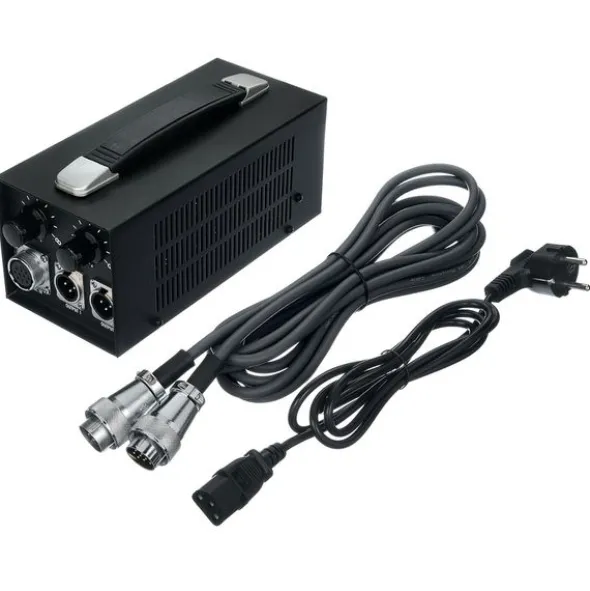

• Power supply via external power supply

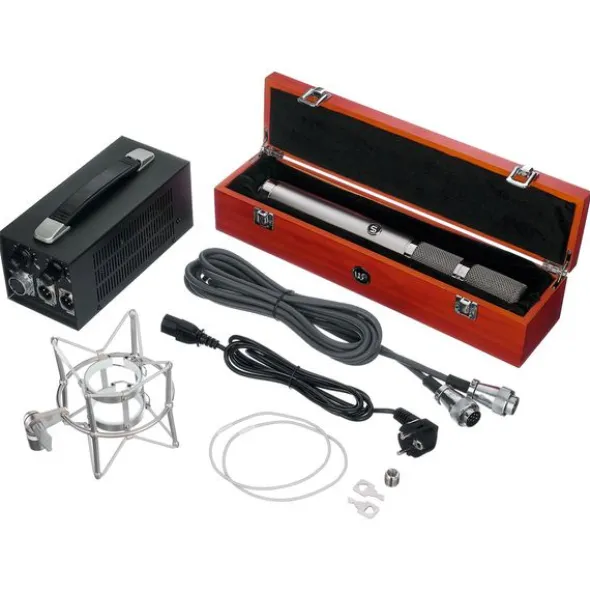

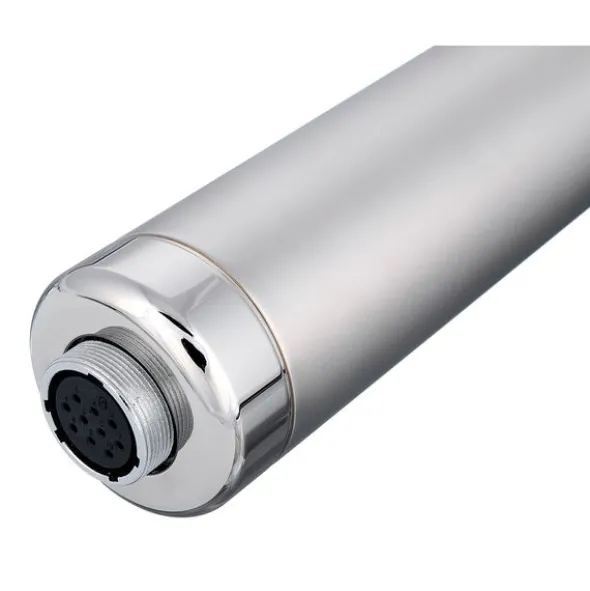

• Connection: 5 m 9-pin Gotham GAC-9 cable
• Dimensions of the microphone: 356 x 50 mm
• Microphone weight: 1.4 kg
