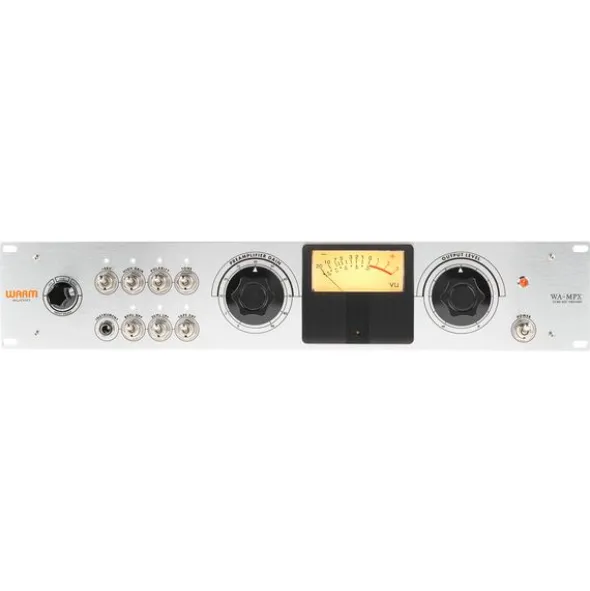

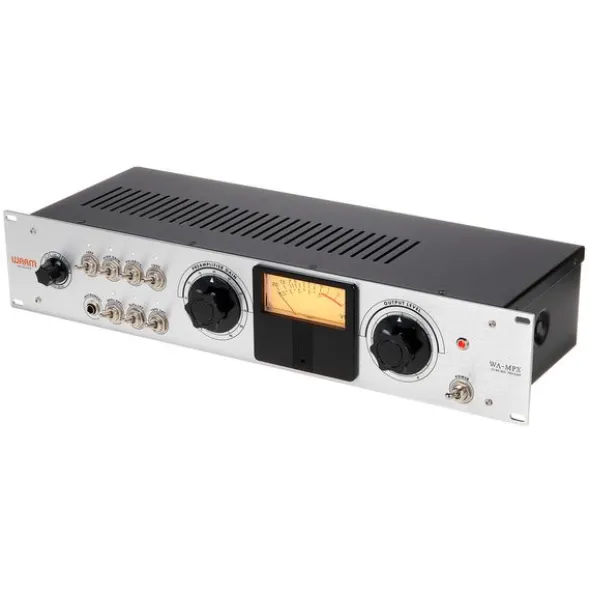

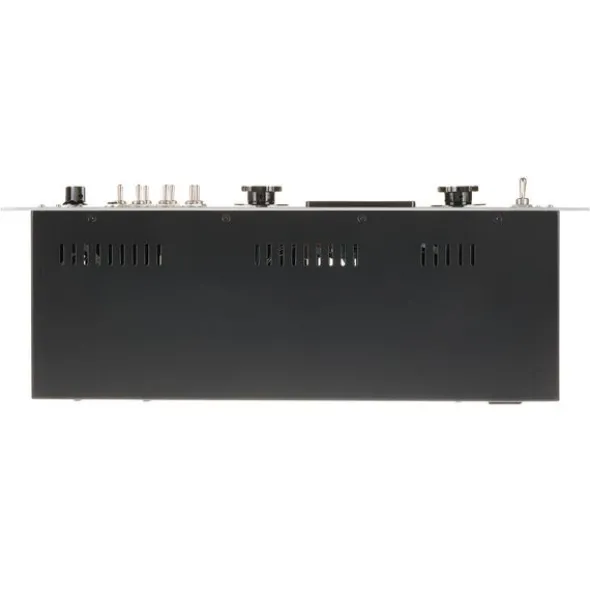

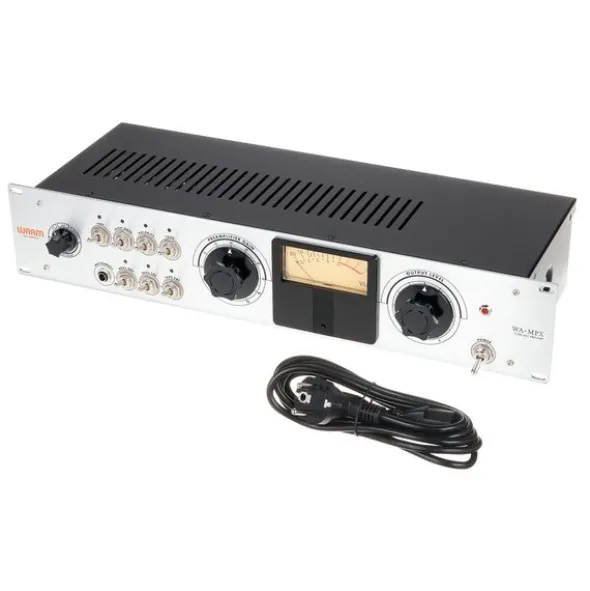

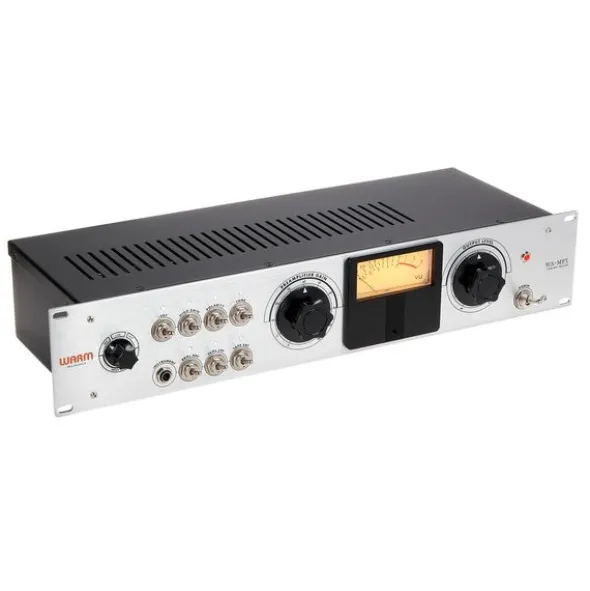

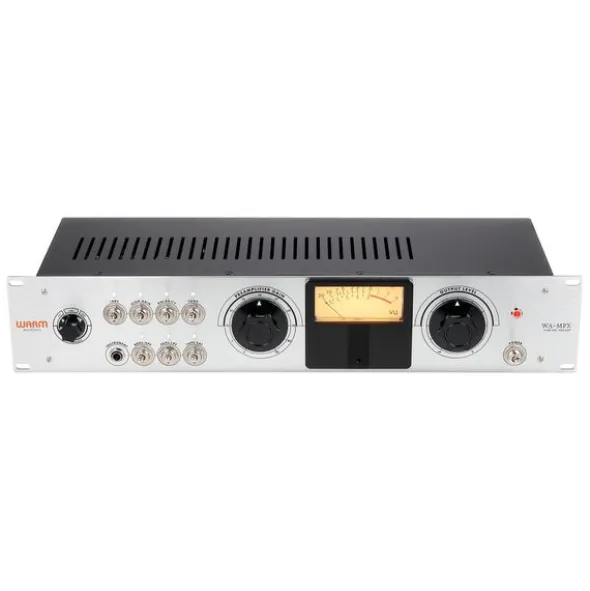

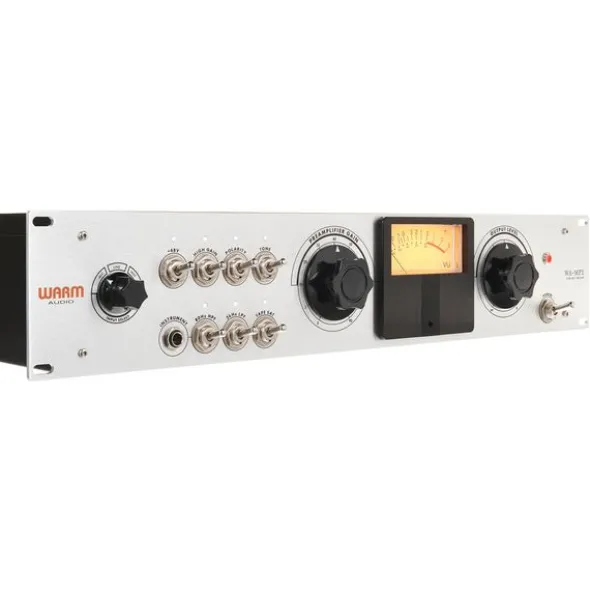

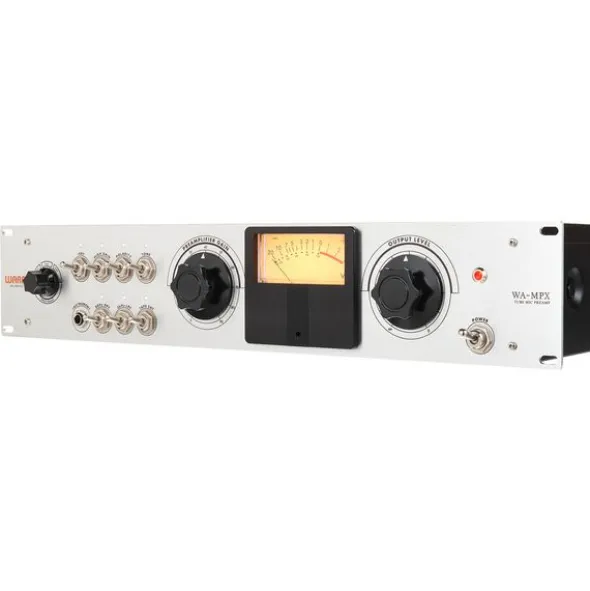

Warm Audio WA-MPX

1-Channel Microphone and Instrument Preamp

• Fully discrete, hand-built design with 3 tubes per channel
• Tape saturation adds harmonic distortion and compression
• 90 dB gain
• CineMag USA transformers
• High quality (2x) 12AX7 and (1x) 12AU7 vacuum tubes
• High Gain control activates the third tube in the circuit for an additional 20 dB (from 70 dB to 90 dB)
• 48 V phantom power and polarity switch
• “Tone” circuit changes the impedance of the input transformer
• 80 Hz high-pass filter
• 2 kHz low-pass filter

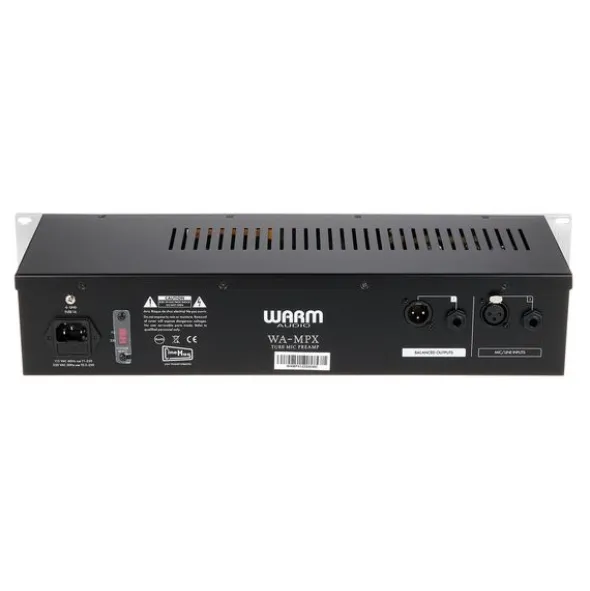

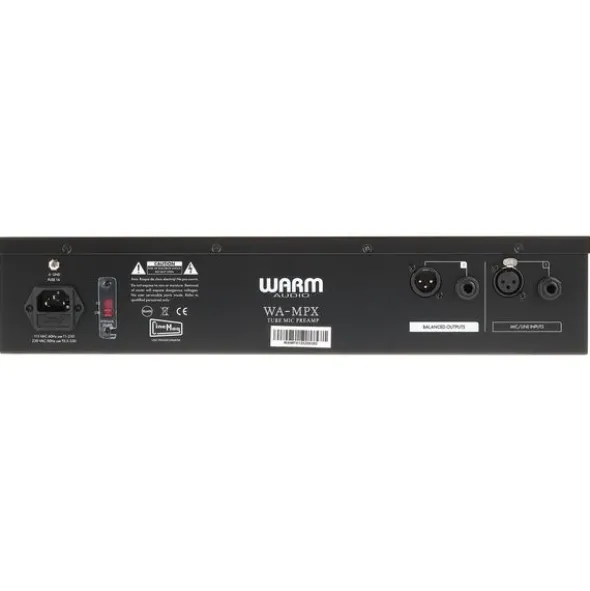

• Inputs: XLR microphone input, TS jack instrument input and TRS jack line input
• Outputs: XLR / TRS line level
• VU meter level meter
• Frequency response: 20 Hz – 20 kHz
• Dimensions (W x D x H): 483 x 179 x 89 mm
• Weight: 3.7 kg

Disponível desdeMarço 2023

número de artigo562525

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesYes

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR,jack

Digitale OutputsNone

Headphone connectionNo

Level MeterYes

Design19″ / 2U
