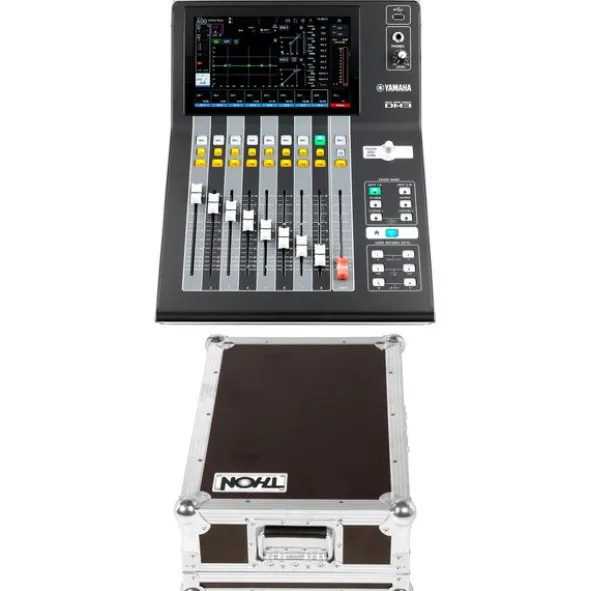

Yamaha DM3S Case Bundle

Bundle offer comprising

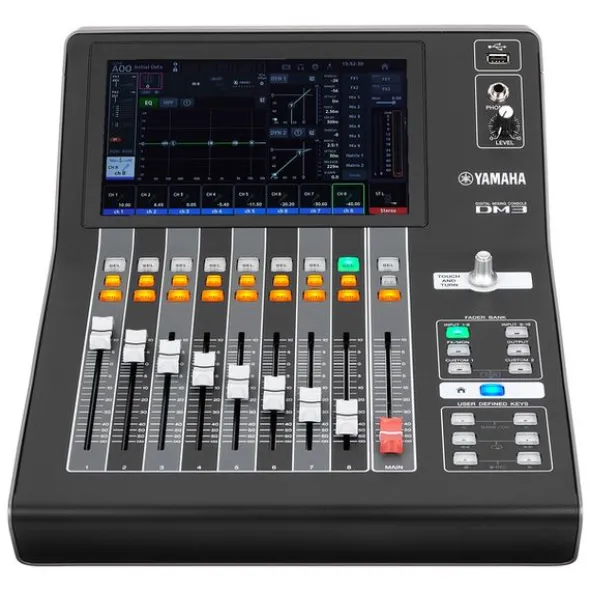

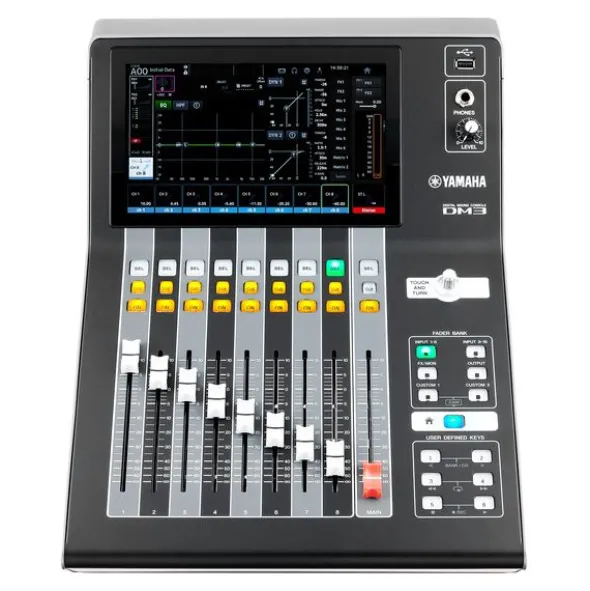

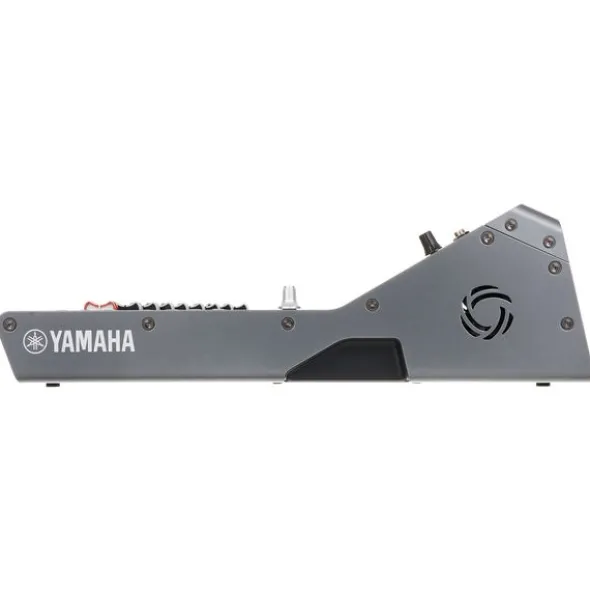

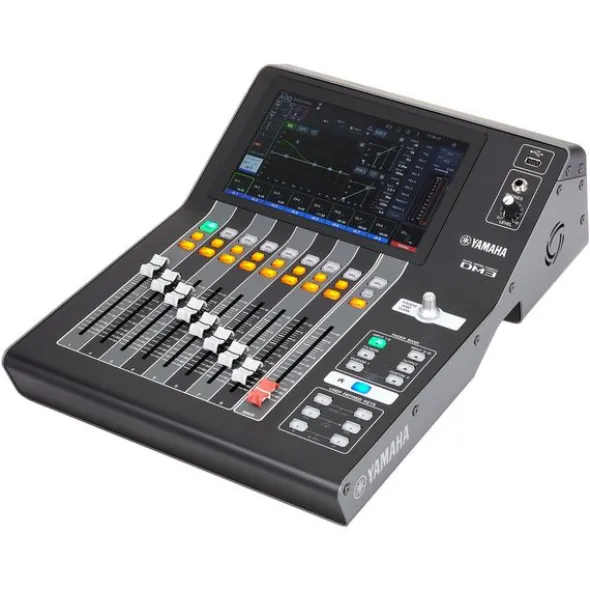

Yamaha DM3S

16-Channel Digital Mixer for Studio, Streaming and Live Use

• 9″ multi-touch touchscreen
• 9 motorised faders
• “Turn & Touch” control
• 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
• 16 mono inputs + 1 stereo + 2 FX return
• 8 outputs
• Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
• DAW Remote Feature (HUI)
• OSC support for installations
• Editor app available for tablet (tablet not included)
• 6 freely assignable buttons
• 2 x 2 channel recording/playback via USB port
• 18 selectable effects + GEQ on Mix 1-6 and Stereo Bus
• Dimensions (W x H x D): 320 x 140 x 455 mm
• Weight: 6.5 kg
• Includes Steinberg Cubase AI and VST Rack Elements

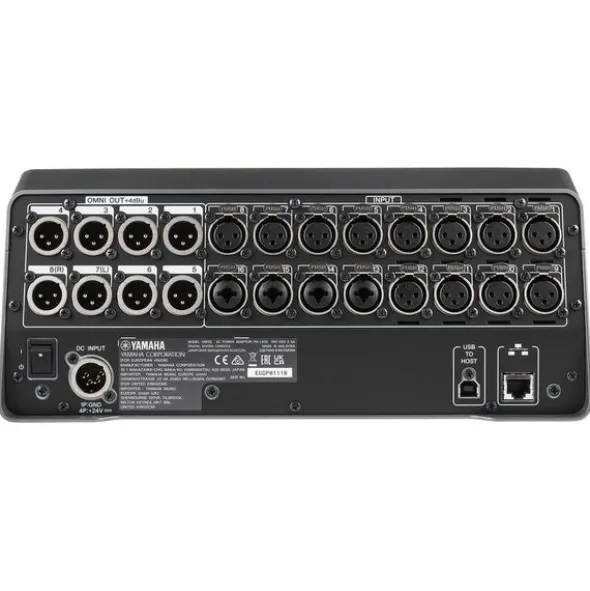

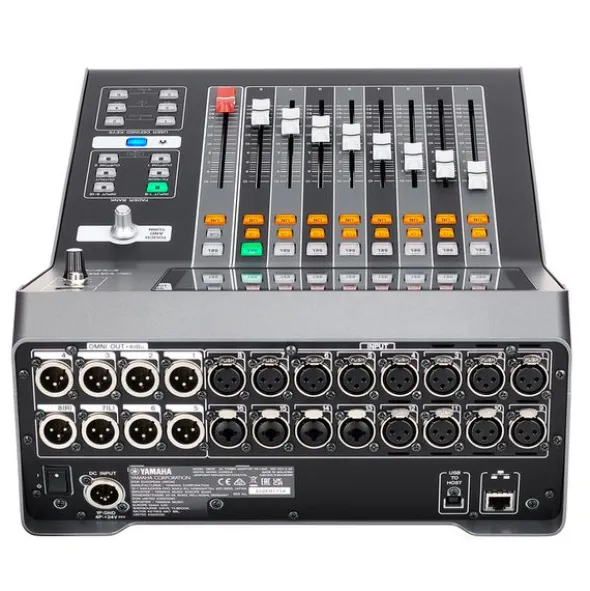

Connections

• 16 mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
• 8 line outputs: XLR
• Stereo headphone output: 6.3 mm jack
• USB to Host
• USB to Device
• Ethernet RJ45

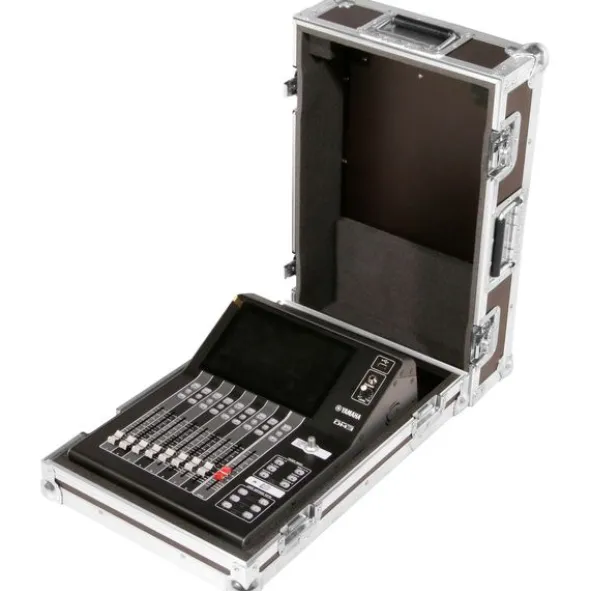

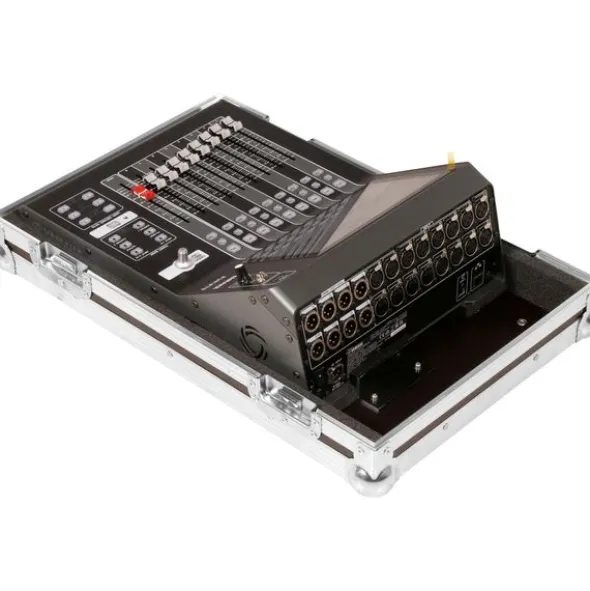

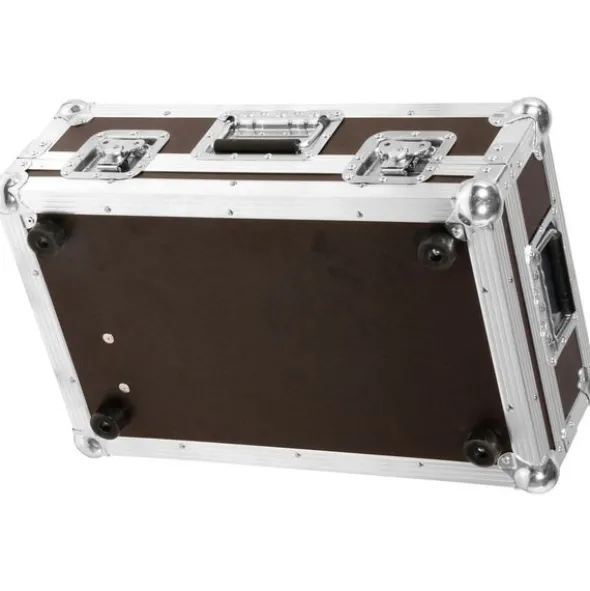

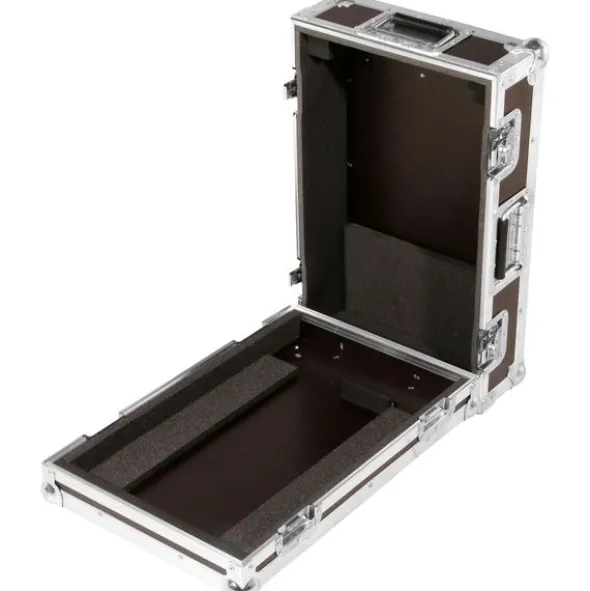

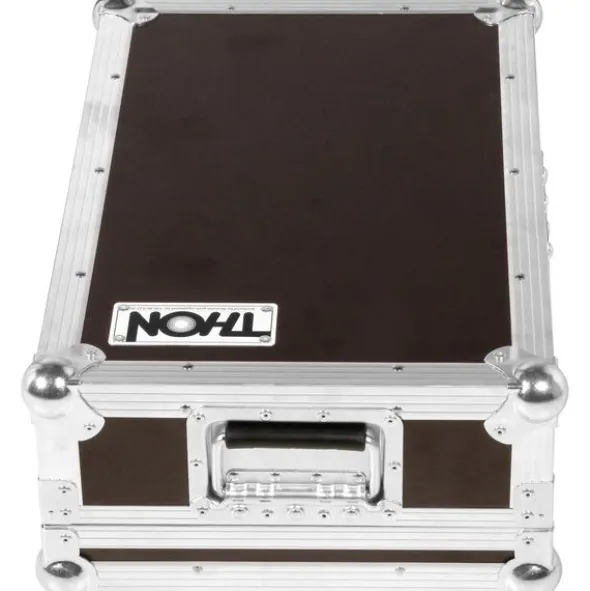

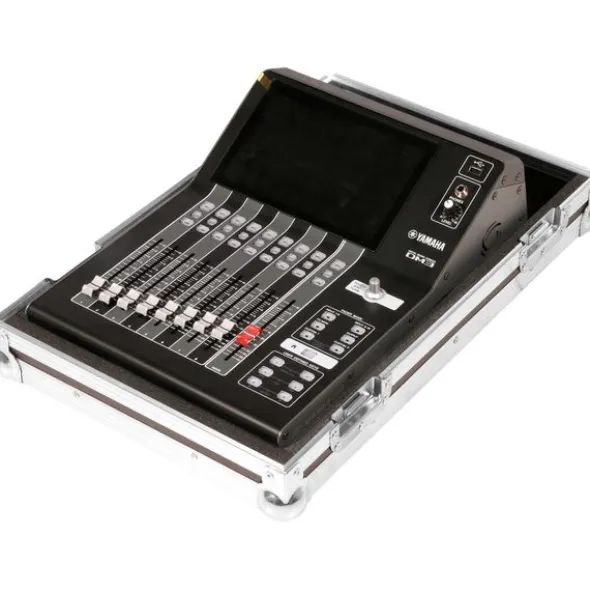

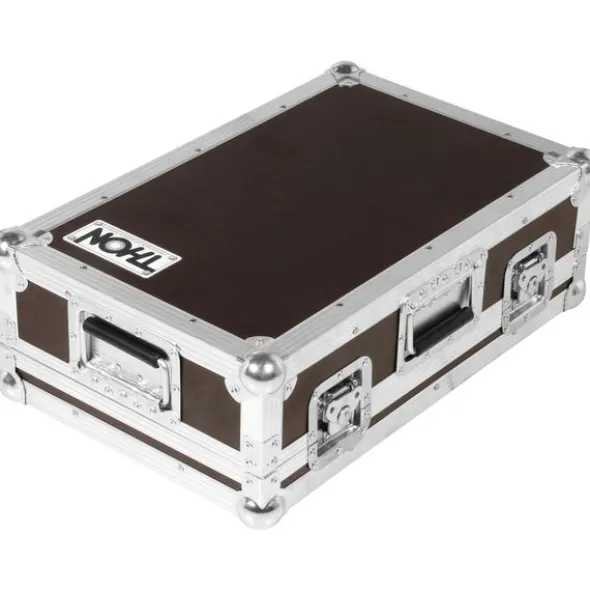

Thon Case Yamaha DM3

Flight Case

• Suitable for Yamaha DM3 / DM3S Digital Mixer
• Material: 6.8 mm Multiplex
• Aluminium edge: 30 x 30 mm
• Foam padding
• 4 Medium-sized butterfly latches
• 3 x Folding handles
• Ball corners
• 10 cm Cable channel at the back
• 4 Rubber feet 38 x 20 mm
• Exterior dimensions (W x D x H): 385 x 605 x 216 mm
• Weight: 7.3 kg
• Colour: Phenol Brown
• Made in Germany

Disponível desdeAgosto 2026

número de artigo652608

unidade de venda1peça(s)

Max.number of input channels16

Microphone Inputs16

Analog Line Inputs16

Analog Line Outputs8

Analog in/ out with plug-in card expandableNo

Digital Inputs0

Digital Outputs0

Digital in-/ outputs expandableNo

Word ClockNo

MotorfaderYes

Computer interfaceUSB

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders9

DSP Input channels16

DSP Output Channels8

Busses6

Number of Microphone Inputs16

Number of Mono Line Inputs16

Number of Stereo Line Inputs0

Physical outputs8

Digital stagebox connectionNo

EthernetYes

HotspotNo

Multitrack RecordYes

Special Features18×18 USB Audio Interface

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV/MP3

RTANo

FX Processor2

31 Band EQ0

Delay InputYes

Delay OutputYes

Matrix2

DCA/VCA Groups0

MIDI InterfaceNo

Sample rate96 kHz

Separate Personal Monitor systemNo

Expansion Card slots0

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBNo

Digital MADINo

Digital DanteNo

CaseNo

19″ RackmountOptional

Height140 mm

Width320 mm

Depth455 mm

Weight6,5 kg
