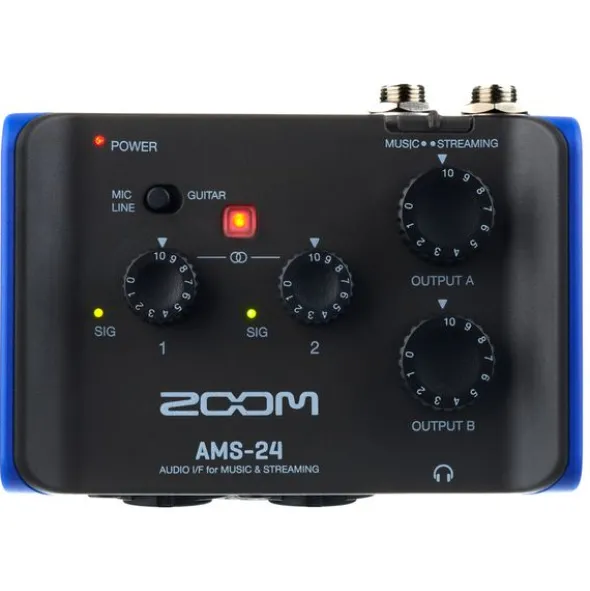

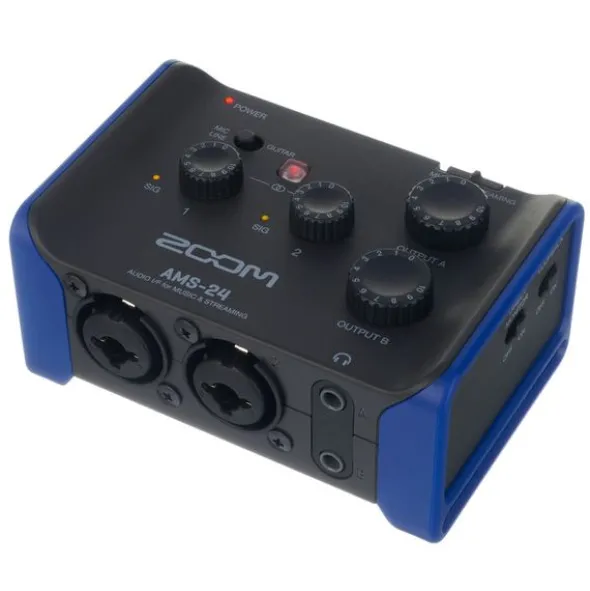

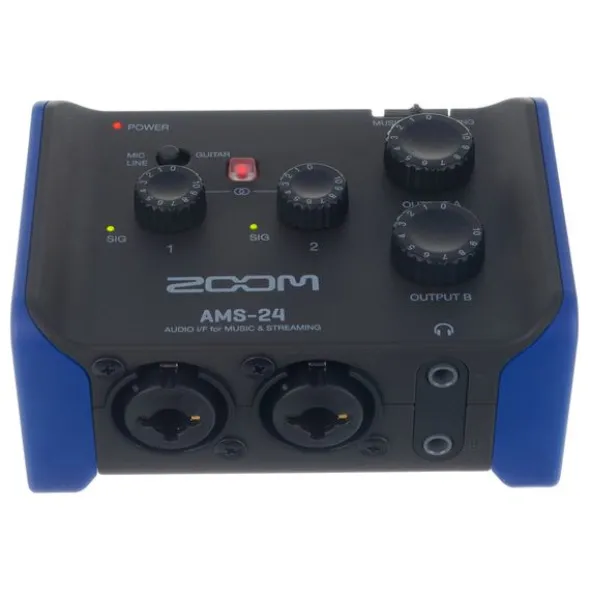

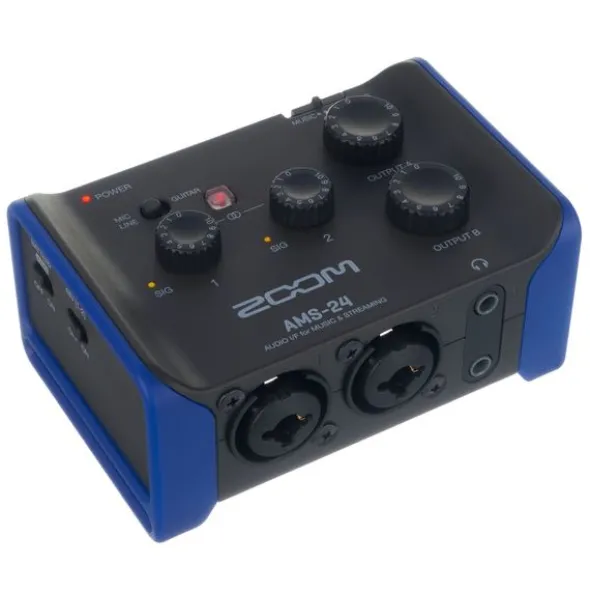

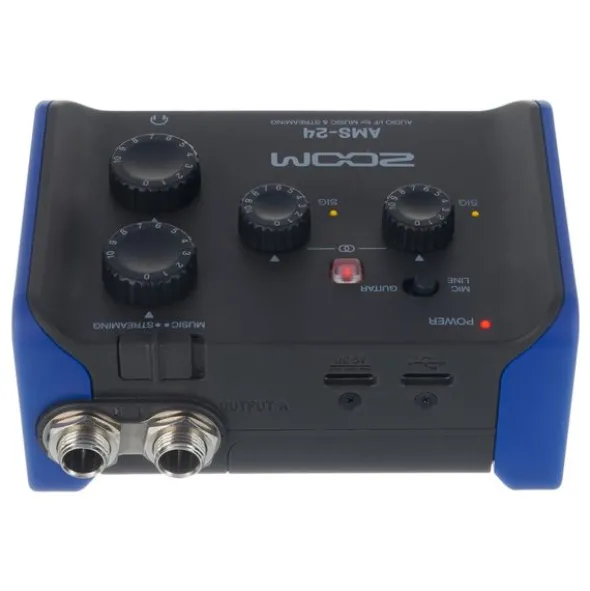

Zoom AMS-24

USB 2.0 Audio Interface

• 24-bit / 96 kHz

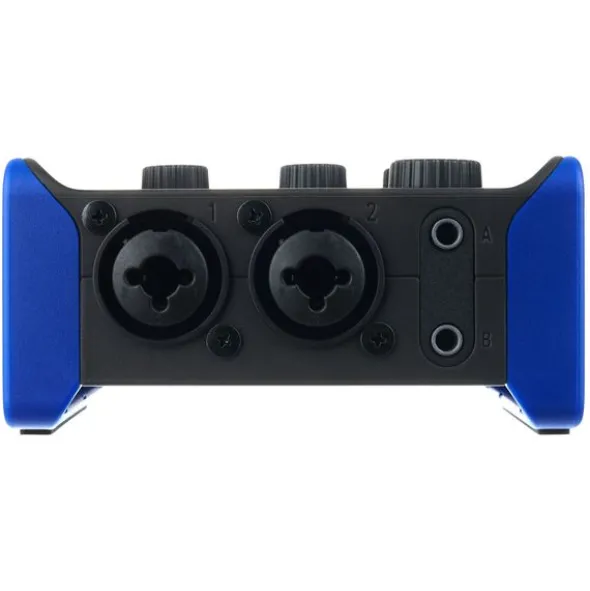

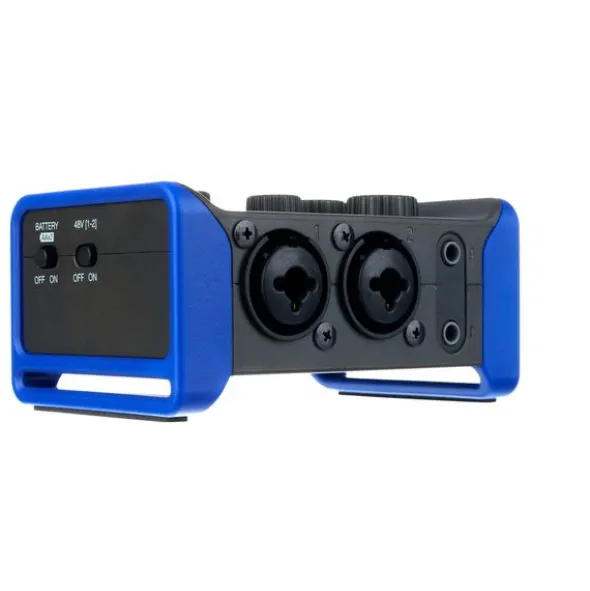

• Two microphone and line inputs XLR/TRS combo jack with max. +58dB gain
• 1 Switchable input for instruments

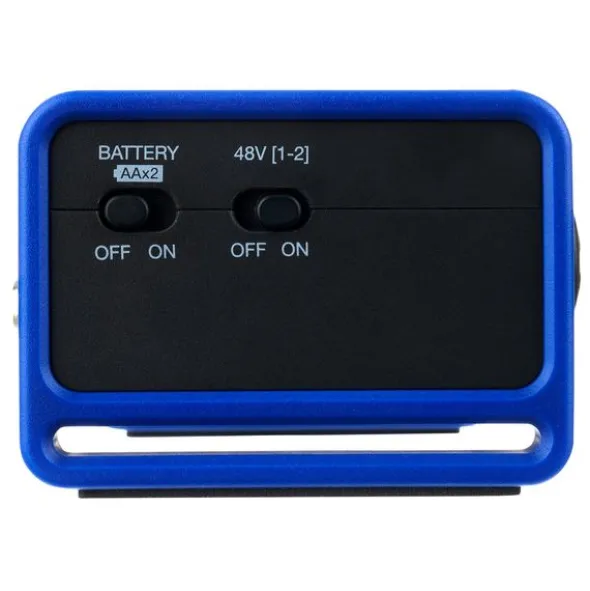

• Phantom power switchable: +48V
• Selectable stereo link for inputs 1&2

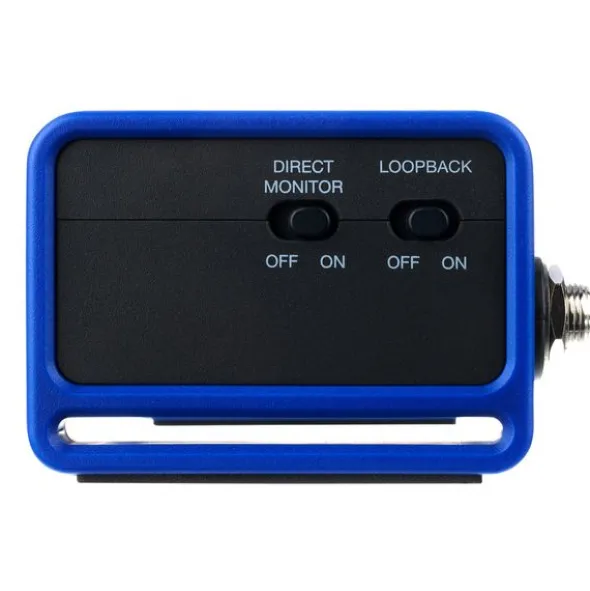

• Direct monitoring function
• Switchable loopback option
• Switchable music / streaming mode – in streaming mode, all inputs are combined into one audio signal and can be processed in streaming software
• 2 Stereo headphone outputs: 3.5 mm jack with separate volume controls

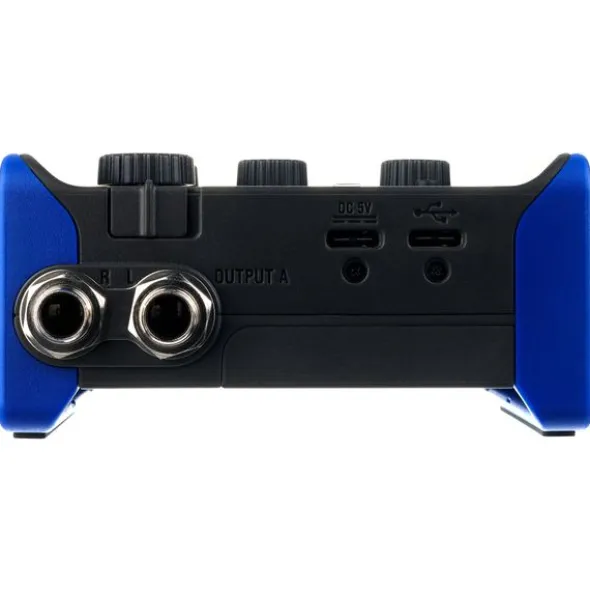

• Stereo line output: 2x 6.3 mm jack, balanced
• Compatible with Mac, PC, iOS and Android
• USB-C port for audio stream and power supply
• Separate USB-C port for power supply for mobile recording

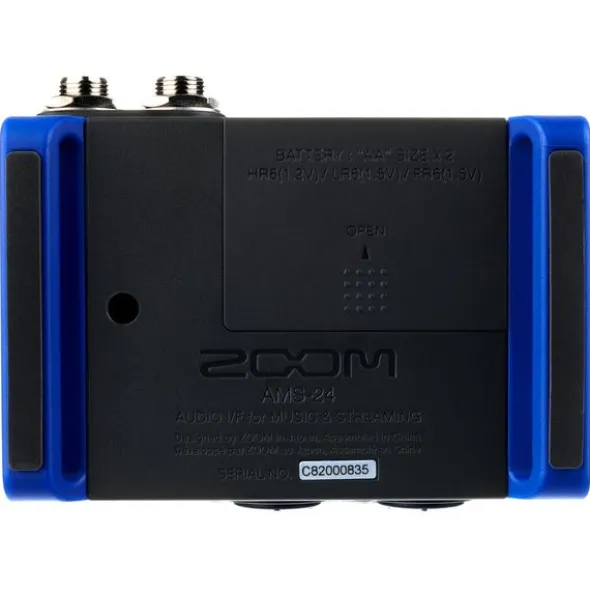

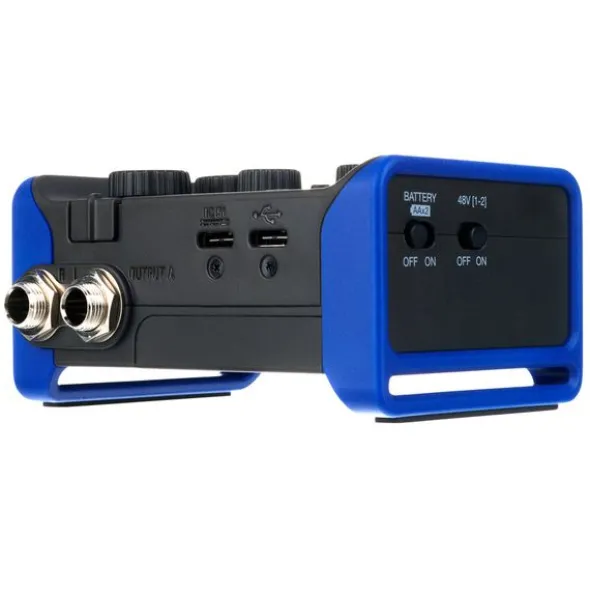

• Battery operation possible: 2x type AA
• Dimensions (WxDxH): 94.5 x 74 x 46 mm
• Weight: 134 g

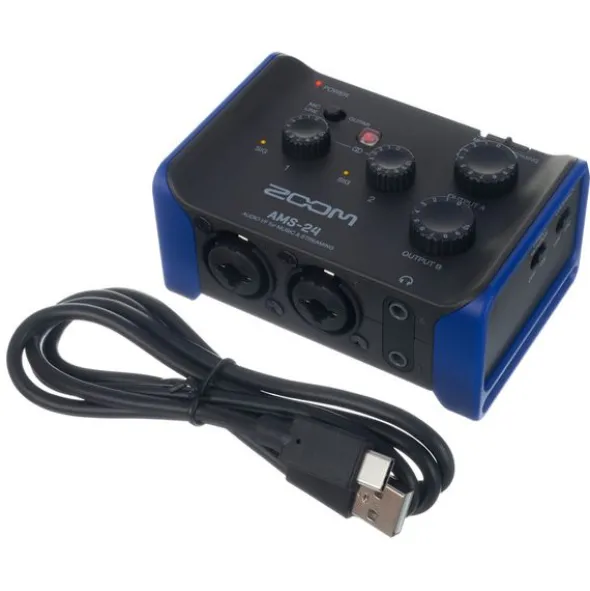

• Incl. quick start guide and USB-C cable

Disponível desdeJulho 2022

número de artigo546105

unidade de venda1peça(s)

Recording / Playback Channels2×4

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs1

Number of Line Outs2

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceNo

Word Clock0

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width96 mm

Depth74 mm

Height46 mm

Connection FormatUSB port Type C

Included in deliveryUSB-A to USB-C Cable

Zero latency monitoringYes
