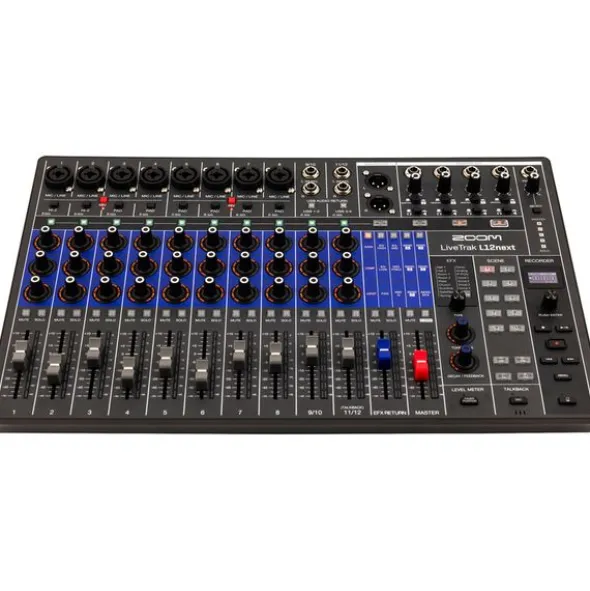

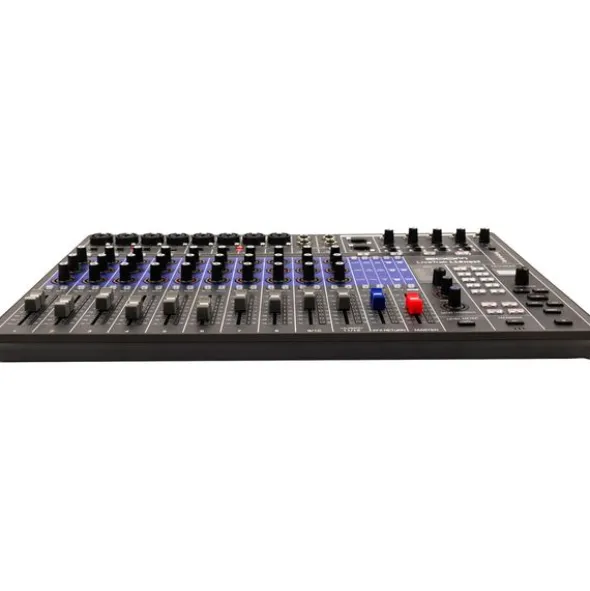

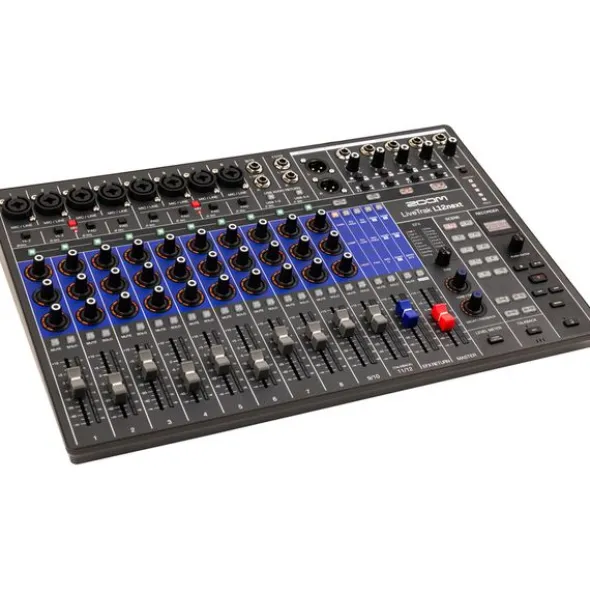

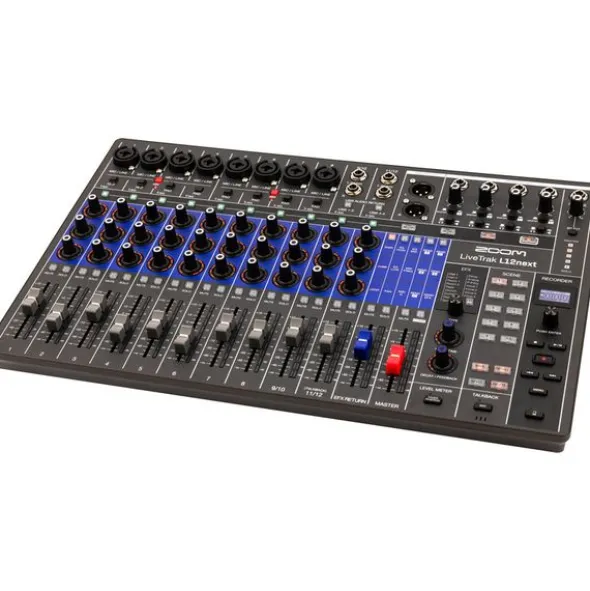

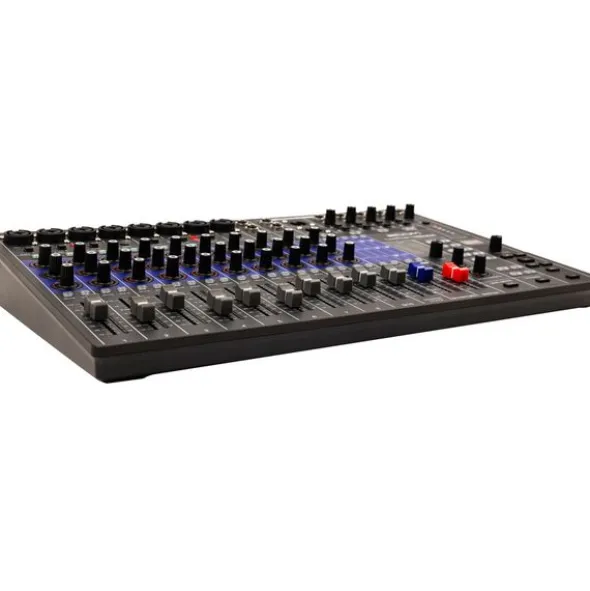

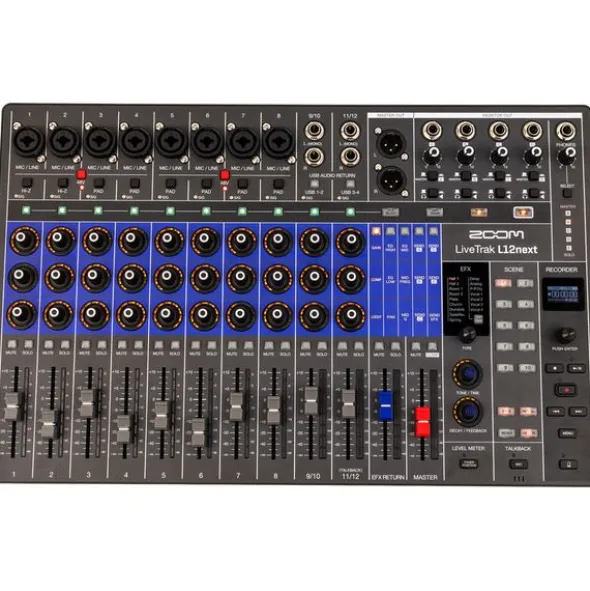

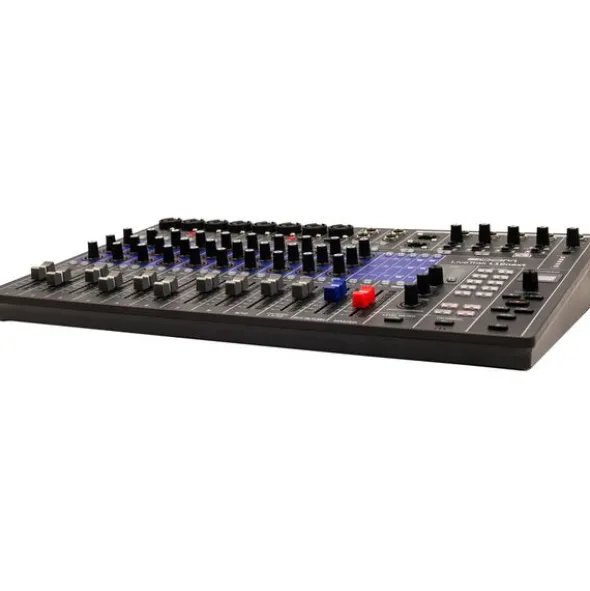

Zoom LiveTrak L12next

Digital Mixer and Recorder for Live and Studio Use

• 12 channels (eight mono plus two stereo channels)

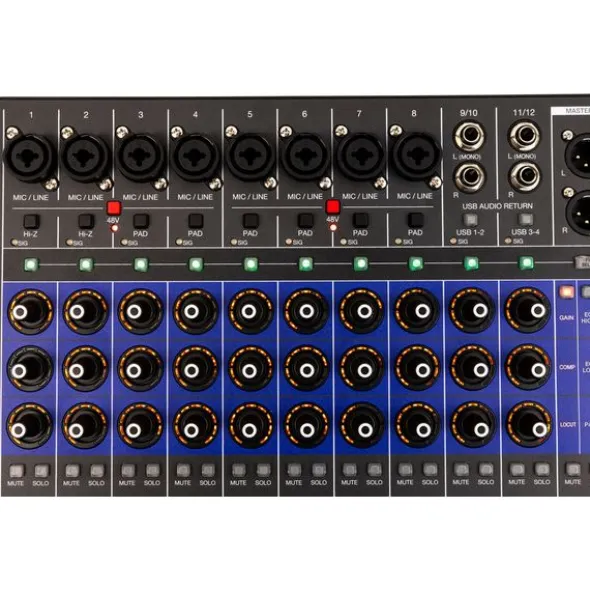

• Channels 1-8 with XLR/TRS combo jack for microphone and line signals (+48V phantom power switchable)
• Channels 1 & 2 with Hi-Z switch for guitars and basses
• Channels 9-12 6.3 mm jack inputs for line signals
• Preamp with +70 dB gain

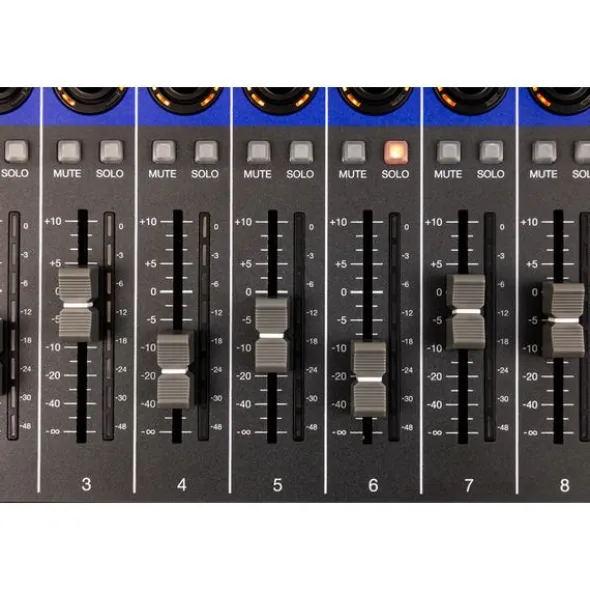

• 60 mm fader with LED level indicator for all channels
• Effect return and master
• Three encoders with LED ring per channel for high/mid/low EQ
• Gain, panorama, aux sends and compressor
• Recording of up to 14 tracks at 24-bit/96 kHz plus stereo mix
• Master recording in 32-bit float
• Overdub and auto punch function for perfect takes

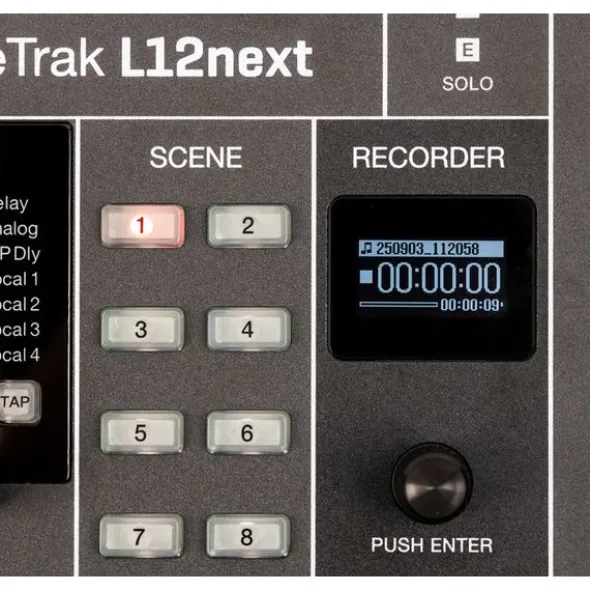

• OLED display
• Five independent monitor mixes with individually adjustable headphone outputs
• Scene Memory Recall for up to ten user-defined mixes
• 16 internal effects (Reverb, Room, Plate, Delay and more)

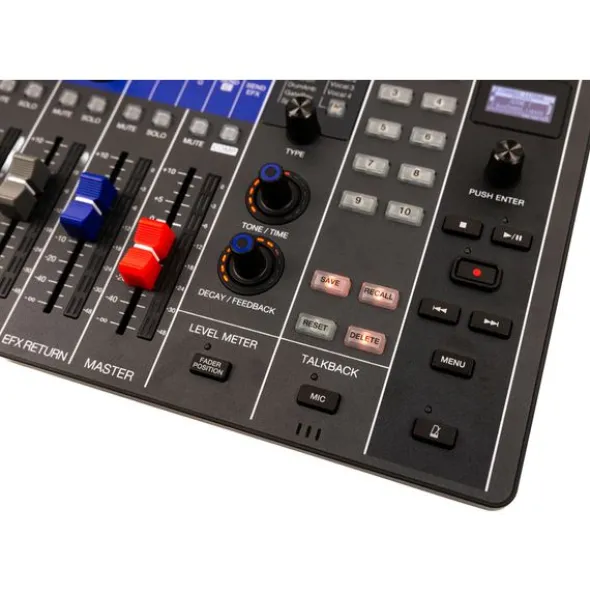

• Built-in talkback microphone
• Wireless control via iPad app using optional Zoom BTA-1 Bluetooth adapter (art. 423971, not included)
• USB audio interface with 14 inputs and four outputs, 24-bit/96 kHz
• Class-compliant for Mac, Windows and iOS
• Streaming integration for podcasts and live broadcasts
• Recording medium: SDHC/SDXC cards up to 1TB (not included)
• Latency compensation for A-D conversion
• Footswitch input (6.3 mm jack) for punch-in/out and effect mutes

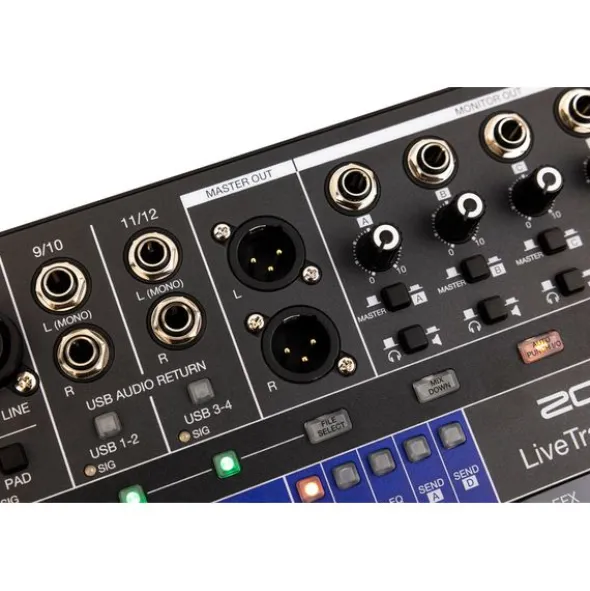

• Four stereo monitor outputs with level control (6.3 mm jack)
• Stereo headphone output with volume control (6.3 mm jack)
• Stereo master output (2x XLR)

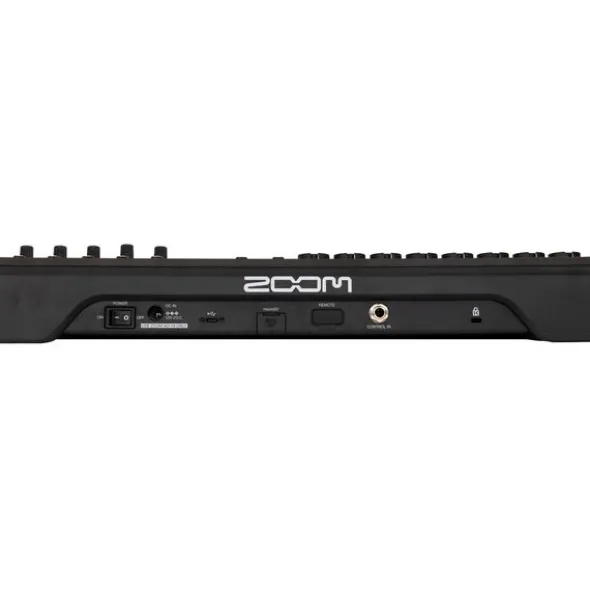

• Power supply via Zoom AD-19 mains power (12V / 2A)
• Dimensions (W x D x H): 445 x 285 x 73 mm
• Weight: 2.4 kg

Disponível desdeJaneiro 2026

número de artigo632188

unidade de venda1peça(s)

Recording / Playback Channels14×4

Number of Mic Inputs8

Number of Line Inputs12

Instrument Inputs2

Number of Line Outs6

Headphone Outs4

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width445 mm

Depth285 mm

Height73 mm

Connection FormatUSB port Type C

User InterfacePhysical

Number Of Tracks12

Number of faders12

Simultaneous Recording: Amount Of Tracks14

DSP Input channels12

EffectsYes

Storage MediumSD, USB

DSP Output Channels6

Phantom powerYes

Busses6

Number of Microphone Inputs8

XLR Connectors8

Number of Mono Line Inputs8

Jack Connectors4

Number of Stereo Line Inputs2

RCA ConnectorsYes

MIDI InterfaceNone

Physical outputs9

Digital stagebox connectionNo

USB connectionYes

Digital ConnectionsNone

HotspotNo

Miscellaneous ConnectorsControl In

Multitrack RecordYes

Headphone connectionYes

OptionsAudiointerface, Compressor

Soundcard interfaceUSB-C

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV

RTANo

FX Processor1

31 Band EQ0

Matrix0

DCA/VCA Groups0

Sample rate44,1/48/96 kHz

Separate Personal Monitor systemNo

Expansion Card slots0

Digital ADATNo

Digital SPDIFNo

Included in deliveryPower Supply

Digital AES3/ASESEBNo

Digital MADINo

Zero latency monitoringYes

Digital DanteNo

110V capableYes

CaseNo

19″ RackmountNo

Weight2,4 kg
