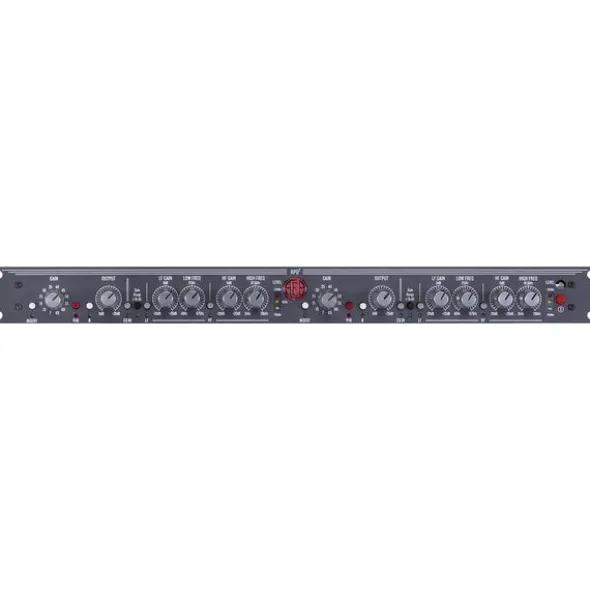

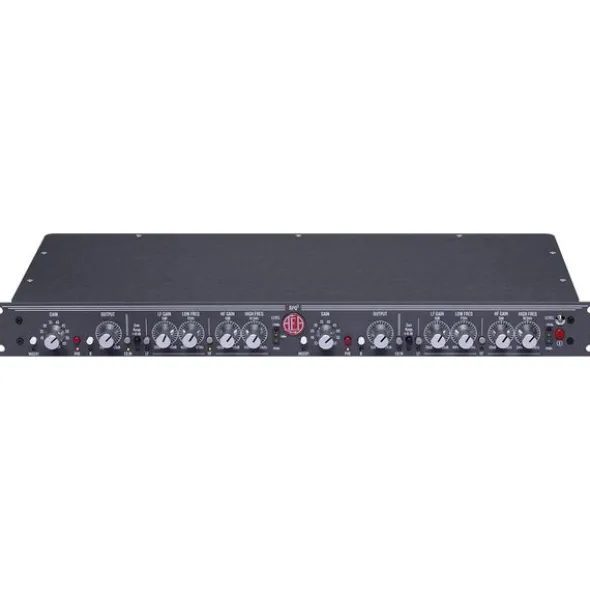

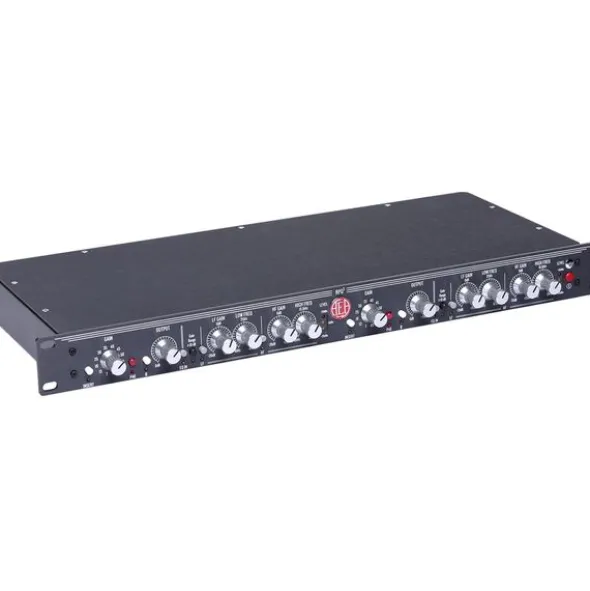

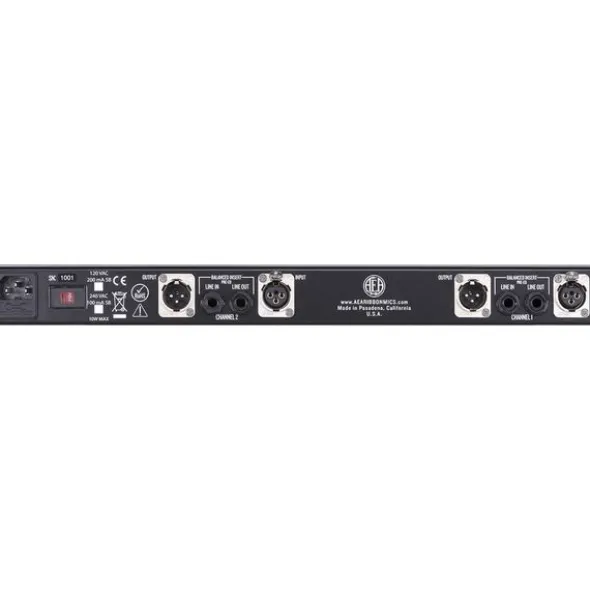

AEA RPQ3

Microphone Amplifier

• Two channels
• 85 dB gain
• Two-band EQ for processing the treble and bass
• Balanced insert per channel (before EQ)
• Switchable 48 V phantom power and phase inversion
• Equivalent noise level: -130 dBu (typical), 40 ohm source
• Equivalent noise level: -128 dBu (typical), 150 ohm source
• Max. XLR output level: +27 dBu at 600 ohm
• Input impedance with phantom power: 11.3 kOhm
• Input impedance without phantom power: 68 kOhm
• Dimensions (W x D x H): 482 x 228 x 457 mm
• Weight: 2 kg

Disponível desdeAbril 2024

número de artigo590111

unidade de venda1peça(s)

Channels2

Number of microphone inputs2

Instrument inputNo

TubesNo

Compressor/LimiterNo

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsYes

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionNo

Level MeterYes

Design19″ / 1U
