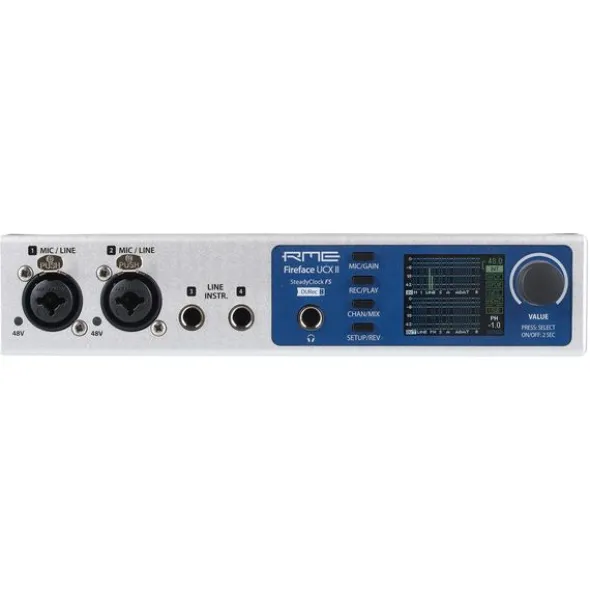

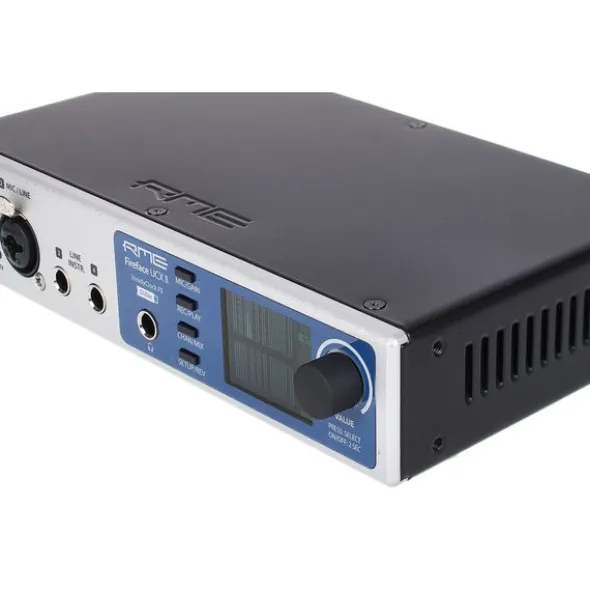

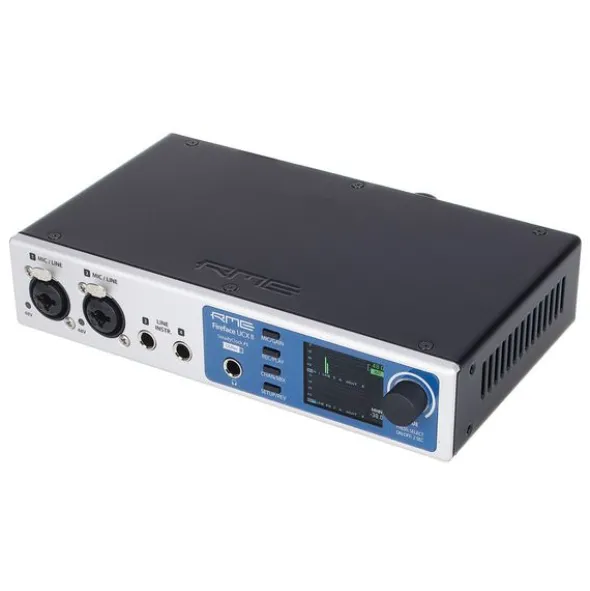

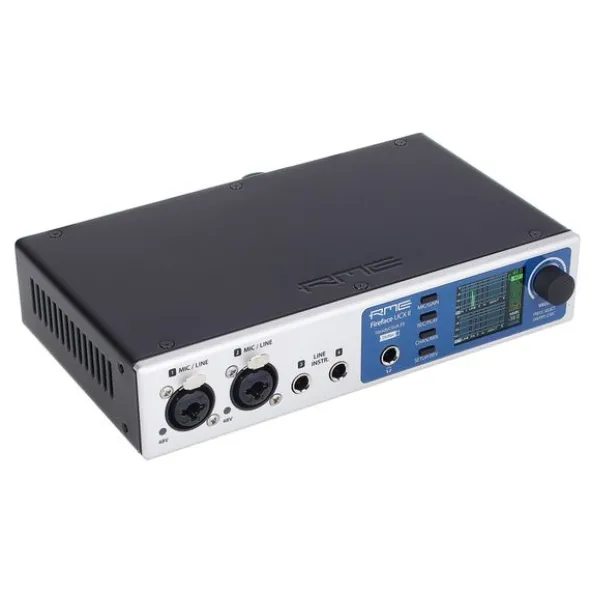

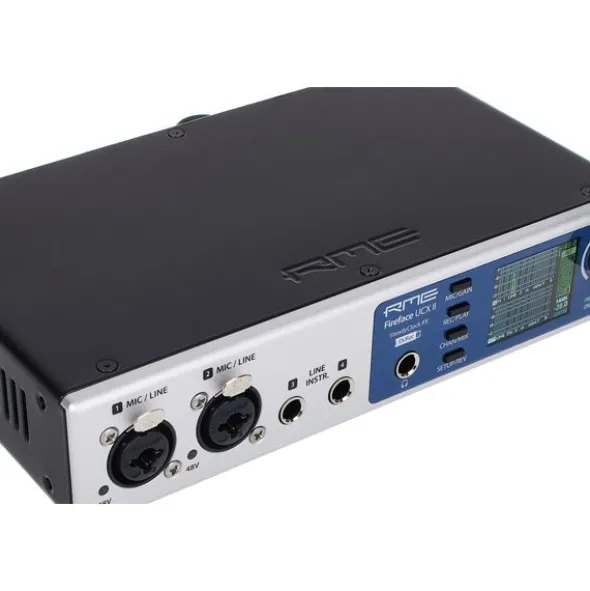

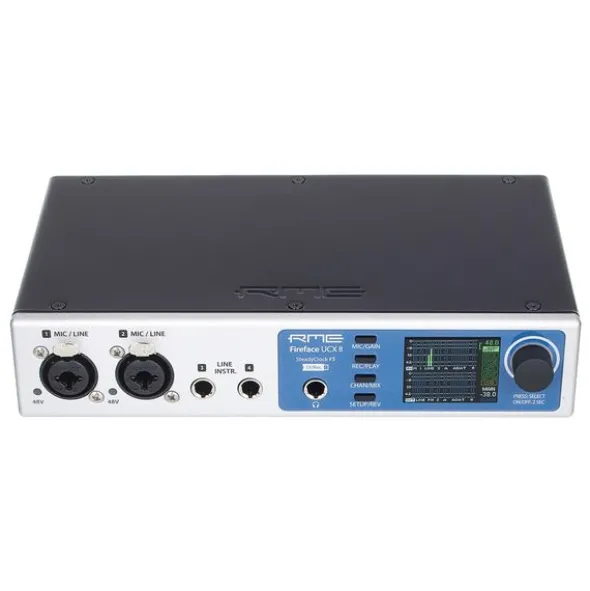

RME Fireface UCX II

USB 2.0 Audio Interface

• 24 Bit / 192 kHz AD/DA converter
• 20 Input and output channels
• SteadyClock FS
• Stand-alone functionality
• DURec feature: built-in digital recorder for all inputs and outputs directly to USB storage devices via the rear USB port (enables recording to USB sticks or hard drives with up to 2 TB capacity)
• TotalMix mixing / routing software
• DigiCheck software
• Class Compliant
• Compatible with optional ARC USB remote control (not included)
• DC-coupled outputs – CV/Gate Voltage Control
• +48 V phantom power
• Colour display
• Housingt type: 9.5″ 1 U
• Dimensions (W x H x D): 215 x 44 x 130 mm
• Weight: 910 g
• Incl. external power supply 100V – 240V AC, 12V 2A DC

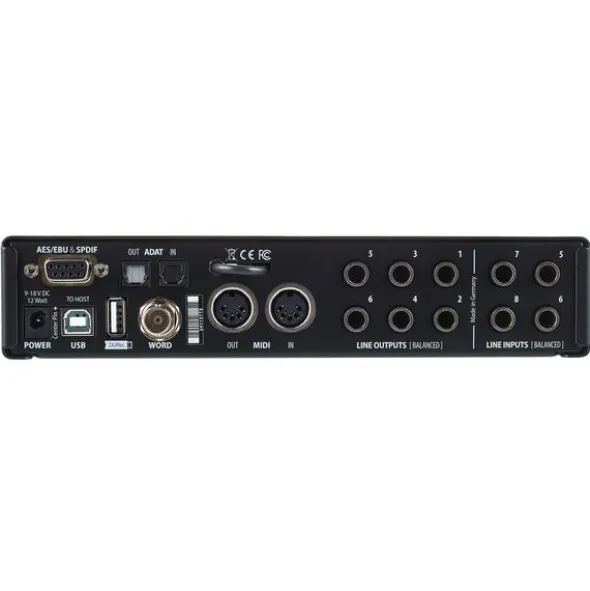

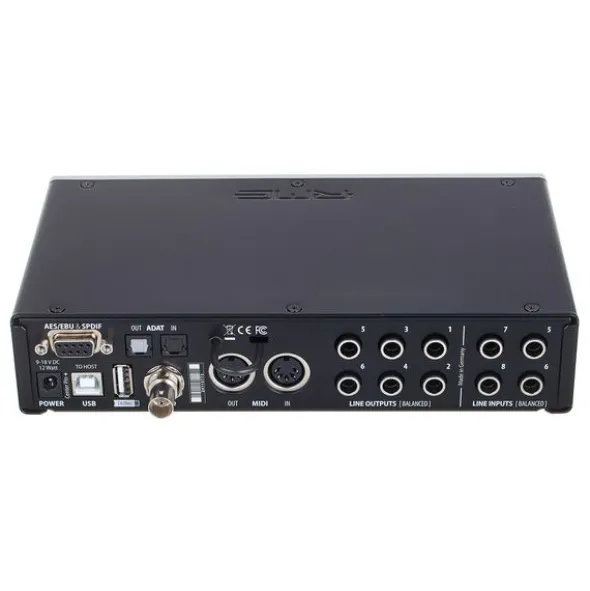

Connections:

• 2 Mic/line combo inputs: XLR / 6.3 mm jack
• 2 Instrument/line inputs: 6.3 mm jack
• 4 Line inputs: 6.3 mm jack
• 6 Line outputs: 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• ADAT input and output
• Word Clock input and output
• AES/EBU and S/PDIF coax
• MIDI input and output
• DUrec USB

Disponível desdeJulho 2021

número de artigo521302

unidade de venda1peça(s)

Recording / Playback Channels20×20

Number of Mic Inputs2

Number of Line Inputs8

Instrument Inputs2

Number of Line Outs6

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors1

Numer of AES/EBU Connectors1

Number of MADI Connectors0

Ethernet0

Other ConnectorsDUrec USB

MIDI interfaceYes

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width215 mm

Depth130 mm

Height44 mm

Connection FormatUSB port Type B

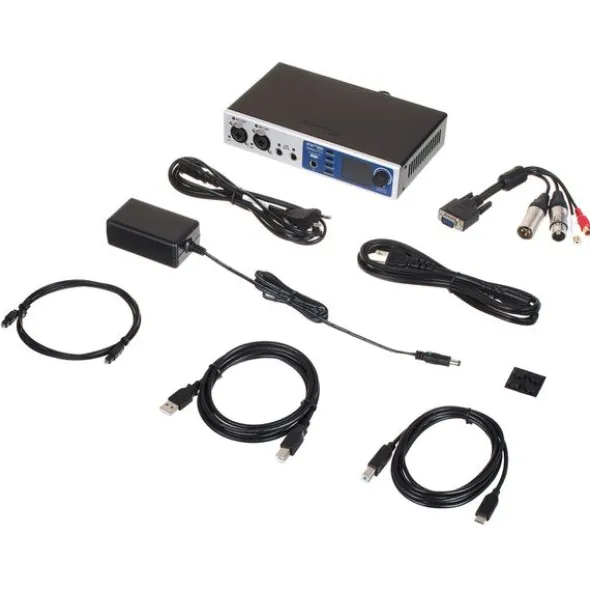

Included in deliveryPower Cable, USB-A to USB-B Cable, USB-B to USB-C Cable, TOSlink Cable, S/PDIF+AES Adaptor Cable

Zero latency monitoringYes
